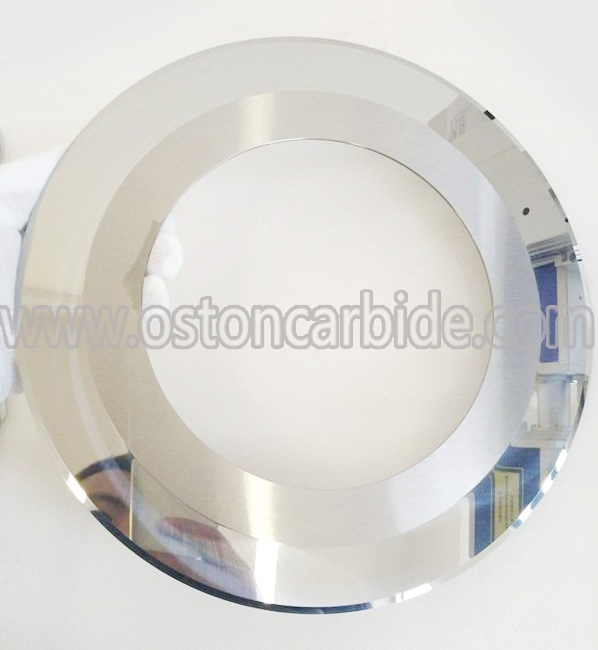

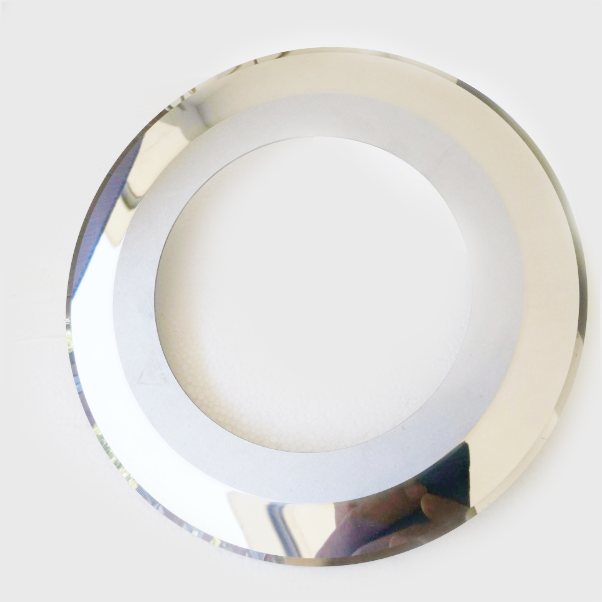

YG13X 0.4-0.6um Sub-micro Grain Mirror Polished Cemented Carbide Circular Blades for Paper Slitting
Quality grade: YG13X
Cobalt content: 13%
Density: 14.4-14.5g/cm³
Hardness: HRA92.0-HRA92.5
T.R.S: 3800-4000 MPA
Porosity: A02B00C00
| No. | Specification (ODxIDxT: mm) |
Holes and Key slots | Available for machine |
| 1 | Φ220*Φ115*1 | 3 Holes*Φ9 | AGNATI |

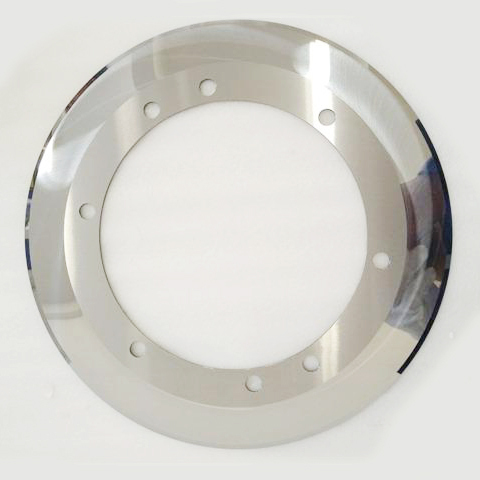

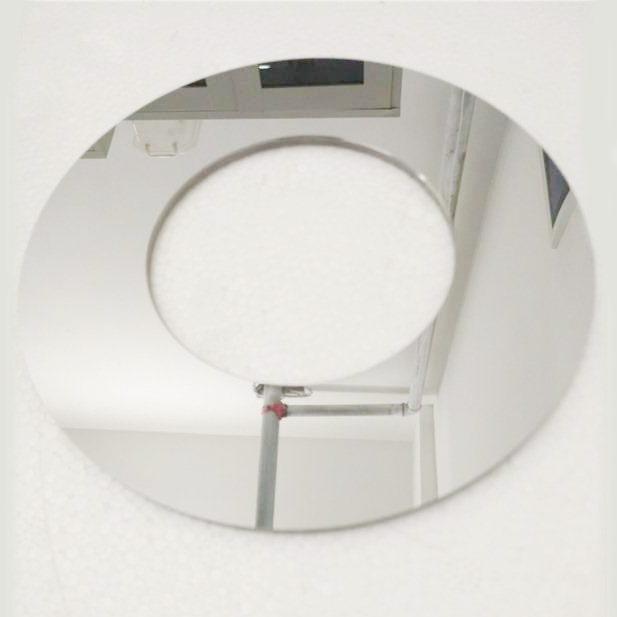

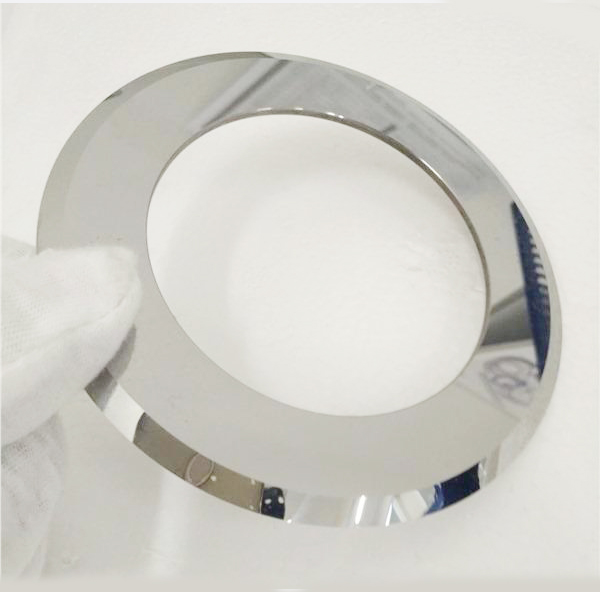

| 2 | Φ230*Φ110*1.1 | 6 Holes*Φ9 | FOSBER |
| 3 | Φ230*Φ135*1.1 | 4 Key slots | FOSBER |
| 4 | Φ240*Φ32*1.2 | 2 Holes *Φ8.5 | BHS |
| 5 | Φ240*Φ115*1 | 3 Holes*Φ9 | AGNATI |
| 6 | Φ250*Φ150*0.8 | PETERS | |
| 7 | Φ257*Φ135*1.1 | FOSBER | |
| 8 | Φ260*Φ112*1.5 | 6 Holes*Φ11 | ORANDA |
| 9 | Φ260*Φ140*1.5 | ISOWA | |
| 10 | Φ260*Φ168.3*1.2 | 8 Holes*Φ10.5 | MARQUIP |
| 11 | Φ270*Φ168.3*1.5 | 8 Holes*Φ10.5 | HSEIH |
| 12 | Φ270*Φ140*1.3 | 6 Holes*Φ11 | VATANMAKEINA |
| 13 | Φ270*Φ170*1.3 | 8 Holes*Φ10.5 | |
| 14 | Φ280*Φ160*1.0 | 6 Holes*Φ7.5 | MITSUBISHI |
| 15 | Φ280*Φ202*1.4 | 6 Holes*Φ8.0 | MITSUBISHI |
| 16 | Φ291*Φ203*1.1 | 6 Holes *Φ8.5 | FOSBER |
| 17 | Φ300*Φ112*1.2 | 6 Holes*Φ11 | TCY |
