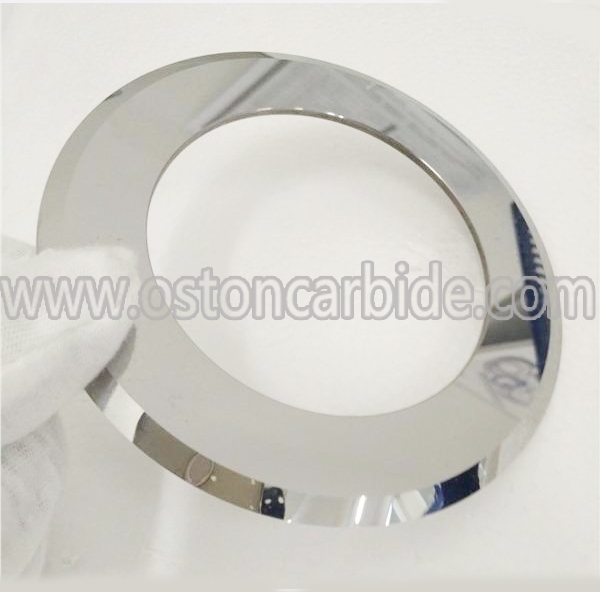

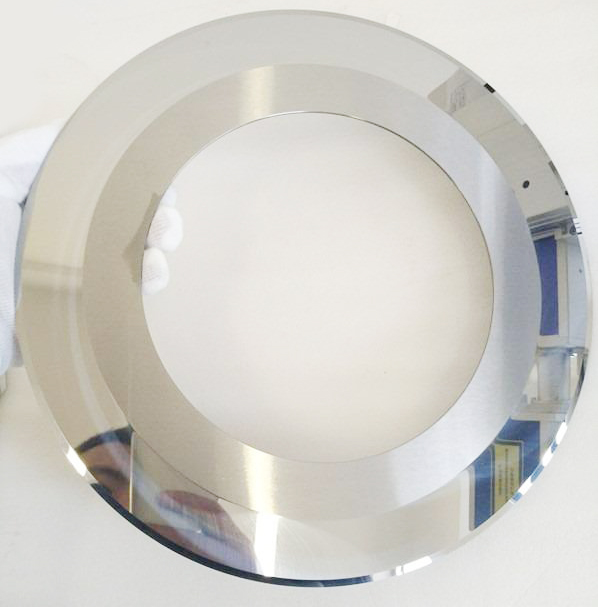

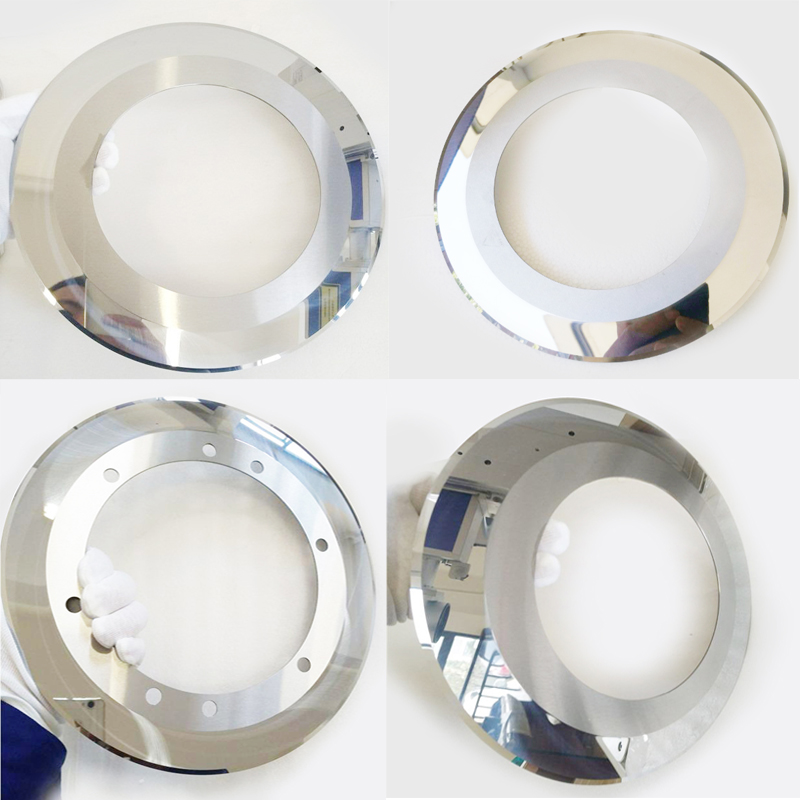

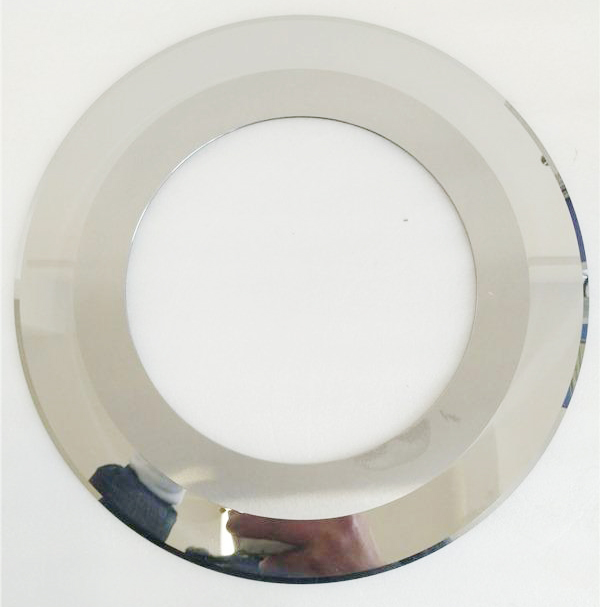

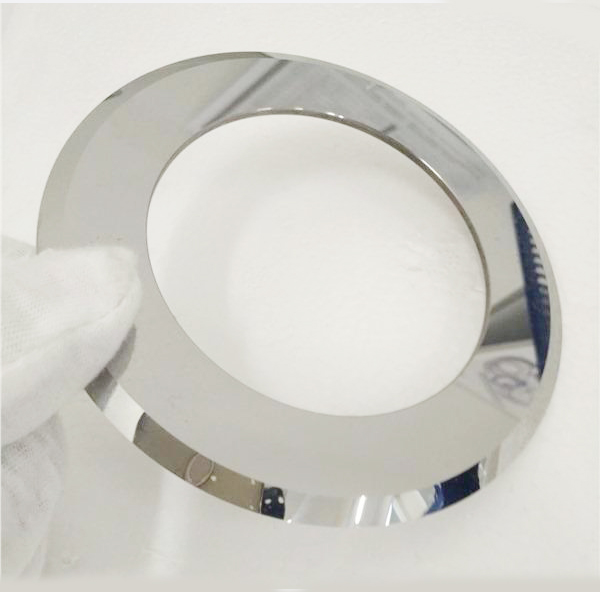

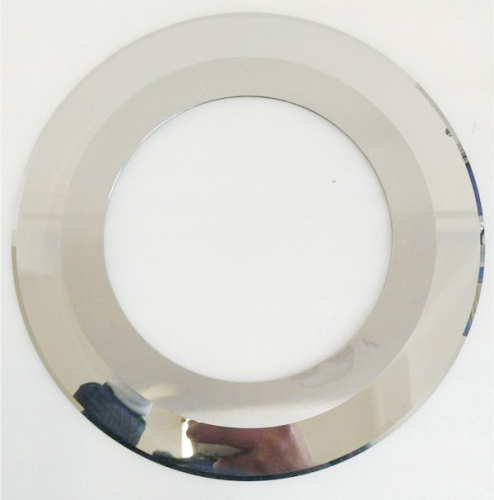

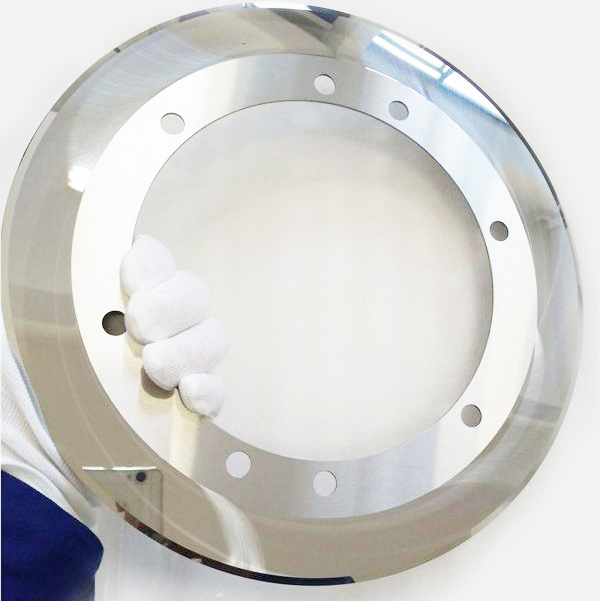

Φ270*Φ140*1.3mm Single Bevelled Tungsten Carbide Upper Slitter knife for Tissue Cutting Machine
ANALYSIS OF TYPICAL PROBLEMS OF CORRUGATED BOARD SLITTING BLADE
1. Reasons of Wear out quickly and short service life
---Please check the grit of sharpening wheels,sharpening time and the sharpening pressure
2. Reasons of deburs of the slittered corrugated paper.
---The blades is not sharp enough or the cutting angle need be adjusted,the other reason is that the paper is too watery.
3.Reasons of breakage of slitter blades
---Deformed flange shaft and fastening screw will case the incorrect assembling;Blades can't be touched with any hard material,tiny crackling will lead to its breakge;Runout of the diamond sharpening wheels will lead to defect of blades too.
4. The cutting of corrugated board is not straight enough
---The thickness of the blades is not strong enough.

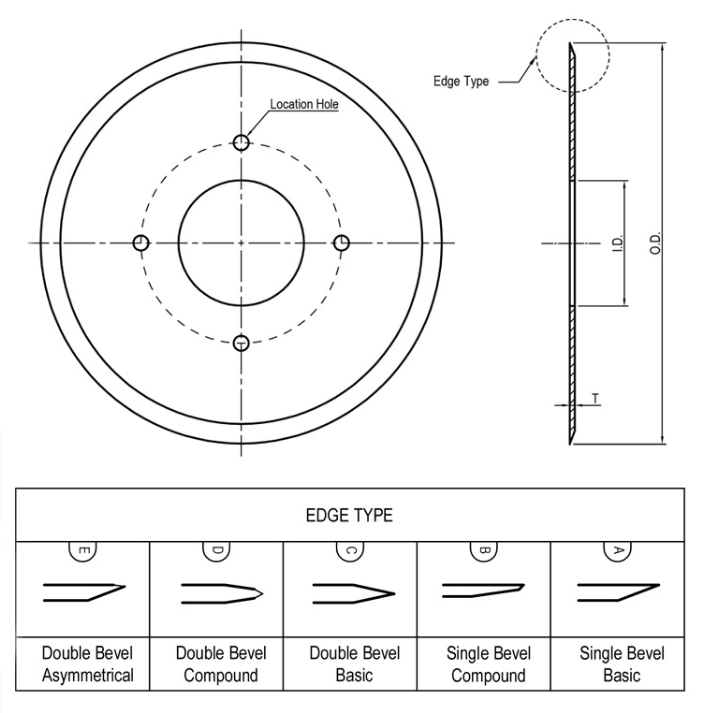

| No. | Specification (ODxIDxT: mm) |
Holes and Key slots | Available for machine |
| 1 | Φ220*Φ115*1 | 3 Holes*Φ9 | AGNATI |
| 2 | Φ230*Φ110*1.1 | 6 Holes*Φ9 | FOSBER |
| 3 | Φ230*Φ135*1.1 | 4 Key slots | FOSBER |
| 4 | Φ240*Φ32*1.2 | 2 Holes *Φ8.5 | BHS |
| 5 | Φ240*Φ115*1 | 3 Holes*Φ9 | AGNATI |
| 6 | Φ250*Φ150*0.8 | PETERS | |
| 7 | Φ257*Φ135*1.1 | FOSBER | |
| 8 | Φ260*Φ112*1.5 | 6 Holes*Φ11 | ORANDA |
| 9 | Φ260*Φ140*1.5 | ISOWA | |
| 10 | Φ260*Φ168.3*1.2 | 8 Holes*Φ10.5 | MARQUIP |
| 11 | Φ270*Φ168.3*1.5 | 8 Holes*Φ10.5 | HSEIH |
| 12 | Φ270*Φ140*1.3 | 6 Holes*Φ11 | VATANMAKEINA |
| 13 | Φ270*Φ170*1.3 | 8 Holes*Φ10.5 | |
| 14 | Φ280*Φ160*1.0 | 6 Holes*Φ7.5 | MITSUBISHI |
| 15 | Φ280*Φ202*1.4 | 6 Holes*Φ8.0 | MITSUBISHI |
| 16 | Φ291*Φ203*1.1 | 6 Holes *Φ8.5 | FOSBER |
| 17 | Φ300*Φ112*1.2 | 6 Holes*Φ11 | TCY |
