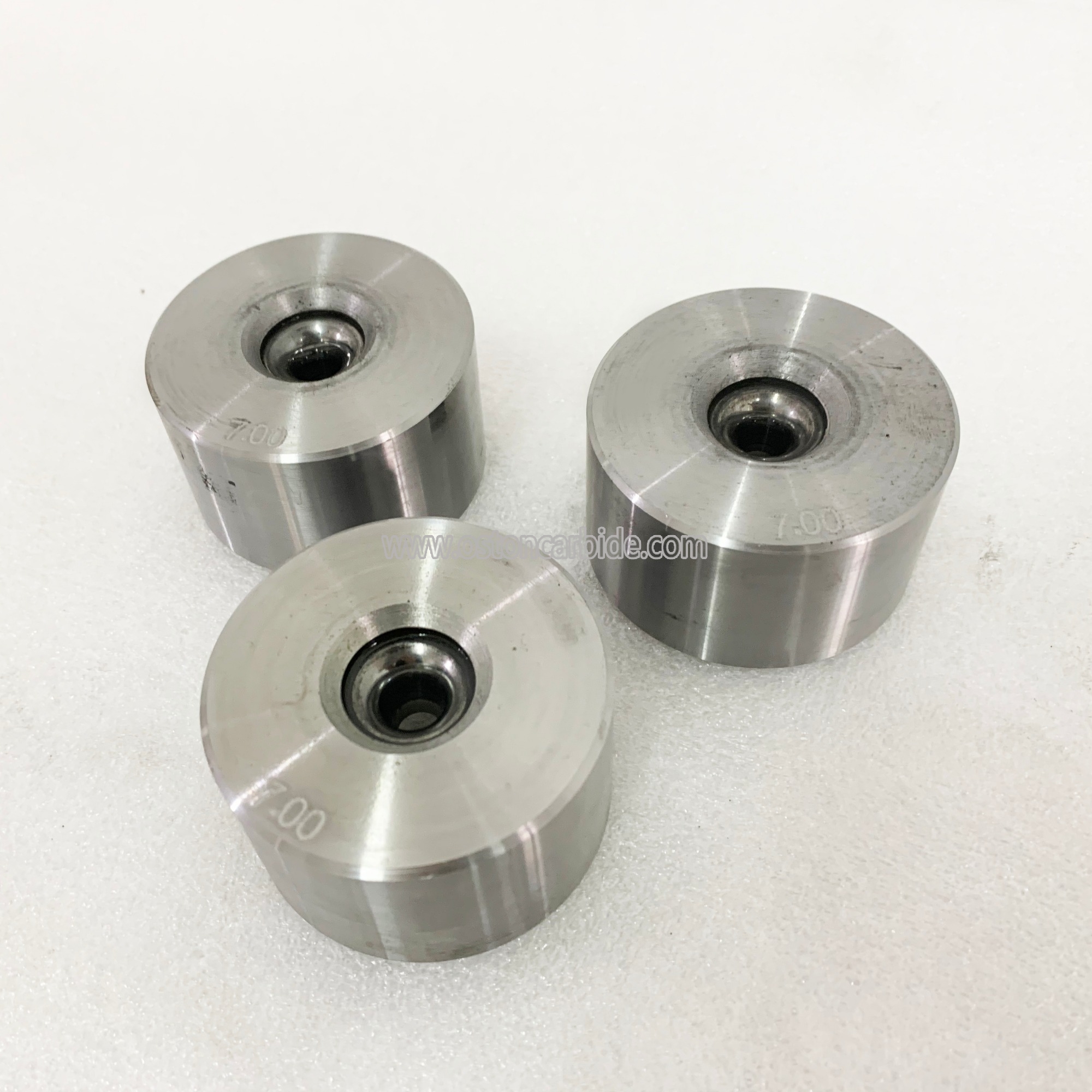

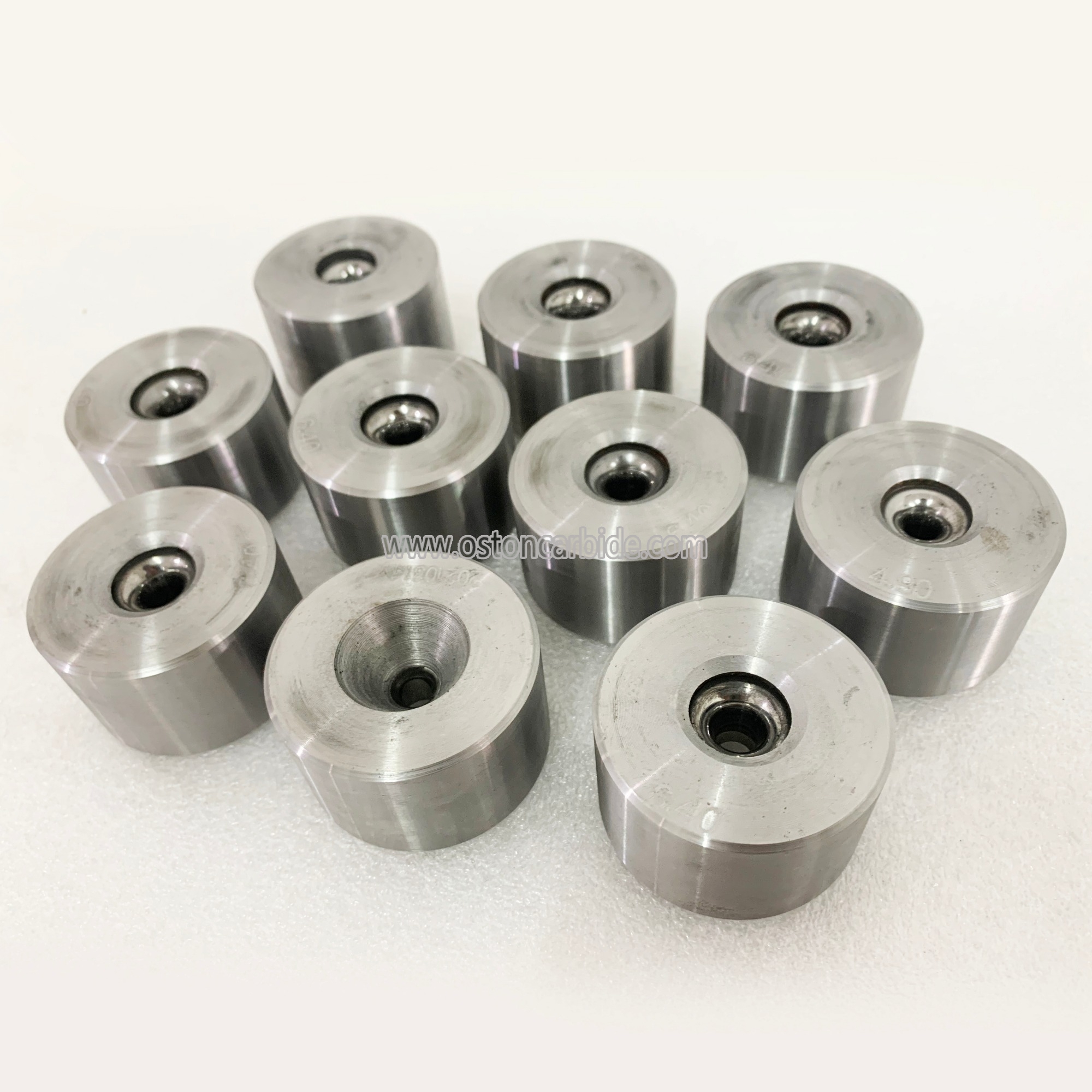

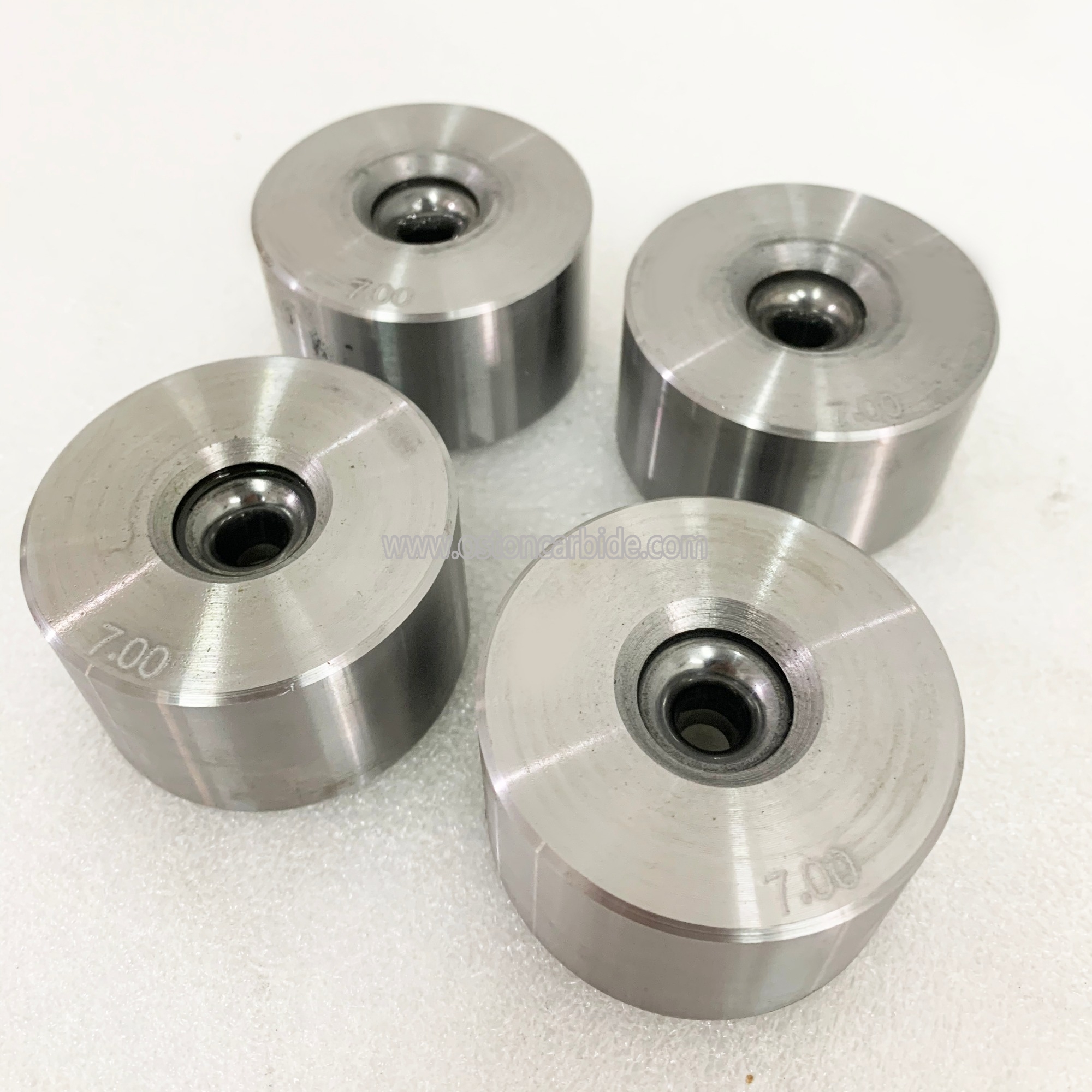

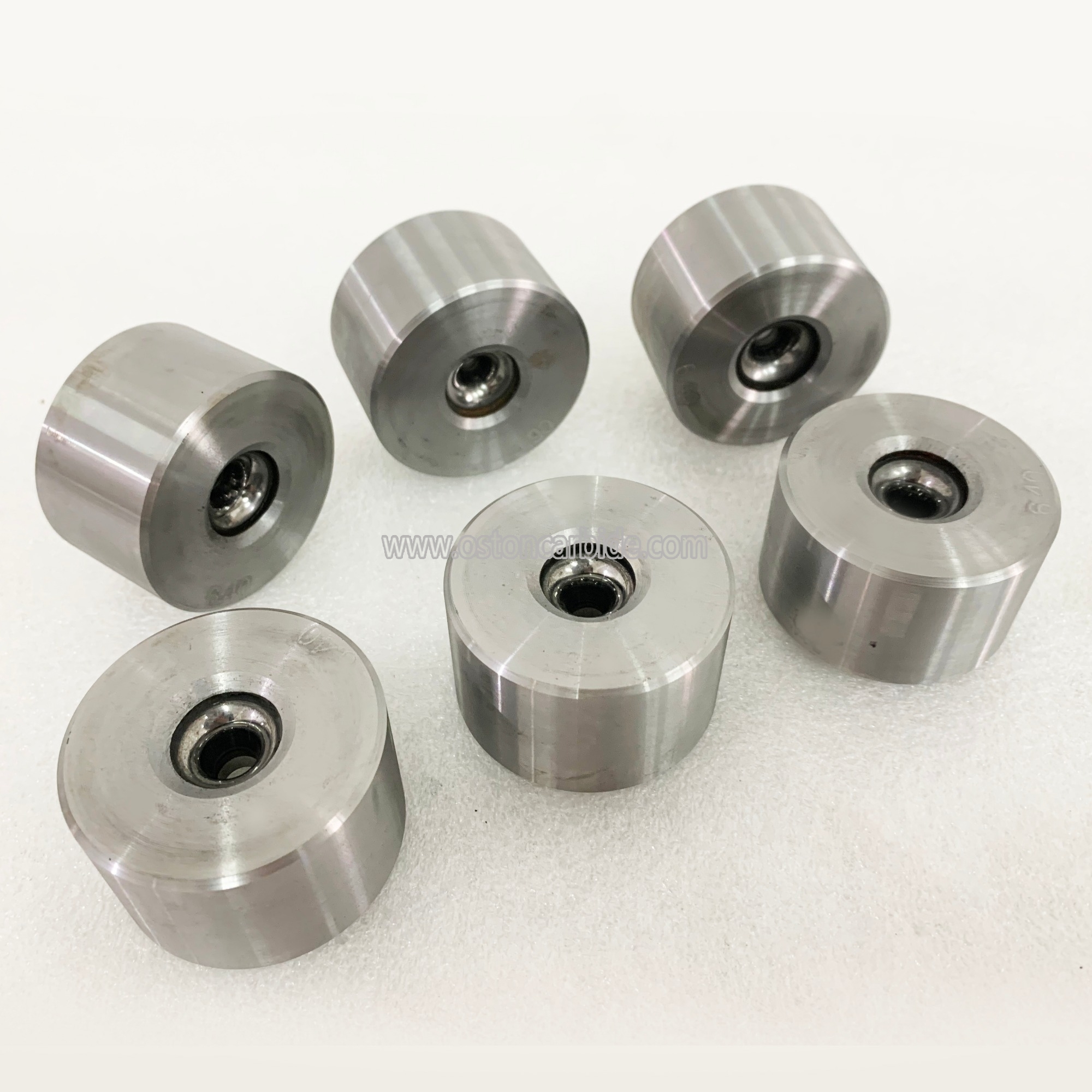

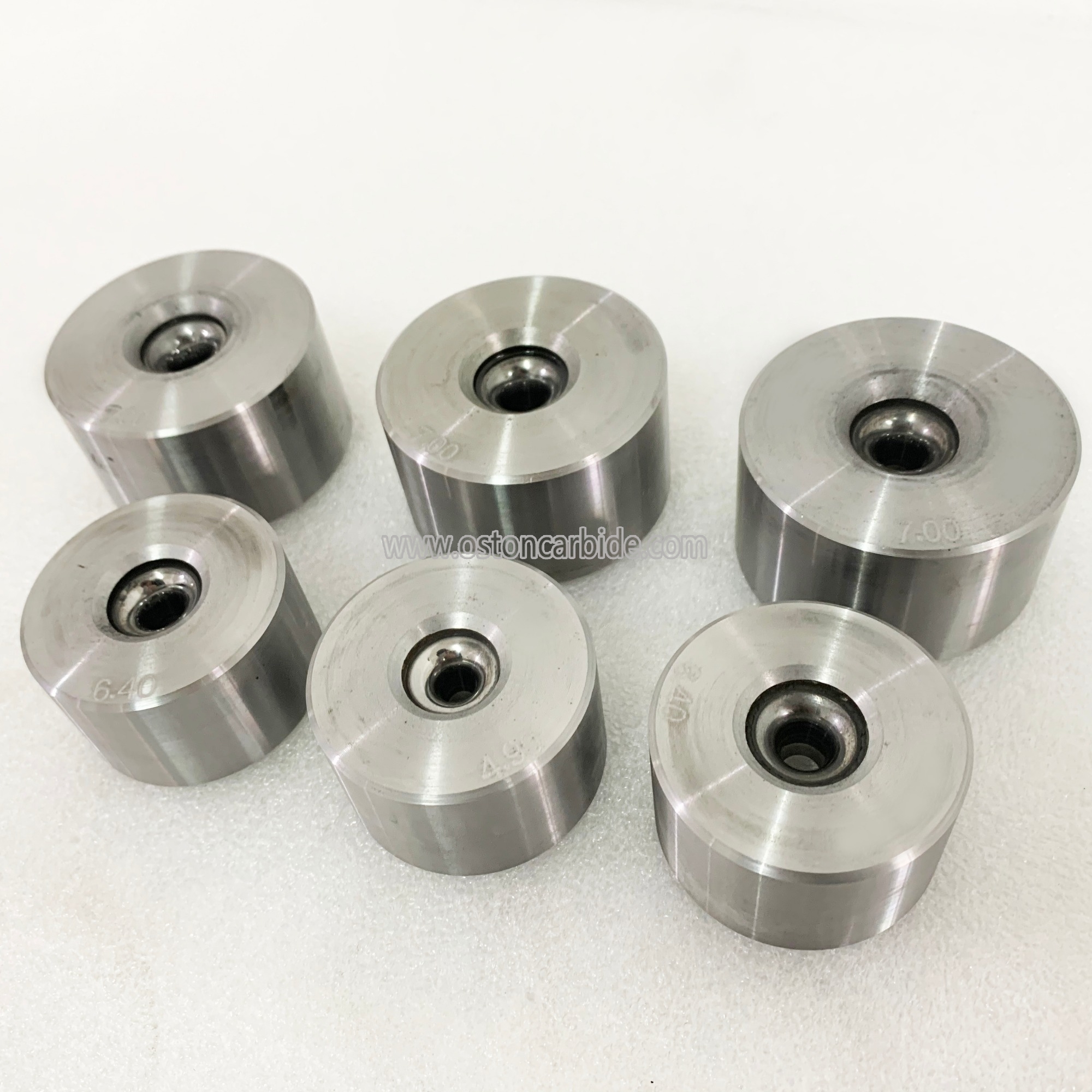

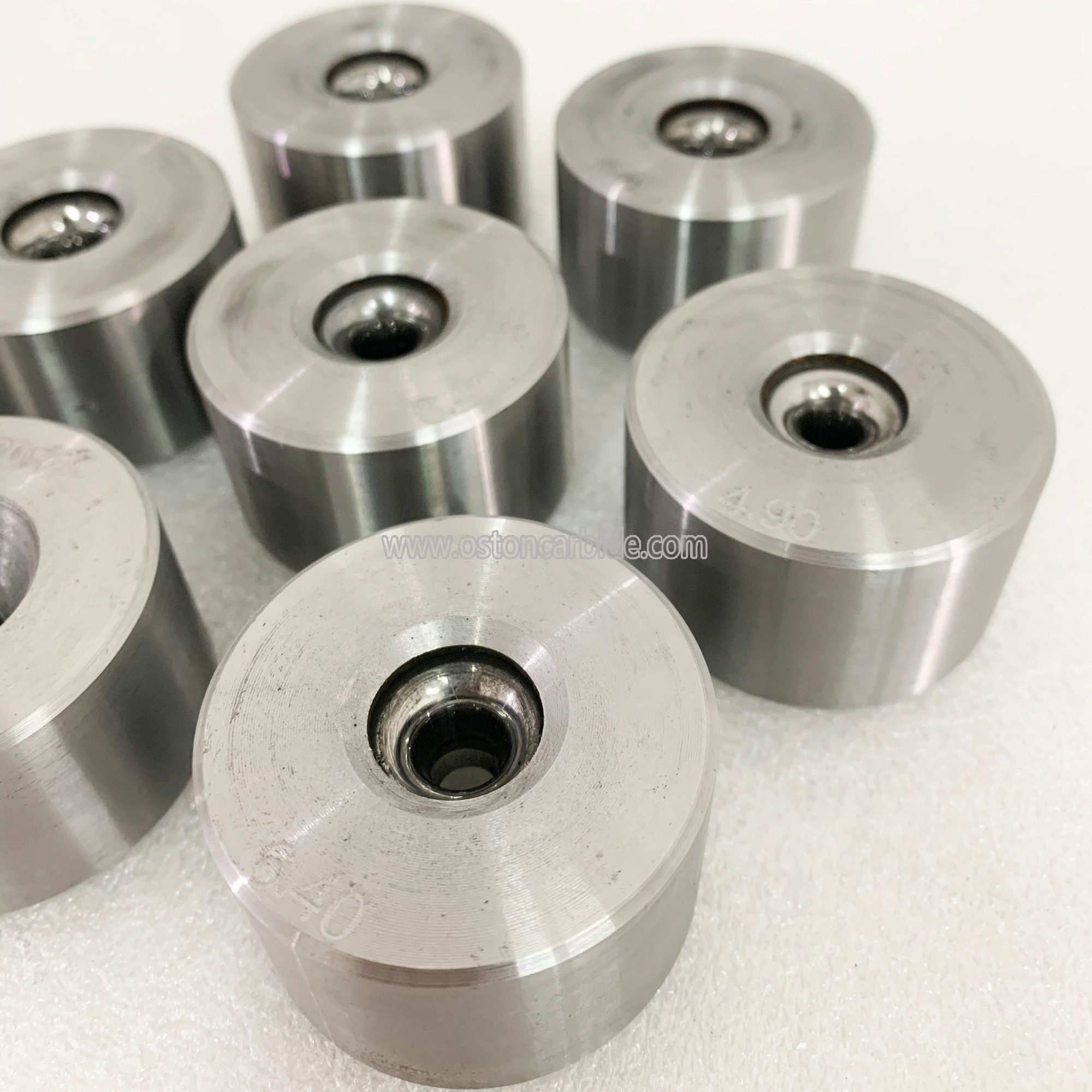

We supply all carbide parts for wire industry,including:
| Case Size(mm) | Nib Size(mm) | Hole Size | Tolerance | ||
| OD(mm) | H(mm) | D(mm) | h(mm) | d (mm) | mm |
| 25x12 | 9x6 | 0.15~0.5 | 0~-0.02 | ||
| 30x16 | 13x10 | 0.5~2.6 | 0~-0.02 | ||
| 32x23 | 16x13 | 0.8~3.5 | 0~-0.02 | ||
| 32x23 | 16x14 | 1.0~3.5 | 0~-0.02 | ||
| 40x25 | 20x17 | 1.5~6.5 | 0~-0.02 | ||
| 40x26 | 22x18 | 1.8~6.5 | 0~-0.02 | ||
| 50x28 | 25x20 | 3.0~9.5 | 0~-0.02 | ||
| 70x35 | 30x22 | 5.5~12.5 | 0~-0.02 | ||
| 75x35 | 35x25 | 8.5~16.5 | 0~-0.02 | ||
| 80x35 | 40x25 | 16.5~21.5 | 0~-0.02 | ||
| 110x45 | 50x28 | 21.5~24.5 | 0~-0.02 | ||
| 120x50 | 60x35 | 24.5~34.5 | 0~-0.02 | ||
| 130x60 | 70x35 | 34.5~43.5 | 0~-0.02 | ||
| 140x60 | 80x35 | 34.5~45.5 | 0~-0.02 | ||
| 150x60 | 90x35 | 45.5~51 | 0~-0.02 | ||
| 160x75 | 100x40 | 51~56 | 0~-0.02 | ||
| 170x75 | 110x40 | 57~65 | 0~-0.02 | ||
| 180x80 | 120x45 | 66~69 | 0~-0.02 | ||
| 190x85 | 130x50 | 70~76 | 0~-0.02 | ||
| Grade | Co Content(Co%) | Density | Hardness | TRS |
| g/cm2 | HRA | N/mm2 | ||
| YG6X | 6 | 14.95 | ≥91.0 | ≥1800 |
| YG6 | 6 | 14.90 | ≥90.0 | ≥1880 |
| YG8 | 8 | 14.80 | ≥89.5 | ≥2020 |
| YG15 | 15 | 14.20 | ≥87.0 | ≥2900 |
