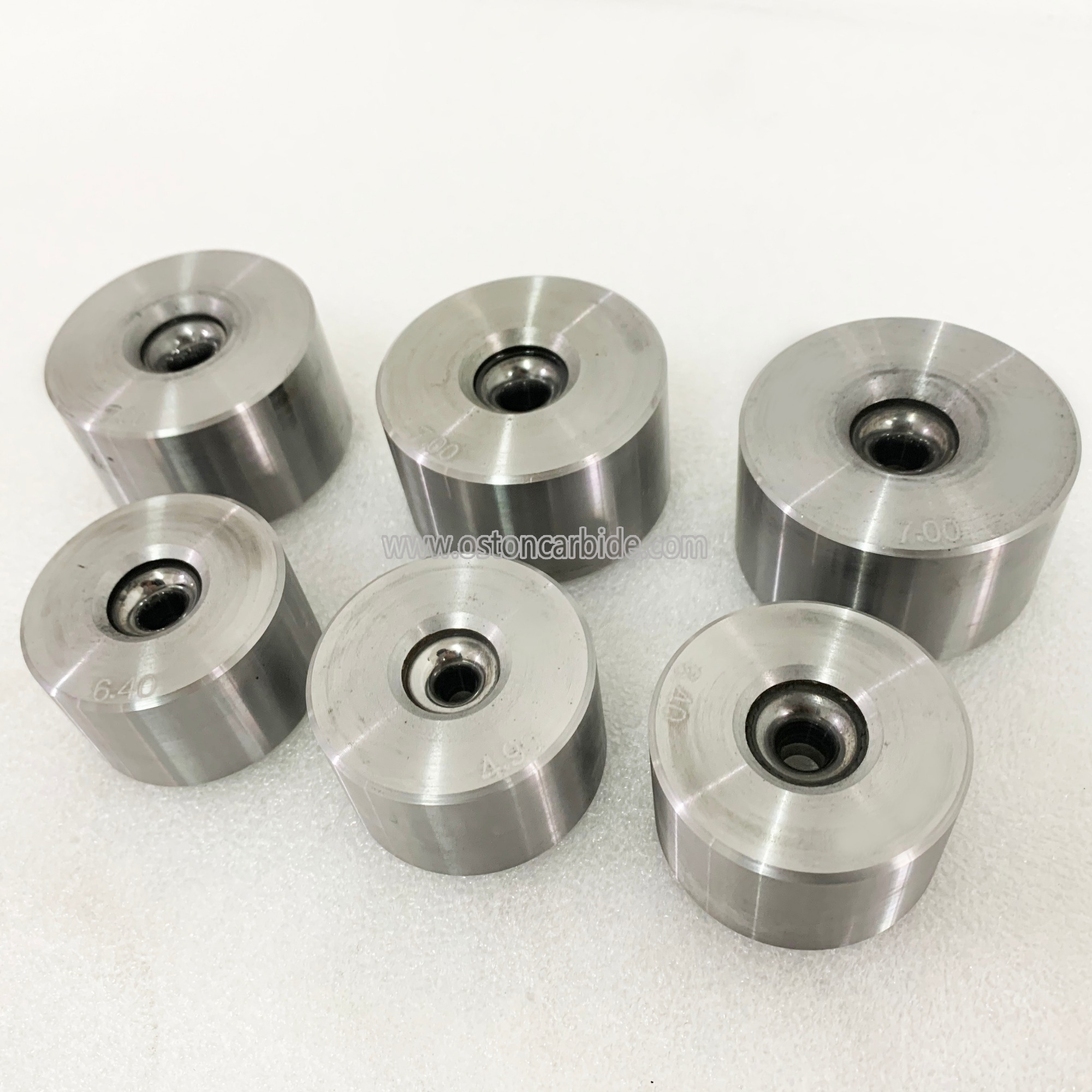

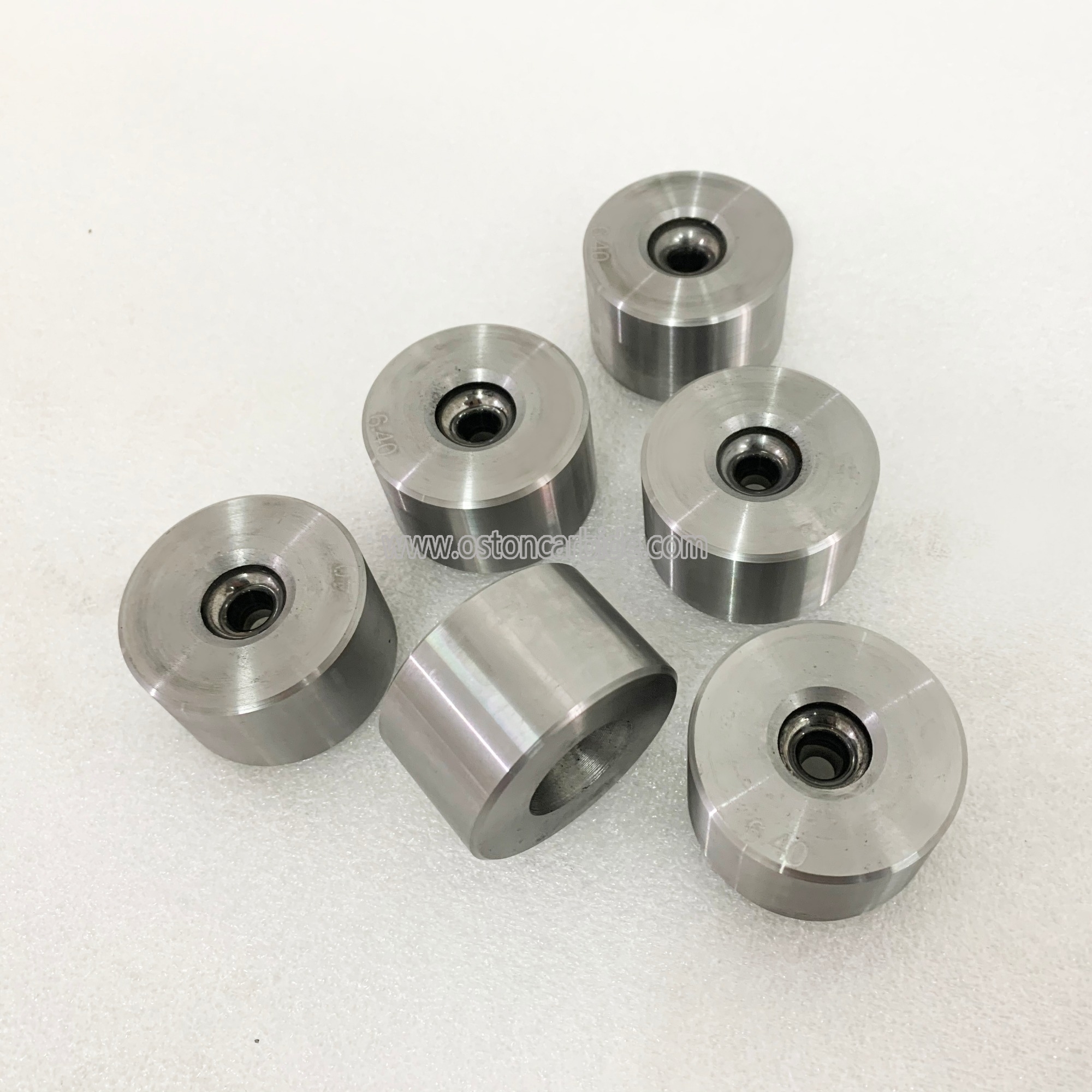

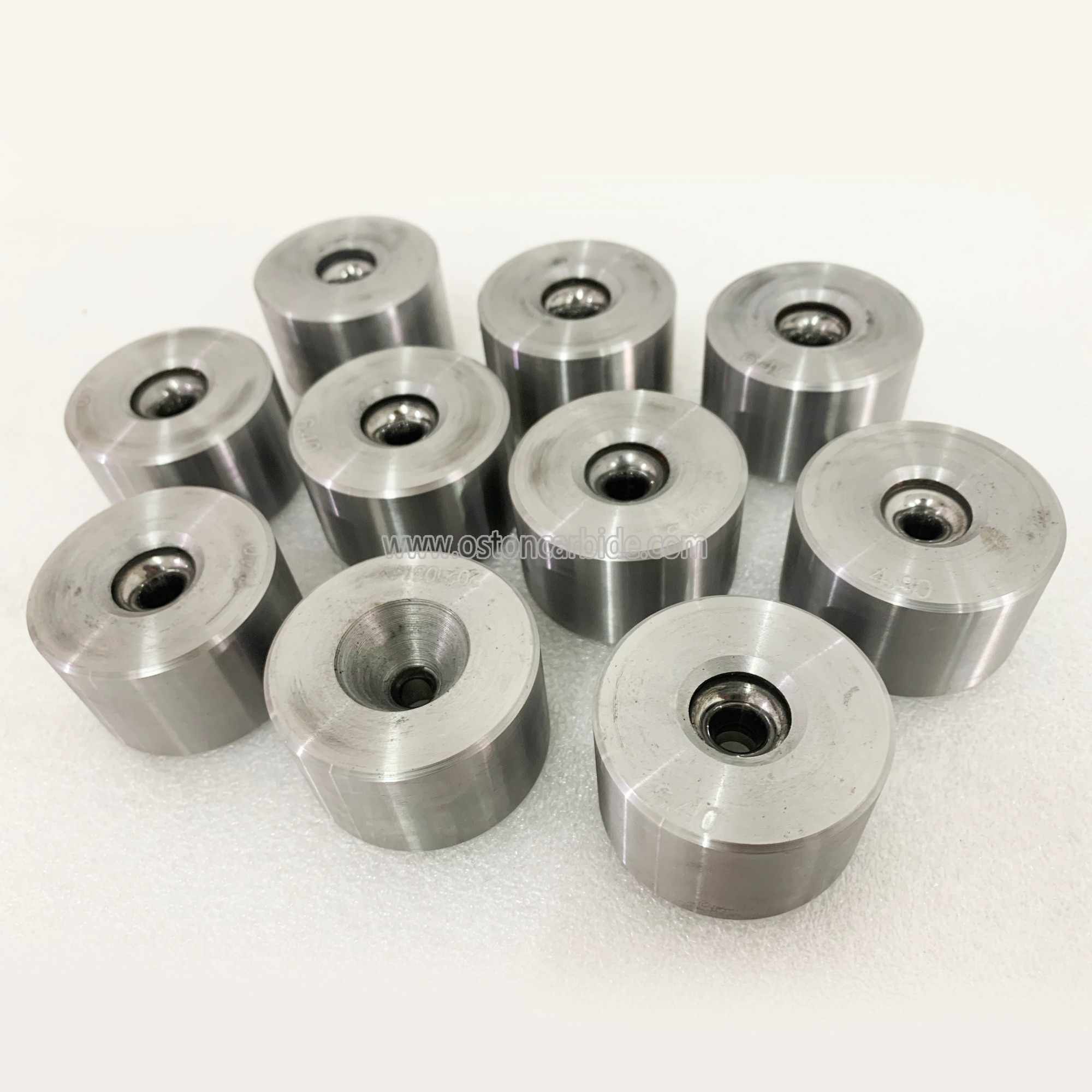

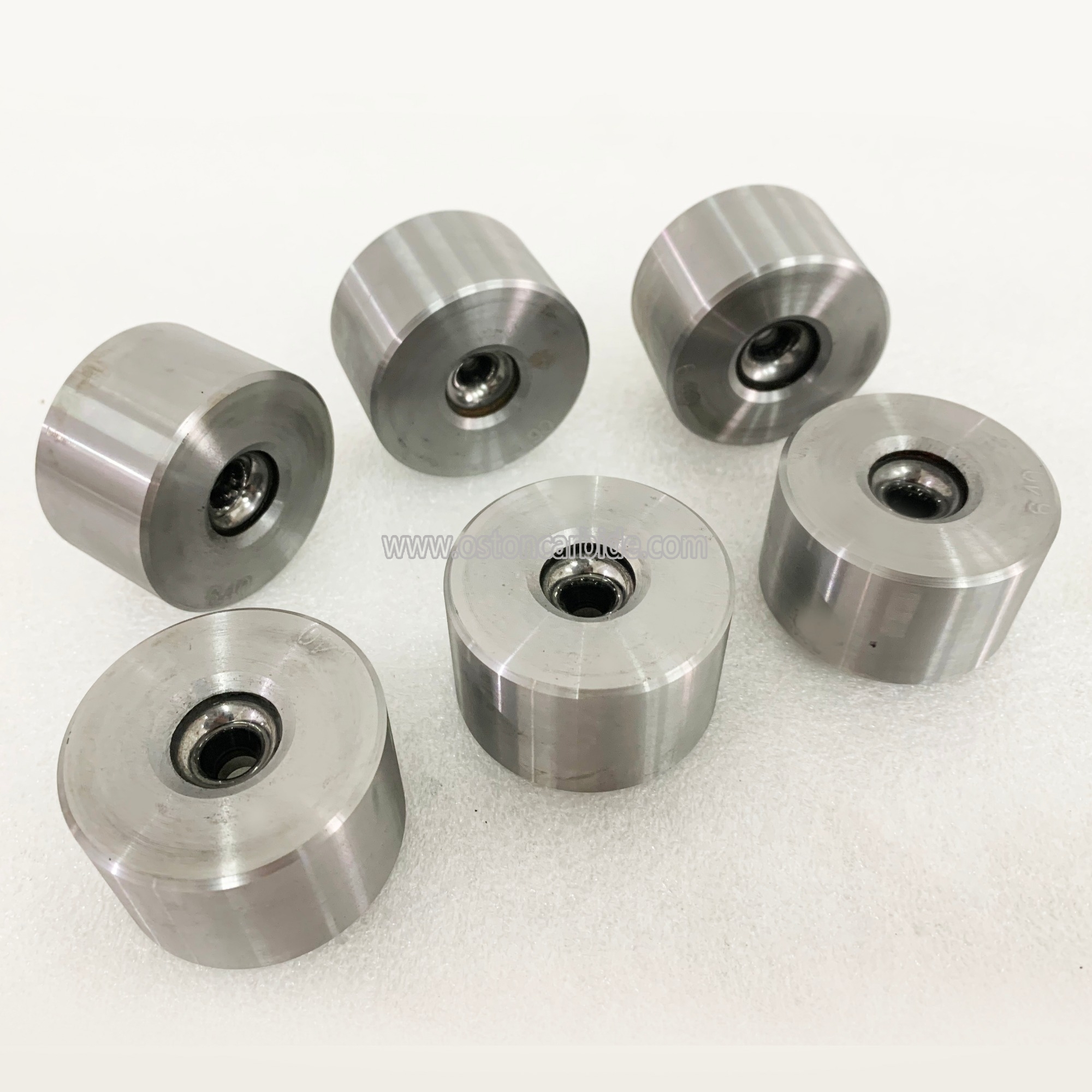

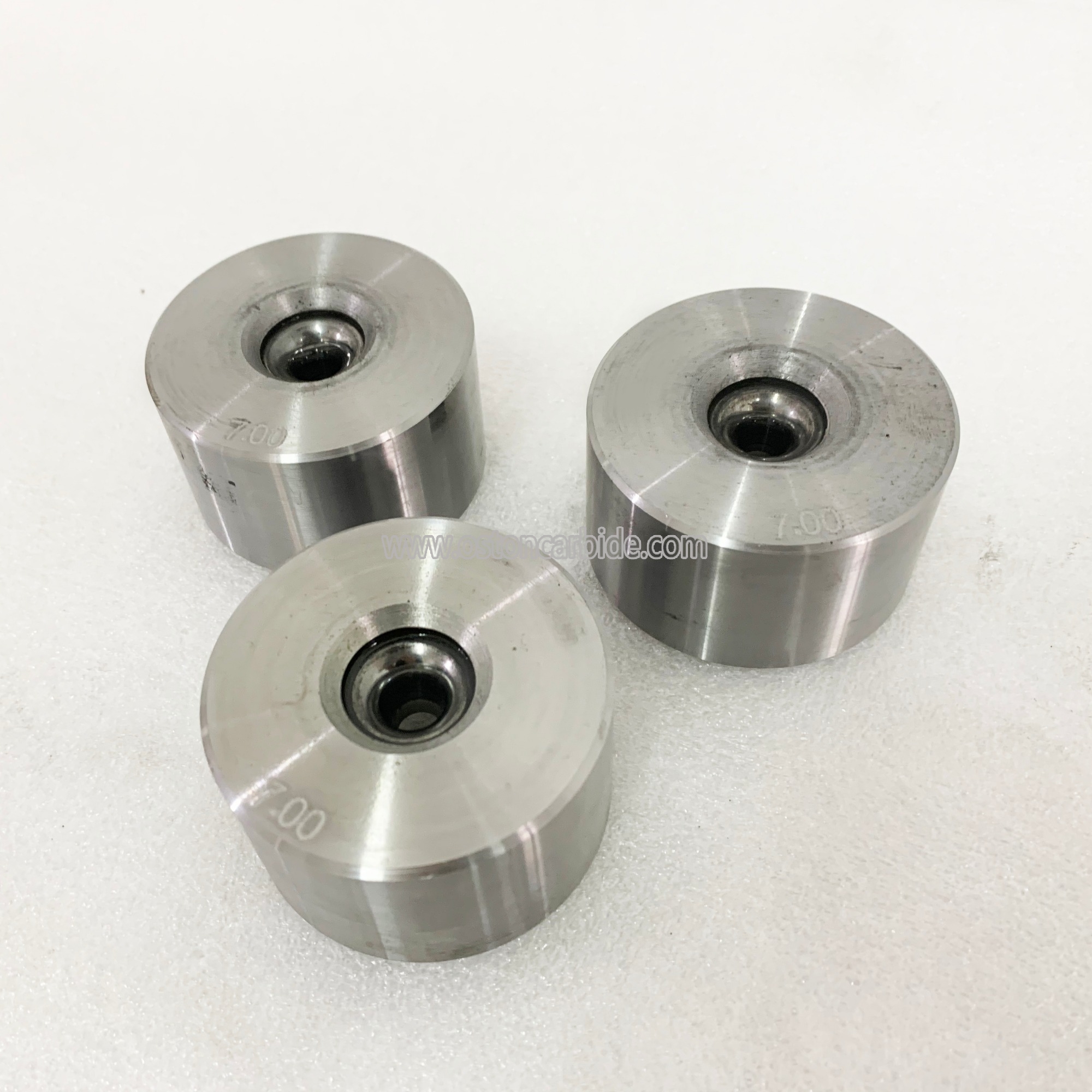

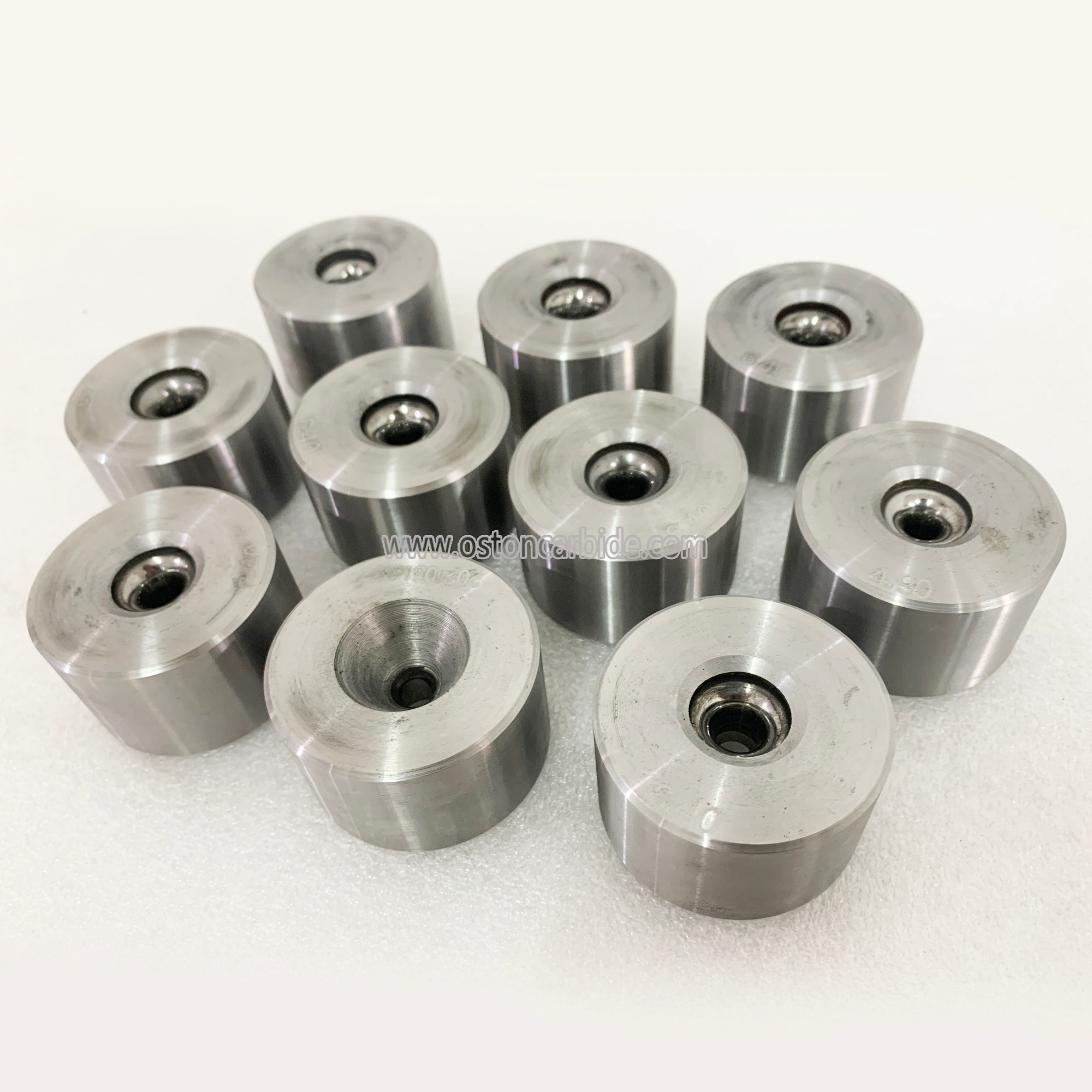

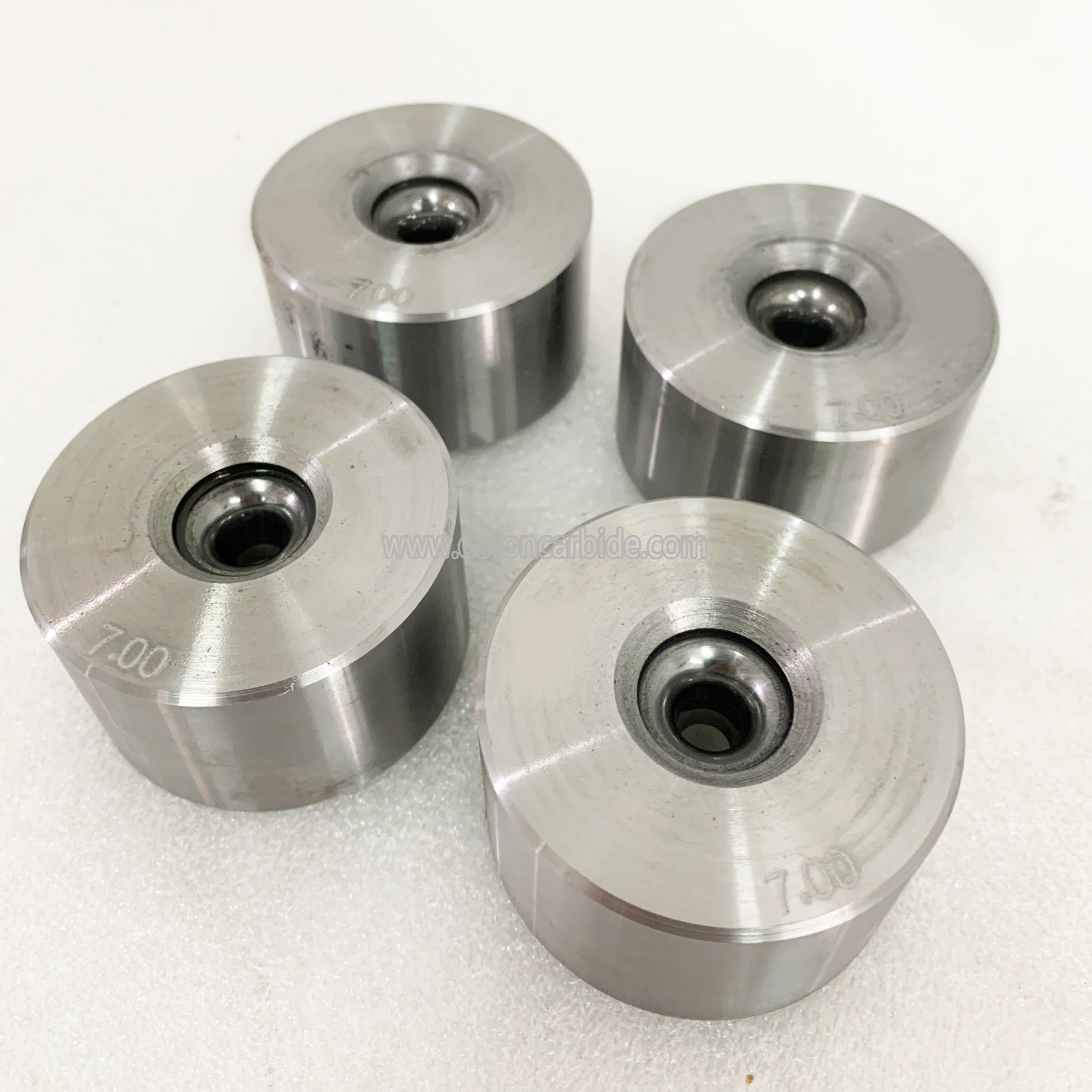

Factory YG6X tungsten carbide wire drawing dies for high carton wire
We supply Regular Carbide nibs,Micro-bore Carbide nibs,Can be supplied in both sintered blanks or inner polish wire drawing dies Or finished tungsten carbide wire drawing dies with steel case.
| Case Size(mm) |
Nib Size(mm) |
Hole Size |
Tolerance |
| OD(mm) |
H(mm) |
D(mm) |
h(mm) |
d (mm) |
mm |
| 25x12 |
9x6 |
0.15~0.5 |
0~-0.02 |
| 30x16 |
13x10 |
0.5~2.6 |
0~-0.02 |
| 32x23 |
16x13 |
0.8~3.5 |
0~-0.02 |
| 32x23 |
16x14 |
1.0~3.5 |
0~-0.02 |
| 40x25 |
20x17 |
1.5~6.5 |
0~-0.02 |
| 40x26 |
22x18 |
1.8~6.5 |
0~-0.02 |
| 50x28 |
25x20 |
3.0~9.5 |
0~-0.02 |
| 70x35 |
30x22 |
5.5~12.5 |
0~-0.02 |
| 75x35 |
35x25 |
8.5~16.5 |
0~-0.02 |
| 80x35 |
40x25 |
16.5~21.5 |
0~-0.02 |
| 110x45 |
50x28 |
21.5~24.5 |
0~-0.02 |
| 120x50 |
60x35 |
24.5~34.5 |
0~-0.02 |
| 130x60 |
70x35 |
34.5~43.5 |
0~-0.02 |
| 140x60 |
80x35 |
34.5~45.5 |
0~-0.02 |
| 150x60 |
90x35 |
45.5~51 |
0~-0.02 |
| 160x75 |
100x40 |
51~56 |
0~-0.02 |
| 170x75 |
110x40 |
57~65 |
0~-0.02 |
| 180x80 |
120x45 |
66~69 |
0~-0.02 |
| 190x85 |
130x50 |
70~76 |
0~-0.02 |
Steel wire rope, twisted wires, low carbon steel wires,high carbon steel wires,stainless steel wires,cutting wires,steel curtain wires,welding wires,copper wires,aluminum wires,iron pipes,copper pipes, aluminum pipes,stainless steel pipes,etc.
