Carbide content: 60%,70%
Hardness Carbide
(HRA): ≥89.5
Matrix alloy melting range: 890-910°C

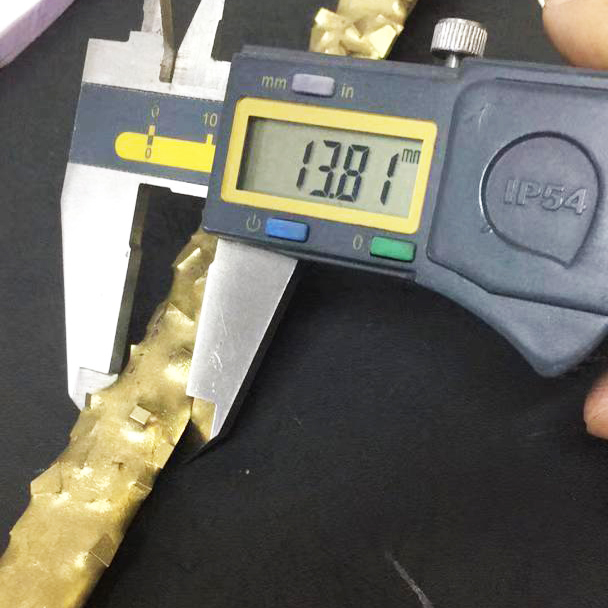

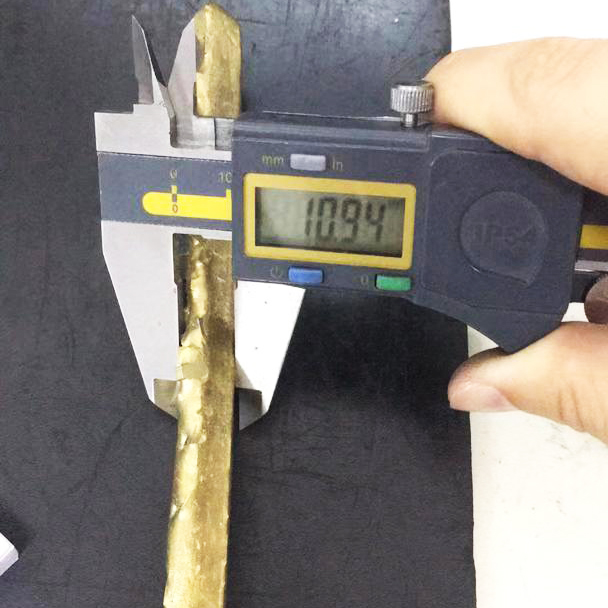

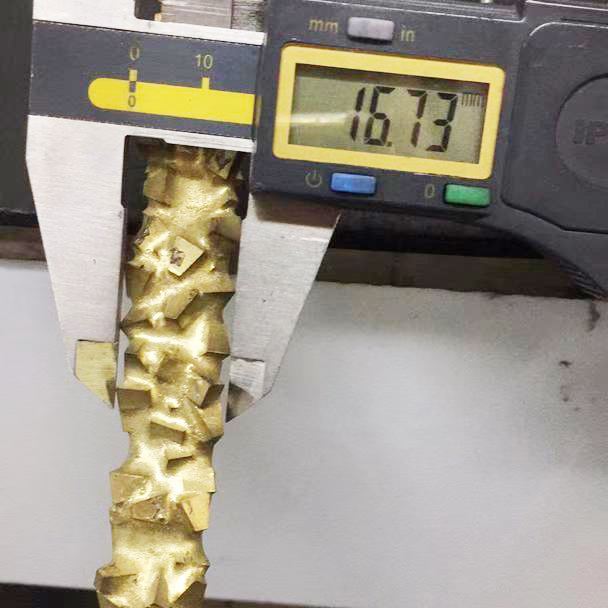

Composite rod size:
Length: 280mm,350mm,450 mm,450mm
Diamter: 12mm,12mm,16mm,22mm
| Length of composite rods(L) | 280/350/450/450 | |
| Width of composite rods(W) | 12/12/16/22 | |
| carbide particle size(grits) | mm | inch |
| 1 | 1,6 – 3,2 mm | 1/8''-1/16'' |
| 2 | 3,2 – 4,8 mm | 3/16" – 1/8" |
| 3 | 4.8 – 6.35mm | 1/4" – 3/16" |
| 4 | 6.35 – 8.0 mm | 5/16" – 1/4" |
| 5 | 8.0 – 11.0 mm | 3/8" – 5/16" |
The application of The composite Rods as follows:
Reamers
Hole Openers
Fishing Tools
Milling Tools
Coring Tools
Stabilizers
Screw Feeders
Slurry Paddles
Construction Drilling
Foundry Sand Mixing
General abrasive wear prevention, e. working part of Heavy Duty machines, such as Grader Blades, Dozer Blades, buckets,etc.
