Dimensional tolerance is a core concept in mechanical engineering. It refers to the allowable range of variation between a part's actual dimensions and its ideal dimensions after machining, due to various processing and measurement factors. The purpose of establishing tolerances is to ensure component interchangeability and functionality.
In addition, national standards clearly define tolerance grades. For external cylindrical shafts, tolerance grades are indicated by lowercase letters, while for internal diameters of holes, uppercase letters are used. This helps clearly distinguish between the tolerance grades of shafts and holes.
What about the tolerance of an h6 outer diameter?

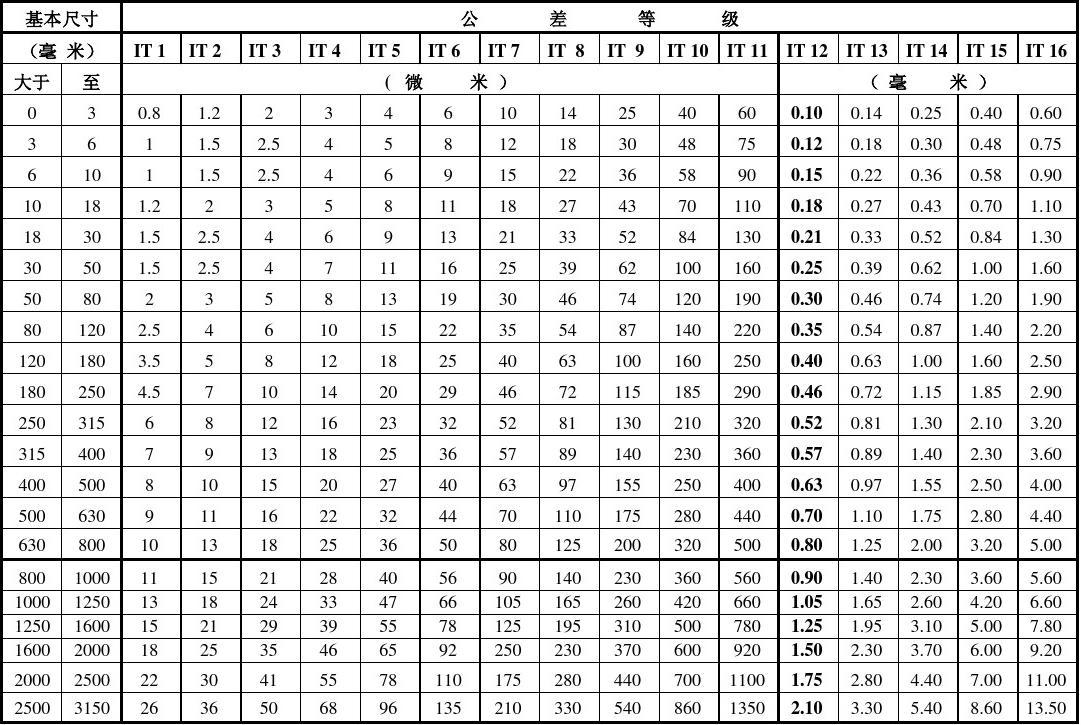

The tolerance grade corresponding to h6 is IT6. According to the standard tolerance table, the tolerance under IT6 is 0.011mm. For example, for a Φ15 shaft, its upper deviation es is 0mm, and its lower deviation ei is es minus IT6, or -0.011mm. Therefore, the dimension range of this shaft during machining should be between 15mm and (15-0.011)mm to ensure compliance.
Understanding these concepts of tolerance and deviation is crucial to ensuring the precise manufacture and assembly of mechanical parts. At the same time, it also helps us understand why there is a trade-off between dimensional accuracy and processing cost when designing parts.
