Application of Large Size Tungsten Carbide Parts
Tungsten carbide,due to its excellent properties,is widely used in various industries.Besides traditional fields such as machinery,chemical engineering,automotive and military,with continuous technological development,carbide has also shown great potential in aerospace, electronics, and new energy fields.
Generally,considering the high cost of carbide,large tools are usually made by assembly of carbide and steel components.For example,carbide mining inserts are embedded in a steel substrate to create various finished mining tools.Another example is carbide saw blades,where carbide teeth are welded into a steel saw blade,carbide often play a leading role in these finished tools.Under what circumstances do we need to manufacture entirely large-sized carbide parts? OSTON CARBIDE has extensive experience supplying large carbide parts, and we have found large-sized carbide parts as below:

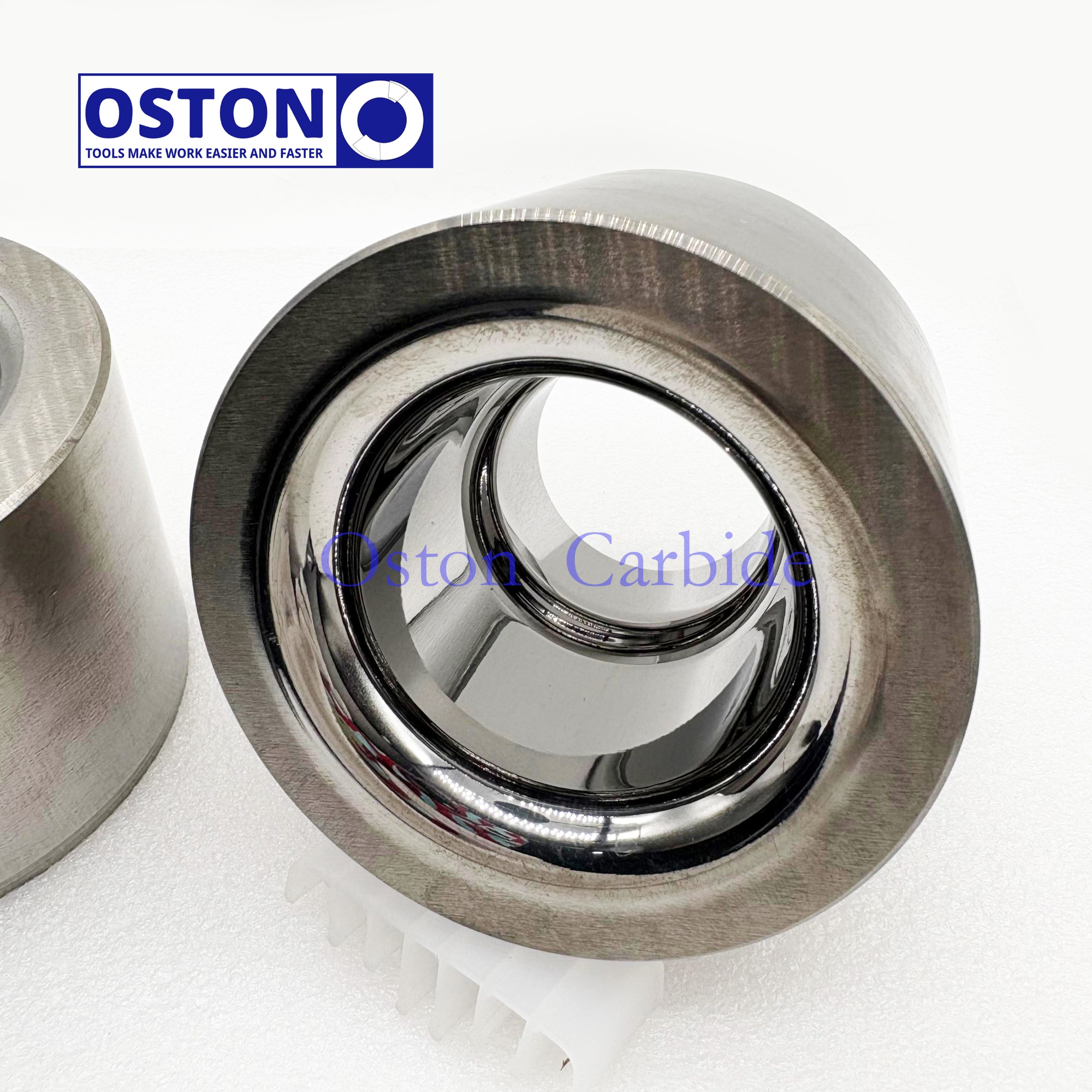

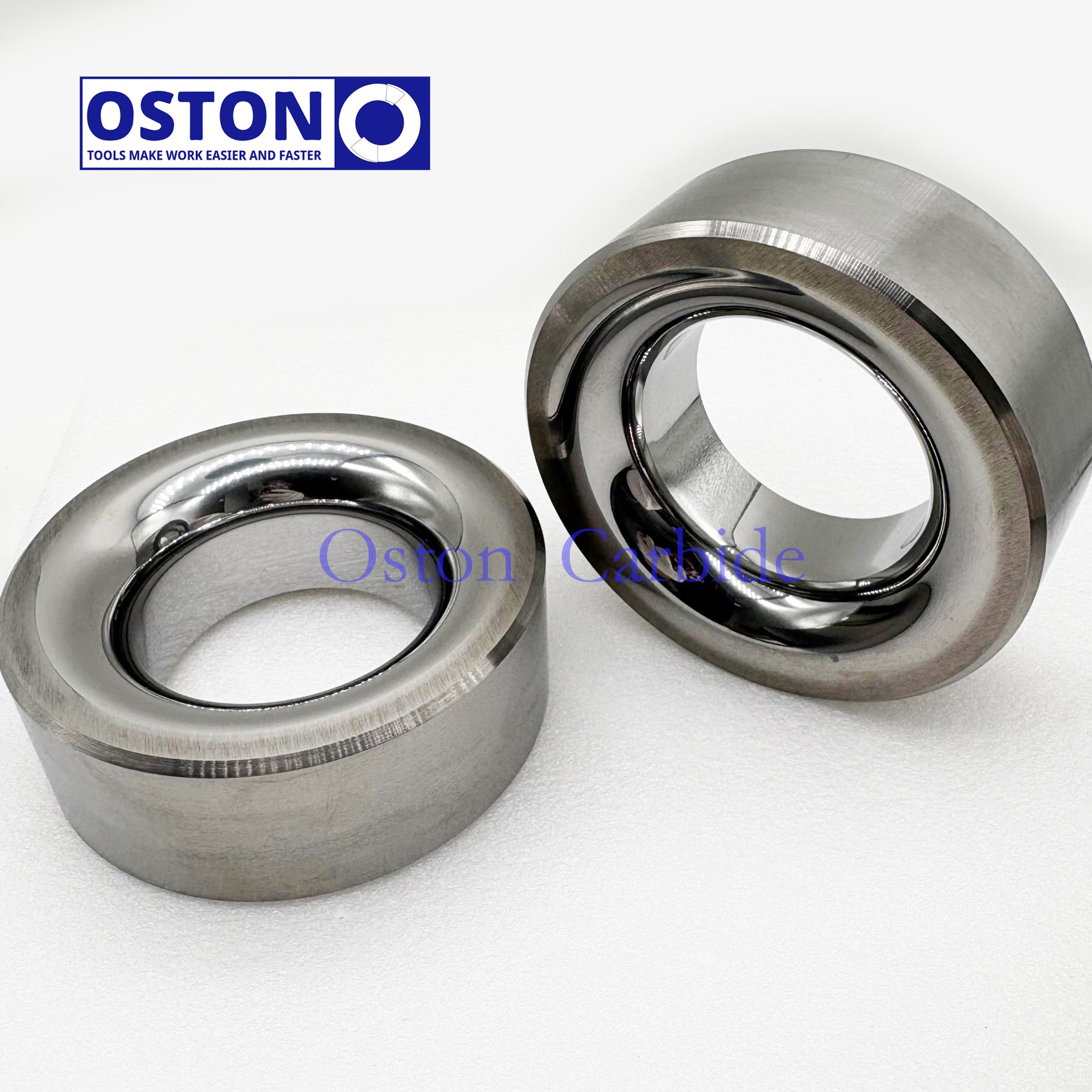

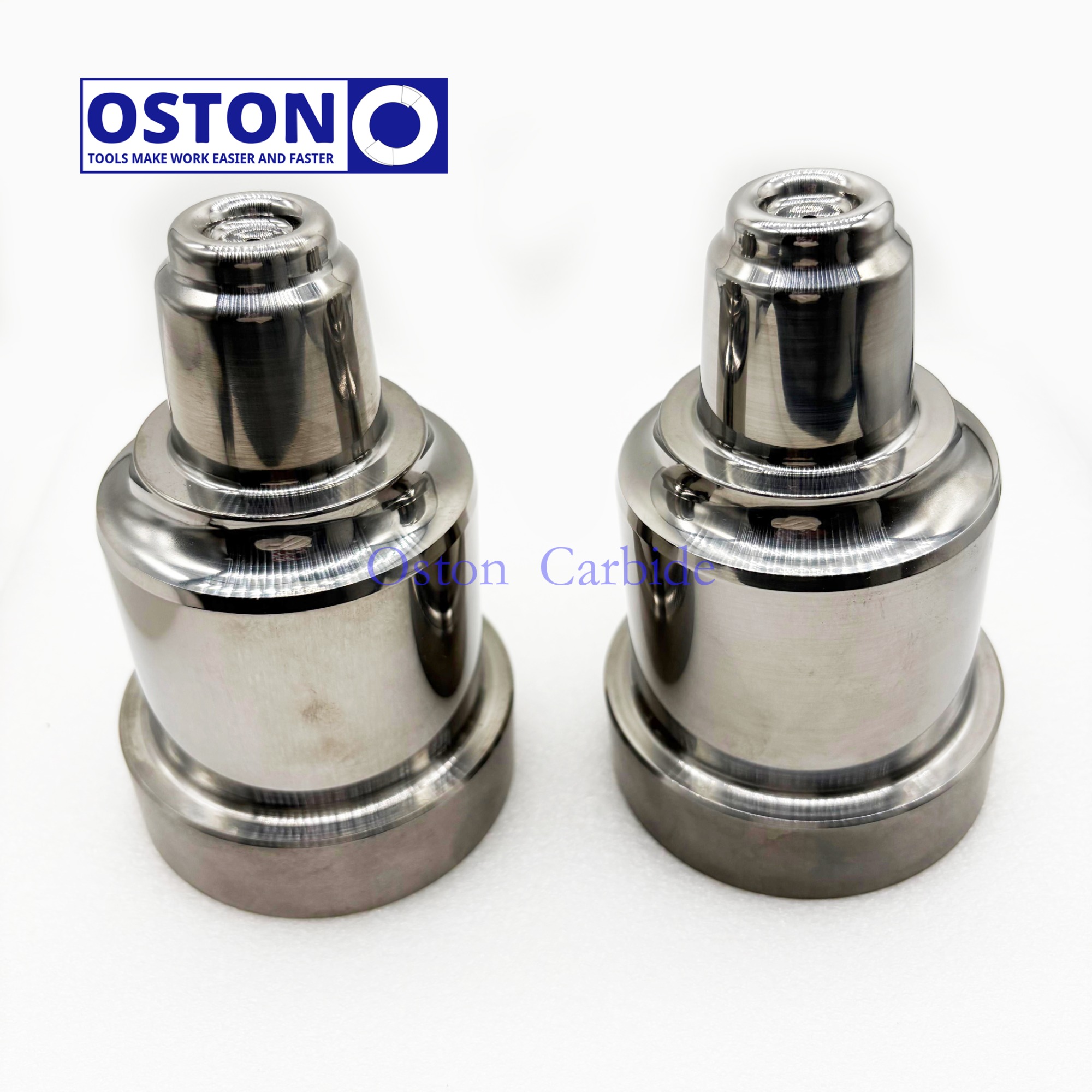

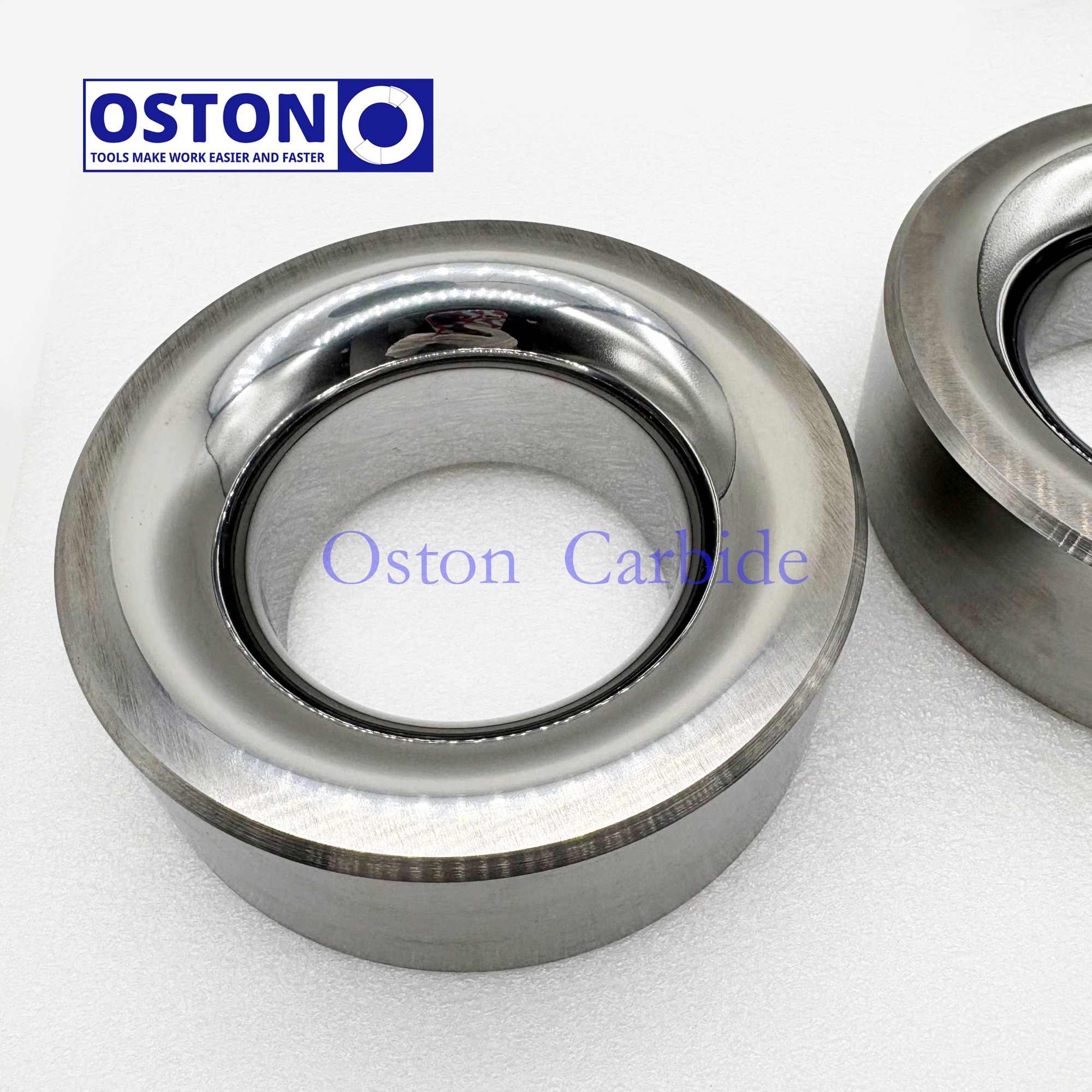

1.Drawing die core for various large pipes
Large size tungsten carbide drawing die cores and tungsten carbide necking dies are widely used in fossil oil pipeline forming,gas tank forming,extra-large gas cylinder pipe forming,pressure vessel tube forming and other large pipe drawing industries.We supply them as dimension range below:
OD:200-820mm
ID:150-710mm
Height:50-120mm

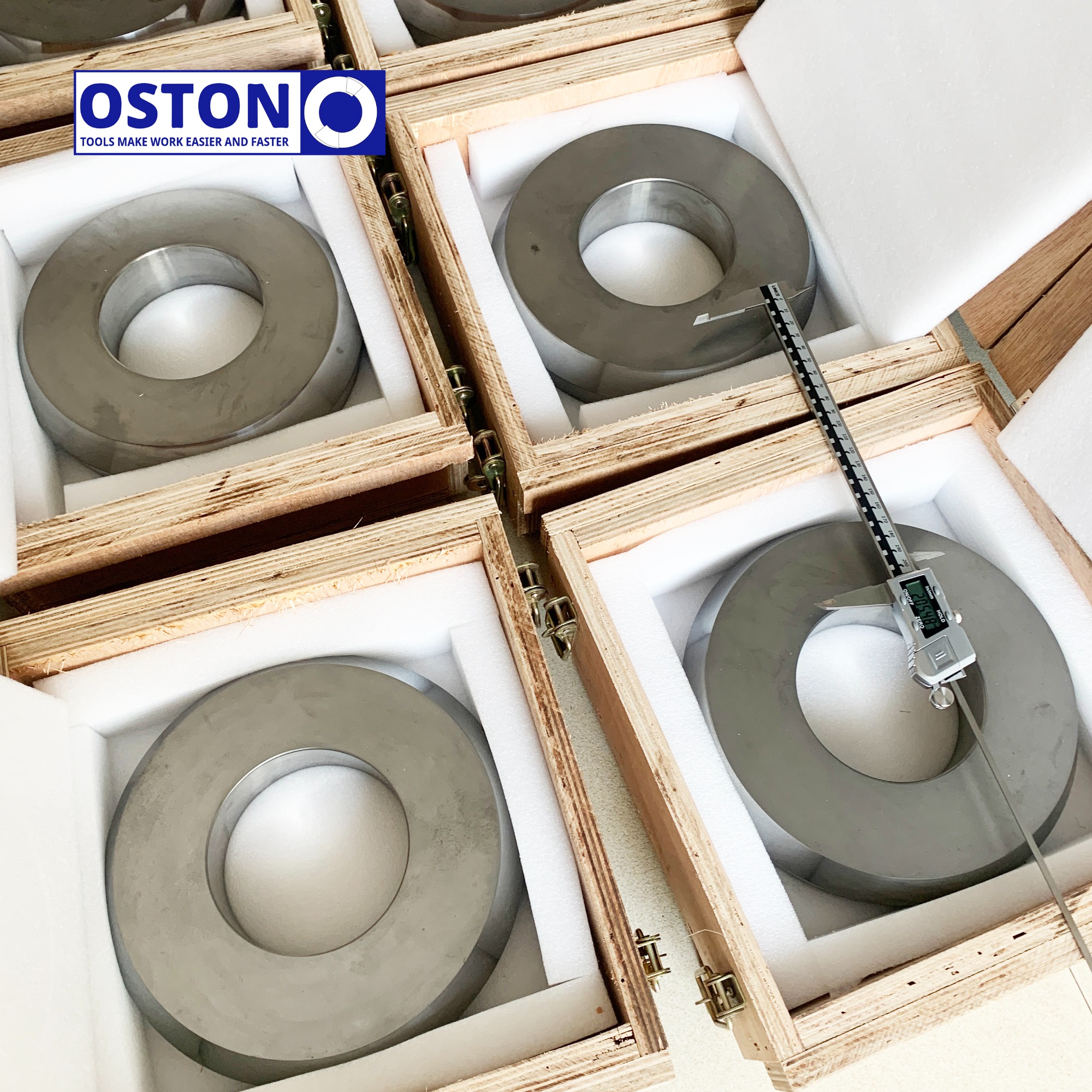

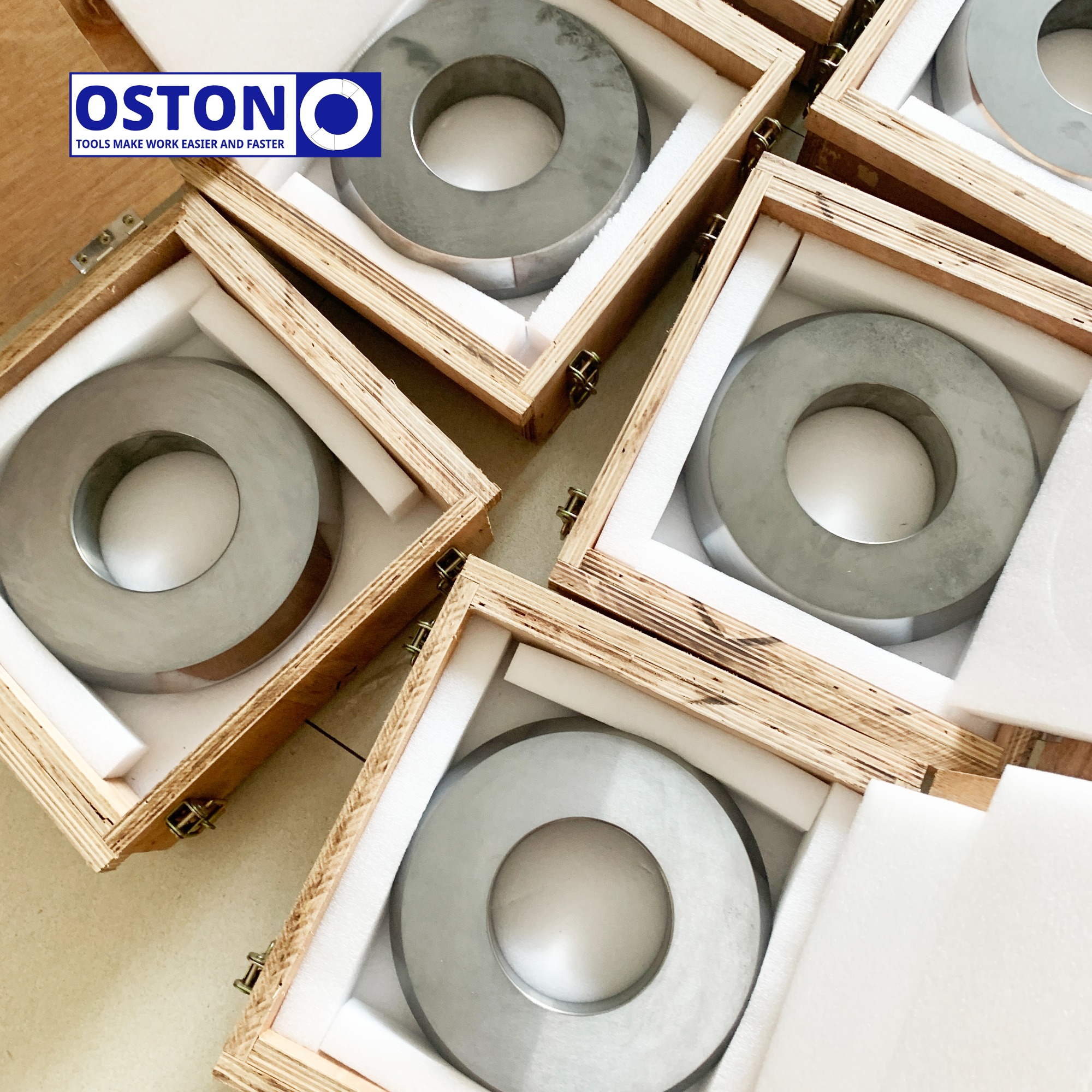

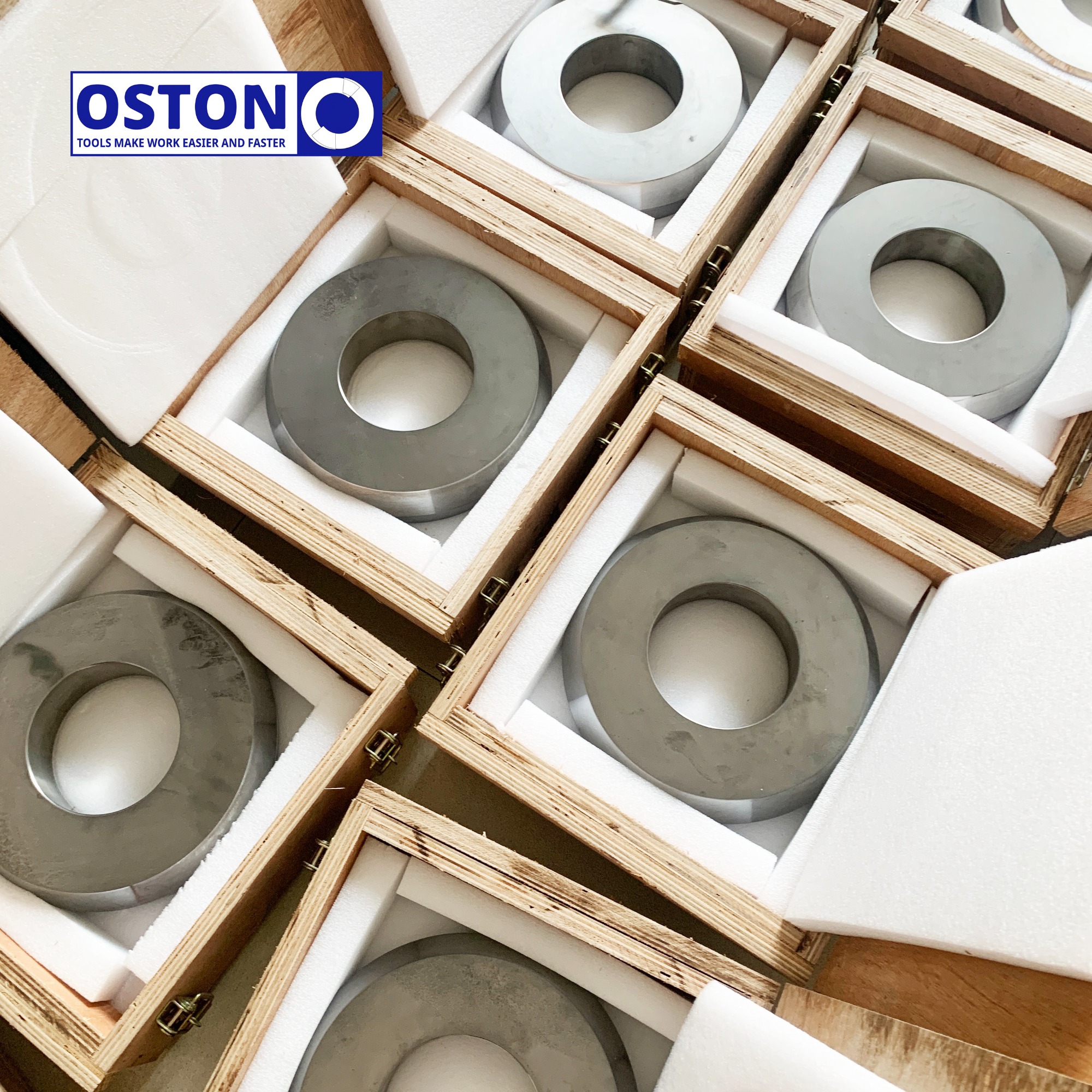

2.Flow Forming Die of Metal Tube
Tungsten carbide flow forming dies are crucial for achieving desired shapes and precise dimensions in applications like aerospace, defense, and oil and gas industries, and are designed with specific precision to meet stringent requirements.

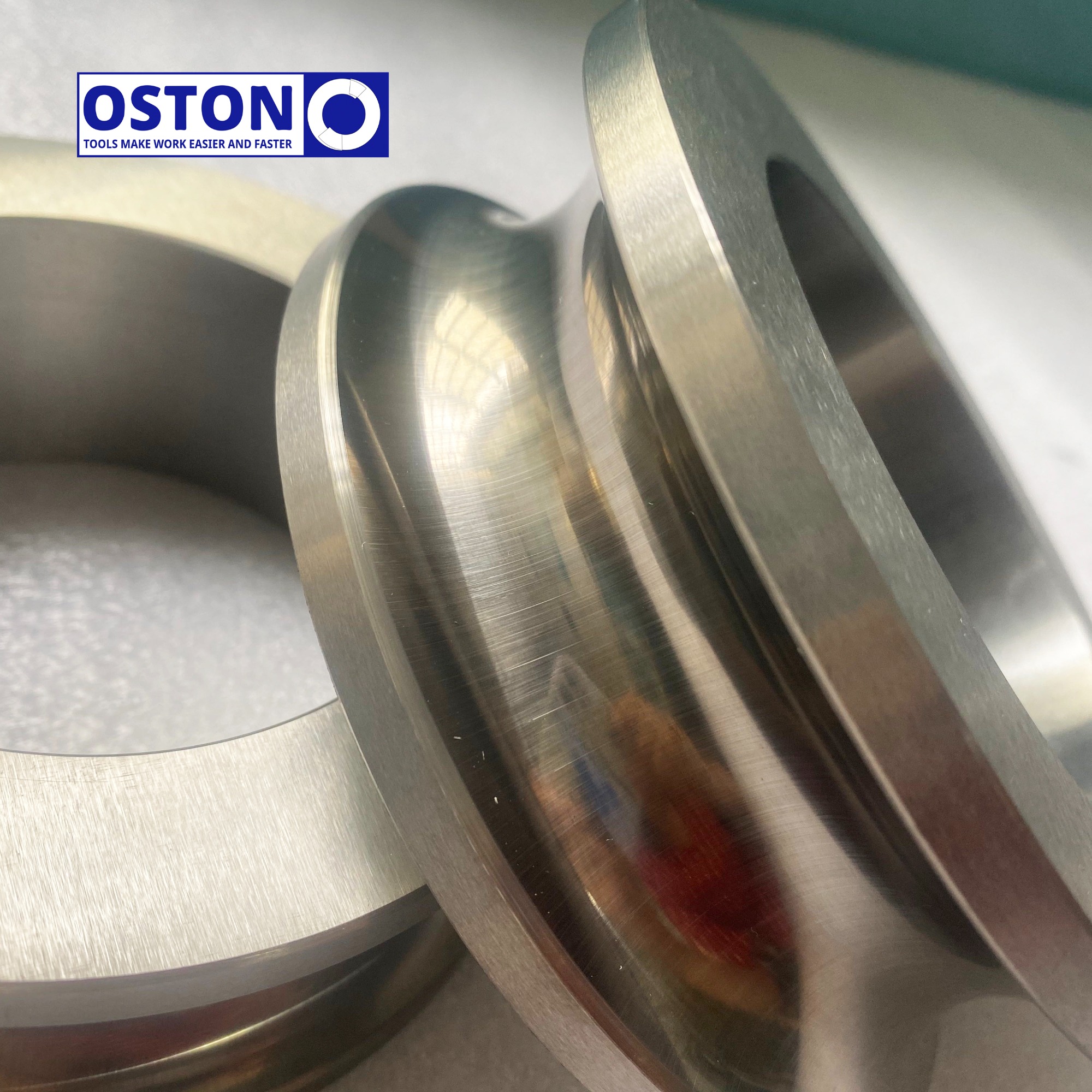

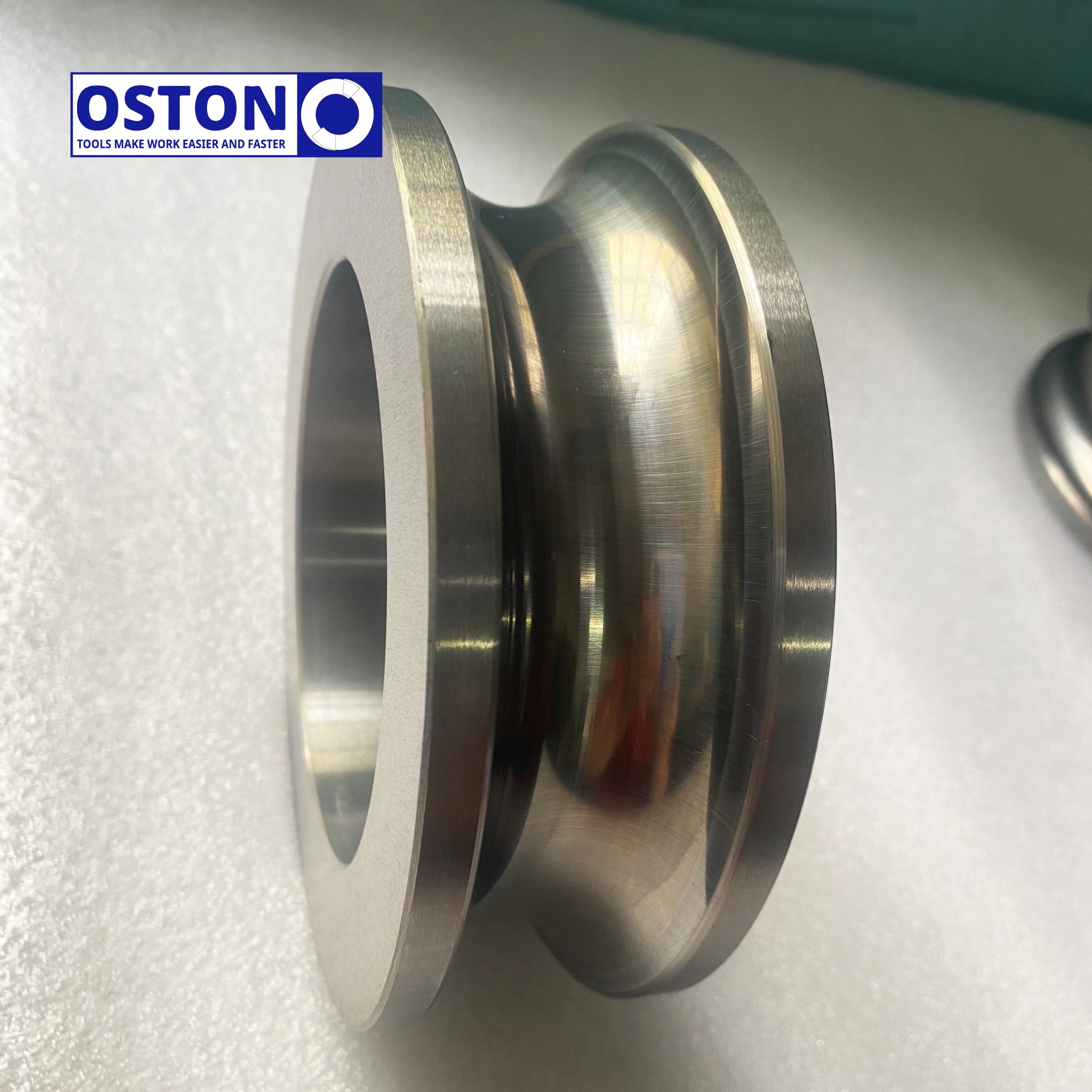

3.Spin Forming Die of vehicle wheel rims
Tungsten carbide spin forming dies,also called tungsten carbide bead roller,are widely used in the rim of tubeless steel wheel,engineering machinery steel wheel,car wheel rims,truck wheel rims and agricultural vehicles wheels rims and other stainless steel cone parts.
| Dim.(OD*ID*Height) | Outer diameter(mm) | Inner diameter(mm) | Height(mm) |
| Φ350(Φ295)*Φ270*40 | 350 | 270 | 40 |
| Φ375(Φ320)*Φ295*40 | 375 | 295 | 40 |
| Φ400(Φ345)*Φ320*40 | 400 | 320 | 40 |
| Φ460(Φ405)*Φ380*40 | 460 | 380 | 40 |
| Φ462*Φ358*60 | 462 | 358 | 60 |
| Φ478*Φ350/Φ424*63 | 478 | 350/424 | 63 |
| Φ485*Φ380*60 | 485 | 380 | 60 |
| Φ496*Φ380*60 | 496 | 380 | 60 |
| Φ503*Φ380*60 | 503 | 380 | 60 |
| Φ510*Φ380*60 | 510 | 380 | 60 |
| Φ575*Φ400*70 | 575 | 400 | 70 |
| Φ577*Φ450*52 | 577 | 450 | 52 |
| Φ585*Φ400*70 | 585 | 400 | 70 |
4.Stretching forming dies for various hardware parts.
Tungsten carbide stretching forming dies are widely used for forming of hardware tableware,metal ware,hardware fittings,etc.such as tungsten carbide lock shell dies,tungsten carbide wheel holder forming dies,cartridge heater necking dies,carbide hemming roller,etc.

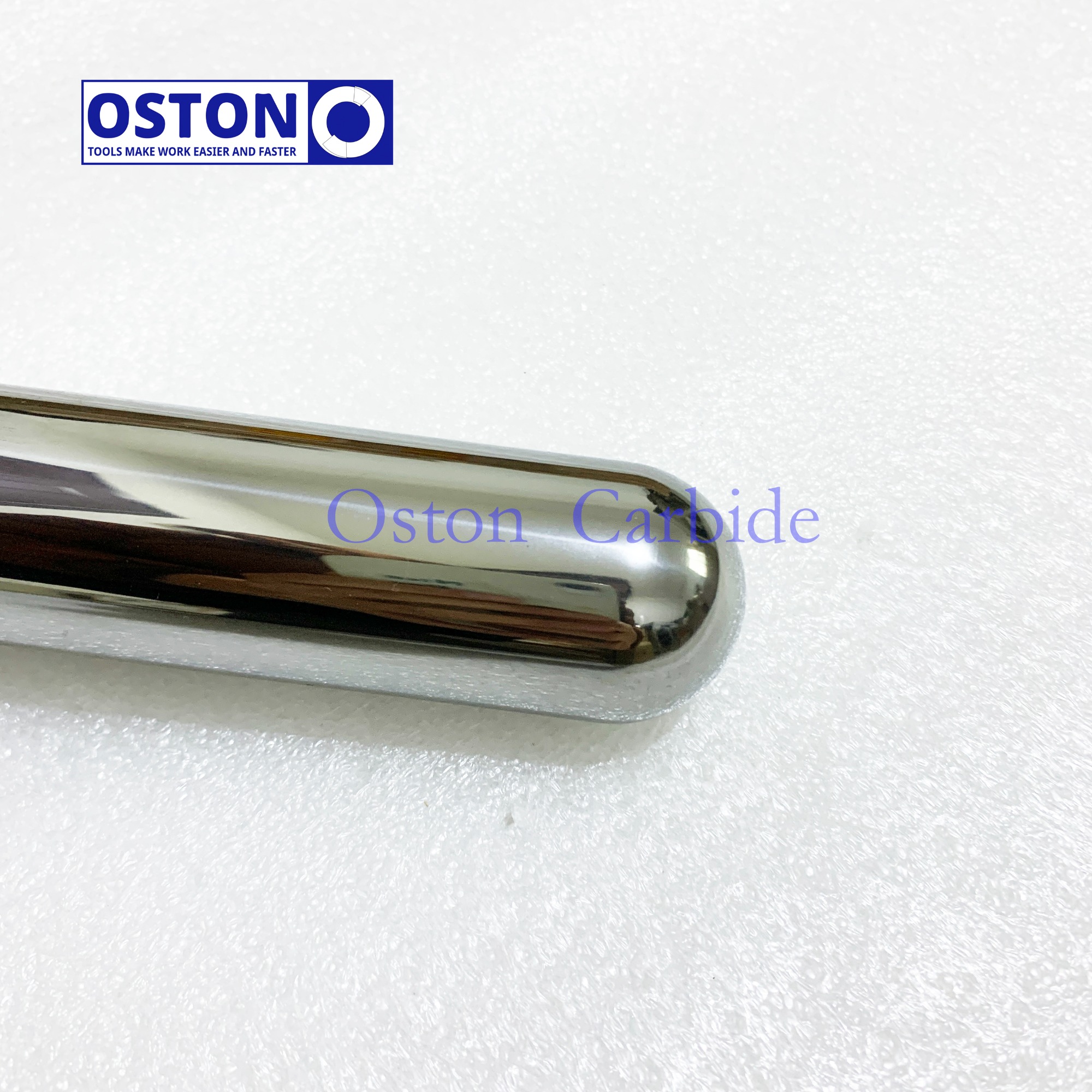

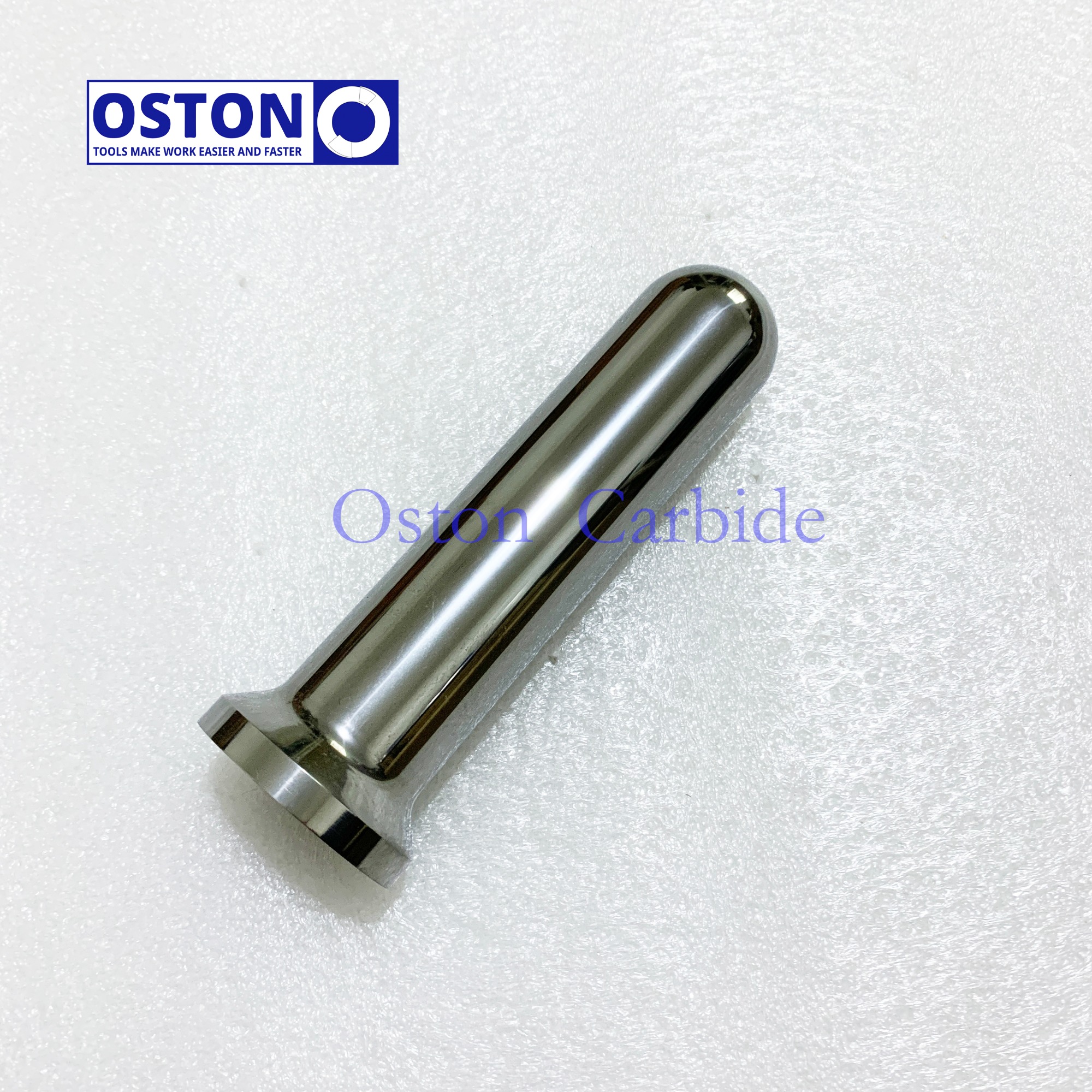

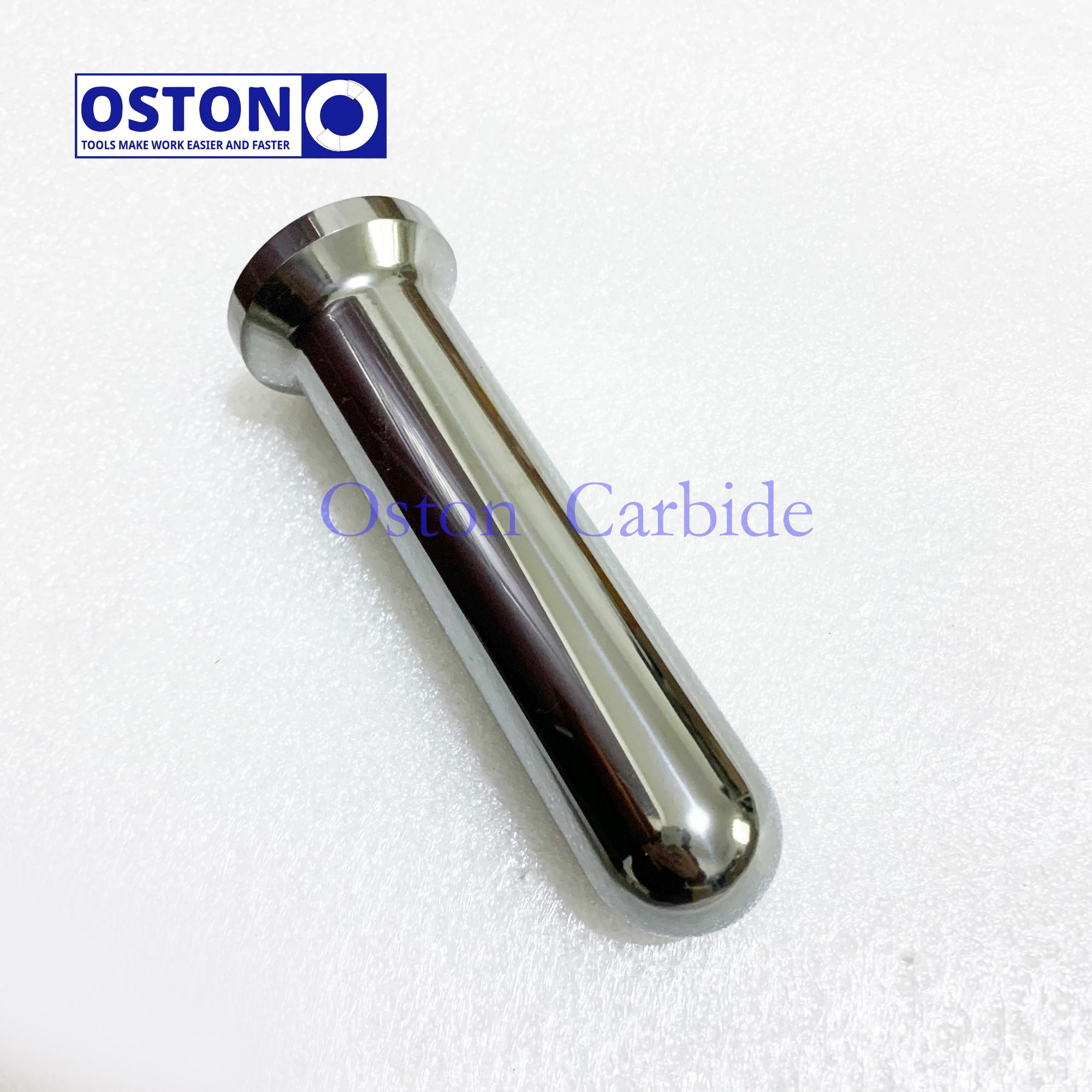

5.Large size tungsten carbide plungers,tungsten carbide punches for Hydraulic transmission systems, petroleum machinery and other fields,our dimension range is OD20-OD150mm and length below 900mm.

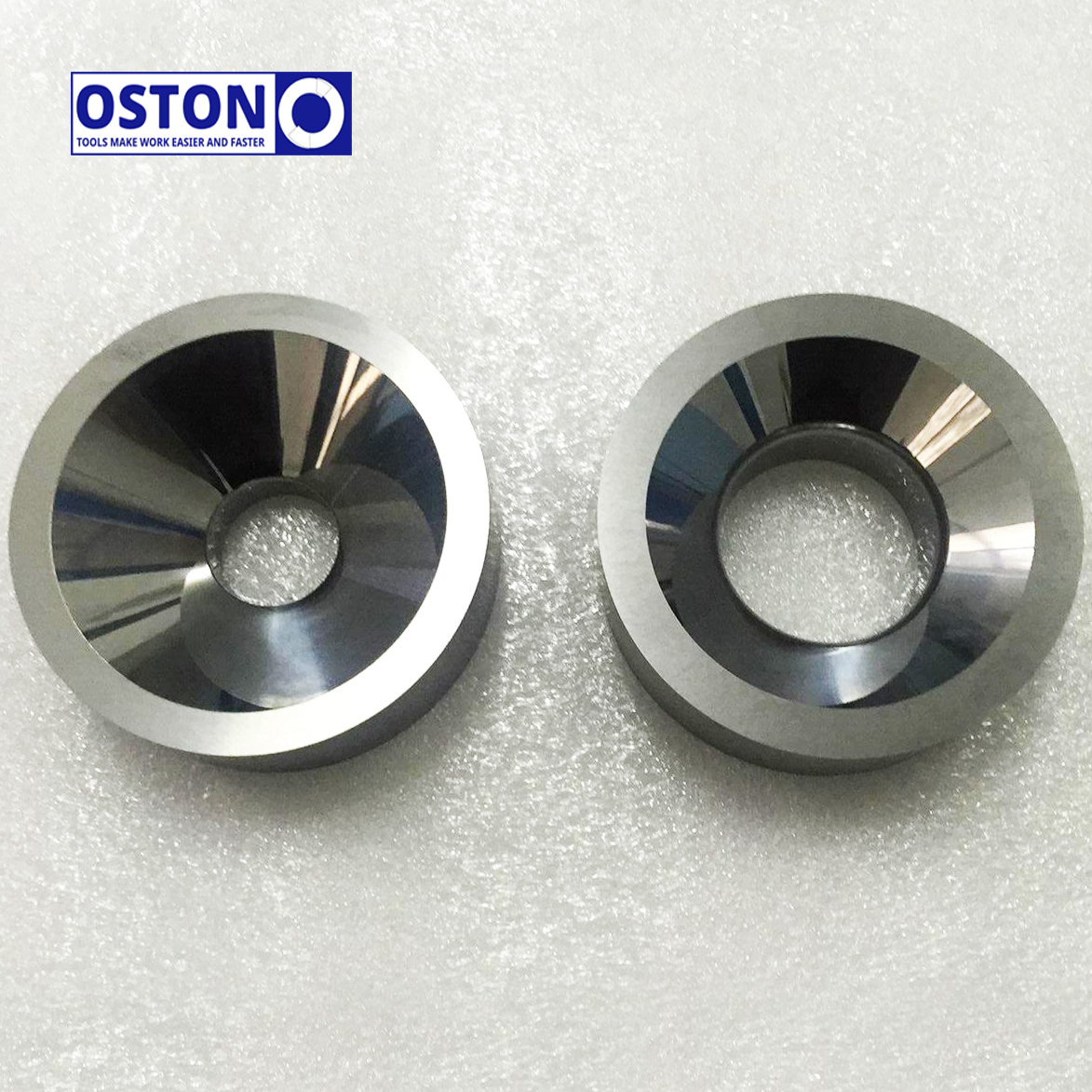

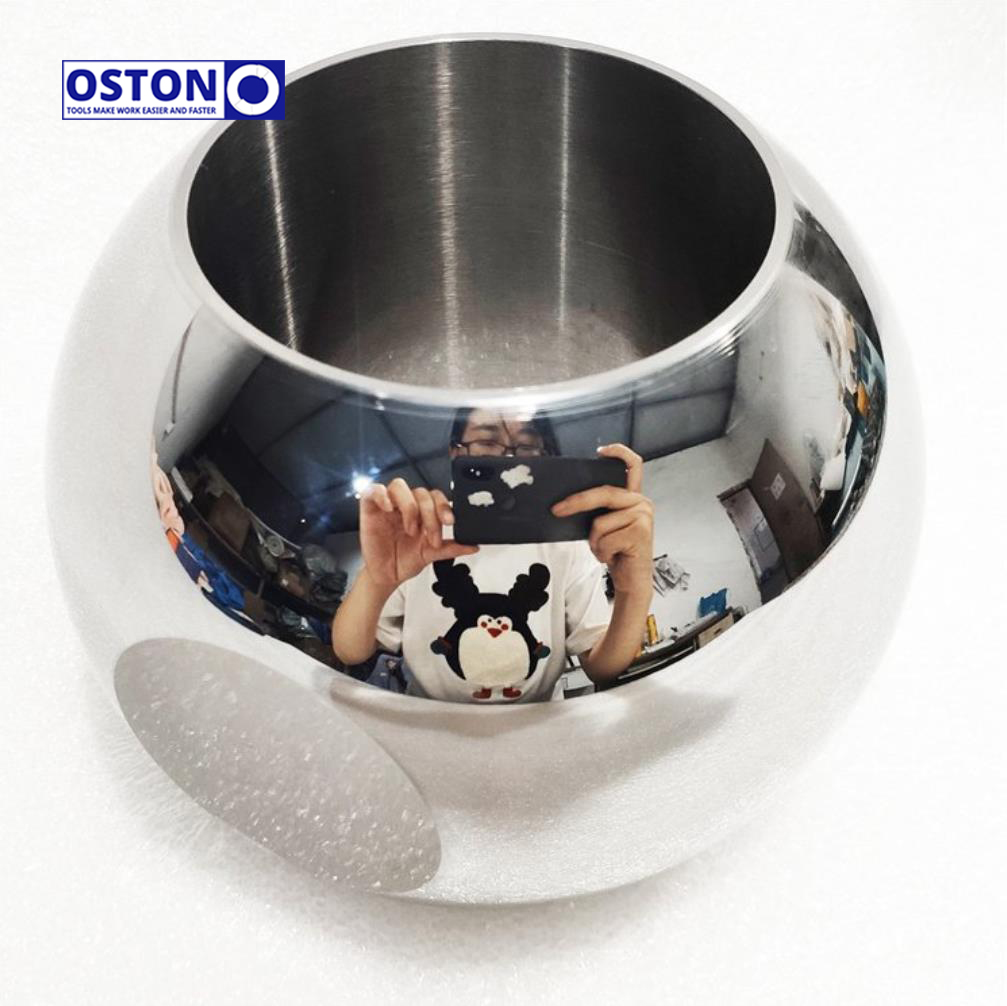

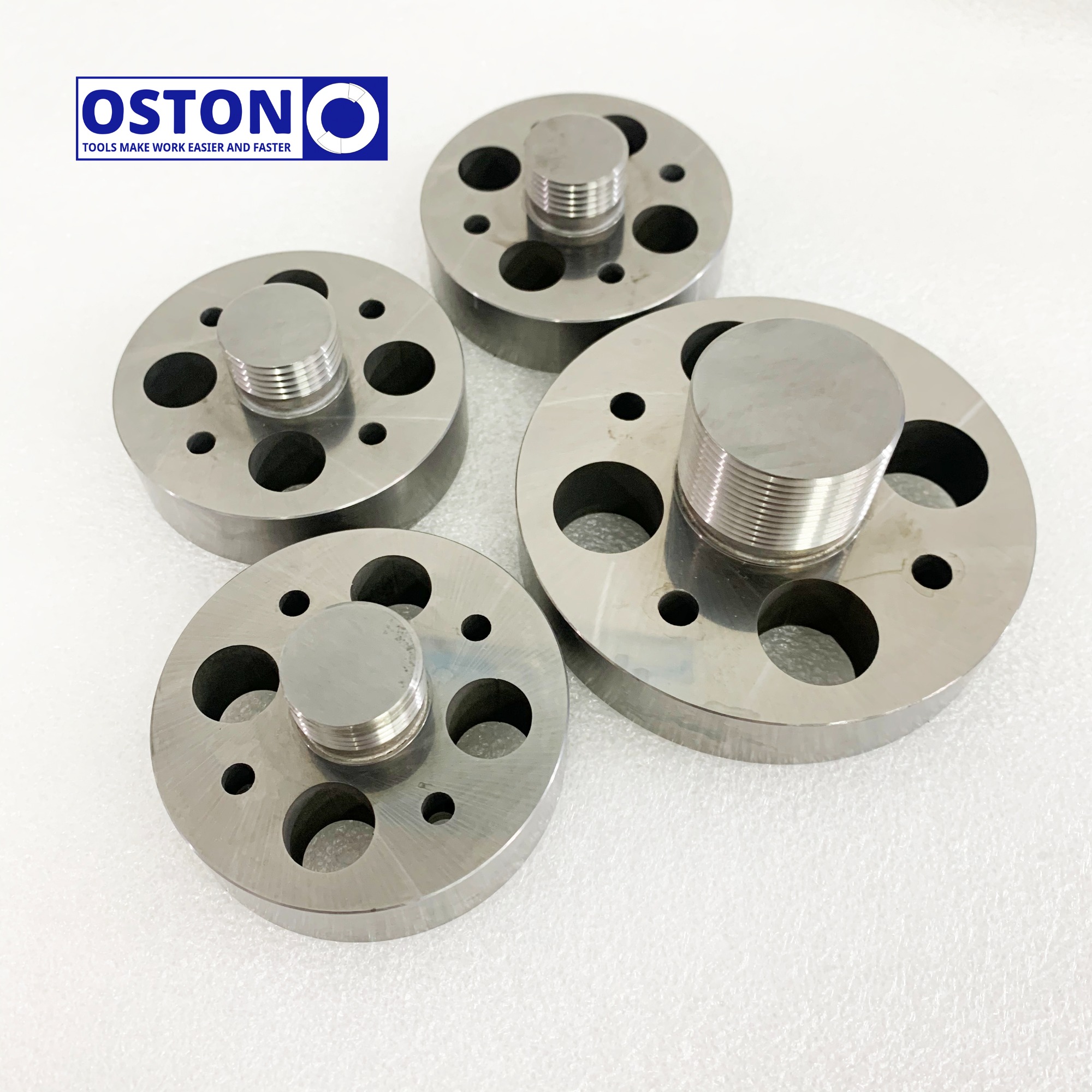

6.Various carbide valve balls,carbide valve seats,carbide valve core,carbide cages,carbide trims,carbide bushes and sleeves for oil&gas industry,pump industry,etc.
7.Milling rolls,wire descaling rolls and flattening rolls for various Steel Plants.
8.Circular Slitting Blades,Splitting Blades,Unitary cross blades,etc.

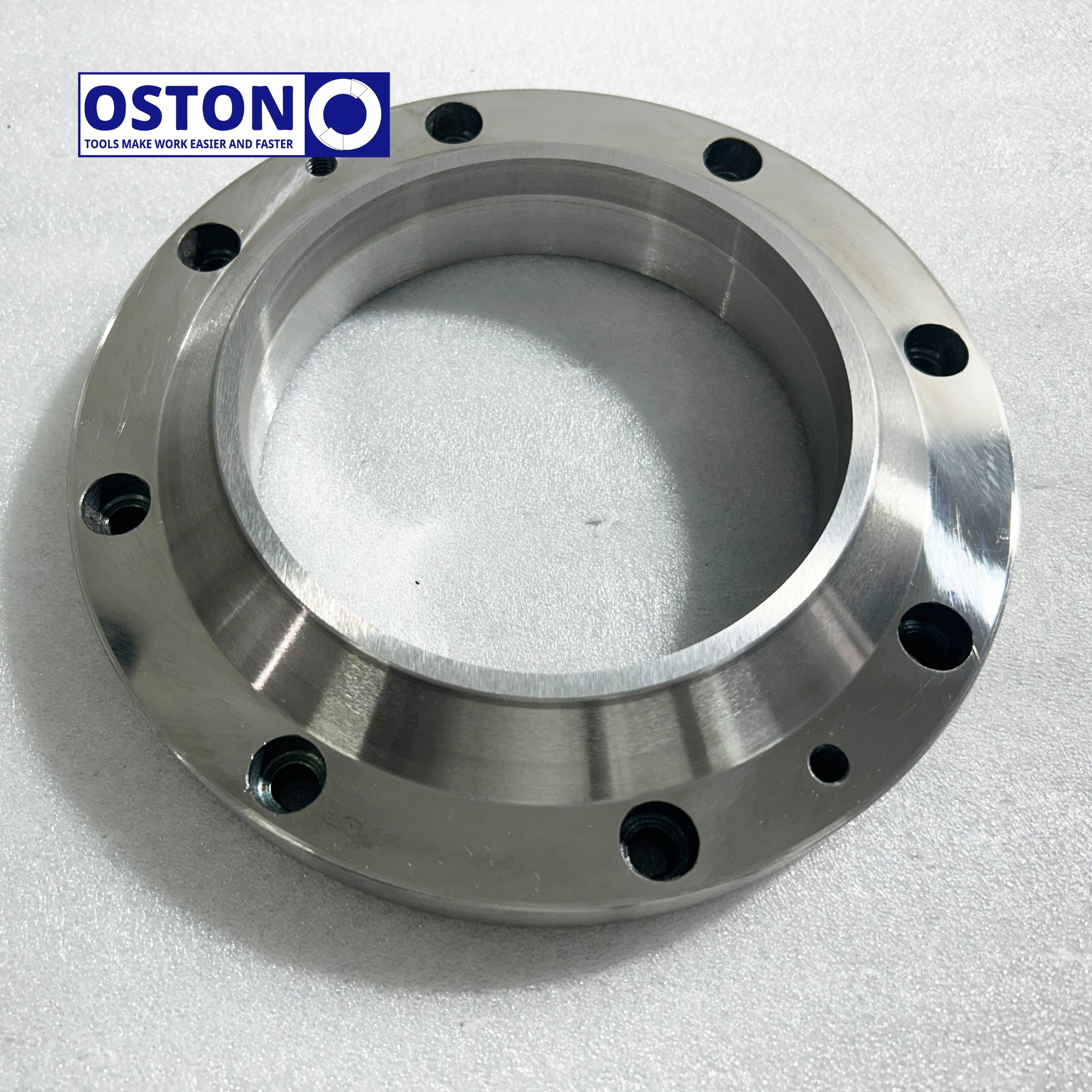

9.Various large sizes wear components，such as large sealing rings,raw plates and guard for polysilicon crusher,Cracker disks,Shredder knives,orifice flanges,grinding bowls,etc.
If you have any needs for related products, please feel free to contact OSTON CARBIDE for more information.
