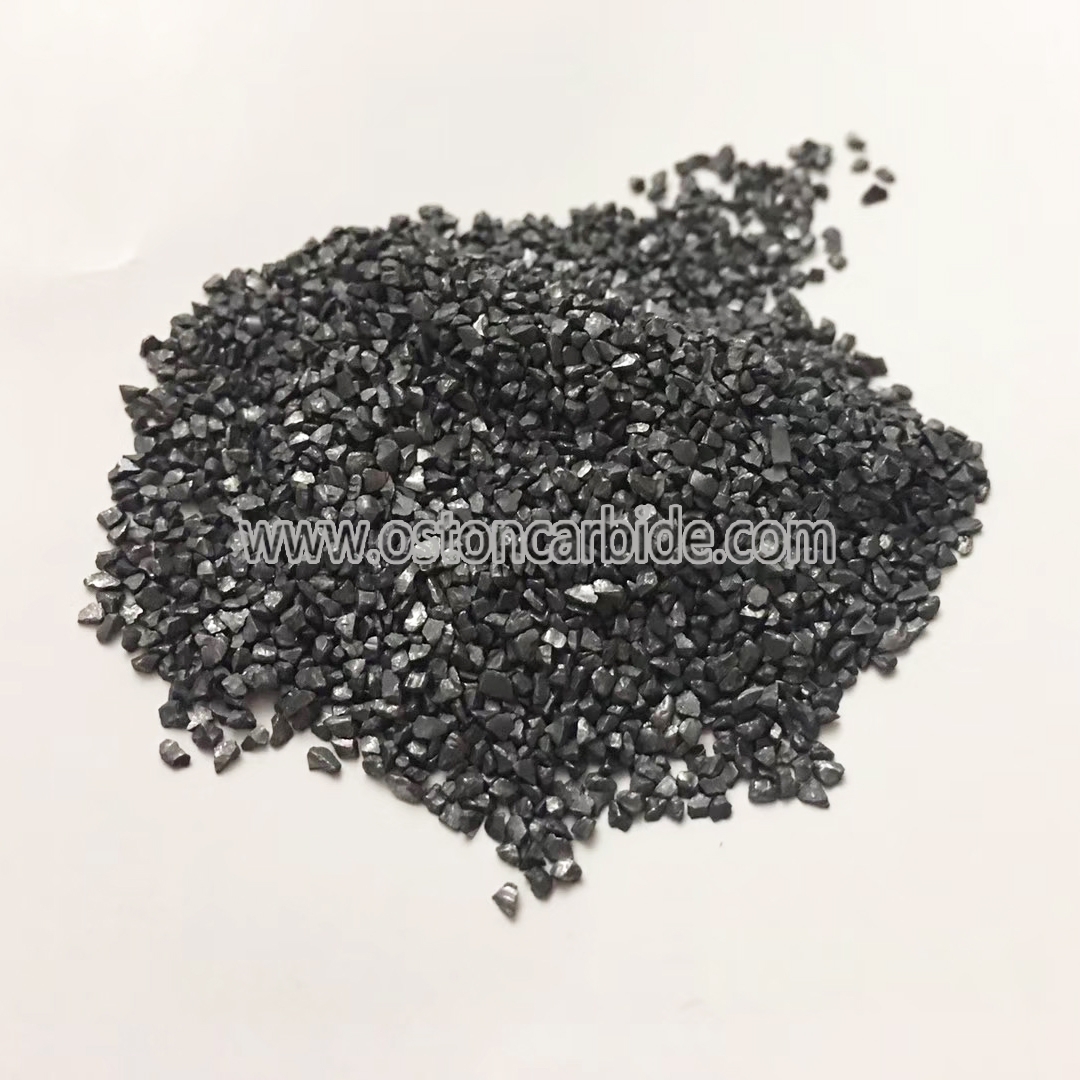

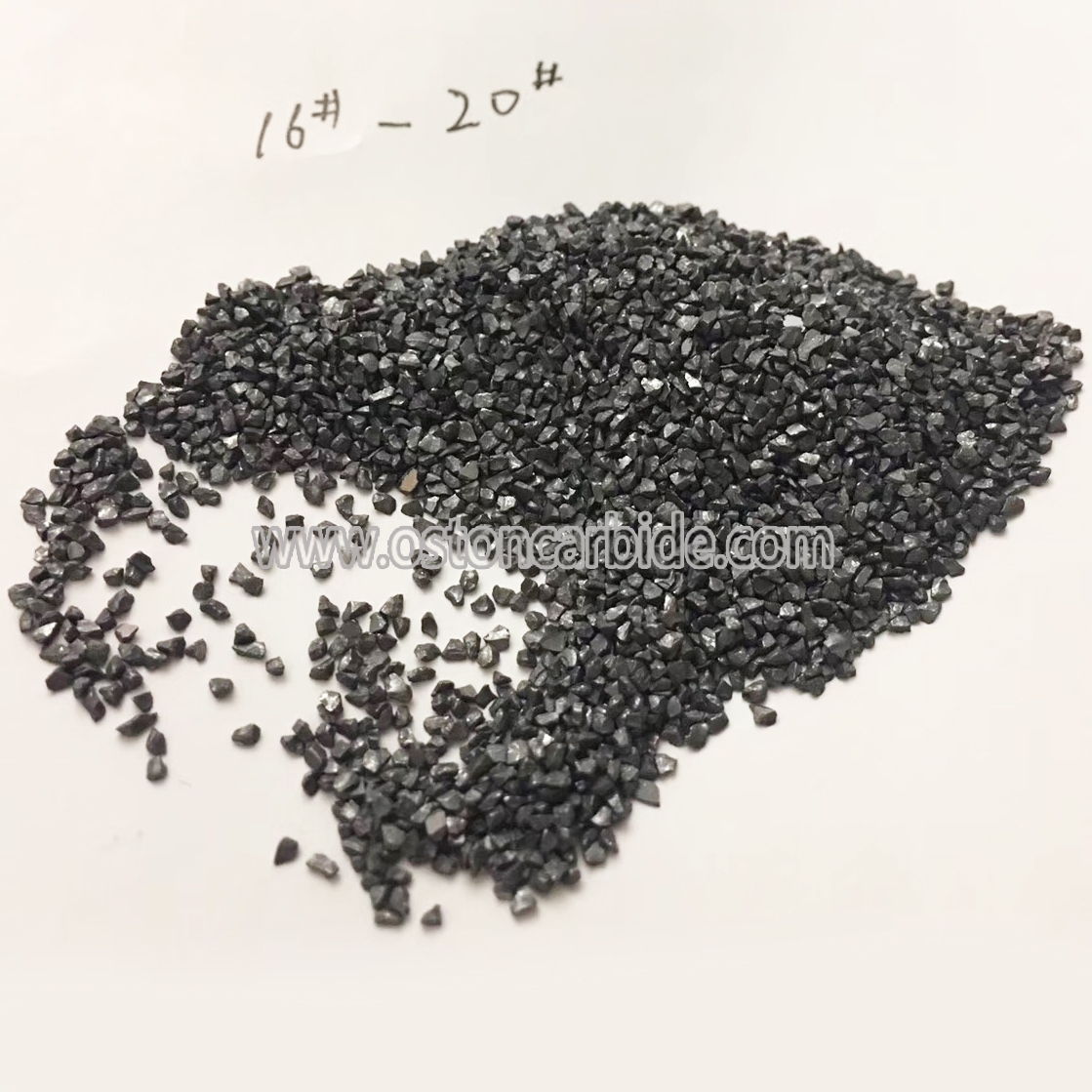

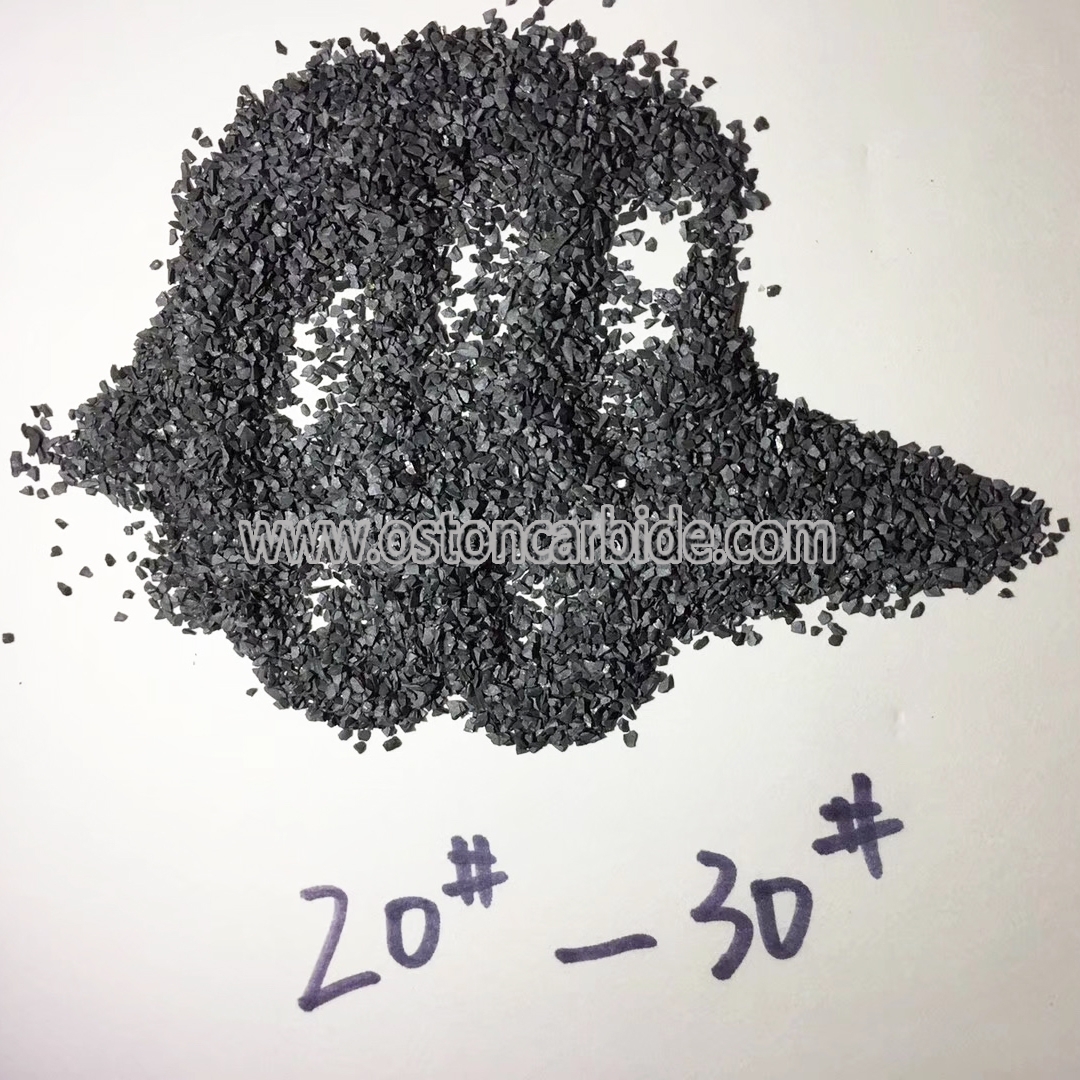

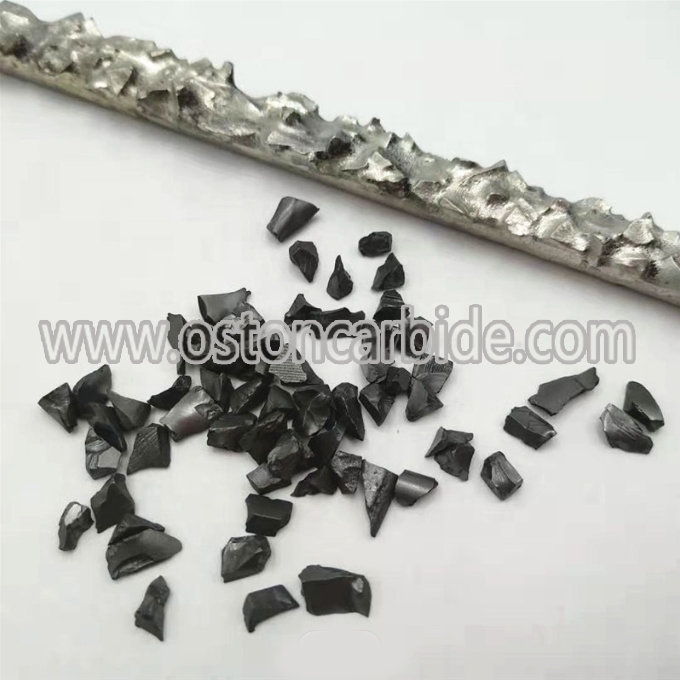

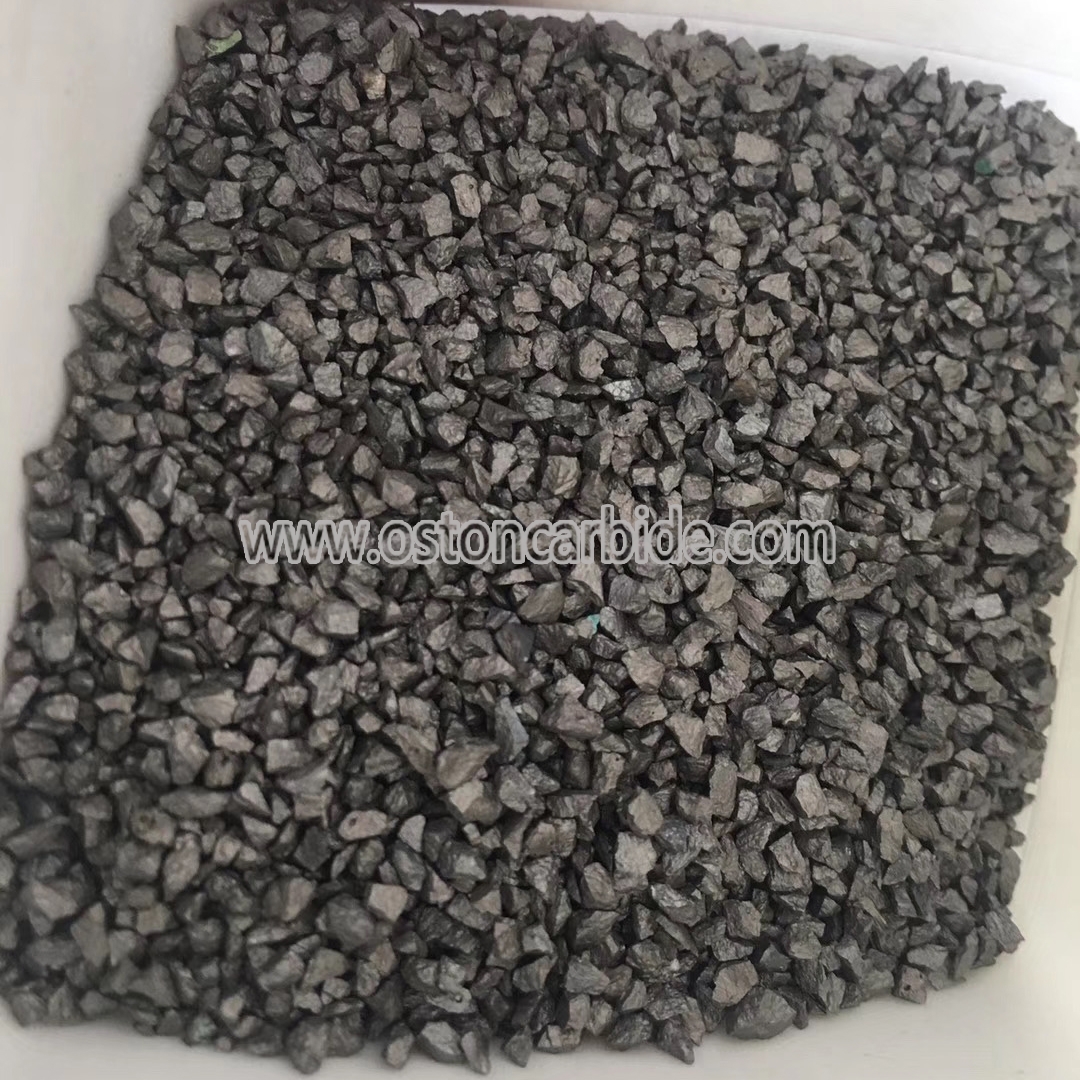

YG8 Tungsten Carbide Crushed Particles from Original Carbide Anvil Material

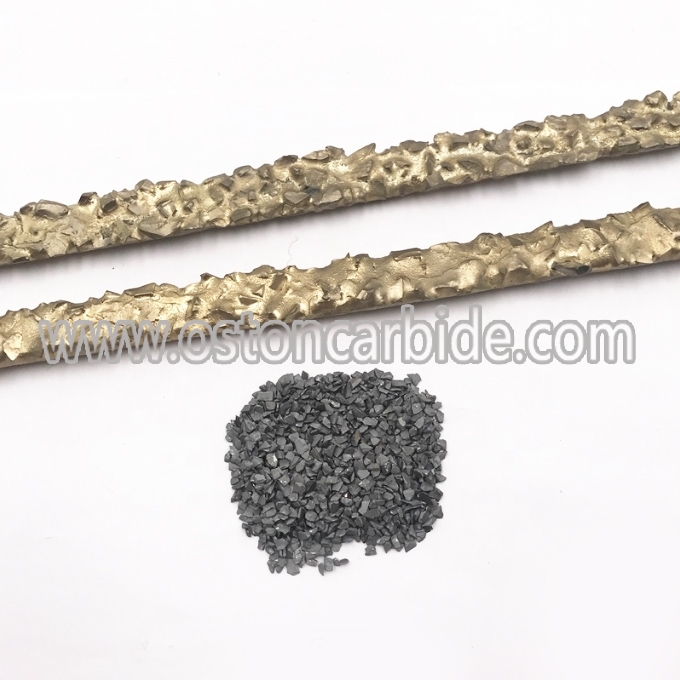

These carbide particles are also called carbide granules,carbide grits,they are Widely used in the production of welding rods and the surface layer of wear-resistant parts to improve the red heat hardness, wear resistance and impact strength of the product.
Granularity range: within the range of 10~325 mesh, customers can freely choose according to their needs. Packing: Packed in iron drums with a net weight of 50 kg per drum. MOQ: 5 KG
Place of Origins: Zhuzhou
Delivery time: 7-10 calendar days
Payment terms: 30% T/T in advance,balance paid before shipment.
Property of tungsten carbide grits
WC %
Binder %
Density(g/cm³)
Hardness (HRA)
T.R.S (n/m㎡)
92
8
14.6-14.8
≥89
≥ 2200
Size/inch
Size/mm
1/32"~1/16"
0.79-1.59mm
1/16"~1/8"
1.59-3.175mm
1/8"~3/16"
3.175-4.76mm
3/16"~1/4"
4.76-6.35mm
1/4"~5/16"
6.35-7.94mm
5/16"~3/8"
7.94-9.53mm
3/8"~1/2"
9.53-12.7mm

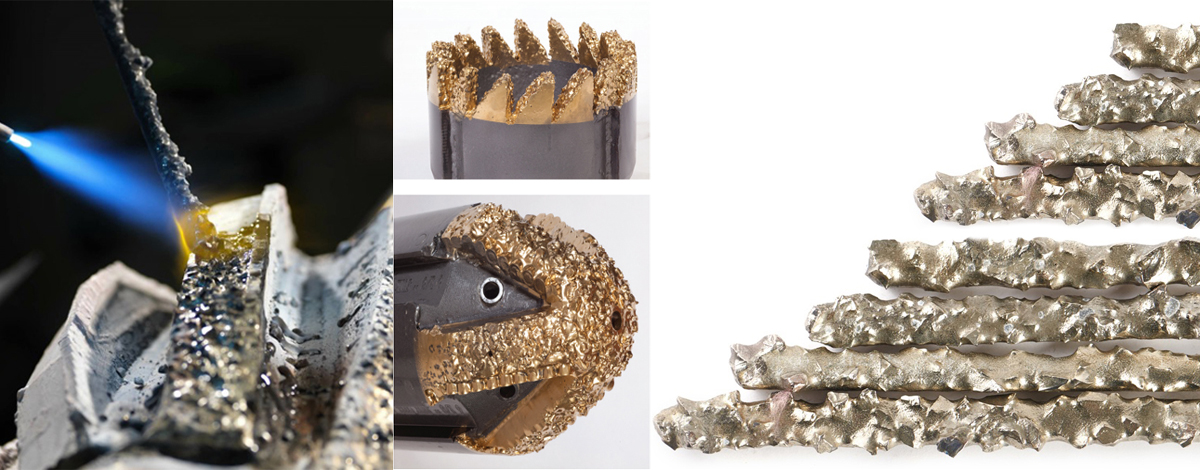

The tungsten carbide grits is suitable for hard facing material. 1) Ceramic, metal lapping, and polishing applications 2) Slicing of silicon carbide wafers 3) Rock and stone polishing and engraving 4) Slicing, lapping,and polishing glass and germanium wafers 5) Lapping of piston rings and gears 6) Grinding of nonferrous materials 7) Finishing tough and hard materials 8) Bonded abrasive tool applications 9) Glass etching and glass carving industries
The tungsten carbide grits is suitable for hard facing material.
