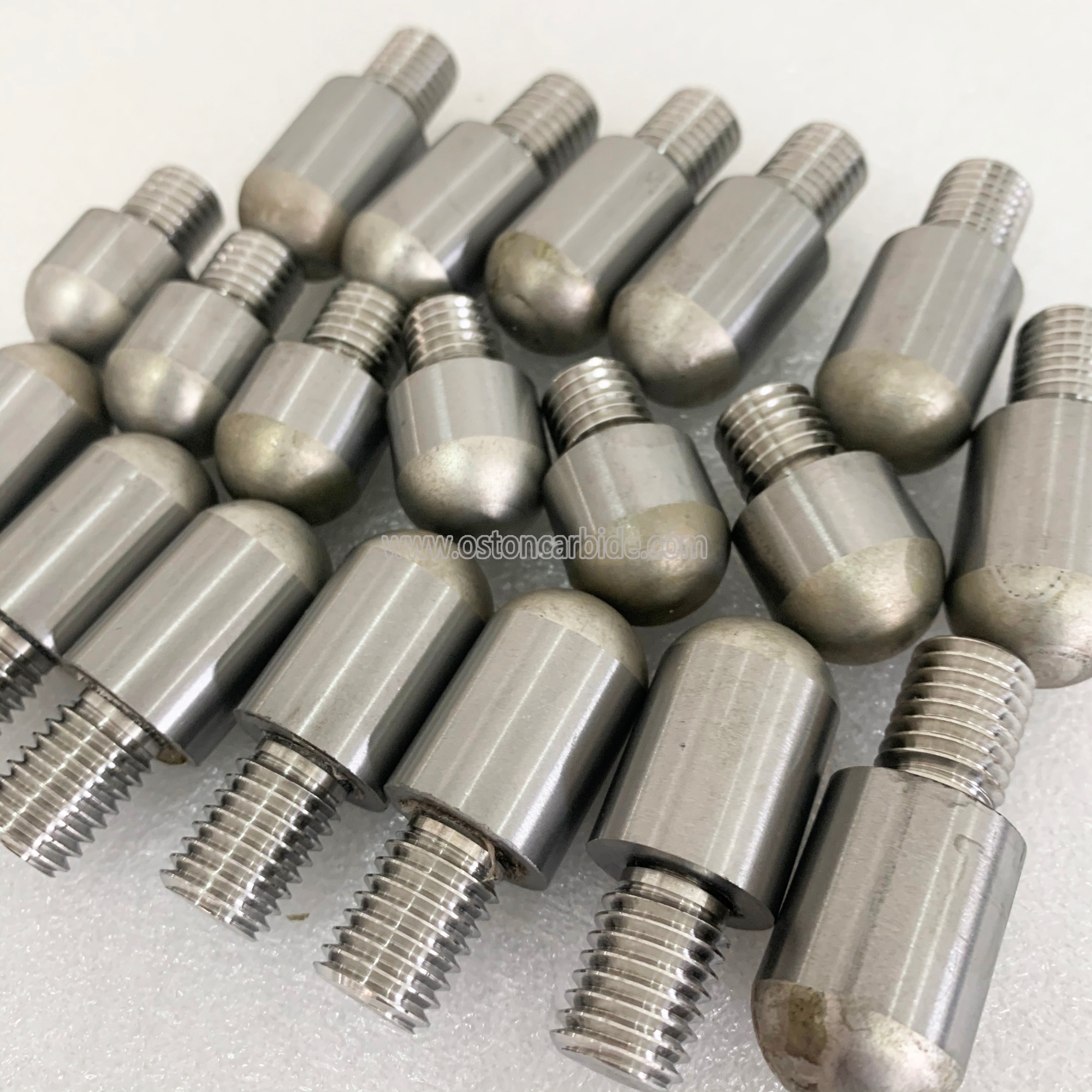

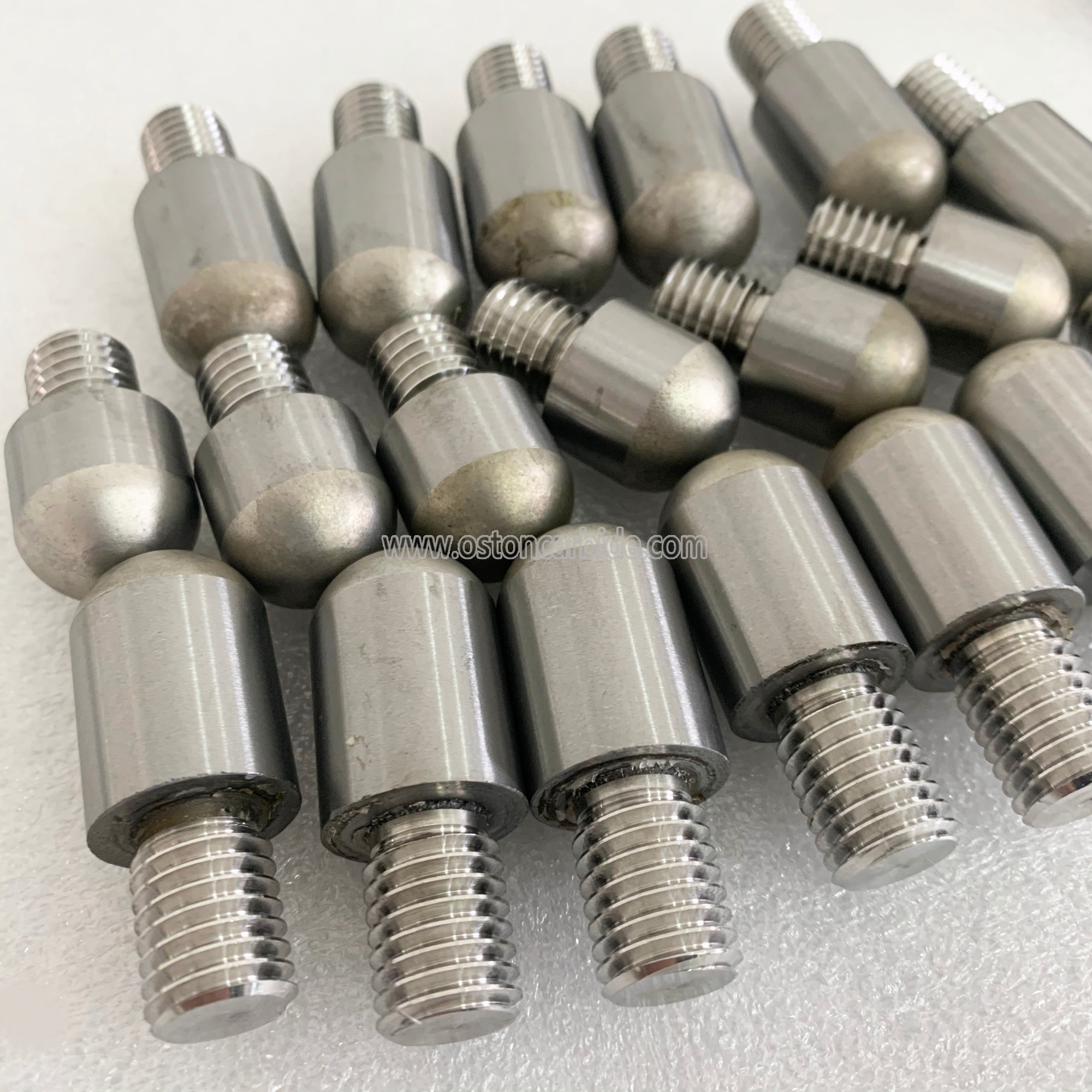

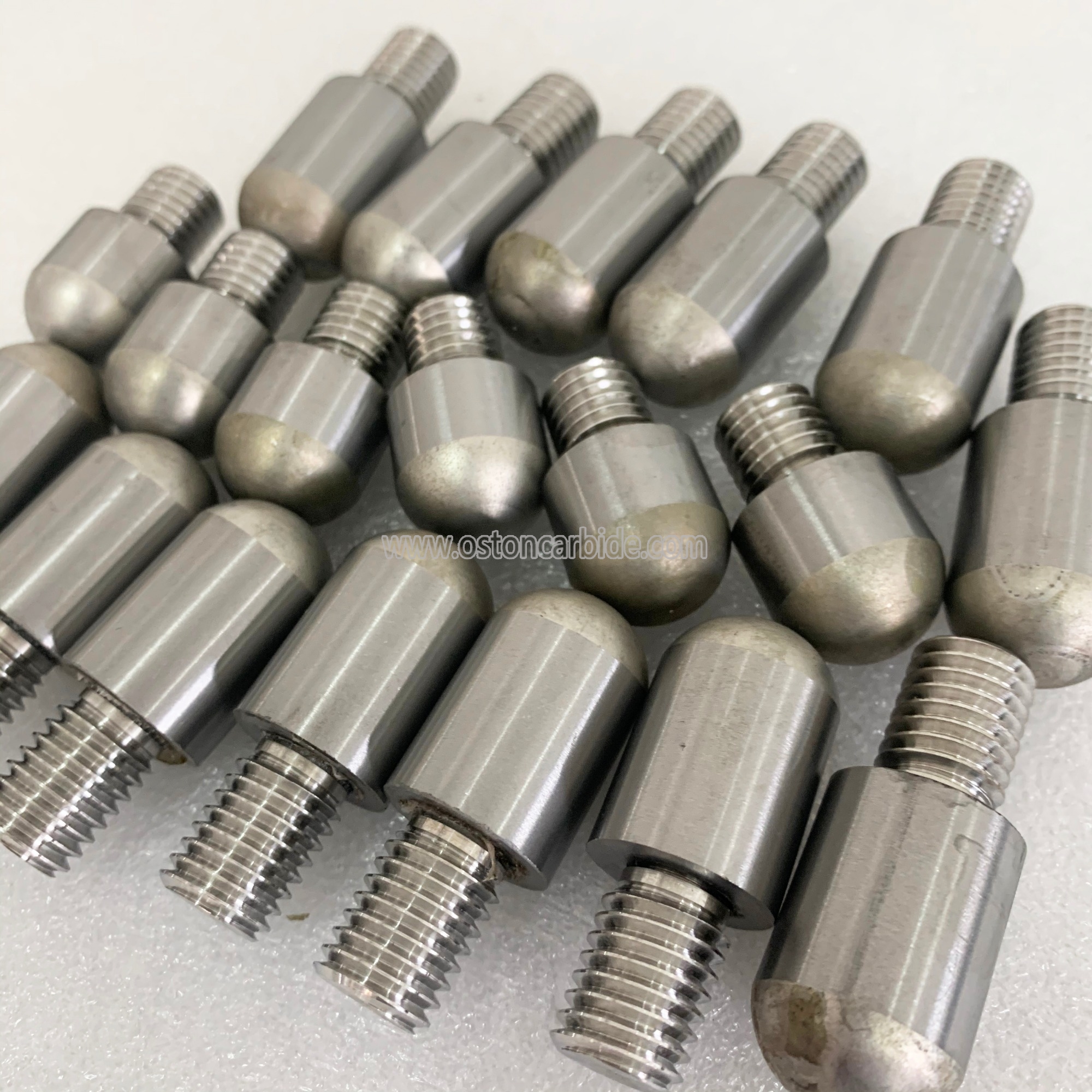

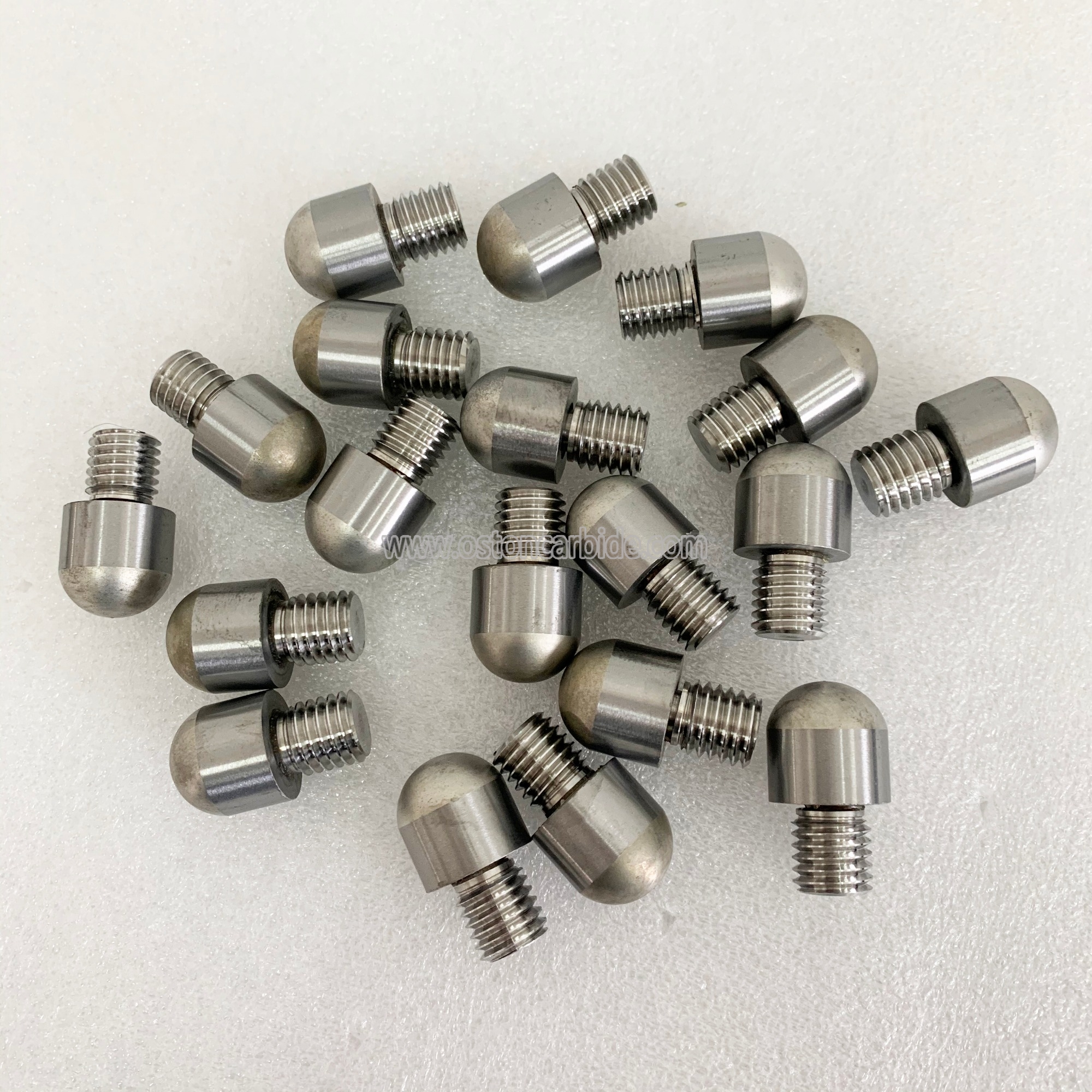

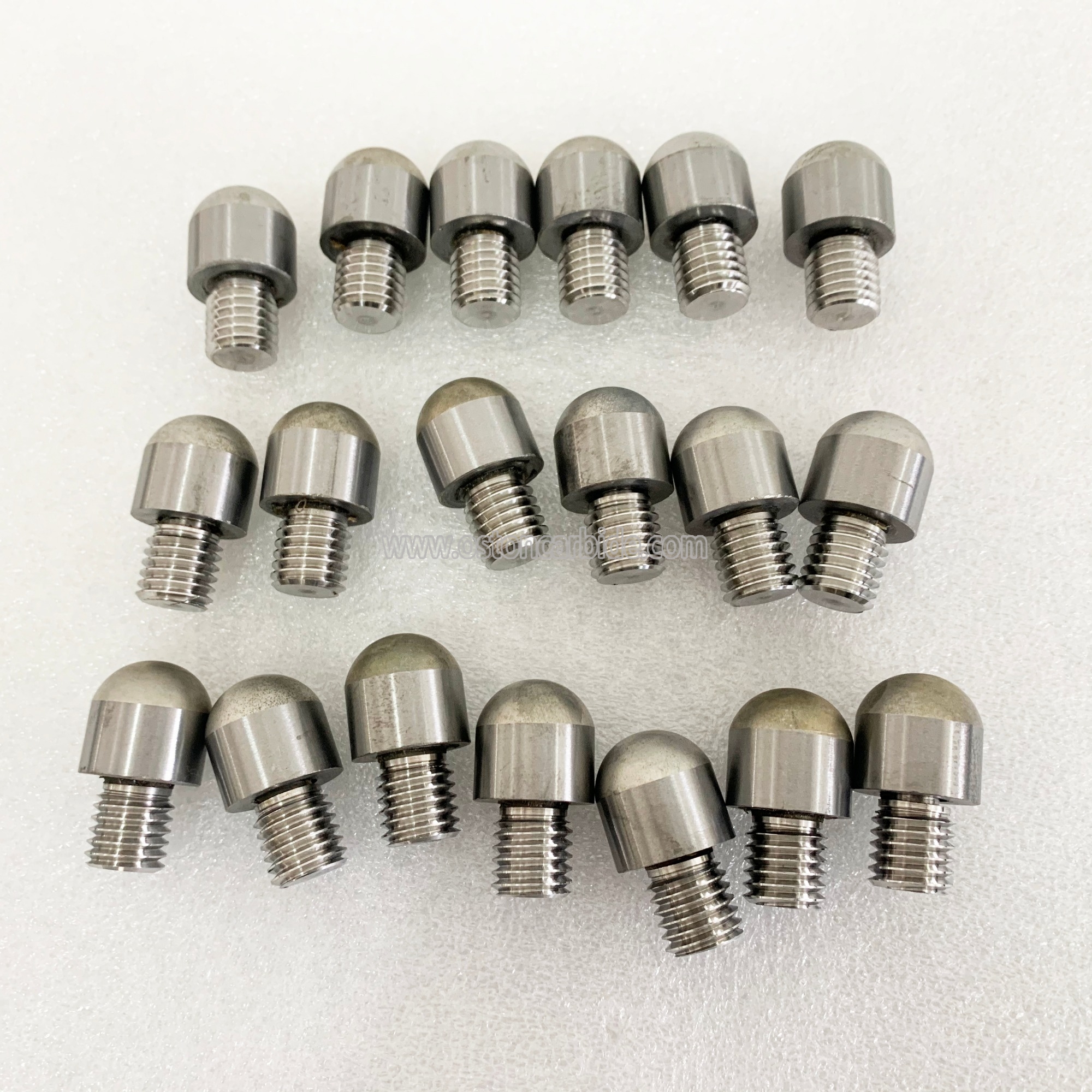

TC Tungsten Carbide Rotors Tips for High Pressure Sand Grinding Mill
The carbide roter tip is a roter-type sand mill, a vertical rod-type sand mill, a rod-type sand mill, and one of the commonly used accessories for the nano-sand mill. It is suitable for grinding of different viscosities from micron to nanometer, which
improves the dispersion.
tungsten carbide Rotor Tips for sand mill in two types:
1. The main body and the threaded part are made of tungsten carbide, which is called a solid carbide rod;
2. The main body is tungsten carbide, and the threaded part is made of stainless steel (such as stainless steel 316 or 304 steel), which is called welded rod pin.
|
Grade |
Density |
Hardness |
Bending strength |
Performances & applications recommented |
|
YG10X |
14.9 |
92 |
2850 |
Fine grain size,with good wear resistance,suitable for forming knife,wear parts etc. |
|
YG8 |
14.7 |
89.5 |
2400 |
With high strength, the wear resistance is lower than YM6A,Suitable for the forming knife,wear parts etc. |
|
YG15 |
14.5 |
87.5 |
3200 |
Suitable for making stamping die,wear parts etc. |
|
YN10 |
14.5 |
88.5 |
1700 |
Wear corrosion resistance & abrasion,especially used in hyperbaric environment,which is also benefit to Tialloy. |
carbide sand mill rotor tips are mainly used for grinding various liquid pastes such as paints, inks, porcelains, dyes, plastics, etc. It is especially suitable for high viscosity, small batch materials and grinding materials that are difficult to recycle or resistant to circulating materials, such as various colors. Pulp, ink, etc.
Six essential strength for tugnsten carbide pegs
1. High hardness
2. Good hot hardness
3. Long service life
4.High strength
5.Strong abrasion
6.High corrosion resistance
