| Dimension: | Dia 1.0-42.0mm, Length 2.0-1000mm |
| Cutting amgles: | 30°, 45°, 60°, 90°, 120°. Or Flat end As Requirement |
| Material: | 100% virgin tungsten carbide steel |
| Grade: | YL10.2 |
| Hardness: | HRA92 |
| Composition: | 10%Co+90%WC |
| Grain Size: | 0.6-0.8um |
| Surface: | unground |
| Features: | durable,high pwear resistance,Replaceable,Very Sharp Point,Create Fine Edge |
| Application: | Polished Carbide Machinery Pins and Tungsten Needles |

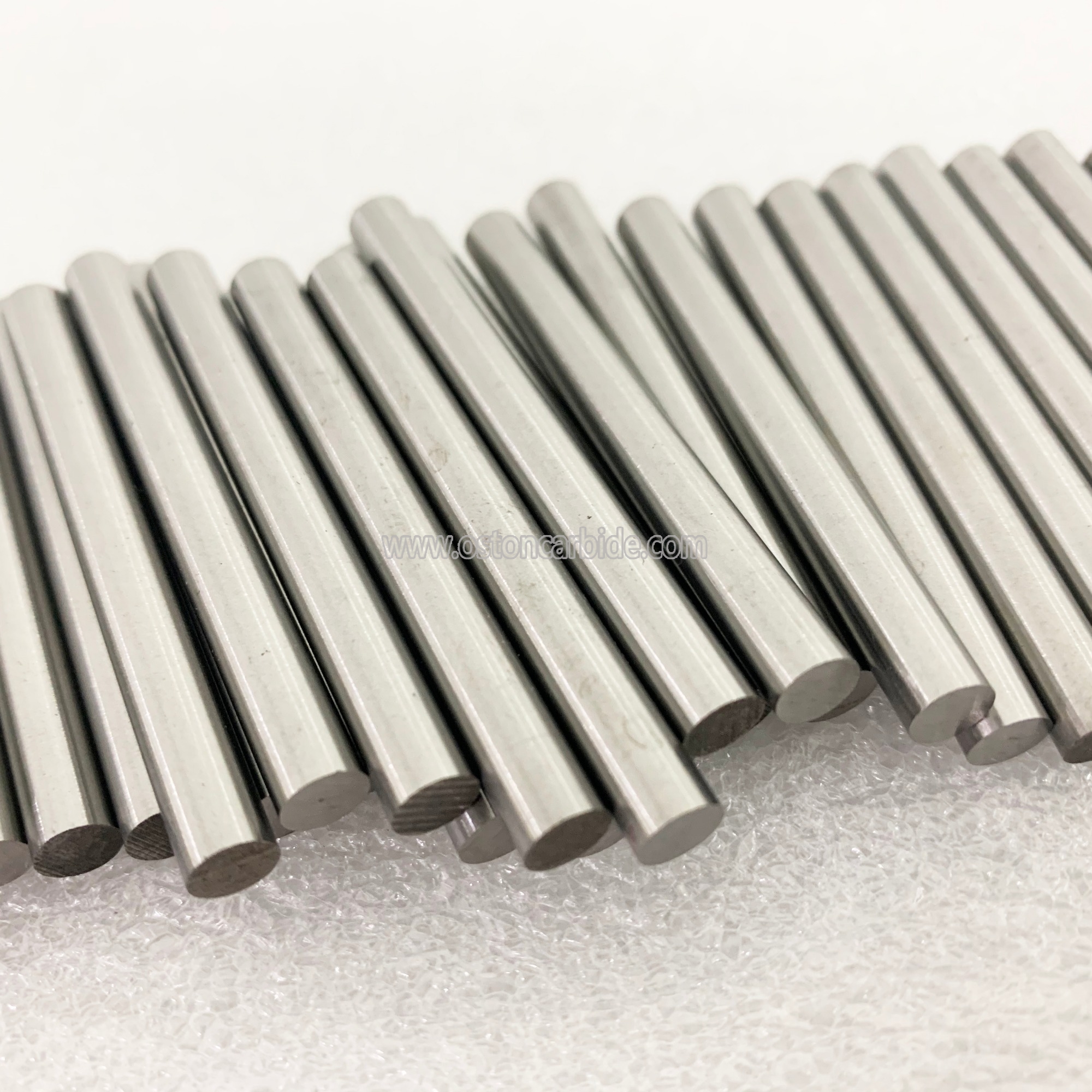

Diameter tolerance of unground tungsten carbide rods
| Diameter range/Length range | L<100mm | 100mm ≤ L ≤ 200mm | 200mm < L ≤ 330mm | 330mm < L ≤ 1000mm |
| Φ0.5 < Diameter ≤ Φ10 | +0.2/+0.3 | +0.3/+0.45 | +0.3/+0.5 | +0.4/+0.6 |
| Φ10< Diameter ≤ Φ16 | +0.3/+0.45 | +0.3/+0.5 | +0.4/+0.6 | +0.4/+0.8 |
| Φ16< Diameter ≤ Φ25 | +0.3/+0.5 | +0.4/+0.6 | +0.4/+0.8 | +0.5/+1.0 |
| Φ25< Diameter ≤ Φ46 | +0.3/+0.7 | +0.4/+0.8 | +0.5/+1.0 | +0.6/+1.1 |
| Length range | Tolerance | concentricity |
| <200 mm | 0/+1.5 | 0.25 |
| ≥ 200 mm | 0/+5.0 | 0.34 |
|
Grade |
ISO code |
Grain size |
binder |
Density |
Hardness HRA |
T.R.S |
Fracure Resistane |
Application |
|
OST10 |
K10 |
0.8 |
6 |
14.9 |
≥92.6 |
≥2800 |
8.6 |
Recommended for PCB drilling and milling.Widely used for magnesium alloy,glass fiber,wood,hard plastic,iron based alloy and etc. |
|
OST25 |
K30-K40 |
0.8 |
10 |
14.4 |
≥91.5 |
≥3600 |
10.7 |
With both toughness and wear resistance,it’s economical grade for general cutting tools. |
|
OST15F |
K30-K40 |
0.7 |
10 |
14.5 |
≥91.8 |
≥4200 |
10.8 |
With Excellent versatility,it's used for overall carbide cutting tools for carbon steel,cast iron,stainless steel,heat-resistant steel,nickel-based and titanium alloys and other materials. |
|
OST12 |
K40 |
0.7 |
12 |
14.13 |
≥91.4 |
≥3800 |
10.8 |
With ultra high impact strength and long working life,suitable for cutting tools for steel hardness over HRC50. |
|
OST12UF |
K40 |
0.6 |
12 |
14.15 |
≥91.5 |
≥4400 |
12.0 |
With ultra high impact strength and long working life,specially recommended for cutting tools for high speed stainless steel processing. |
|
OST25UF |
K40 |
0.5 |
12 |
14.15 |
≥92.3 |
≥4300 |
12.0 |
High hardness and high T.R.S,which is perfect material for high speed milling for nickle-based alloy,titanium alloy,stainless steel,hardened steel,gray cast iron and other intractable materials. |
|
OST30M |
K30-K40 |
1.5 |
15 |
14.2 |
≥87.5 |
≥3200 |
8.7 |
Recommended for punching moulds and punching tools. |
We offer different size carbide tips and carbide pins depending on your needs,Carbide pins are widly used in mold field and machinery wear parts.the service life are about 14-15 times of that of tool steel,which is becoming the trending material,your inquiry with special design and requirement will be more than welcome
