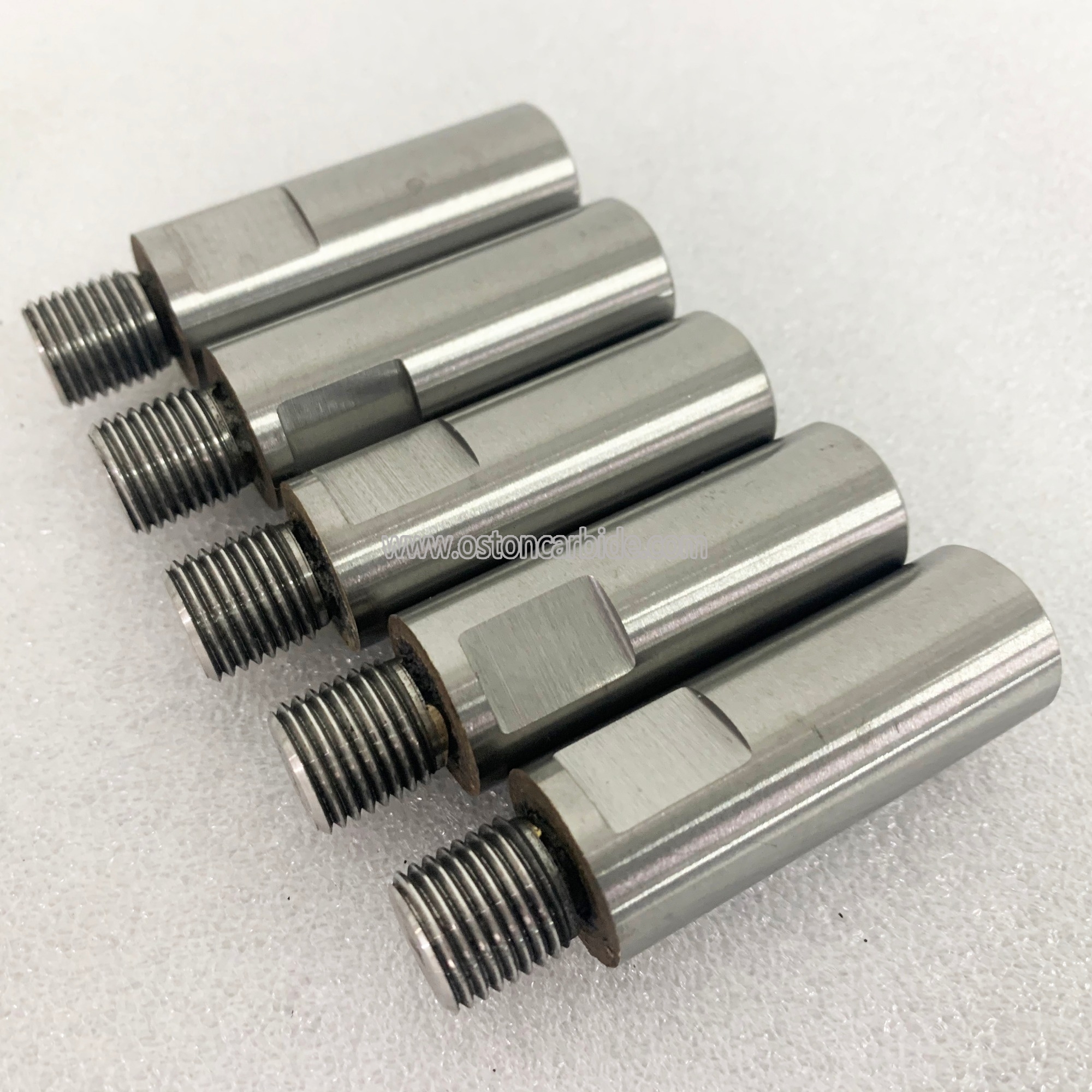

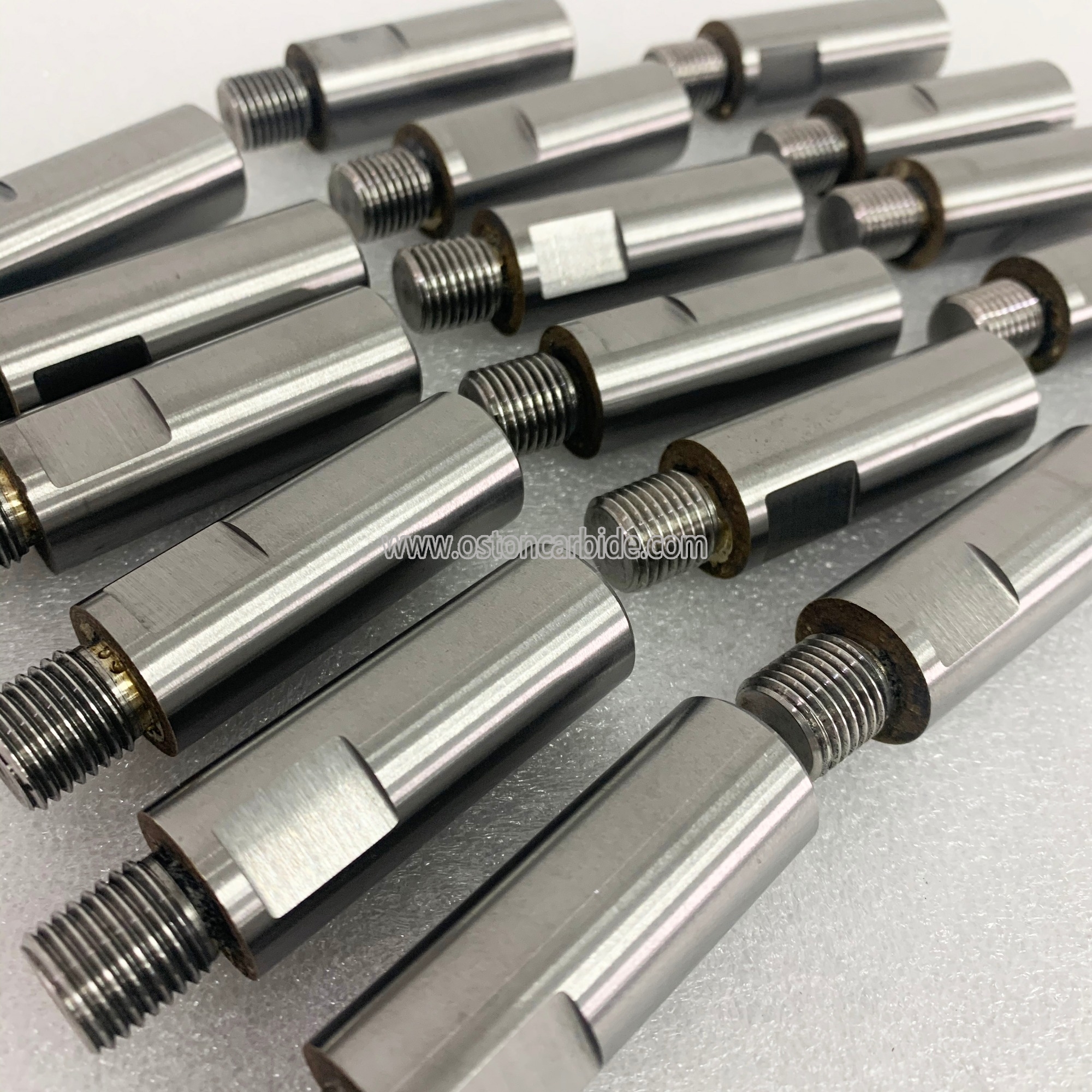

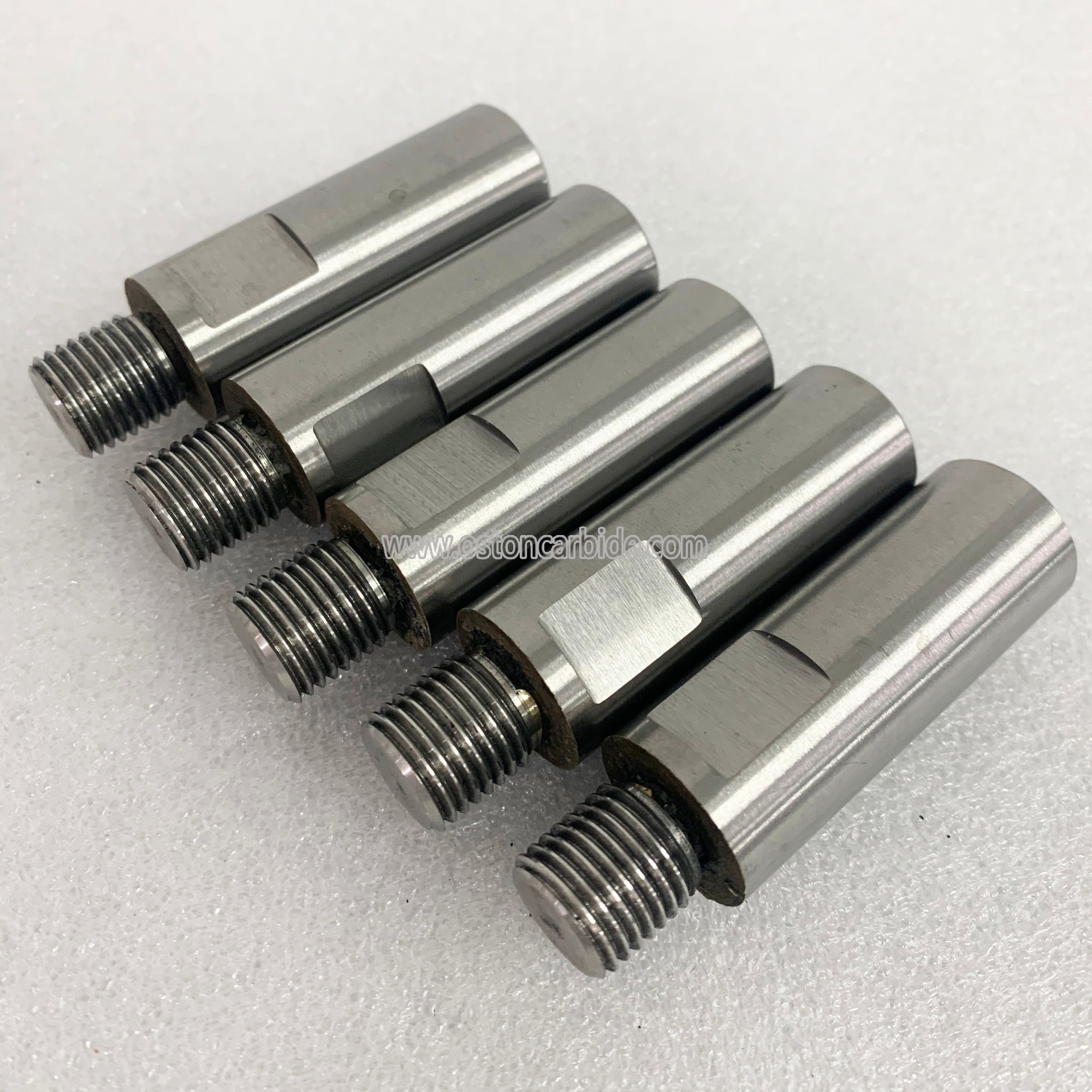

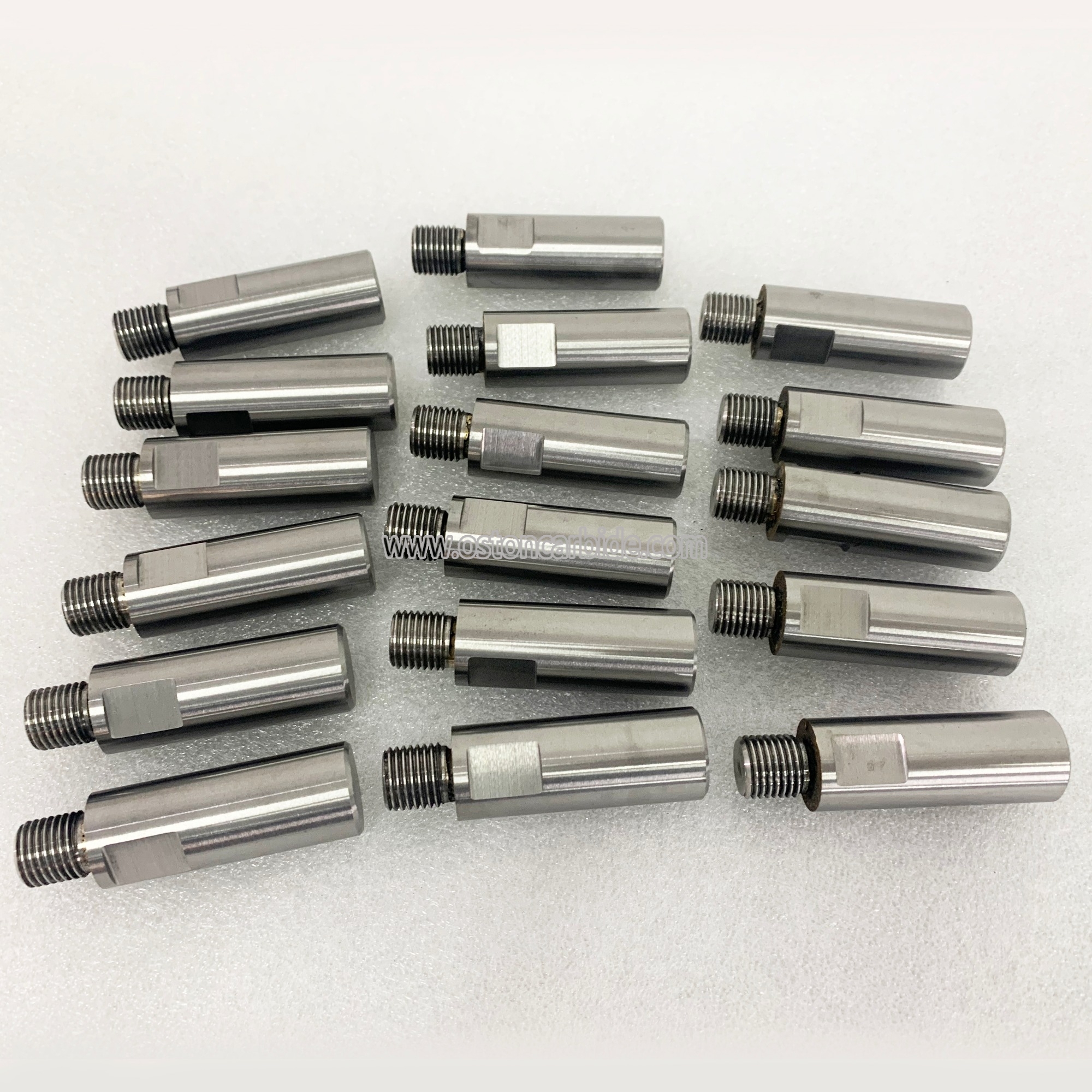

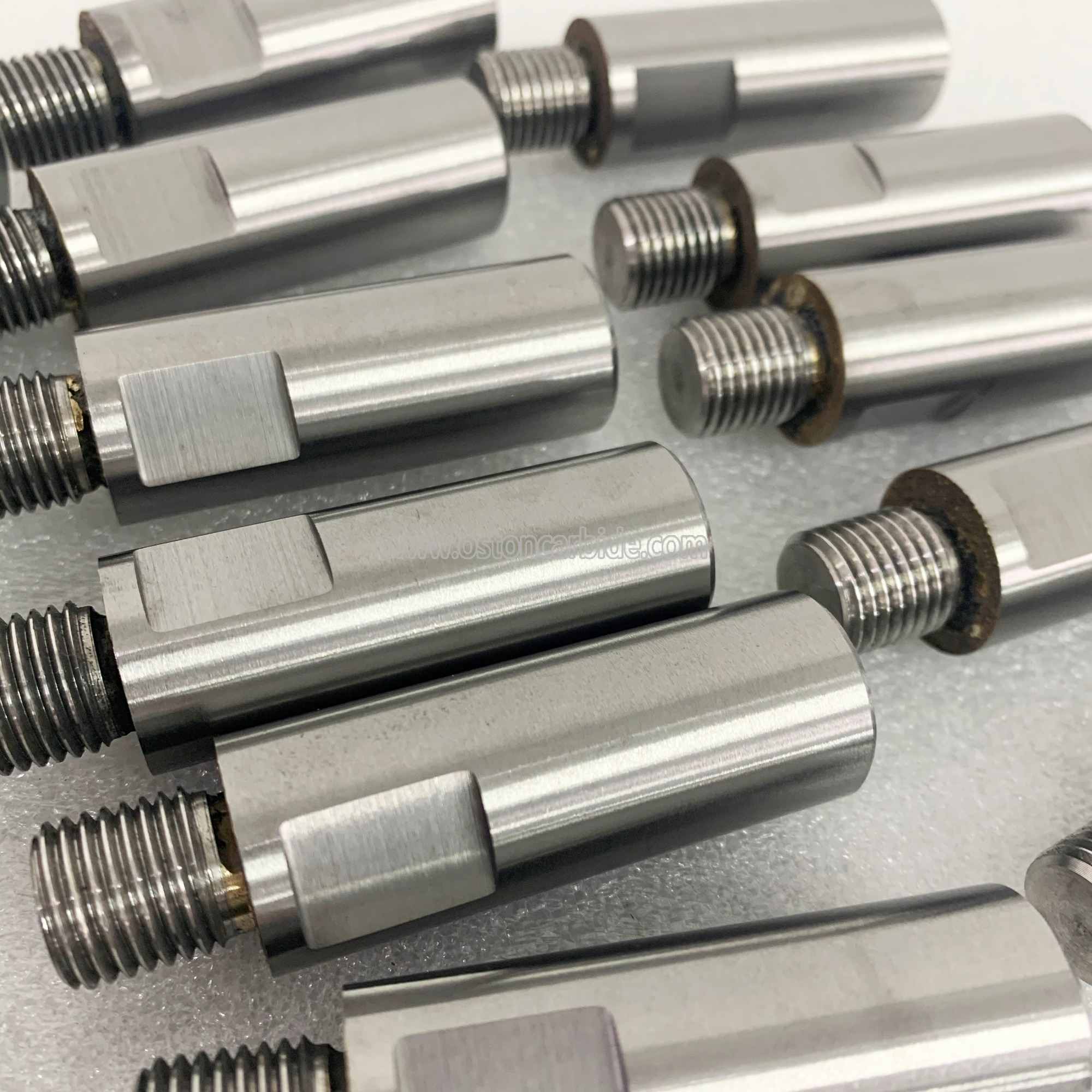

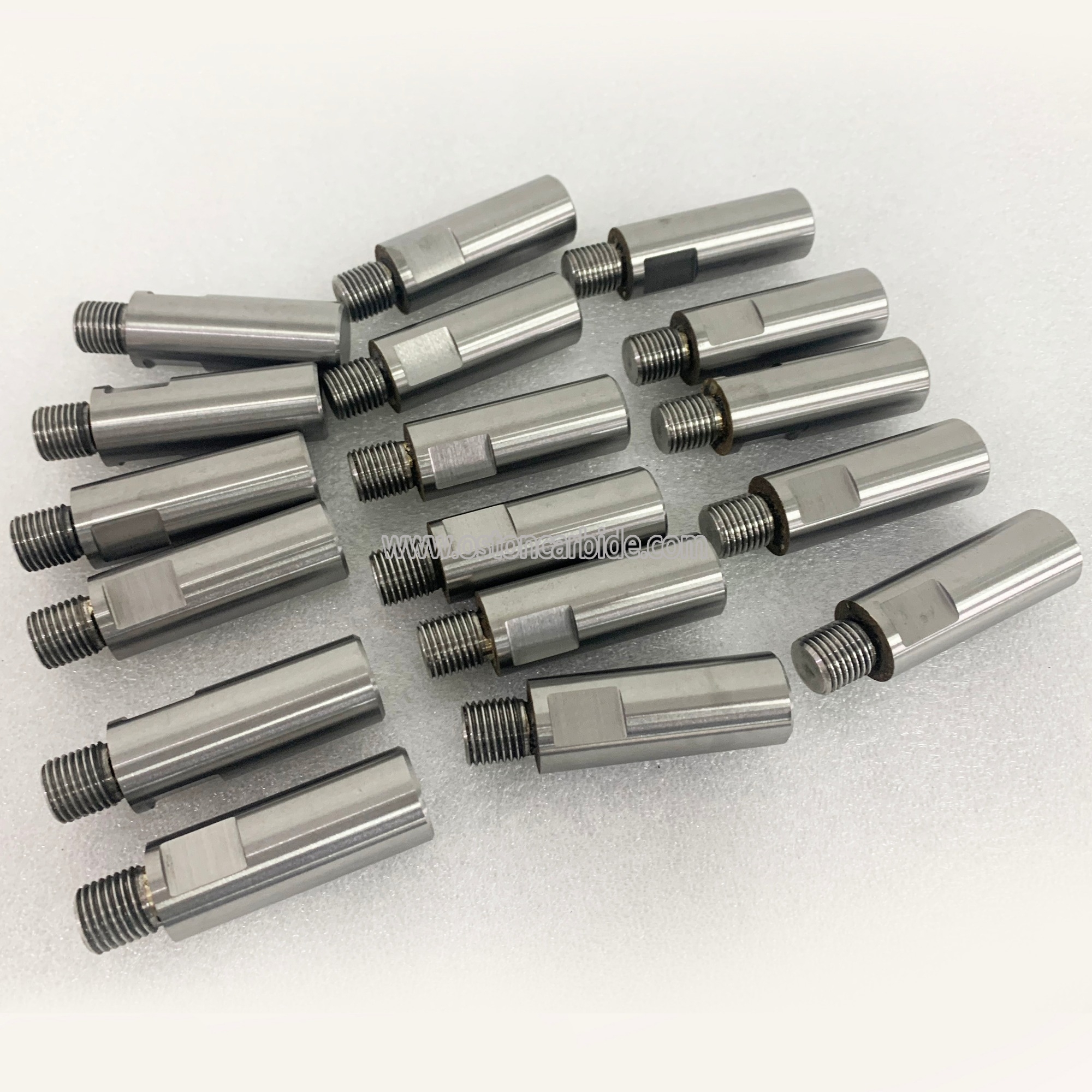

K30/YG8 Tungsten Carbide Grinding Pegs Studs for Horizontal Sand Grinding Mill
| Name |
Tungsten carbide Stud Pins |
| Other names |
Tungsten carbide pins, tungsten carbide tips, |
| Material |
Tungsten carbide, hard metal, hard alloy, tungsten steel |
| Composition |
Tungsten carbide with cobalt or nickle binder |
| Density |
14.5 to 14.8 g/cm3 based on different grade |
| Hardness |
HRA88 to HRA 91.5 based on different grade |
| Features,advantages |
Wear resistant, corrosion resistant, impact resistant |
| Size Reference |
Please see below size table for normal specifications |
| Different types |
Solid tungsten carbide pegs , Carbide pegs with brazed Taps |
| Material Recommend |
Tungsten carbide grade with colbalt binder for oil-based material;Tungsten carbide grade with nickel binder for water-based material |
| Applications(Equipment) |
For Pin-typed nanogrinding bead mill , wet gridning bead mill ,Horizontal bead mill ,Agitator bead mill, Horizontal Sand Mill, Paint Mill |
| OD(mm) |
L (mm) |
TAPS |
| 10 |
35
|
M12 |
| 12 |
35 |
M10 |
| 14 |
58 |
M12 |
| 16 |
48 |
M12 |
| 30 |
108 |
M16 |
1.The quality of the rotor significantly influences the performance and durability of a bead mill. Selecting the right pins for rotors is therefore decisive for the product quality and your system production costs.
2.Tungsten carbide pins/pegs is famous for the high hardness and high density, you can benefit the 12-13 times wear-resistance and durability performance than the normal steels.
3.Tungsten carbide pegs are ideal choice for Nanogrinding bead mill
4.The pegs /counter pegs of rotor is efficient activation of grinding beads
5.Cost Saving -The service life of Miller pegs have been proven no less than 4000hrs
6.Maximum energy efficiency- due to smaller beads and highest power density
