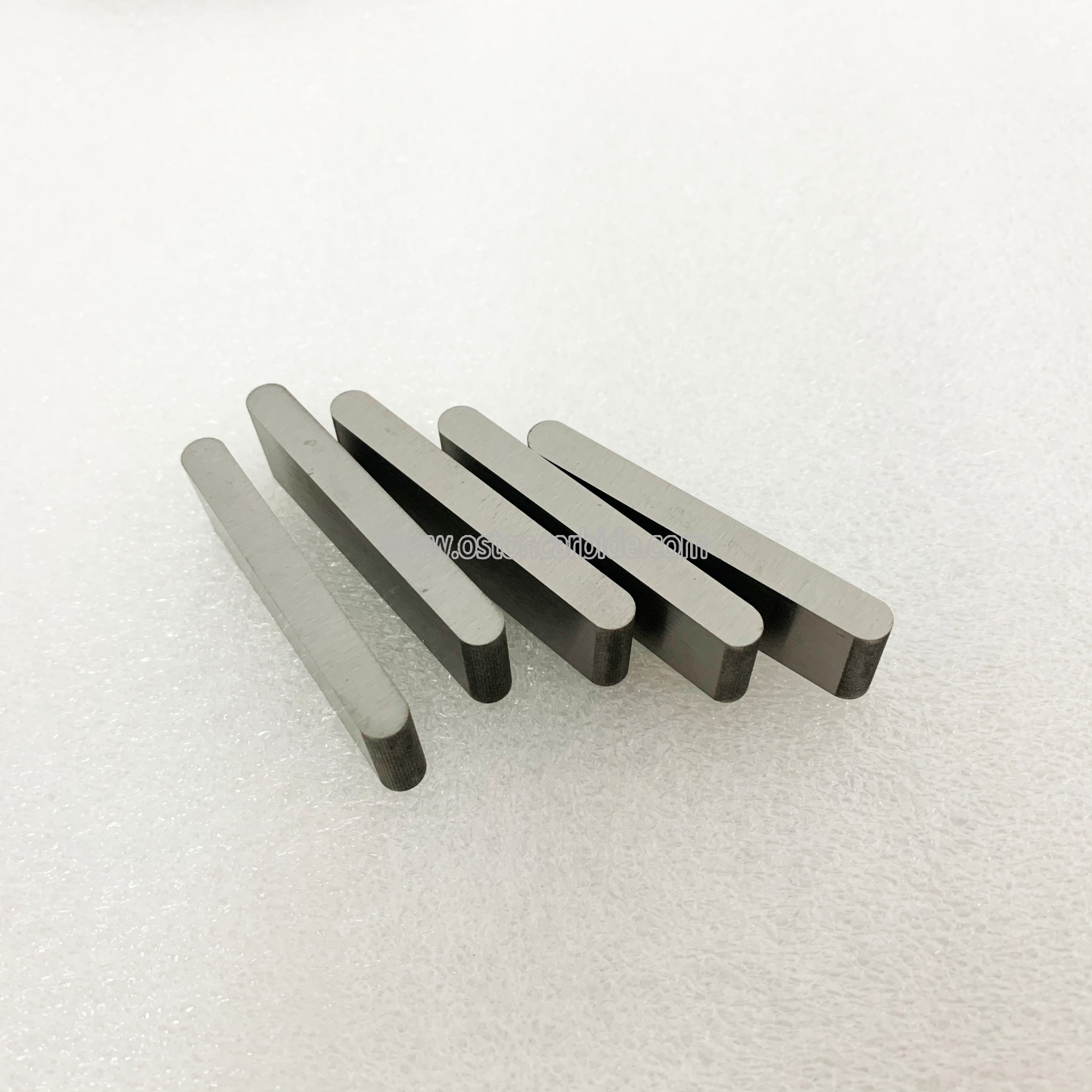

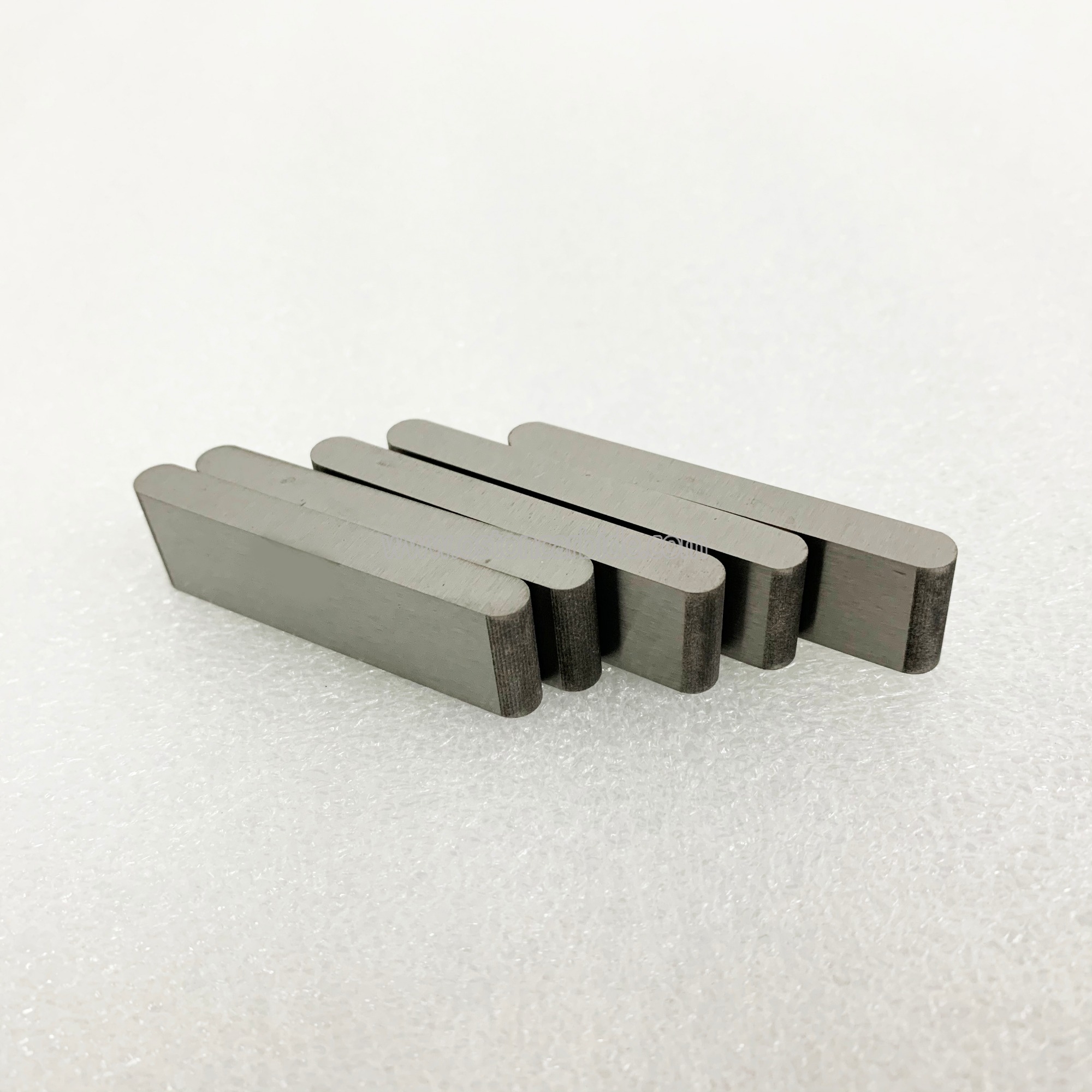

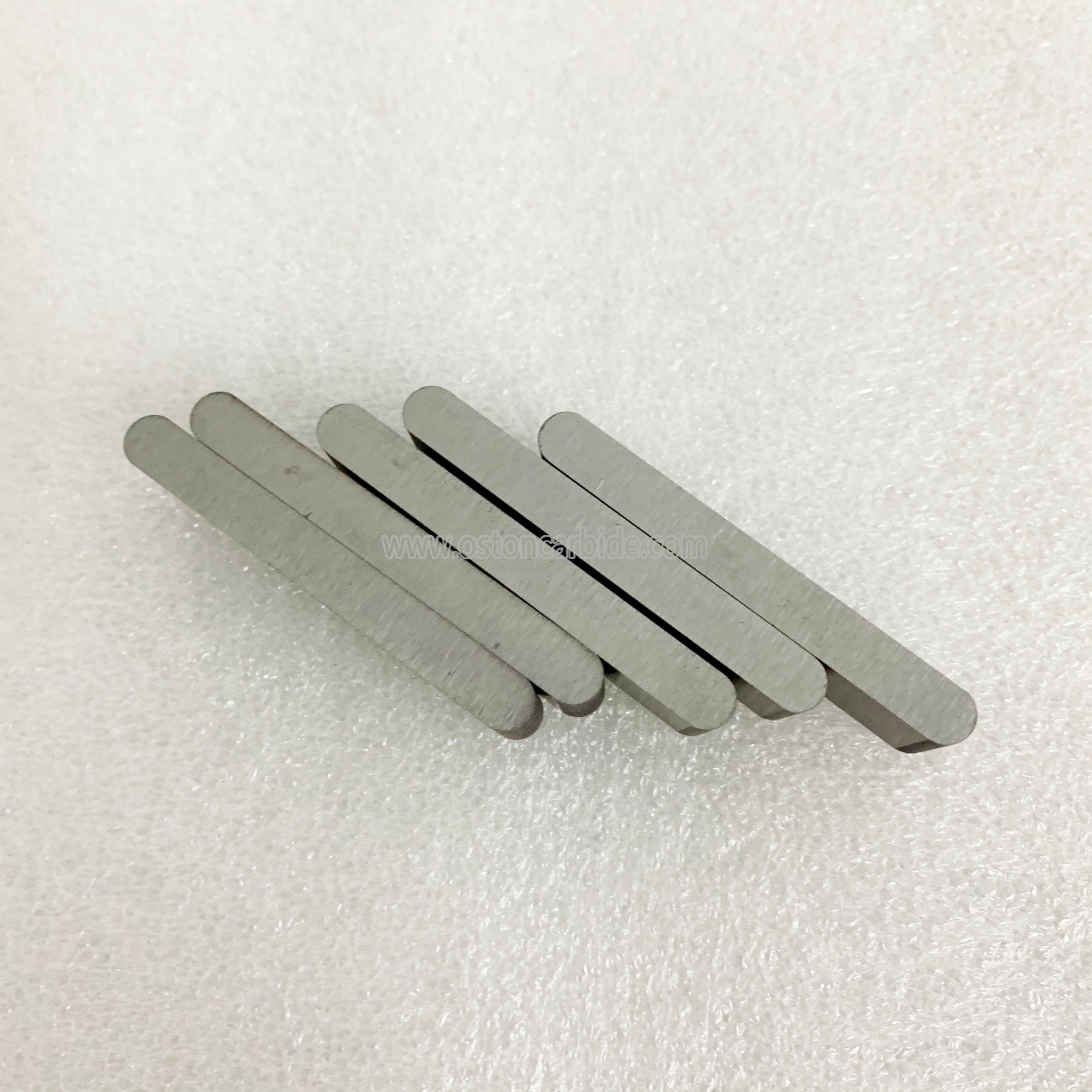

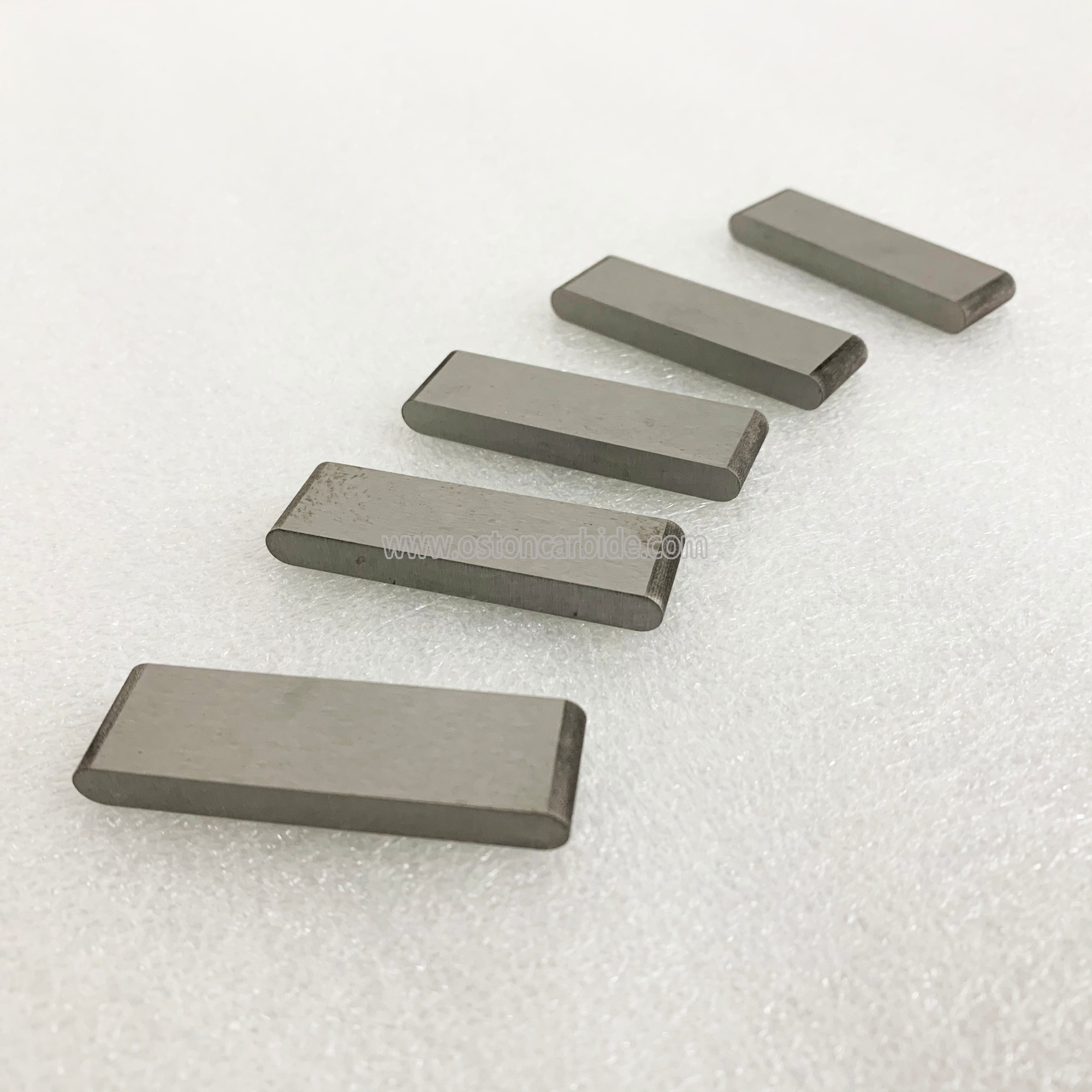

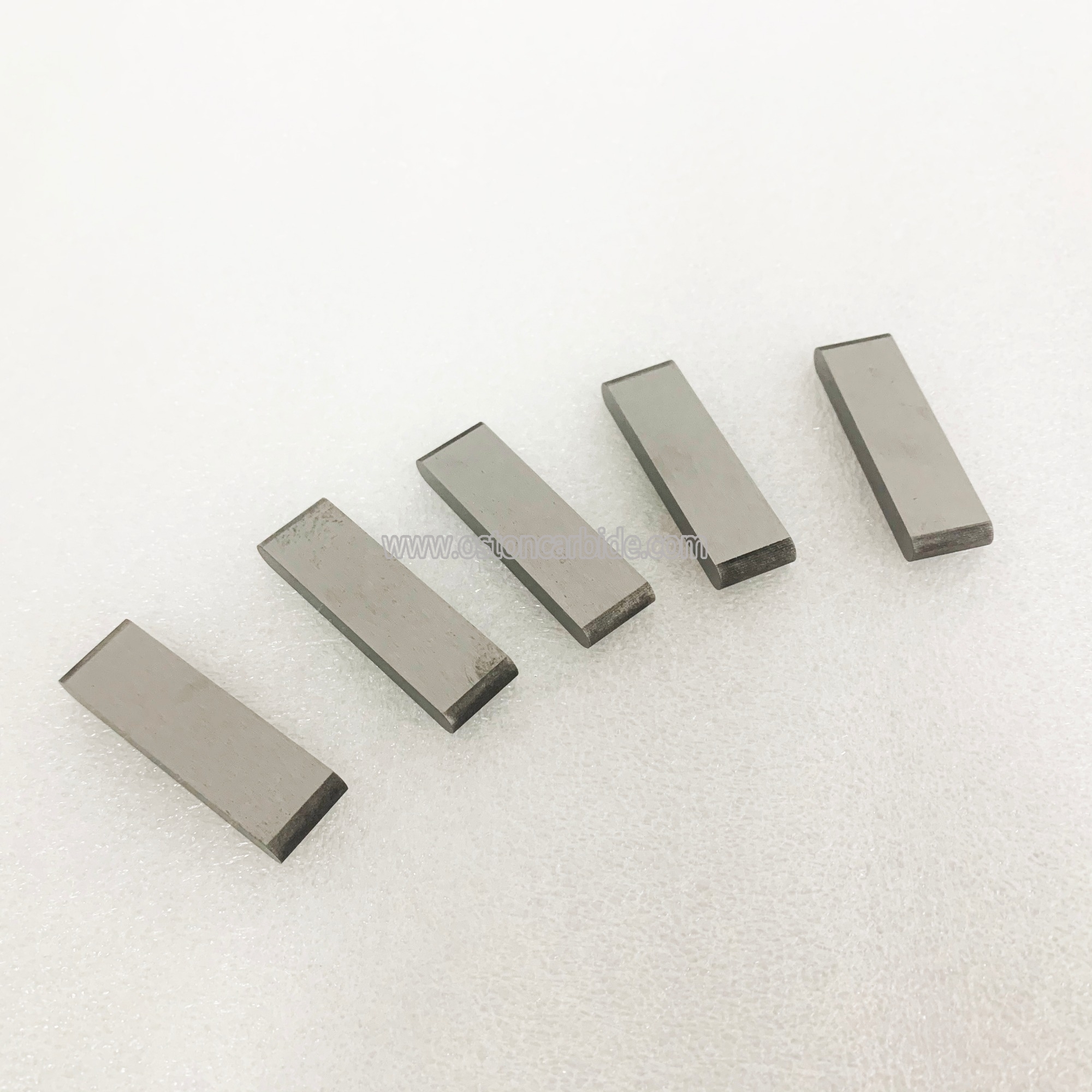

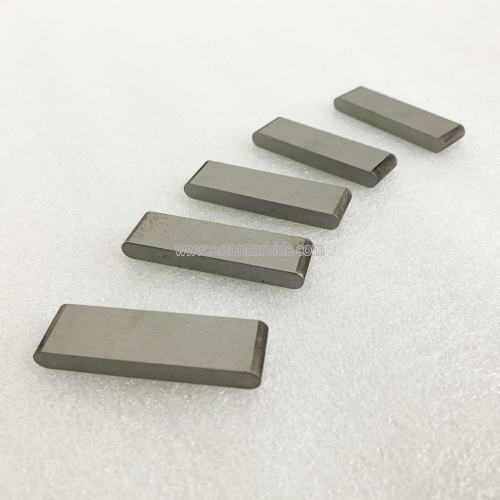

K20 Tungsten Carbide Wear Strips with U shape Wire Cutting End
Tungsten carbide plates are one of our leading products,With more than 600 sets of moulds,we could supply more than 2000 specification on tungsten carbide sheet with MOQ 1 PC,Pre-sale technical guide is available here.
1. stable property : testing pieces before mass production is produced to ensure the stable property of carbide flats.
2. Small allowance : small allowance helps to control our productin cost and decrease your importing cost.
3. Various grades and dimensions: with our CNC machining system,it is workable even for 1 PC rectangular carbide blanks.
These dimensions are just part of our moulds,if you can't find the dimension you are looking for,please contact us for confirmation.
| Sr.No | Length(mm) | Width(mm) | Thickness(mm) | Sr.No | Length(mm) | Width(mm) | Thickness(mm) |
| 1 | 50 | 50 | 2-40 | 11 | 250 | 250 | 2-200 |
| 2 | 70 | 70 | 2-50 | 12 | 300 | 300 | 2-200 |
| 3 | 100 | 100 | 2-70 | 13 | 70 | 50 | 2-40 |
| 4 | 102 | 102 | 2-70 | 14 | 110 | 80 | 2-50 |
| 5 | 105 | 105 | 2-70 | 15 | 125 | 72 | 2-50 |
| 6 | 125 | 125 | 2-80 | 16 | 150 | 60 | 2-50 |
| 7 | 120 | 120 | 2-80 | 17 | 155 | 60 | 2-50 |
| 8 | 150 | 150 | 2-100 | 18 | 150 | 100 | 2-80 |
| 9 | 180 | 180 | 2-150 | 19 | 200 | 100 | 2-80 |
| 10 | 200 | 200 | 2-150 | 20 | 300 | 200 | 2-80 |
Main grade grade K10(YG6X),K20(YG6),K30(YG8),YG15,YG20,YT15(P10),YW1(M10),for more information
please contact us through email.
| Grade | ISO grade |
Grain size (um) |
Binder |
density (g/cm³) |
Hardness (HRA) |
T.R.S (N/m㎡) |
|
YG6A |
K20 | 0.8 | 6 | ≥15.10 | ≥91.5 | ≥1580 |
| YG6X | K10 | 1.0 | 6 | ≥15.00 | ≥91.0 | ≥1880 |
| YG8 | K30 | 1.5 | 8 | ≥14.80 | ≥89.5 | ≥2020 |
| YG12 | K30-K40 | 1.5 | 12 | ≥14.50 | ≥88.0 | ≥2600 |
| YG15 | K30-K40 | 1.5 | 15 | ≥14.00 | ≥87.0 | ≥2900 |
| YG20 | 1.0 | 20 | ≥13.80 | ≥86.0 | ≥2600 |
1.Metal working:processed into press tool,blade,cutter,wear parts,blanks and polishing tungsten carbide plates for machinery lathe to machine HSS material,Alu,steel,and stainless steel,etc.
2.Wood working:blank carbide plate and polished solid tungsten carbide plates for wood working stone.
3.Stone working:blank and polished solid tungsten carbide plates for crushing of marble,granite,cobblestone,etc.
4.Other application:such as wear resistance parts of punching mold,measuring and cutting industry.
Customized size carbide rectangular parts are available here,your inquiry will be more than welcome,work with us!
