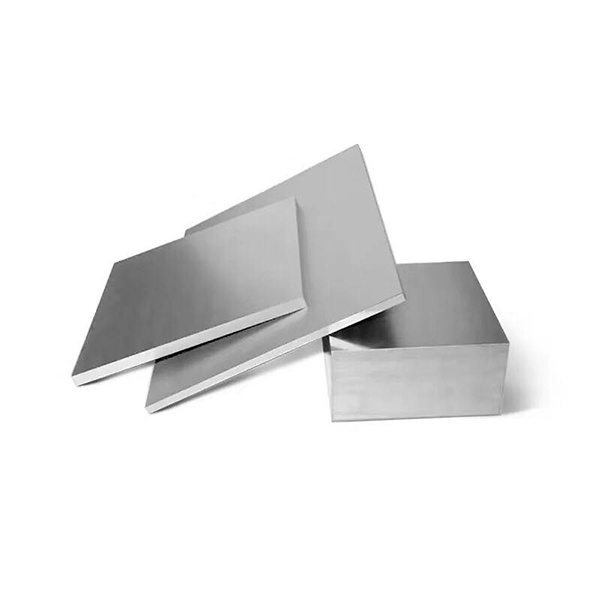

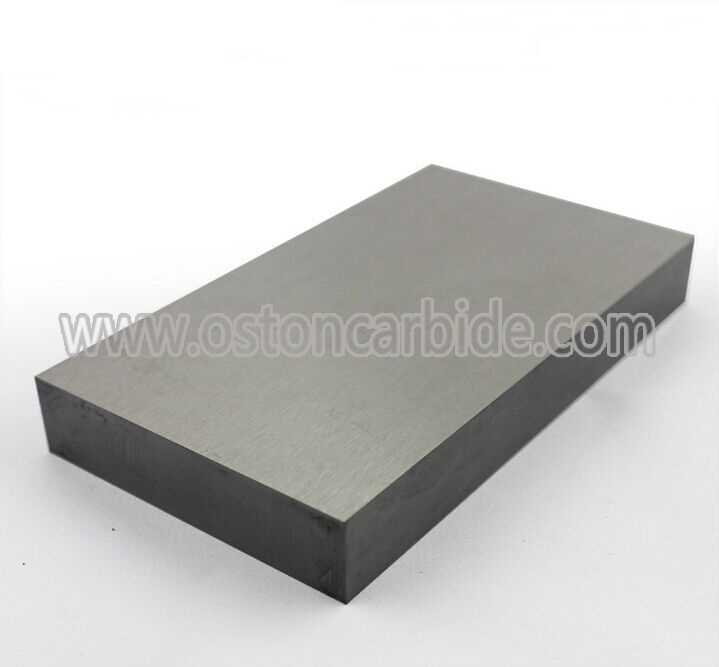

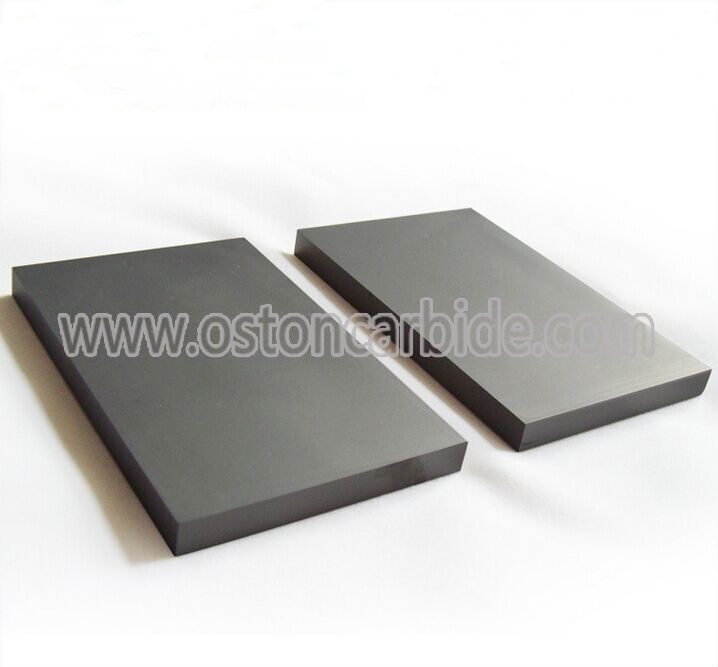

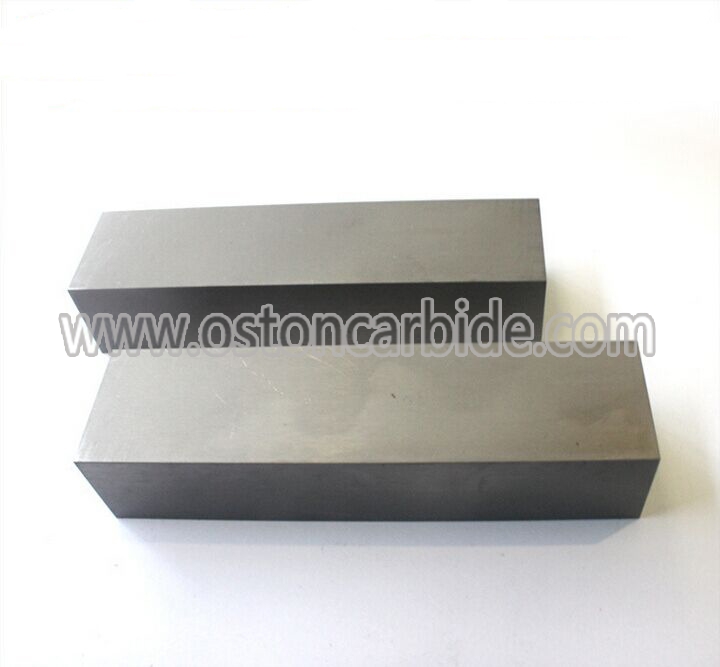

High Impact Resistance YG12X Tungsten Carbide Plates with 0.6 Micron Grain
| Item name | tungsten carbide plates |
| Material | WC and cobalt binder |
| Recommended | YG15/YG20/CD650/G30/G40/G50/YG12X/YG13X |
| Application | planer cutting tool / pliner plates / metal working / stone working |
| Business type | Manufactuer since 1998 |
| Surface treatment | Plain / grinding /polished as your request |
| Packing | Paper case to every pc, carton out wrapped |
| Delivery | 7-10 days for normal PO |
| Advantages | HIP sintering,CNC machining and fast delivery |
| product keywords | tungsten carbide plate,tungsten carbide bars,tungsten carbide strips |
These dimensions are just part of our moulds,if you can't find the dimension you are looking for,please contact us for confirmation.
| Sr.No | Length(mm) | Width(mm) | Thickness(mm) | Sr.No | Length(mm) | Width(mm) | Thickness(mm) |
| 1 | 50 | 50 | 2-40 | 11 | 250 | 250 | 2-200 |
| 2 | 70 | 70 | 2-50 | 12 | 300 | 300 | 2-200 |
| 3 | 100 | 100 | 2-70 | 13 | 70 | 50 | 2-40 |
| 4 | 102 | 102 | 2-70 | 14 | 110 | 80 | 2-50 |
| 5 | 105 | 105 | 2-70 | 15 | 125 | 72 | 2-50 |
| 6 | 125 | 125 | 2-80 | 16 | 150 | 60 | 2-50 |
| 7 | 120 | 120 | 2-80 | 17 | 155 | 60 | 2-50 |
| 8 | 150 | 150 | 2-100 | 18 | 150 | 100 | 2-80 |
| 9 | 180 | 180 | 2-150 | 19 | 200 | 100 | 2-80 |
| 10 | 200 | 200 | 2-150 | 20 | 300 | 200 | 2-80 |
Main grade grade K10(YG6X),K20(YG6),K30(YG8),YG15,YG20,YT15(P10),YW1(M10),for more information
please contact us through email.
| Grade | ISO grade |
Grain size (um) |
Binder |
density (g/cm³) |
Hardness (HRA) |
T.R.S (N/m㎡) |
|
YG6A |
K20 | 0.8 | 6 | ≥15.10 | ≥91.5 | ≥1580 |
| YG6X | K10 | 1.0 | 6 | ≥15.00 | ≥91.0 | ≥1880 |
| YG8 | K30 | 1.5 | 8 | ≥14.80 | ≥89.5 | ≥2020 |
| YG10X | 0.8 | 10 | ≥14.60 |
≥91.0 |
≥3200 |
|
| YG12 | K30-K40 | 1.5 | 12 | ≥14.50 | ≥88.0 | ≥2600 |
| YG12X | 0.6 | 12 | ≥14.20 |
≥91.5 |
≥4200 | |
| YG15 | K30-K40 | 1.5 | 15 | ≥14.00 | ≥87.0 | ≥2900 |
| YG16X | 0.8 | 16 | ≥14.50 |
≥91.0 |
≥3400 |
|
| YG20 | 1.0 | 20 | ≥13.80 | ≥86.0 | ≥2600 |
1.Metal working:processed into press tool,blade,cutter,wear parts,blanks and polishing tungsten carbide plates for machinery lathe to machine HSS material,Alu,steel,and stainless steel,etc.
2.Wood working:blank carbide plate and polished solid tungsten carbide plates for wood working stone.
3.Stone working:blank and polished solid tungsten carbide plates for crushing of marble,granite,cobblestone,etc.
4.Other application:such as wear resistance parts of punching mold,measuring and cutting industry.
