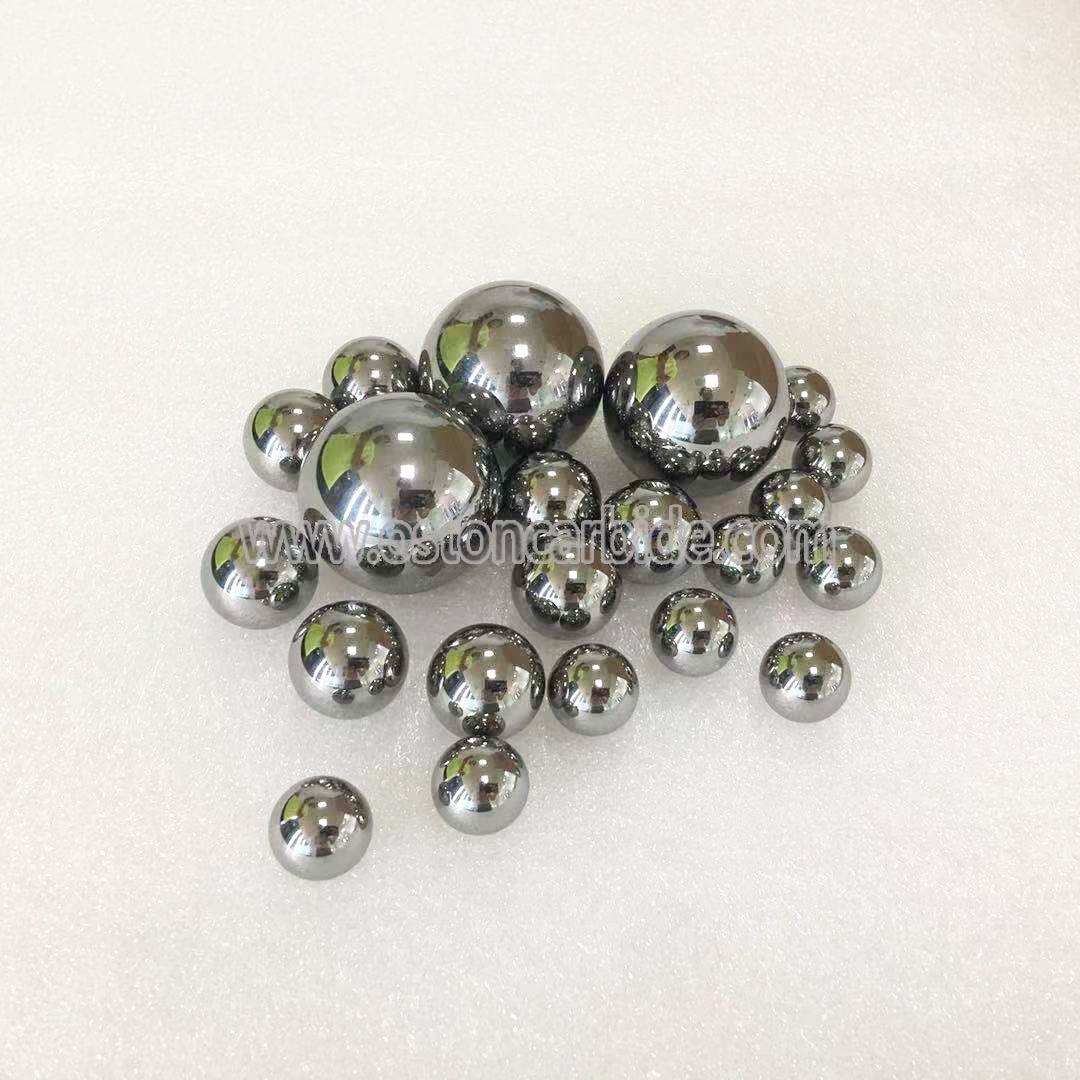

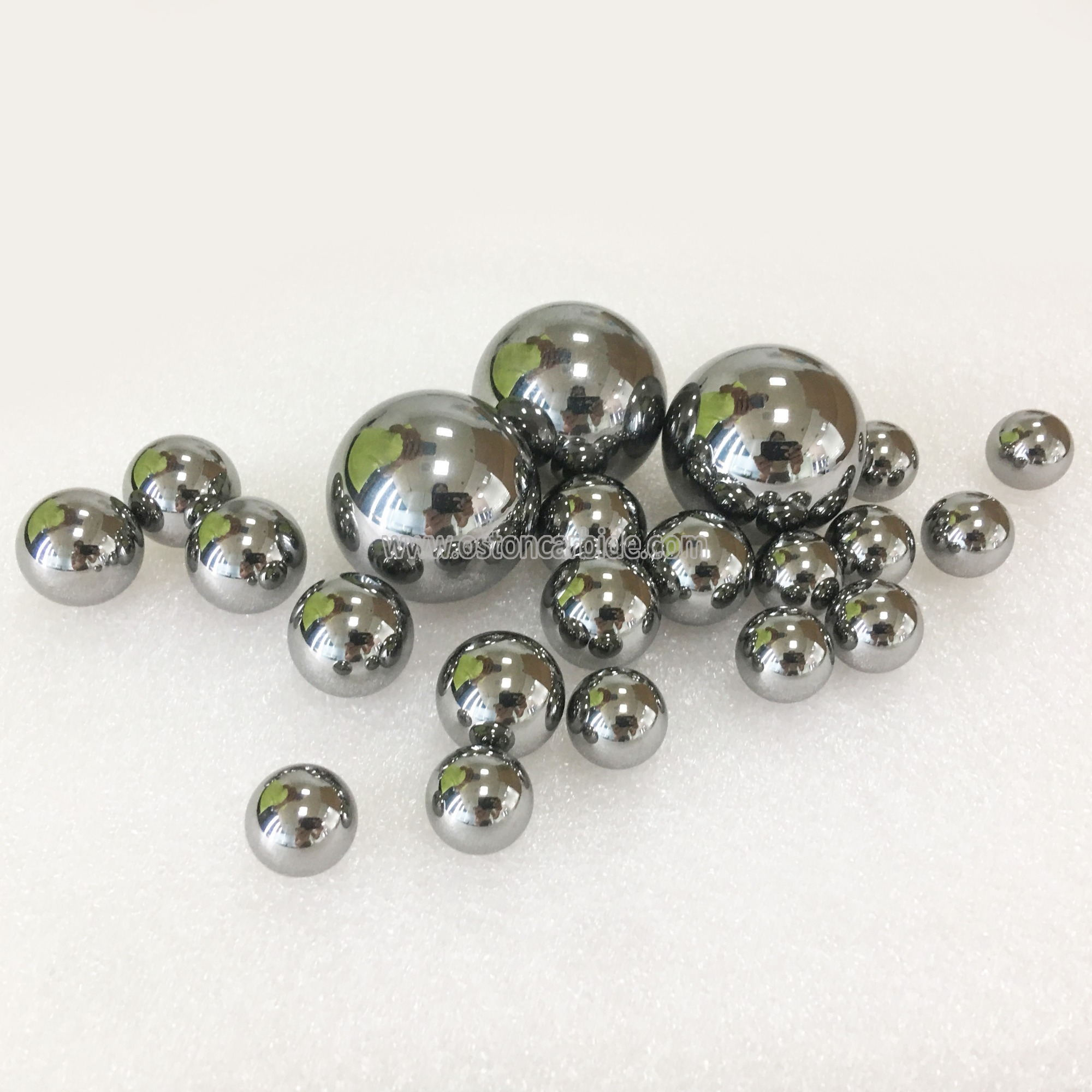

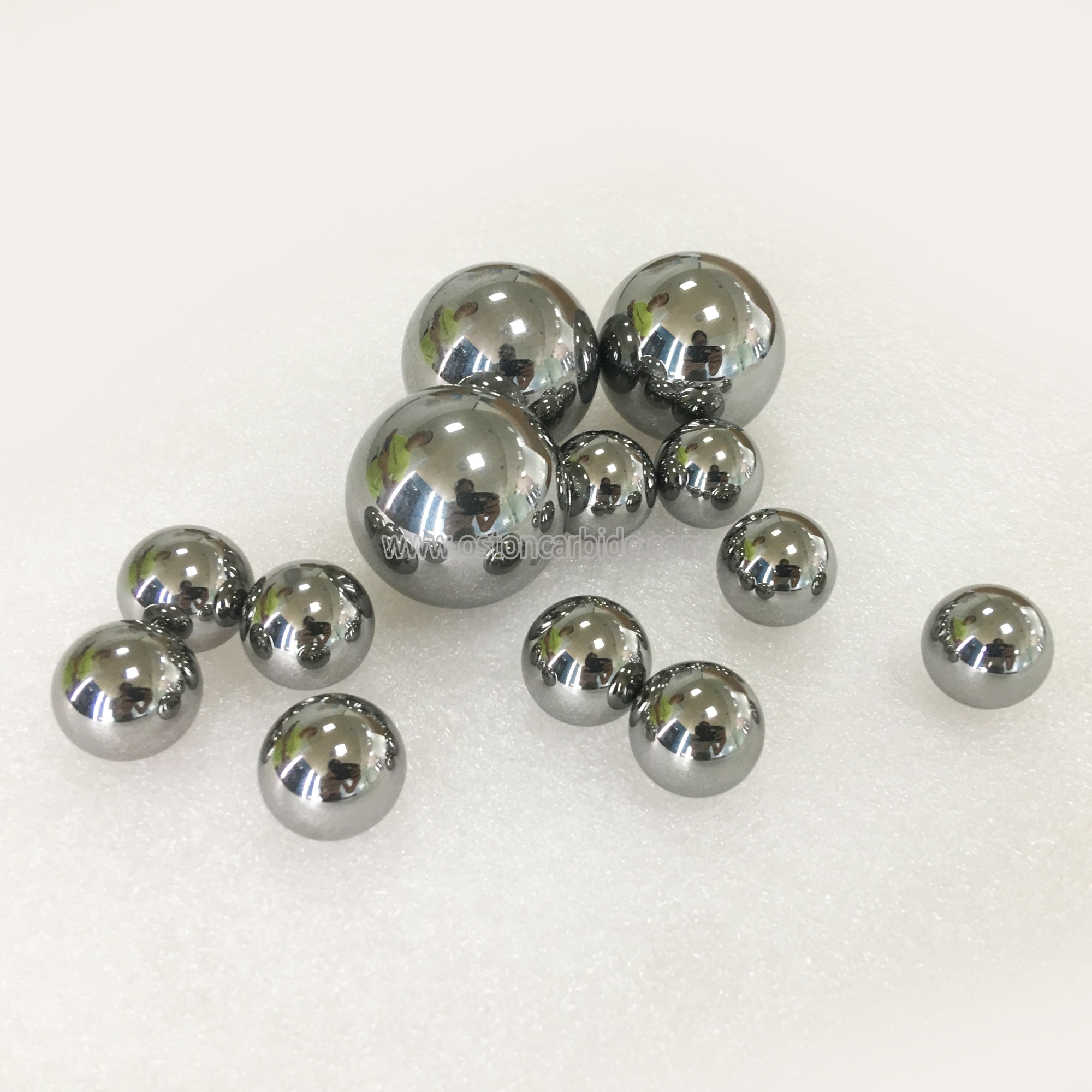

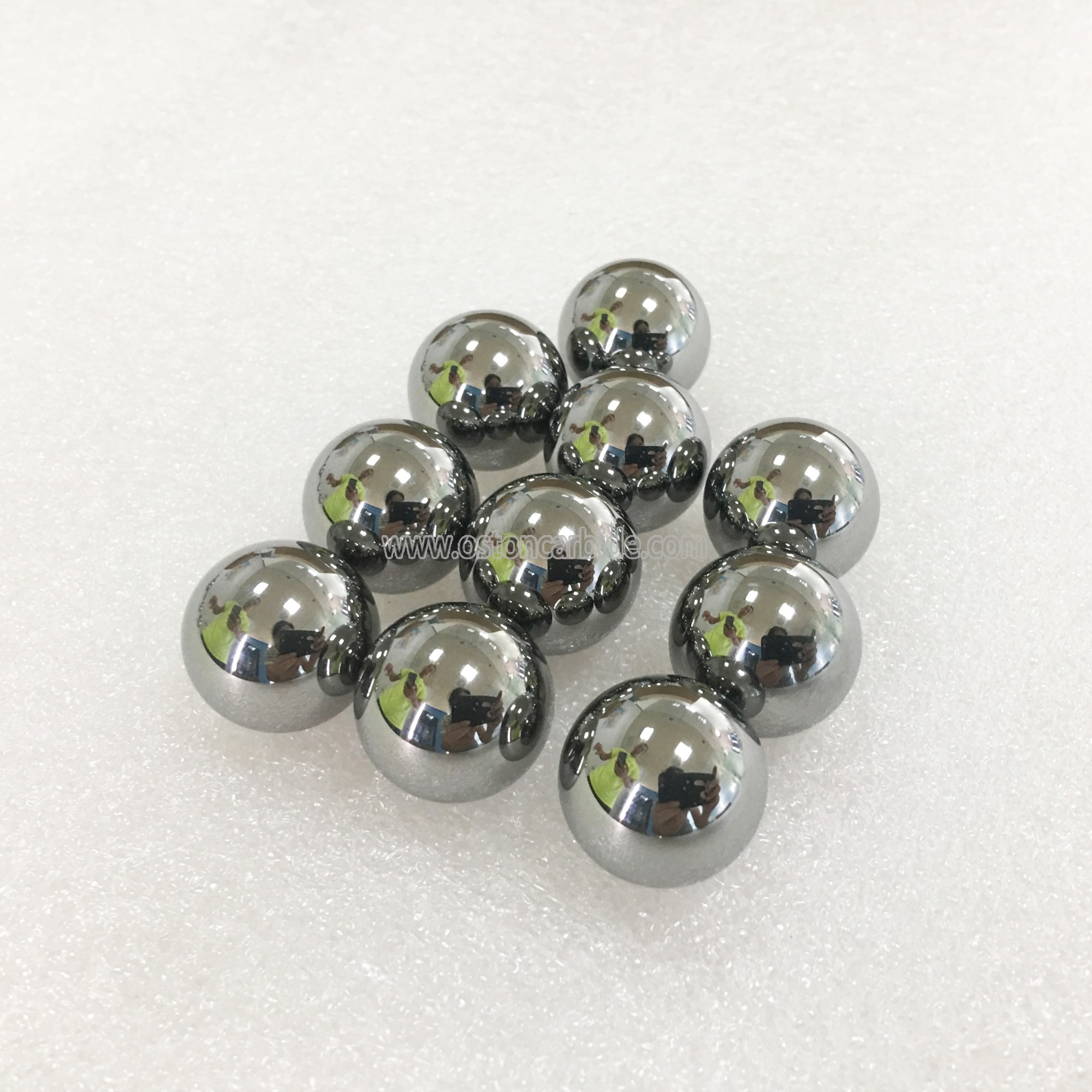

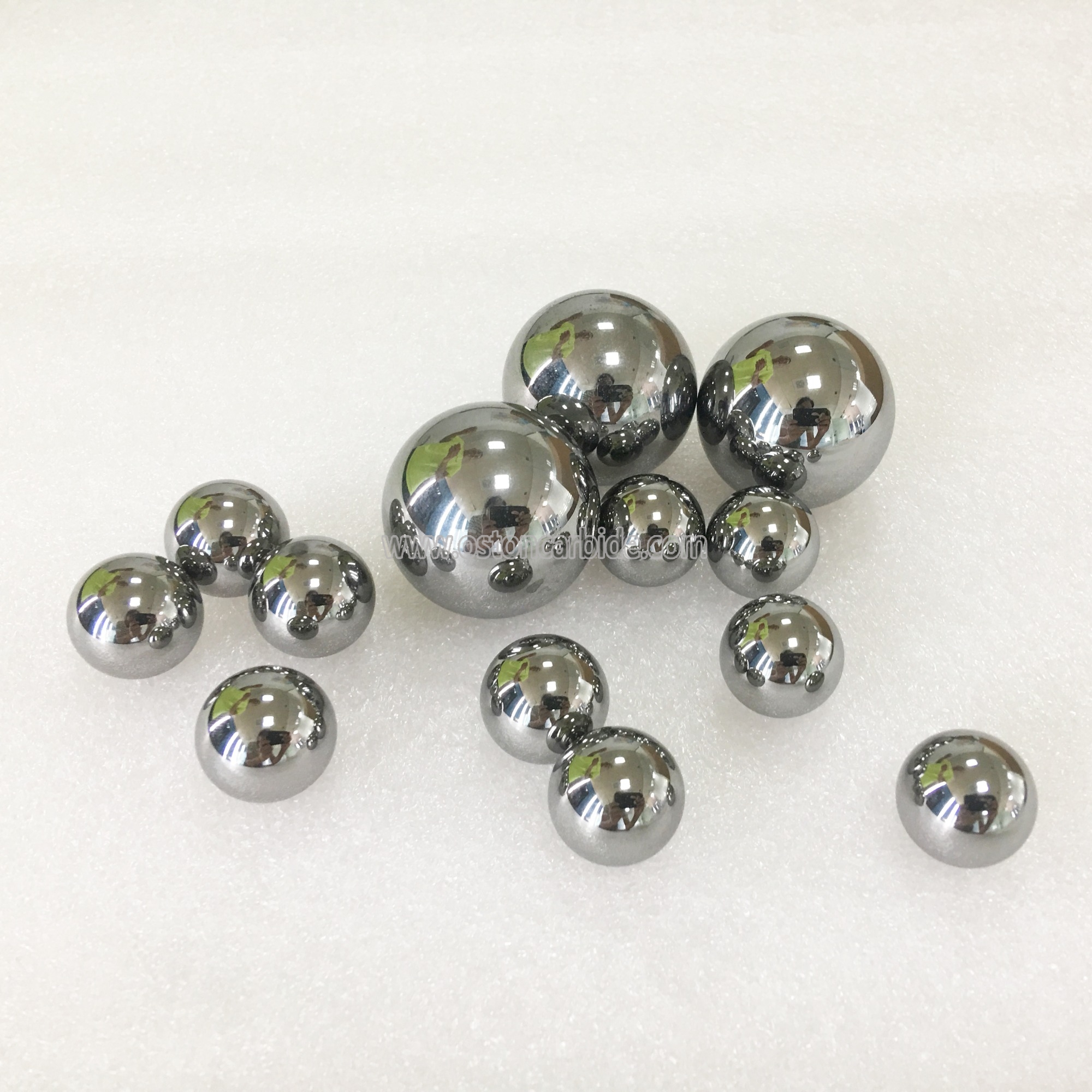

G10 Φ10mm High Precision Well Polished Tungsten Carbide Spheres
1. Tungsten carbide Spheres are used where extreme hardness and wear resistance is required;
2.In such applications as bearings, ball screws, valves and flow meters.
3.These carbide spheres are also used for coining and as pivots, detents and tips for gauges and tracers.
4.Tungsten carbide is practically insert and extremely strong. Any attacks are usually on the binder.
5.Since other materials are less expensive, the selection of tungsten carbide solely for corrosion resistance is usually not justified.
6.In highly corrosive conditions, carbides with a more resistant binder can be supplied.
7.Usage : ball pen,bearing,high precision instruments,hardness test machine,head pressure,mine,decorations and other special precision industry.
These specs are common dimensions in our factory,if you can't find the one you need,please contact us.
| Diameter (mm) | Diameter (mm) | Diameter (mm) | Diameter (mm) |
|
2.0 |
2.38125 (3/32 '') | 2.5 | 3.0 |
|
3.175 (1/8 '') |
3.5 (9/64 '') | 4.0 | 4.5 |
|
4.7625 |
5.0 | 5.5 | 6.0 |
| 6.35 (1/4 ‘’) | 6.5 | 7.0 | 7.144 (9/32 '') |
| 7.5 | 7.938 (5/16 '') | 8.0 | 8.5 |
| 9.0 | 9.525 (3/8 '') | 10.0 | 11.0 |
| 11.1125 (0.4375'') | 12.0 | 12.7 (0.5'') | 13.0 |
| 13.494 | 14.0 | 14.2875 (9/16 '') | 15.0 |
| 15.875 (5/8 '') | 16.0 | 17.0 | 17.4625 (11/16 '') |
| 18.0 | 19.0 | 19.05 (3/4 '') | 20.0 |
| 22.225 (7/8 '') | 25.0 | 25.4 ( 1'' ) | 28.575( 9/8 '') |
| 30.0 | 31.75 (1.25'') | 38.1 (1.5'') | 42.8625 ( 27/16 '') |
| 50.8 (2'') |
