Name
|

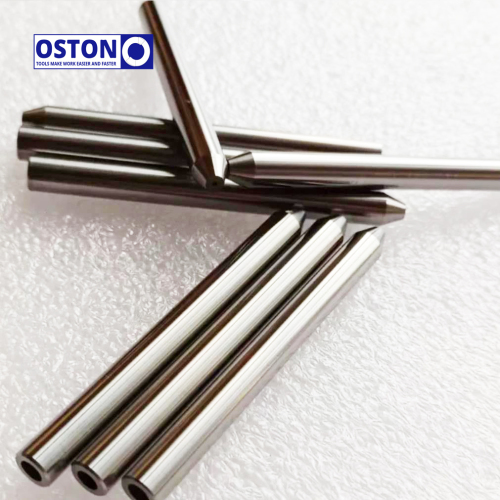

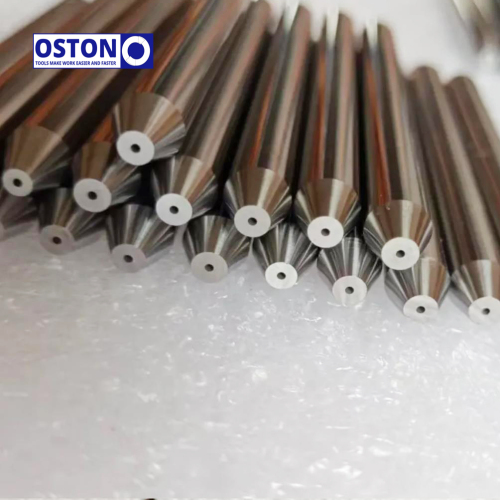

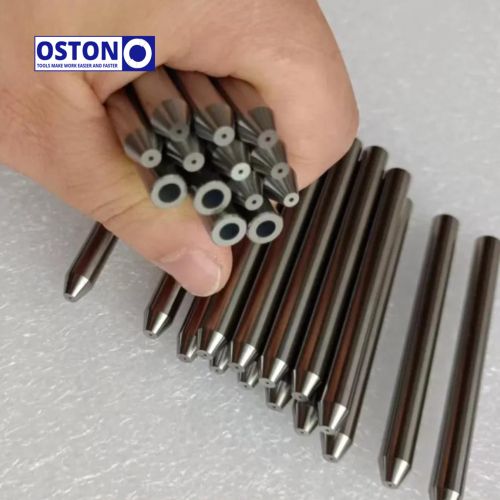

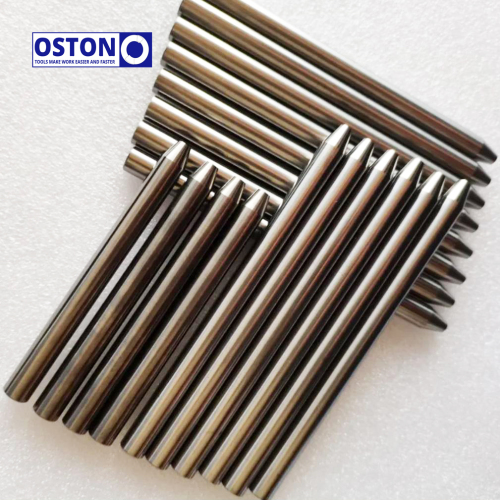

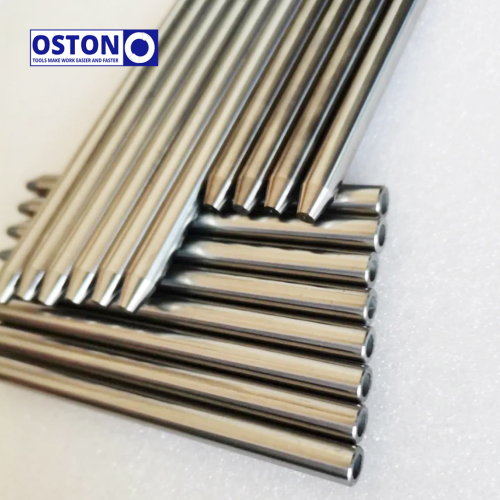

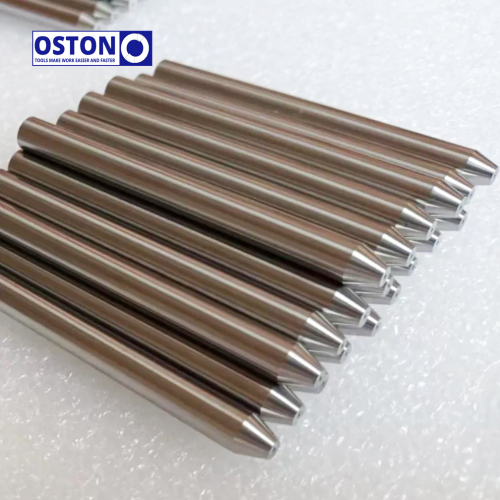

Tungsten Carbide Water Jet Cutting Nozzles
|
|
Dimension
|
0. 281 X0. 035 X4.000"
|
|
Cutting Accuracy
|
0.1mm~0.25mm
|
|
Weight
|
0.2kg
|
|
Hardness
|
≥HRA97.0
|
|
Density
|
≥15.76g/cm³
|
|
Material grade
|
OST12
|
|
Machine type
|
Flow, KMT, OMAX and other waterjet machines
|
|
Application
|
for maryal, stone and glass cutting
|
|
Use Life
|
300 Hours for Glass and 150 Hours for Stone
|
|
Keyword
|
focusing tubes, waterjet nozzles, cutting waterjet parts
|
| Serial No. | D | d1 | L | |||
| 1 | mm | inch | mm | inch | mm | inch |
| 2 | 6.00 | 0.236 | 0.76 | 0.030 | 70.0 | 2.750 |
| 3 | 6.00 | 0.236 | 0.80 | 1/32 | 70.0 | 2.750 |
| 4 | 6.00 | 0.236 | 1.02 | 0.040 | 70.0 | 2.750 |
| 5 | 6.00 | 0.236 | 0.76 | 0.030 | 76.2 | 3.000 |
| 6 | 6.00 | 0.236 | 1.02 | 0.040 | 76.2 | 3.000 |
| 7 | 6.35 | 1/4 | 1.02 | 0.040 | 76.2 | 3.000 |
| 8 | 6.35 | 1/4 | 0.76 | 0.030 | 76.2 | 3.000 |
| 9 | 6.35 | 1/4 | 0.50 | 0.020 | 76.2 | 3.000 |
| 10 | 6.35 | 1/4 | 0.30 | 0.012 | 76.2 | 3.000 |
| 11 | 6.35 | 1/4 | 1.02 | 0.040 | 50.8 | 2.000 |
| 12 | 6.35 | 1/4 | 0.76 | 0.030 | 50.8 | 2.000 |
| 13 | 6.35 | 1/4 | 0.76 | 0.030 | 70.0 | 2.750 |
| 14 | 6.35 | 1/4 | 1.14 | 0.045 | 70.0 | 2.750 |
| 15 | 6.35 | 1/4 | 0.91 | 0.036 | 76.2 | 3.000 |
| 16 | 6.69 | 0.263 | 0.76 | 0.030 | 76.2 | 3.000 |
| 17 | 6.70 | 0.264 | 1.02 | 0.040 | 70.0 | 2.750 |
| 18 | 6.70 | 0.264 | 0.50 | 0.020 | 70.0 | 2.750 |
| 19 | 6.70 | 0.264 | 0.76 | 0.030 | 70.0 | 2.750 |
| 20 | 6.70 | 0.264 | 1.02 | 0.040 | 76.2 | 3.000 |
| 21 | 7.14 | 9/32 | 1.02 | 0.040 | 76.2 | 3.000 |
| 22 | 7.14 | 9/32 | 0.76 | 0.030 | 76.2 | 3.000 |
| 23 | 7.14 | 9/32 | 0.50 | 0.020 | 76.2 | 3.000 |
| 24 | 7.62 | 0.300 | 1.02 | 0.040 | 76.2 | 3.000 |
| 25 | 7.97 | 0.313 | 0.76 | 0.030 | 101.6 | 4.000 |
| 26 | 7.97 | 0.313 | 1.14 | 0.045 | 101.6 | 4.000 |
| 27 | 9.00 | 0.354 | 1.02 | 0.040 | 76.2 | 3.000 |
| 28 | 9.00 | 0.354 | 0.76 | 0.030 | 76.2 | 3.000 |
| 29 | 9.43 | 0.371 | 0.76 | 0.030 | 76.2 | 3.000 |
| 30 | 9.43 | 0.371 | 1.02 | 0.040 | 76.2 | 3.000 |
