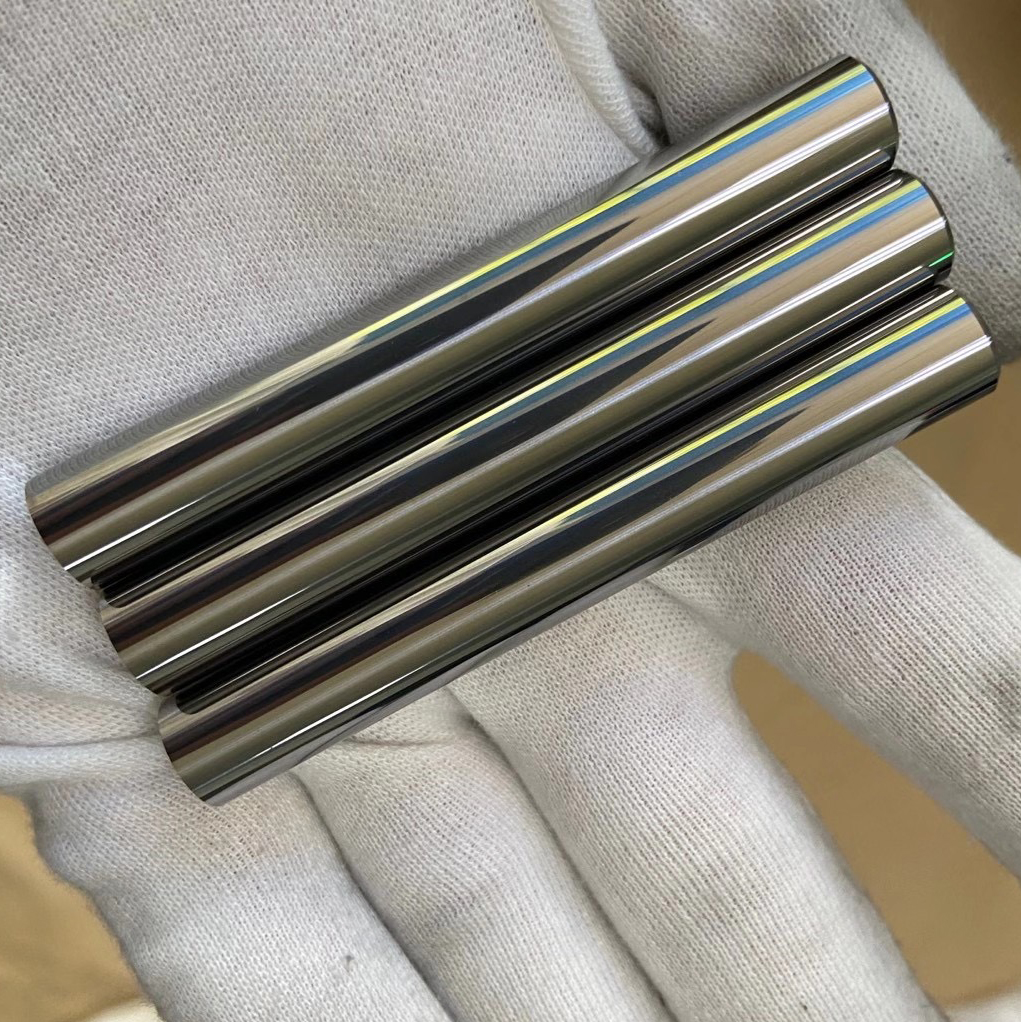

Tungsten carbide(also named as cemented carbide) a kind of material made from combination of tungsten and carbon(with formula WC) with cobalt binder,it could keep stable property under high temperature 800℃ with high compressive strength,high hardness and strong resistance to wear,which make tungsten carbide cutting tools a perfect choice for many industrial needs.
|
Grade |
ISO code |
Grain size |
binder |
Density |
Hardness HRA |
T.R.S |
Fracure Resistane |
Application |
|
OST10 |
K10 |
0.8 |
6 |
14.9 |
≥92.6 |
≥2800 |
8.6 |
Recommended for PCB drilling and milling.Widely used for magnesium alloy,glass fiber,wood,hard plastic,iron based alloy and etc. |
|
OST25 |
K30-K40 |
0.8 |
10 |
14.4 |
≥91.5 |
≥3600 |
10.7 |
With both toughness and wear resistance,it’s economical grade for general cutting tools. |
|
OST15F |
K30-K40 |
0.7 |
10 |
14.5 |
≥91.8 |
≥4200 |
10.8 |
With Excellent versatility,it's used for overall carbide cutting tools for carbon steel,cast iron,stainless steel,heat-resistant steel,nickel-based and titanium alloys and other materials. |
|
OST12 |
K40 |
0.7 |
12 |
14.13 |
≥91.4 |
≥3800 |
10.8 |
With ultra high impact strength and long working life,suitable for cutting tools for steel hardness over HRC50. |
|
OST12UF |
K40 |
0.6 |
12 |
14.15 |
≥91.5 |
≥4400 |
12.0 |
With ultra high impact strength and long working life,specially recommended for cutting tools for high speed stainless steel processing. |
|
OST25UF |
K40 |
0.5 |
12 |
14.15 |
≥92.3 |
≥4300 |
12.0 |
High hardness and high T.R.S,which is perfect material for high speed milling for nickle-based alloy,titanium alloy,stainless steel,hardened steel,gray cast iron and other intractable materials. |
|
OST30M |
K30-K40 |
1.5 |
15 |
14.2 |
≥87.5 |
≥3200 |
8.7 |
Recommended for punching moulds and punching tools. |
| Serial No. | Dimensions | Diameter(mm) | Length(mm) |
| 1 | Φ3x50/100 | 3 | 50/100 |
| 2 | Φ4x50/75/100 | 4 | 50/75/100 |
| 3 | Φ5x50 | 5 | 50 |
| 4 | Φ6x50/75/100/150 | 6 | 50/75/100/150 |
| 5 | Φ8x60/75/100/150 | 8 | 60/75/100/150 |
| 6 | Φ10x75/100/150 | 10 | 75/100/150 |
| 7 | Φ12x75/100/150 | 12 | 75/100/150 |
| 8 | Φ14x100/150 | 14 | 100/150 |
| 9 | Φ16x100/150 | 16 | 100/150 |
| 10 | Φ18x100/150 | 18 | 100/150 |
| 11 | Φ20x100/150 | 20 | 100/150 |
Diameter tolerance of unground tungsten carbide rods
| Diameter range/Length range | L<100mm | 100mm ≤ L ≤ 200mm | 200mm < L ≤ 330mm | 330mm < L ≤ 1000mm |
| Φ0.5 < Diameter ≤ Φ10 | +0.2/+0.3 | +0.3/+0.45 | +0.3/+0.5 | +0.4/+0.6 |
| Φ10< Diameter ≤ Φ16 | +0.3/+0.45 | +0.3/+0.5 | +0.4/+0.6 | +0.4/+0.8 |
| Φ16< Diameter ≤ Φ25 | +0.3/+0.5 | +0.4/+0.6 | +0.4/+0.8 | +0.5/+1.0 |
| Φ25< Diameter ≤ Φ46 | +0.3/+0.7 | +0.4/+0.8 | +0.5/+1.0 | +0.6/+1.1 |
| Length range | Tolerance | concentricity |
| <200 mm | 0/+1.5 | 0.25 |
| ≥ 200 mm | 0/+5.0 | 0.34 |

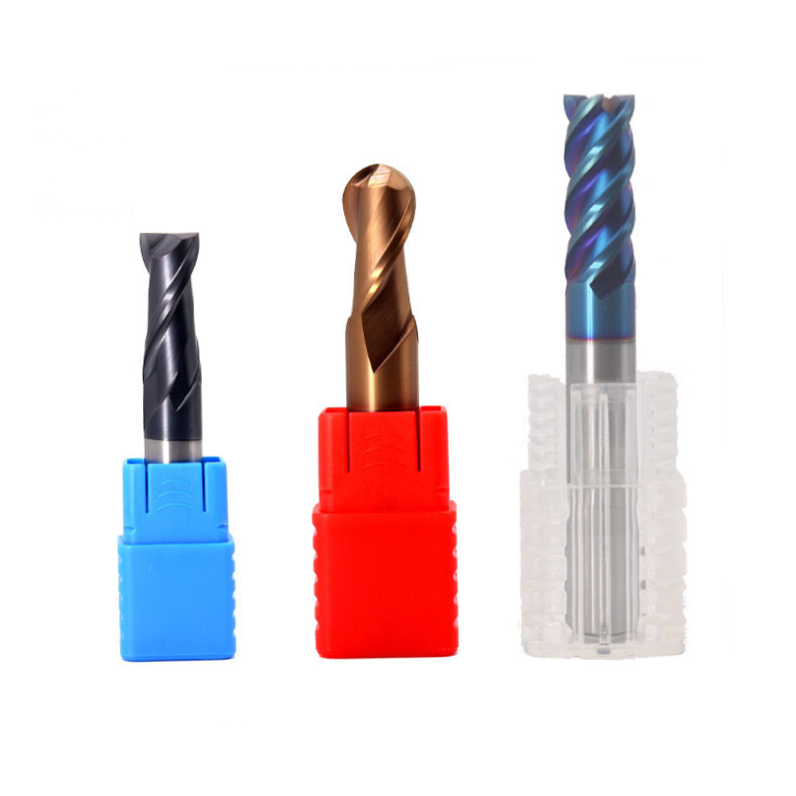

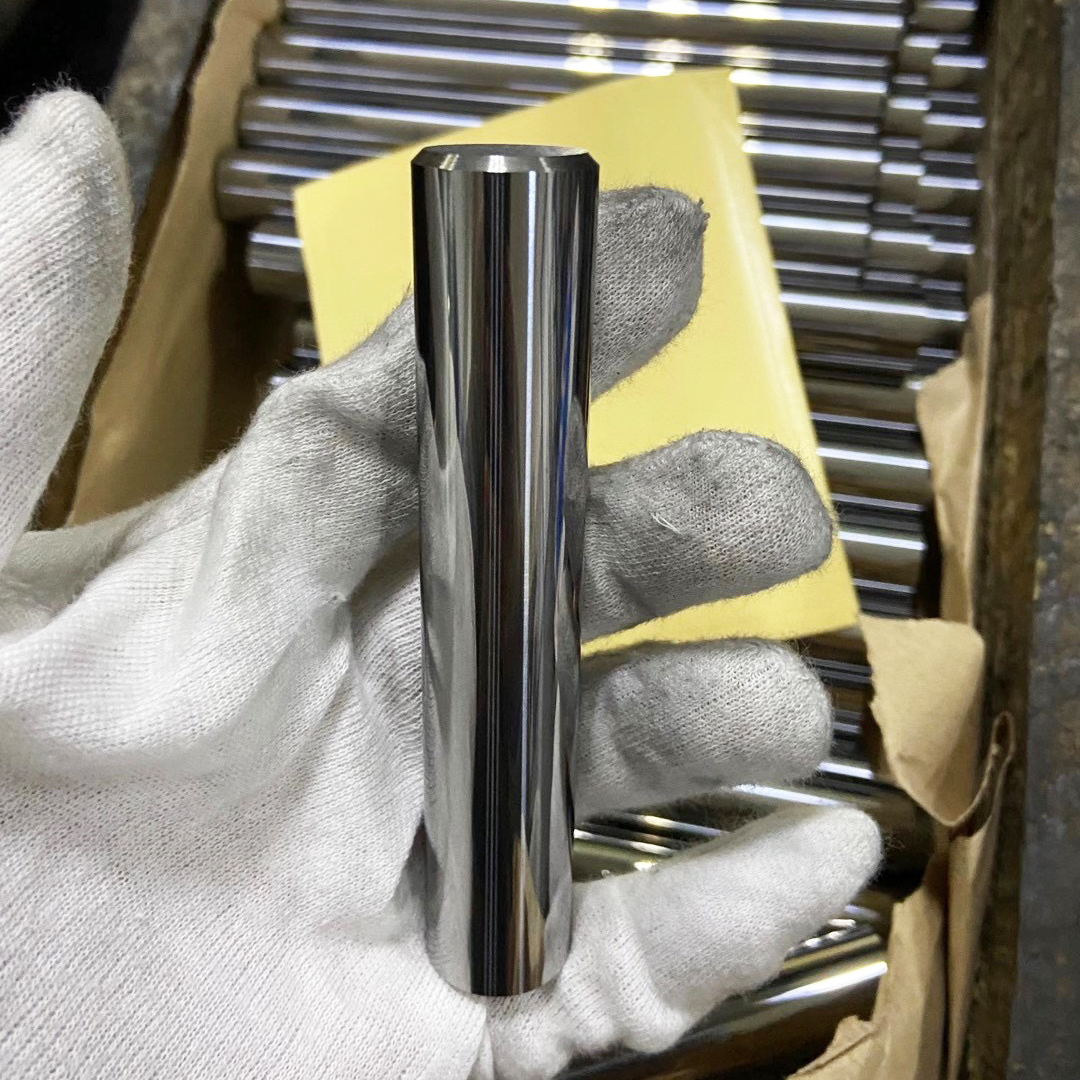

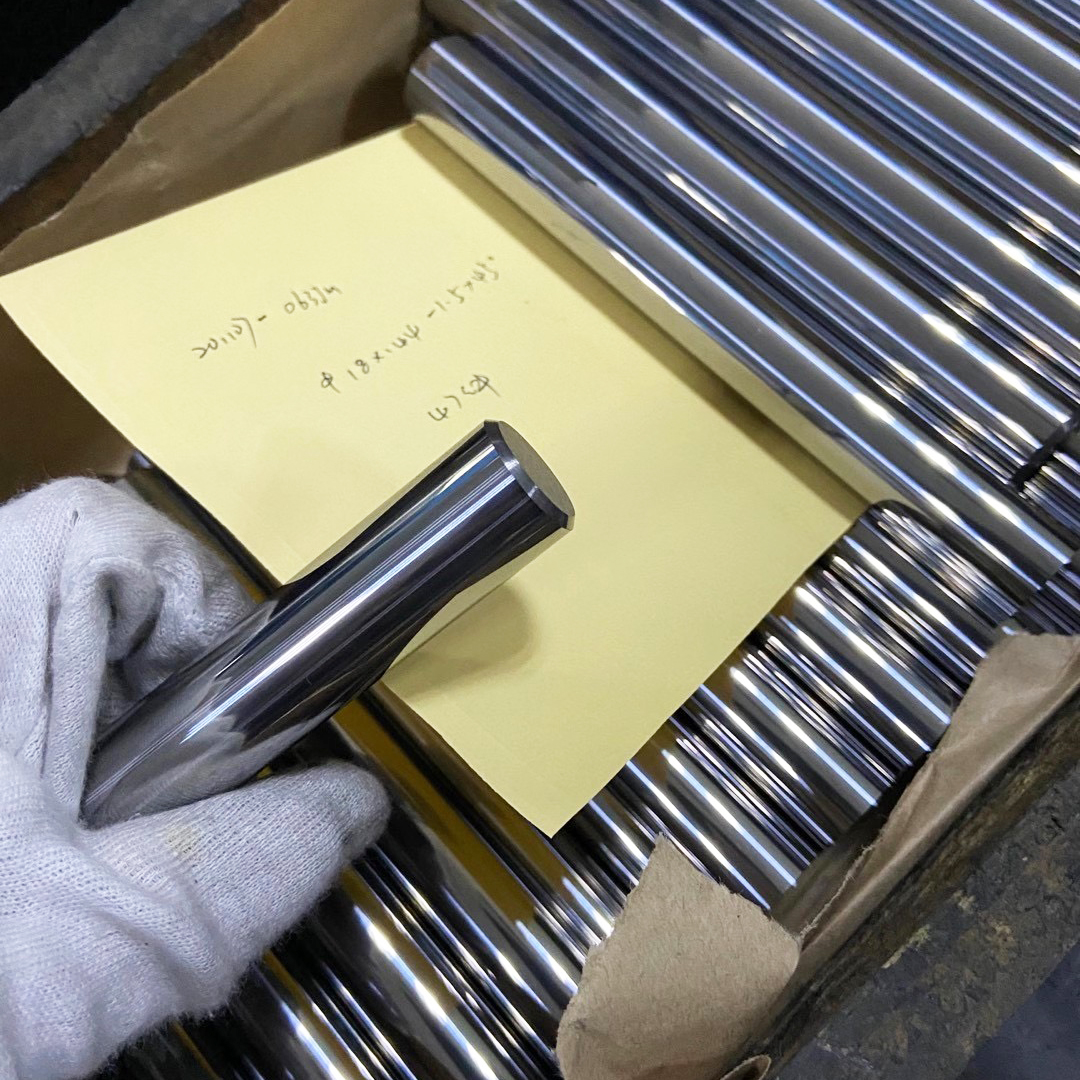

The essential usage of fixed length carbide rods are for carbide endmills, according to material hardnessto be machined,carbide endmils could be devied to HRC45,HRC55,HRC60,etc. The carbide rods blanks material are choosed according to the working environment of carbide endmill, Tougher carbide rods for tougher material.

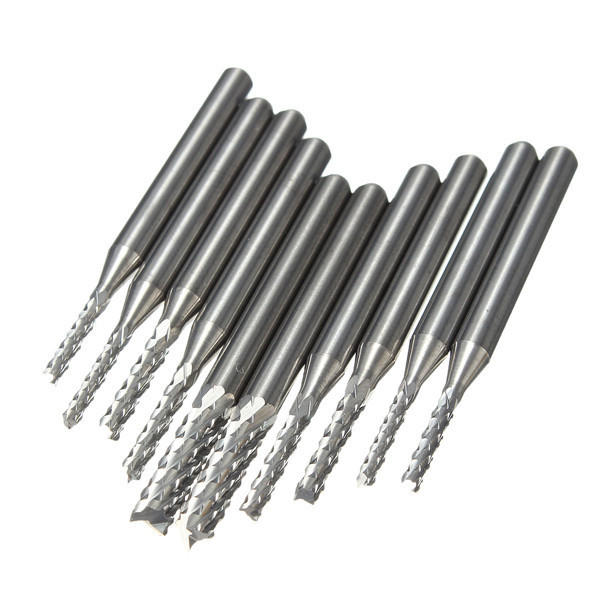

By the way,tungsten carbide micro drills is one of the most importanct carbide cutting tools in PCD industry with high efficiency.
