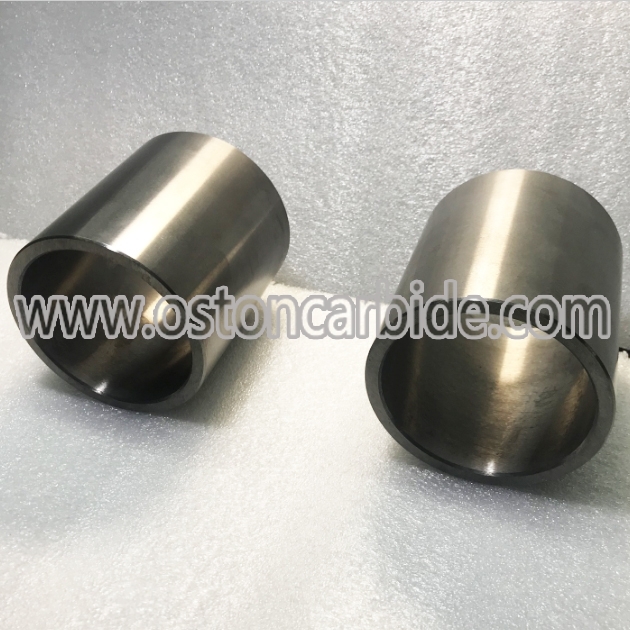

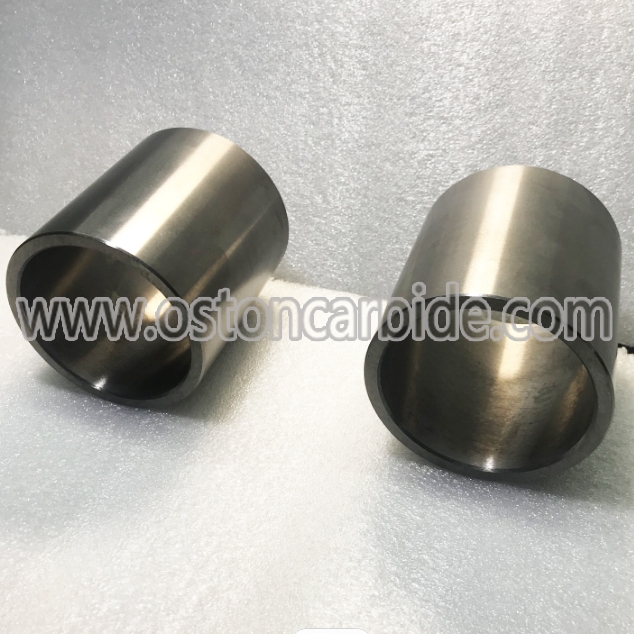

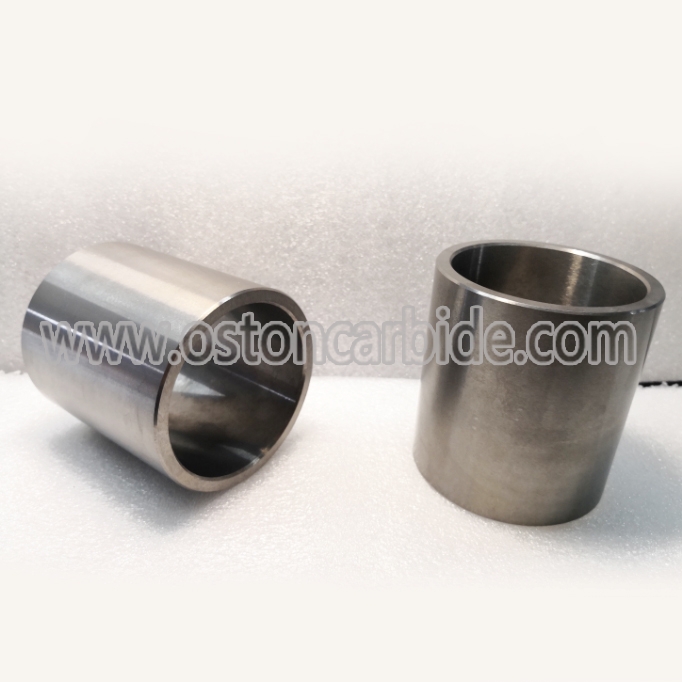

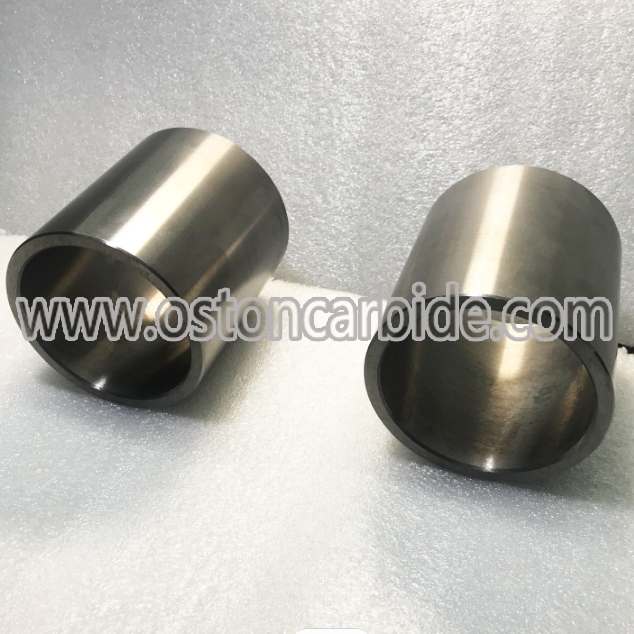

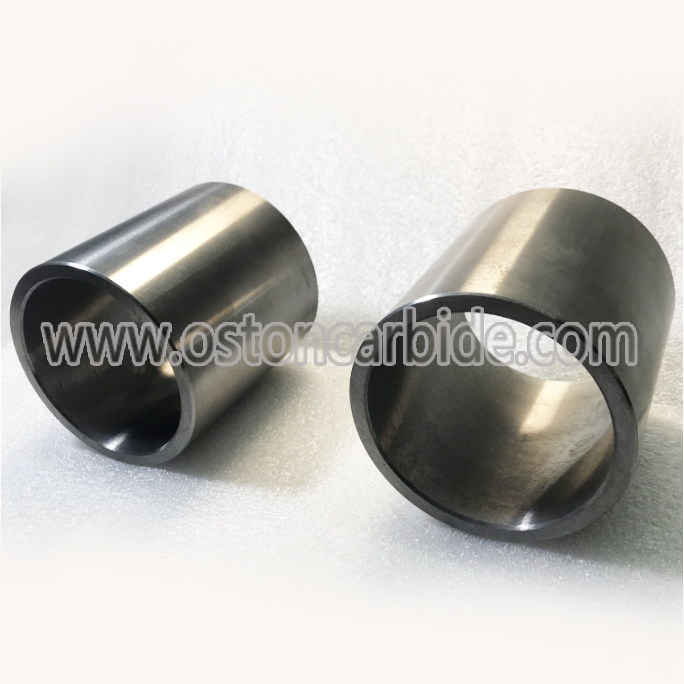

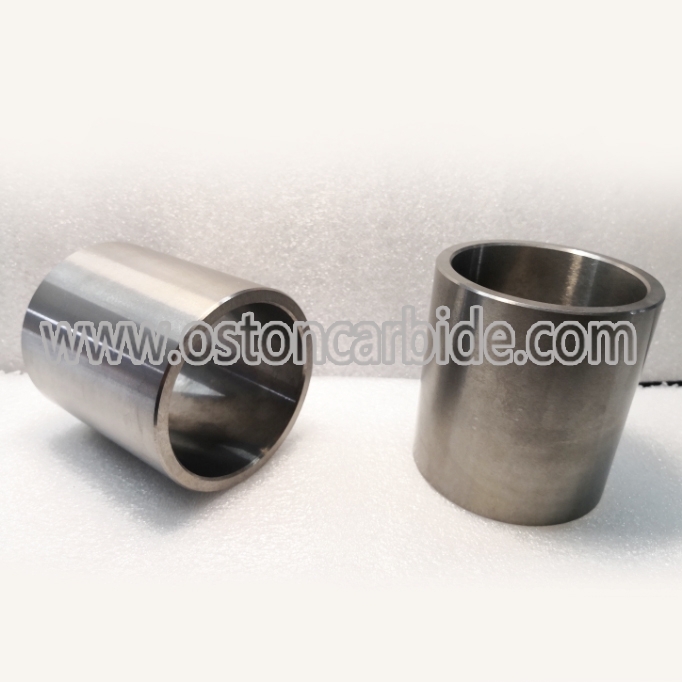

TC Corrosion Resistance yg8 Cemented Carbide Bushes HIP Sintered Tungsten Carbide Bearing Bushings
1. 100% virgin raw materials.
2. Various kinds of grades are availalbe based on customer's application.
3. we have professional advanced production line and inspeciton equipments to ensure high quality products.
4. Precision Ground and high polishing process
5. High wear resistance,high hardness and impact toughness
6. Advanced technology , precise grinding.
In order to achieve the best possible performance, it's very important to choose the suitable carbide grade for your application, our experienced engineers can assist you with your design and material selection ensuring the best wear for your particular need.
| Grade | Density | T.R.S. MPa | Performance & application recommended |
| YG6A | 14.95 | 1800 |
Fine grain alloy, good wear resistance. Semi-finishing of chilled cast iron, non-ferrous metals alloys, semi-finishing and finishing of hardened steel, alloy steel. |
| YG8 | 14.8 | 2020 |
High strength in use, impact and shock resistance higher than YG6, but wear resistance and cutting speed comparatively lower |
| YN8 | 14.7 | 2000 | Corrossion Resistant, widle used in chemical and petrol oil pumps |
| YG10 | 14.5 | 2400 |
High strength in use, impact and shock resistance higher than YG6, but wear resistance and cutting speed comparatively lower.Roughing of cast irons, nonferrous metals and their alloys as well as non metallic materials at low cutting speed. |
| YL10.2 | 14.5 | 2400 | Fine grain alloy, good wear resistance. Used for processing hard wood, veneer board, PCB, PVC and metals. |
| YG15 | 14.2 | 2900 | Conventional wear resistance, high bending strength,used for steel alloy etc. |
Tungsten carbide bushing is a part to protect important components.they are widly used on wear parts,such as sealing parts within valve,carbide bushings are installed in the valve stem cap trap in order to reduce the valve leakage, sealing bearing sleeves as protecting parts to undertake wear between the bearing and the shaft seat to avoid the friction between the shaft and the hole increases and so on.
Tungsten carbide bushing can withstand prolonged load with high chemical stability, it is resistance to alkali, alcohol,hydrocarbons, acid, oil, detergent, water (sea water), and they are absolutly non-toxic, tasteless, non-rust characteristics,which widely used in petrochemical industry for Submerged Oil Pump, slurry pump, water pump, Centrifugal Pump,etc.
