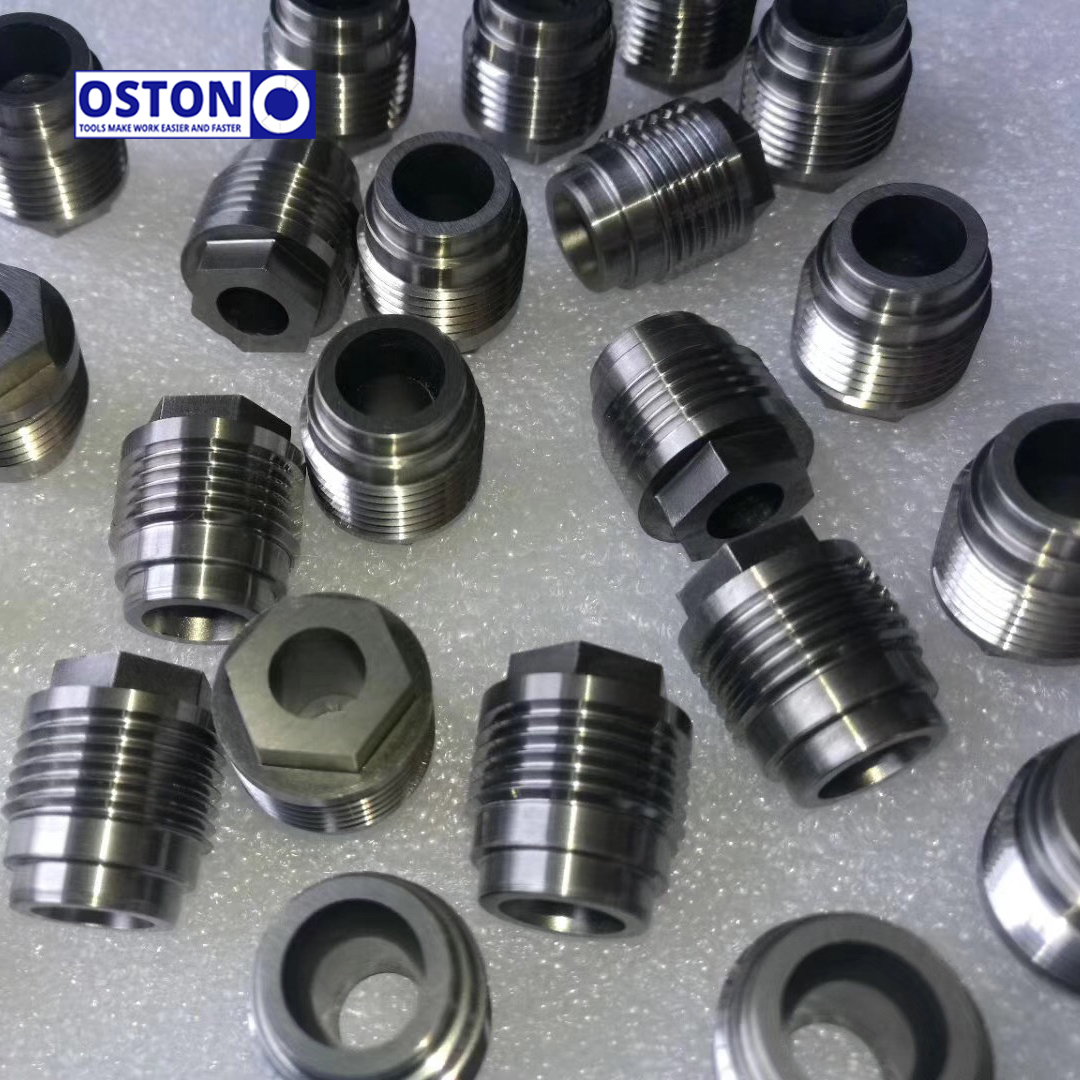

China Supplier High Precision 100% Original Material Cemented Carbide Drill Bit Nozzle
China Supplier High Precision 100% Original Material Cemented Carbide Drill Bit Nozzle China Supplier High Precision 100% Original Material Cemented Carbide Drill Bit Nozzle China Supplier High Precision 100% Original Material Cemented Carbide Drill Bit Nozzle China Supplier High Precision 100% Original Material Cemented Carbide Drill Bit Nozzle China Supplier High Precision 100% Original Material Cemented Carbide Drill Bit Nozzle China Supplier High Precision 100% Original Material Cemented Carbide Drill Bit Nozzle China Supplier High Precision 100% Original Material Cemented Carbide Drill Bit Nozzle China Supplier High Precision 100% Original Material Cemented Carbide Drill Bit Nozzle China Supplier High Precision 100% Original Material Cemented Carbide Drill Bit Nozzle China Supplier High Precision 100% Original Material Cemented Carbide Drill Bit Nozzle China Supplier High Precision 100% Original Material Cemented Carbide Drill Bit Nozzle China Supplier High Precision 100% Original Material Cemented Carbide Drill Bit Nozzle China Supplier High Precision 100% Original Material Cemented Carbide Drill Bit Nozzle China Supplier High Precision 100% Original Material Cemented Carbide Drill Bit Nozzle China Supplier High Precision 100% Original Material Cemented Carbide Drill Bit Nozzle China Supplier High Precision 100% Original Material Cemented Carbide Drill Bit Nozzle China Supplier High Precision 100% Original Material Cemented Carbide Drill Bit Nozzle China Supplier High Precision 100% Original Material Cemented Carbide Drill Bit Nozzle

China Supplier High Precision 100% Original Material Cemented Carbide Drill Bit Nozzle

Customized parts are also more than welcome.
Request Quote
Description
China Supplier High Precision 100% Original Material Cemented Carbide Drill Bit Nozzle

Brief Introduction of tungsten carbide Drill Bit Nozzle-tungsten carbide Drill Bit Nozzle are high precision wear part of hard alloy.
-They are mainly used to scour mud and slurry and cool down when the drilling bit is working.
-According to different geographic features of prospection, the design of flow, shape and size is different.According to the drilling bit, they are mianly classified into "with screw thread" and "without screw thread". The nozzles without thread are used in roller cone bit, while the one with thread are applied in PDC drill bits.
-They are also classified into 4-slots, 3-slots, and hexagon,inner hexagon and quincunx.
-Tungsten carbide nozzle is a must in oil drilling bit because of such features as corrosion resistance and wear resistance and long life span.
-Customized OEM/ODM parts are more than welcome here.


Quality Grade of tungsten carbide nozzles

Grade Co
(Wt %)		 Density
(g/cm3)		 Hardness (HRA) TRS
(≥N/mm²)
YG15X 14.7-15.3 13.85-14.15 ≥89 3200
YG20 18.7-19.1 13.55-13.75 ≥83.8 2900
YG6X 5.5-6.5 14.80-15.05 ≥91.5 1880
YG8 7.5-8.5 14.65-14.85 ≥89.5 2020
YG9 8.5-9.5 14.50-14.70 ≥89 2200
YG10X 9.5-10.5 14.30-14.60 ≥90.5 3200

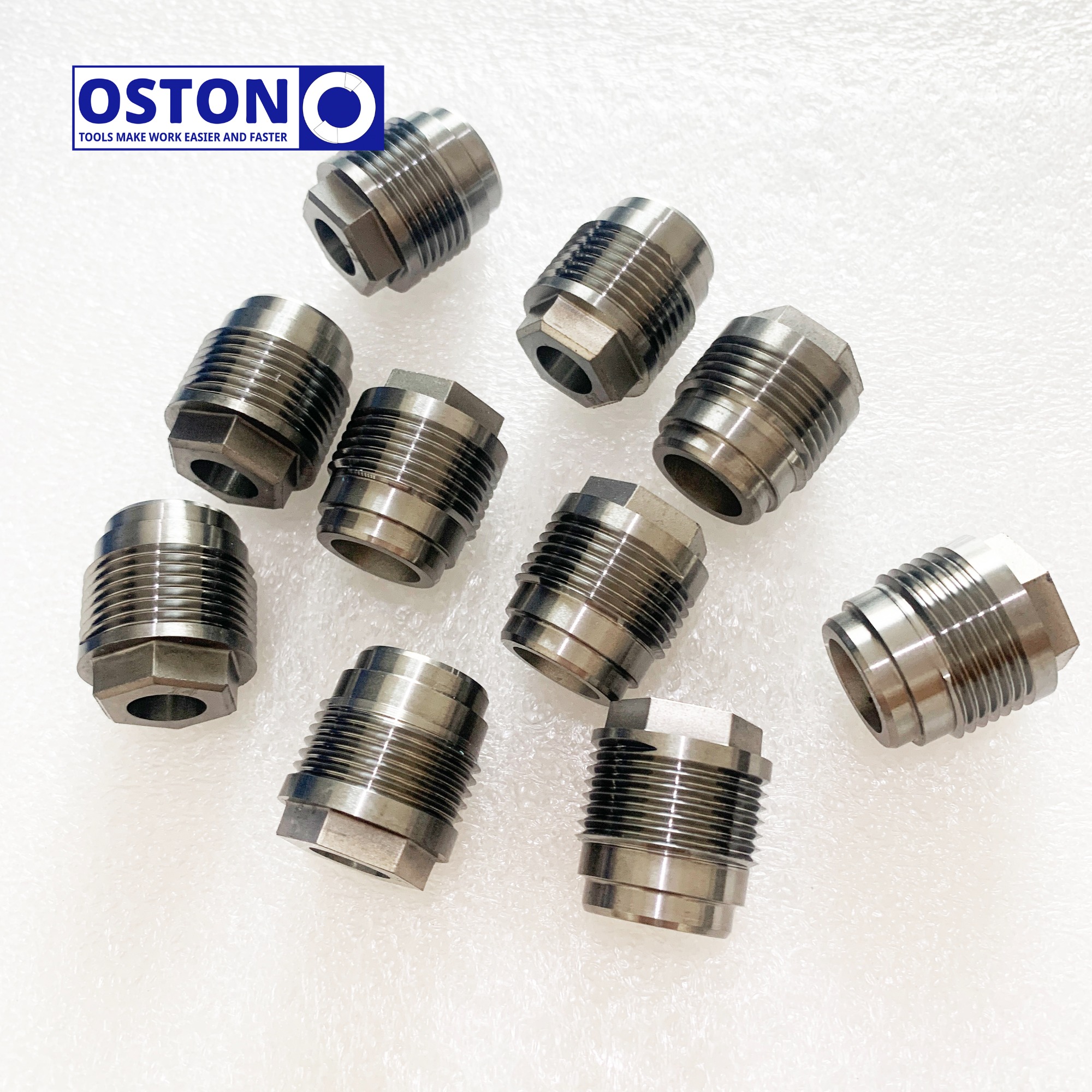

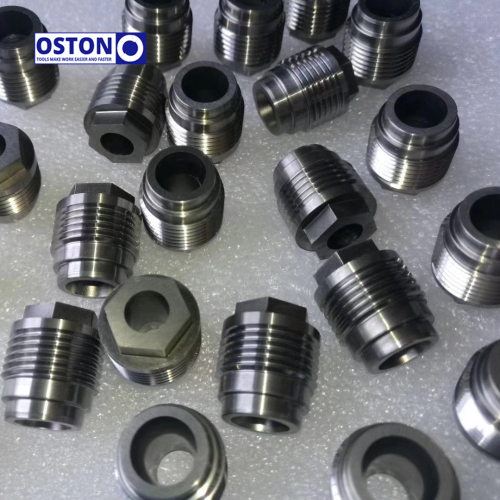

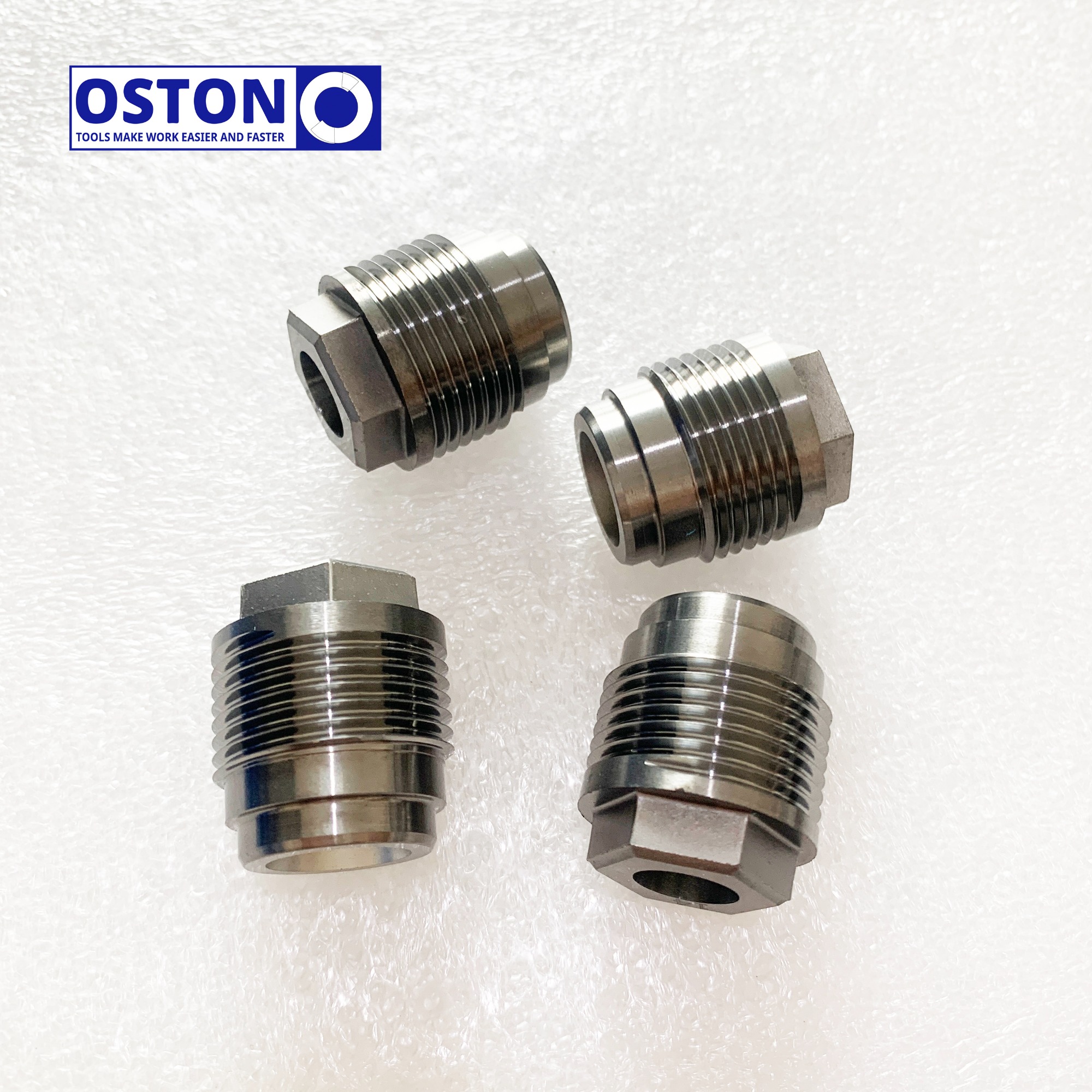

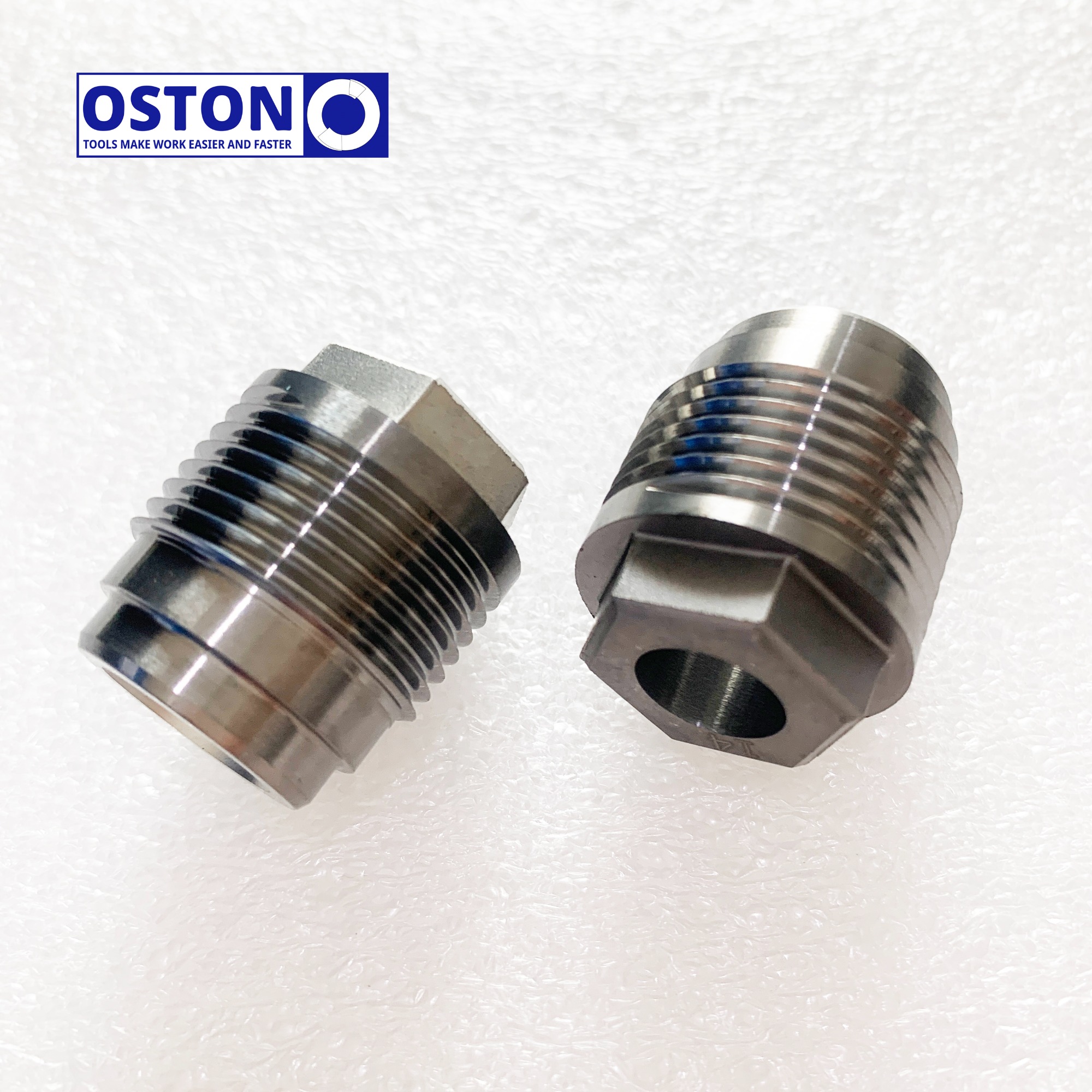

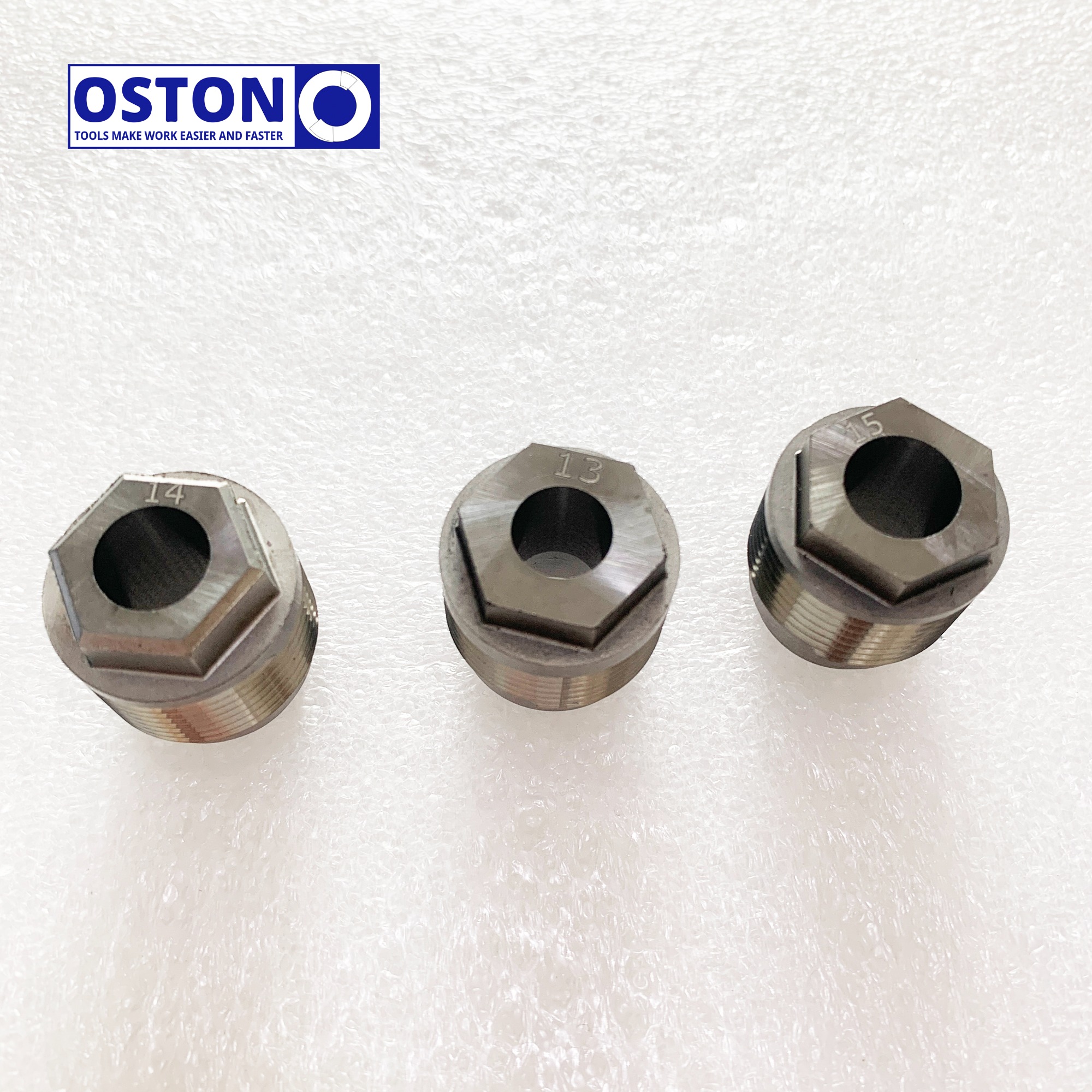

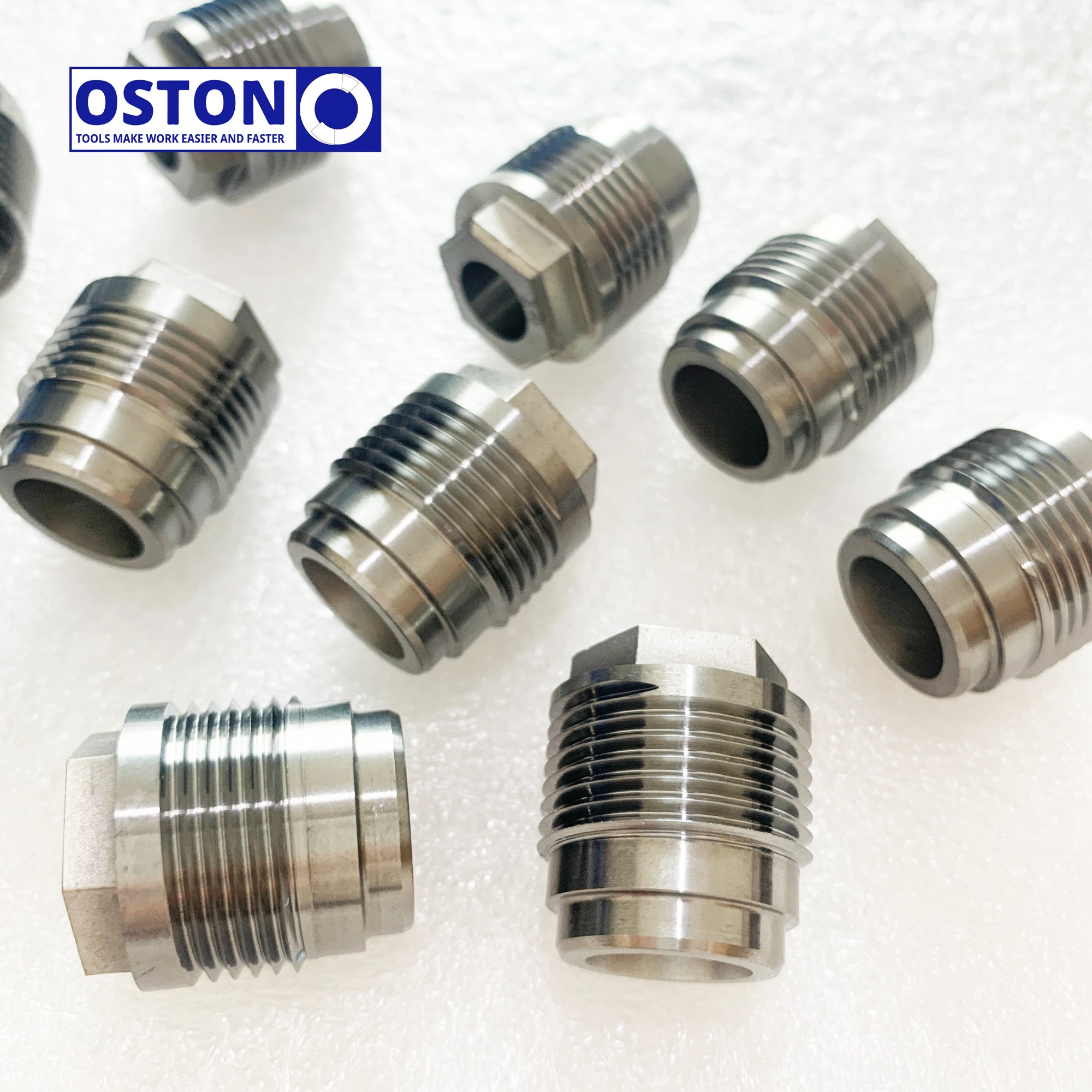

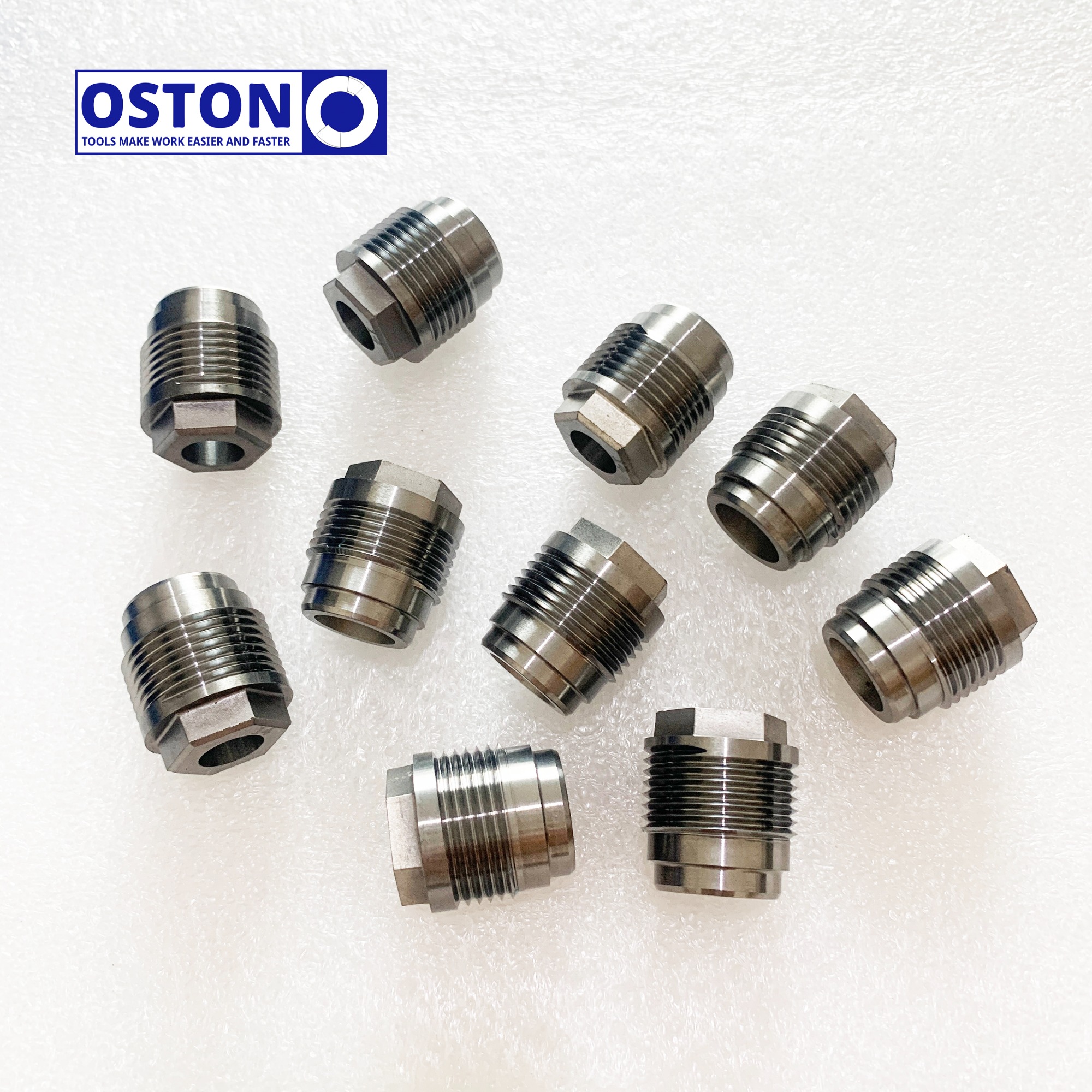

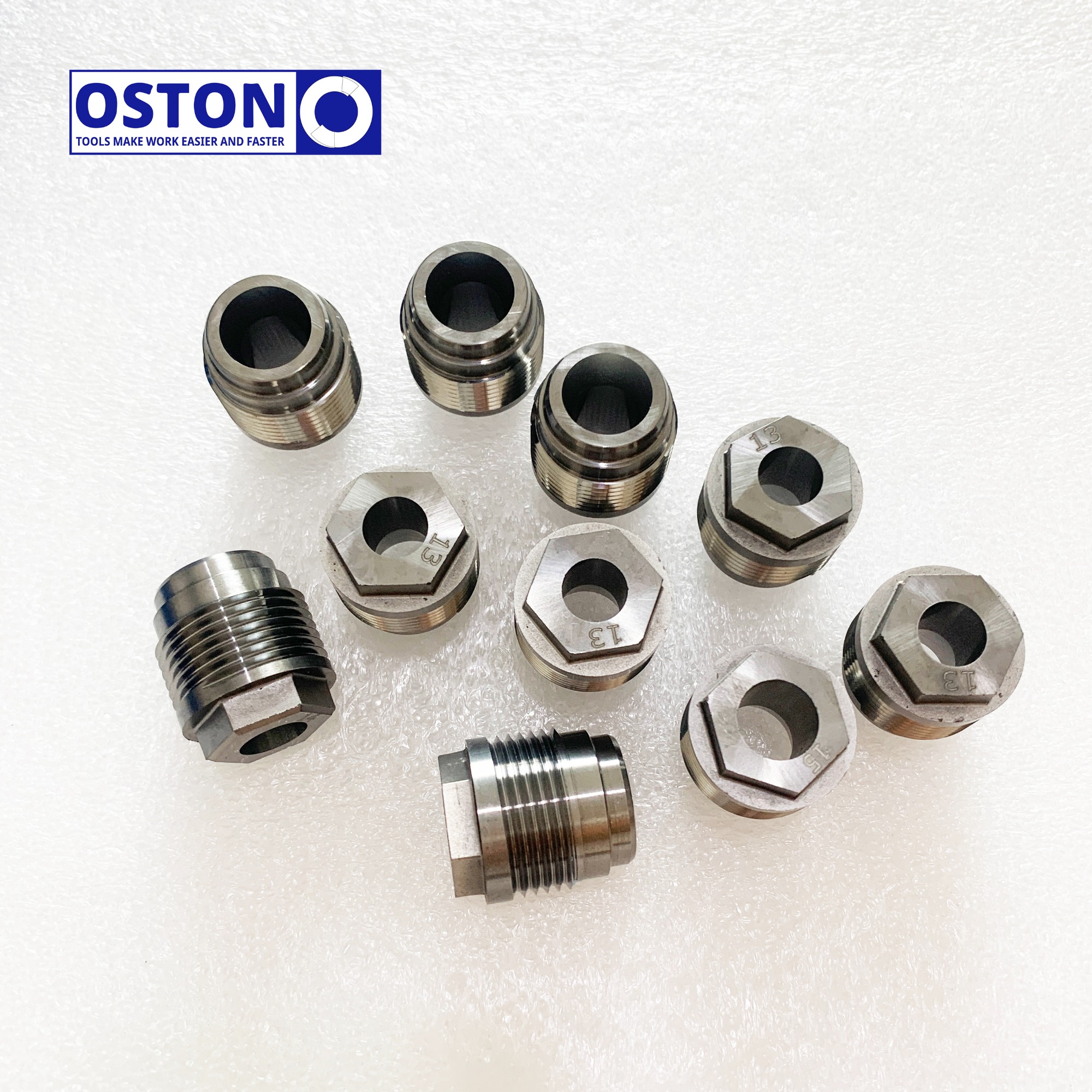

detailed pictures of tungsten carbide drill bit nozzleCemented Carbide Drill Bit Nozzle Cemented Carbide Drill Bit Nozzle Cemented Carbide Drill Bit Nozzle Cemented Carbide Drill Bit Nozzle Cemented Carbide Drill Bit Nozzle Cemented Carbide Drill Bit Nozzle
