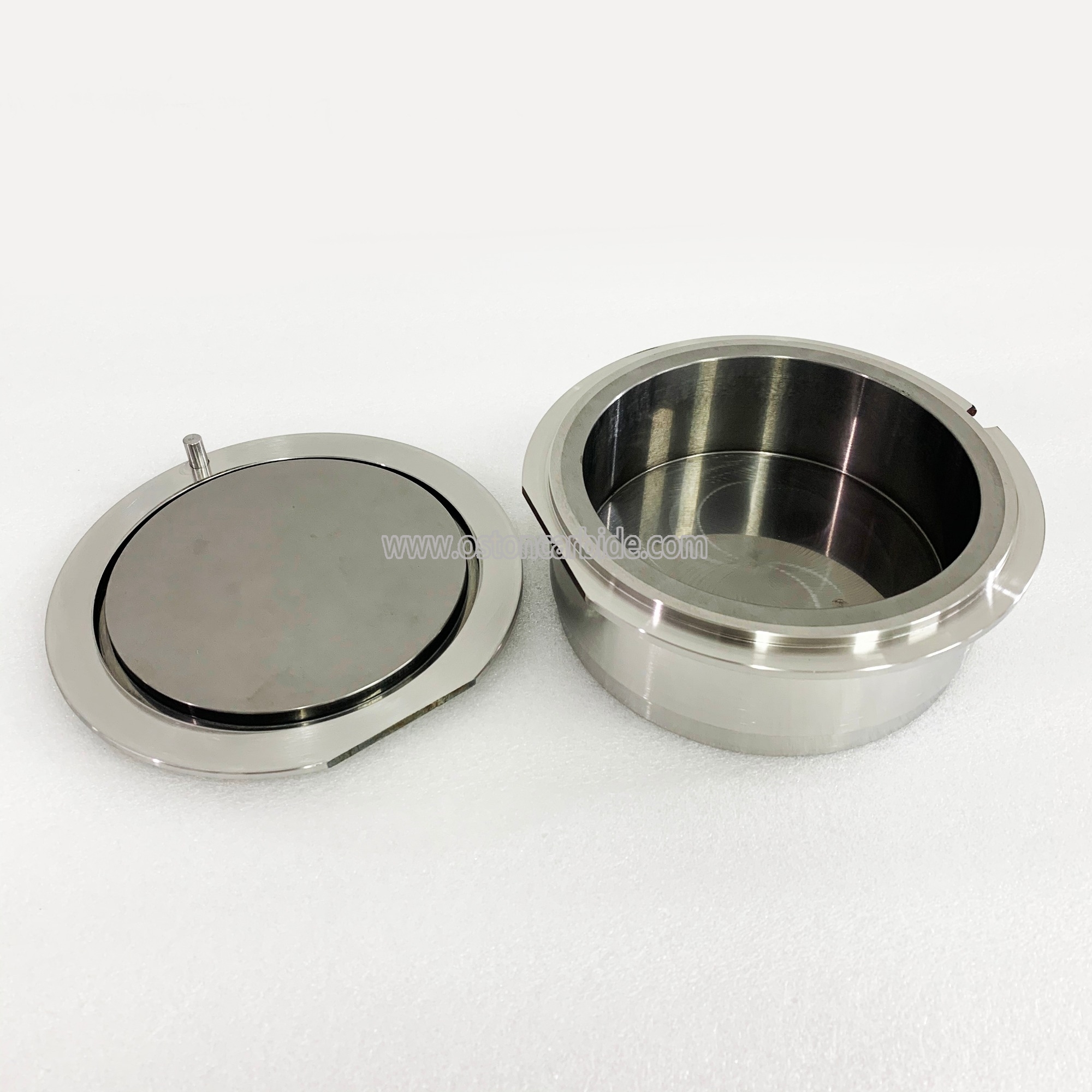

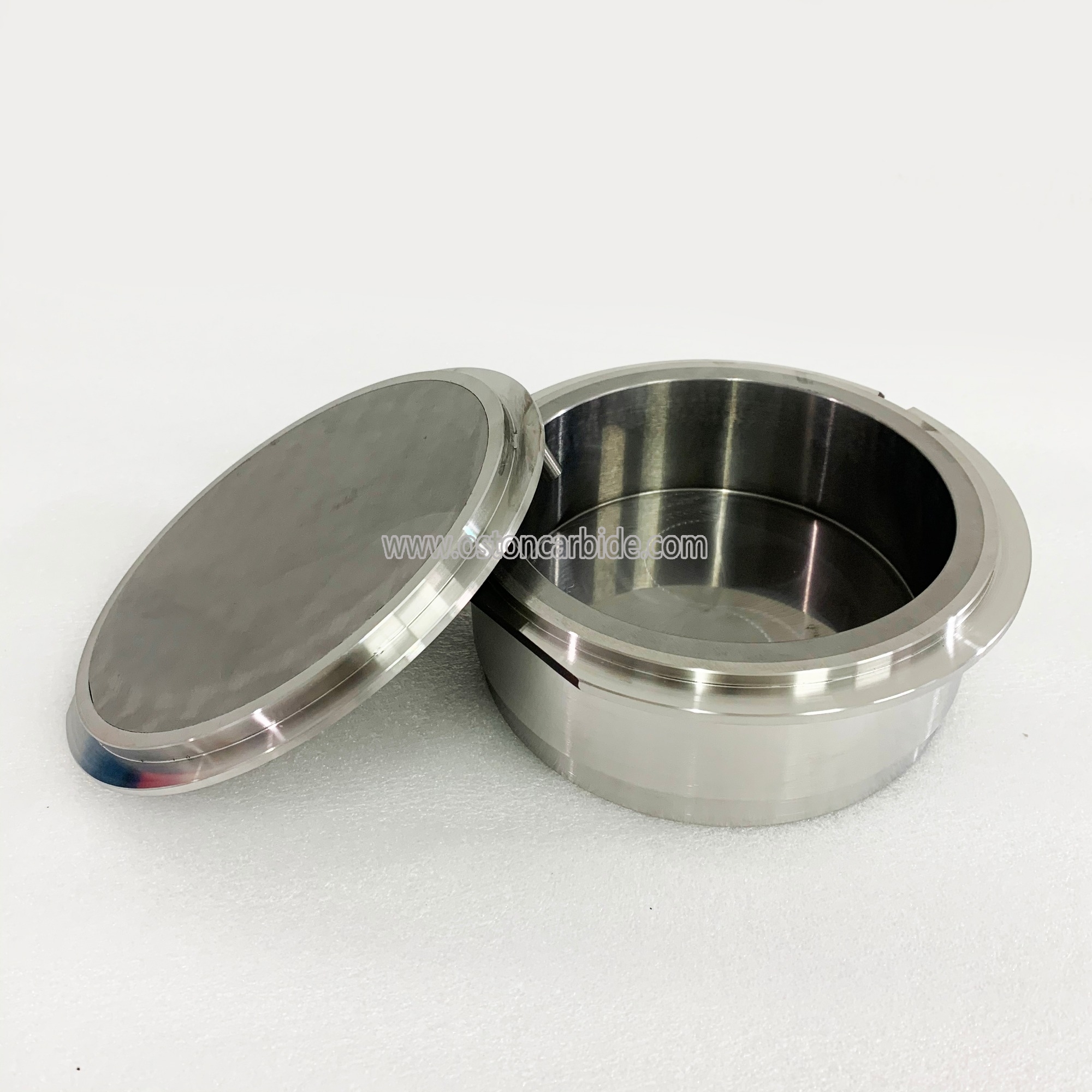

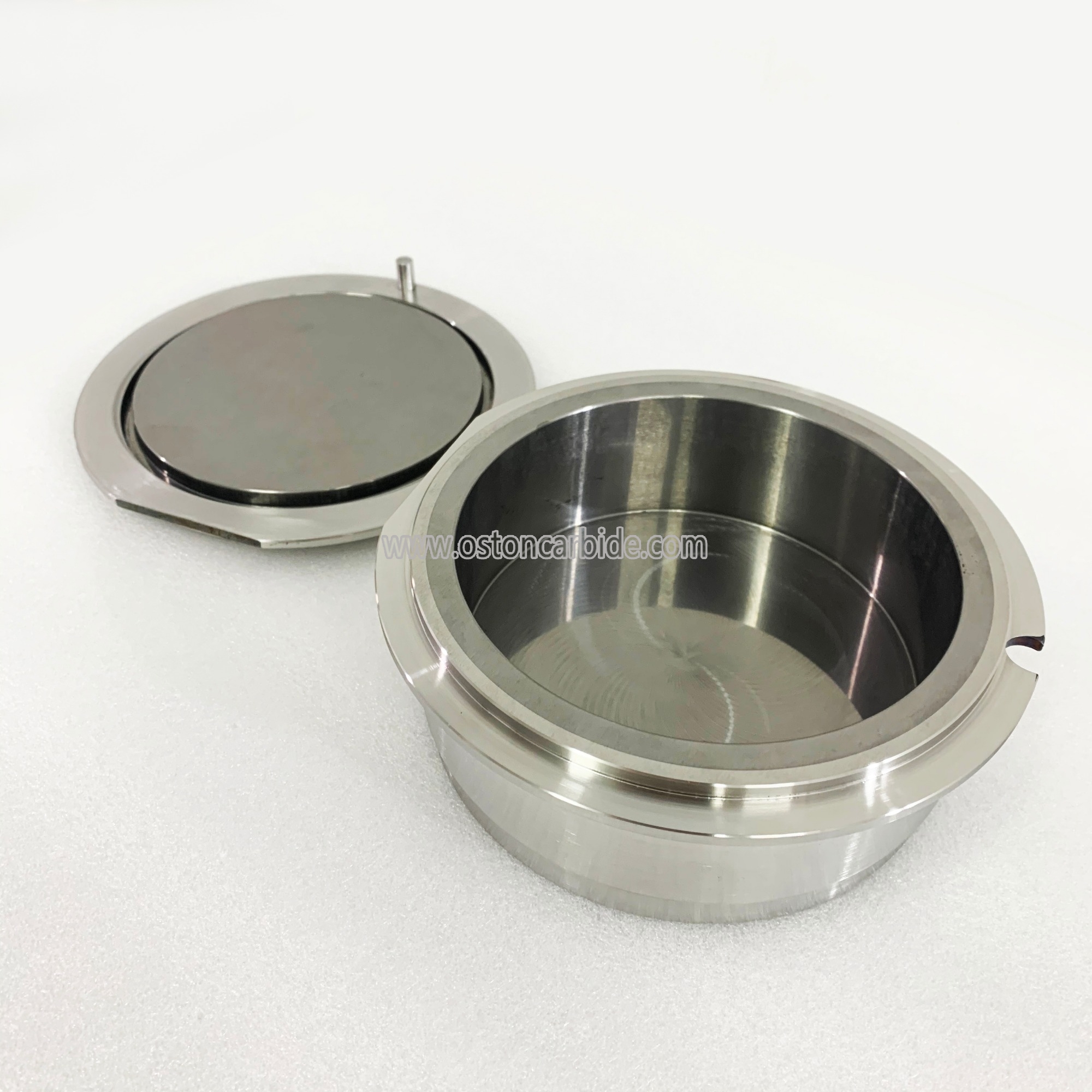

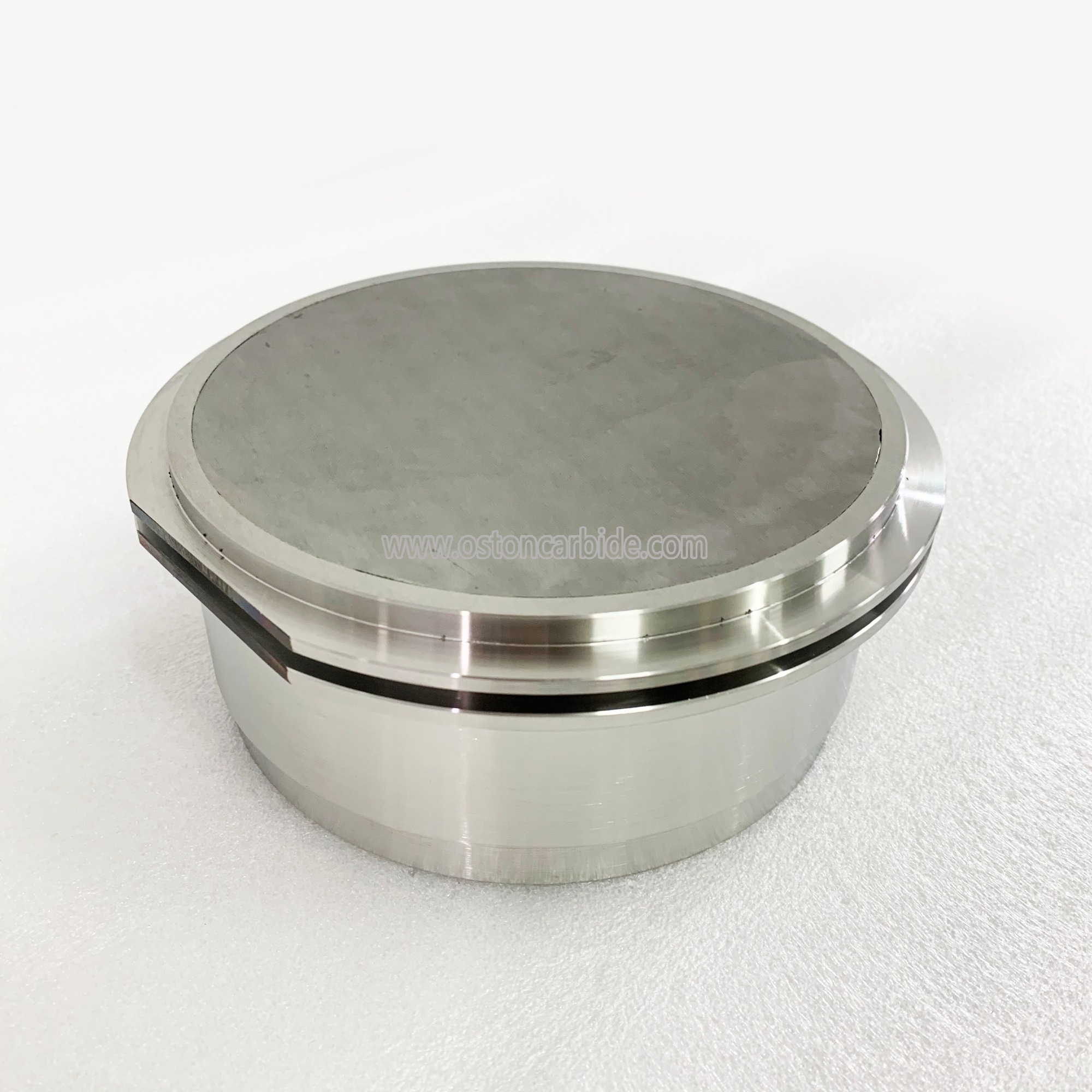

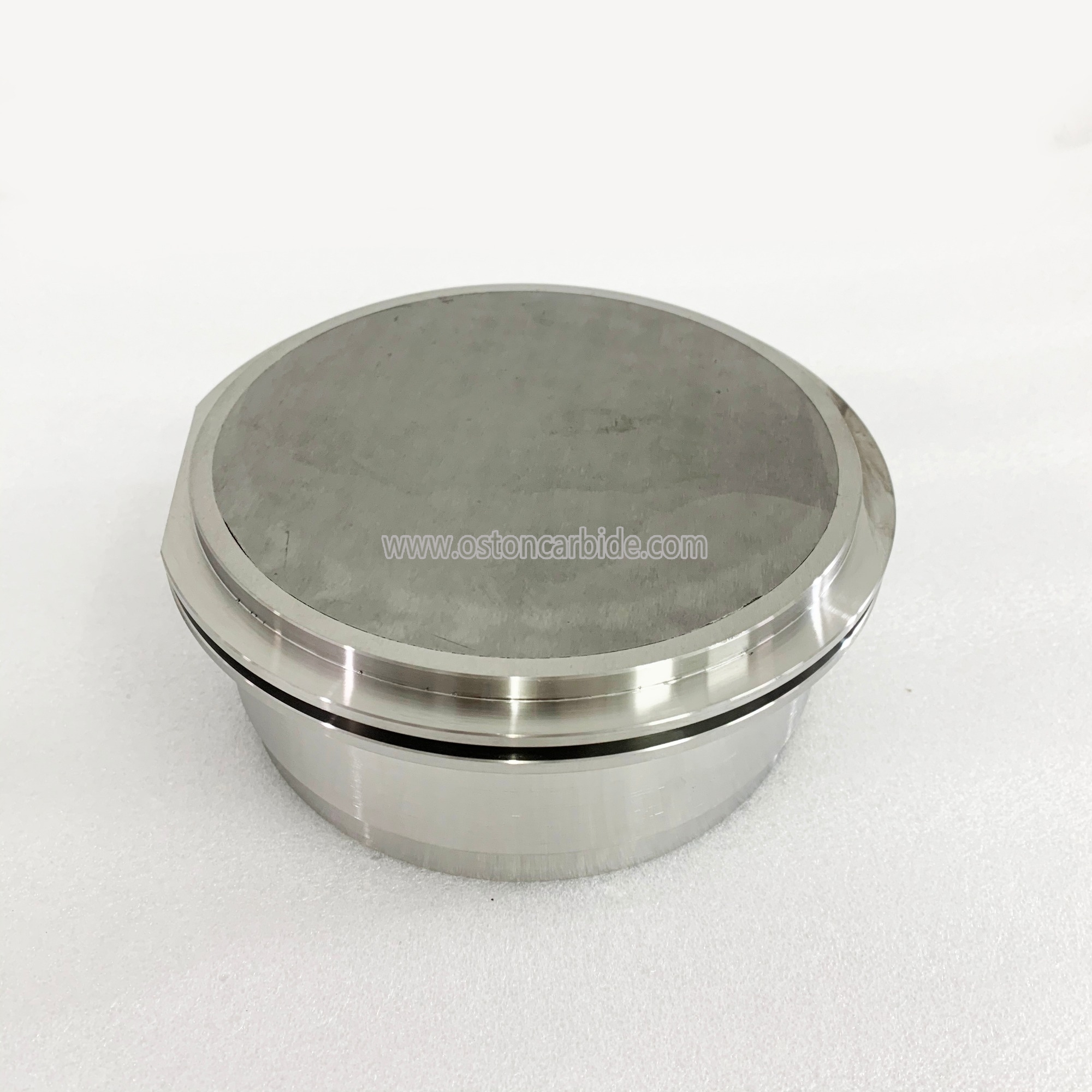

500ml Solid Sintered Tungsten Carbide Grinding Jar Bowl ,Cemented Carbide Cup Pot
Jar Volume: 25mL~1000mL
Max Loading Capacity:2/3 capacity of the grinding jar
Density:14.9g/cm³
Main Chemical Compositions: WC (94%,92%,85%),Cobalt (6%,8%, 15%)
Surface Treatment:well finished and polished surface
Abrasion Resistance: very good
Attachment:lid and rubber sealing gasket
Grinding Balls: mixed tungsten carbide ball(should be ordered separately)
Hardness: HRA89- HRA91.0
| Volume of pot | Outside Diameter(mm) | Inner Diameter (mm) | Height (mm) |
| 100ml | 75 | 55 | 70 |
| 250ml | 88 | 68 | 95 |
| 500ml | 107 | 87 | 110 |
| 1000ml | 107 | 112 | 130 |
| 1500ml | 132 | 112 | 180 |
| 2000ml | 132 | 138 | 160 |
| 2500ml | 158 | 138 | 195 |
| 3000ml | 158 | 138 | 230 |
| 4000ml | 178 | 158 | 230 |
| 5000ml | 218 | 202 | 180 |
| 10L | 244 | 228 | 270 |
| 15L | 272 | 260 | 310 |
| 20L | 320 | 308 | 290 |
| 25L | 320 | 308 | 365 |
Tungsten Carbide Grinding Jar Bowl for roll ball mill
| Volume of pot | Ouside Diameter (mm) | Inner Diameter(mm) | Height (mm) |
| 500ml | 88 | 82 | 138 |
| 1000ml | 106 | 100 | 165 |
| 2000ml | 131 | 124 | 199 |
| 3000ml | 158 | 12 | 210 |
| 5000ml | 178 | 172 | 262 |
| 10L | 217 | 205 | 358 |
| 15L | 271 | 263 | 340 |
1. Suitable for hard and abrasive samples etc.
2. Applicated for Tungsten carbide ball mill jar is used as grinding jar of planetary ball mill matched with tungsten carbide balls,
which is suitable for grinding materials in high hardness such as hard alloy powder, diamond powder, and silicon carbide powder.
Dimension: Customized base on customer drawing or samples.
