Carbide content: 60%,70%
Hardness Carbide
(HRA): ≥89.5
Matrix alloy melting range: 890-910°C
Composite rod size:
Length: 280mm,350mm,450 mm,450mm
Diamter: 12mm,12mm,16mm,22mm
| Length of composite rods(L) | 280/350/450/450 | |
| Width of composite rods(W) | 12/12/16/22 | |
| carbide particle size(grits) | mm | inch |
| 1 | 1,6 – 3,2 mm | 1/8''-1/16'' |
| 2 | 3,2 – 4,8 mm | 3/16" – 1/8" |
| 3 | 4.8 – 6.35mm | 1/4" – 3/16" |
| 4 | 6.35 – 8.0 mm | 5/16" – 1/4" |
| 5 | 8.0 – 11.0 mm | 3/8" – 5/16" |

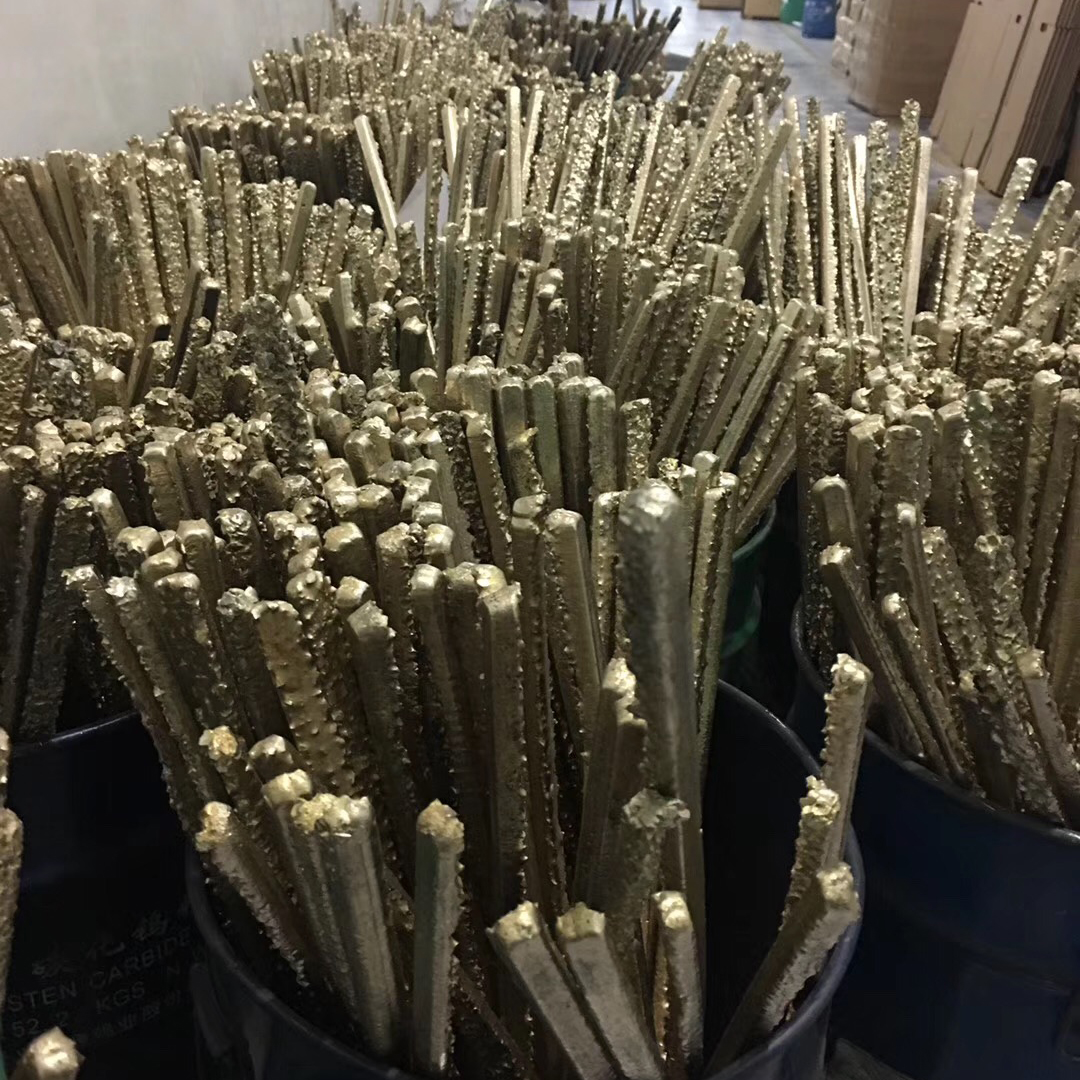

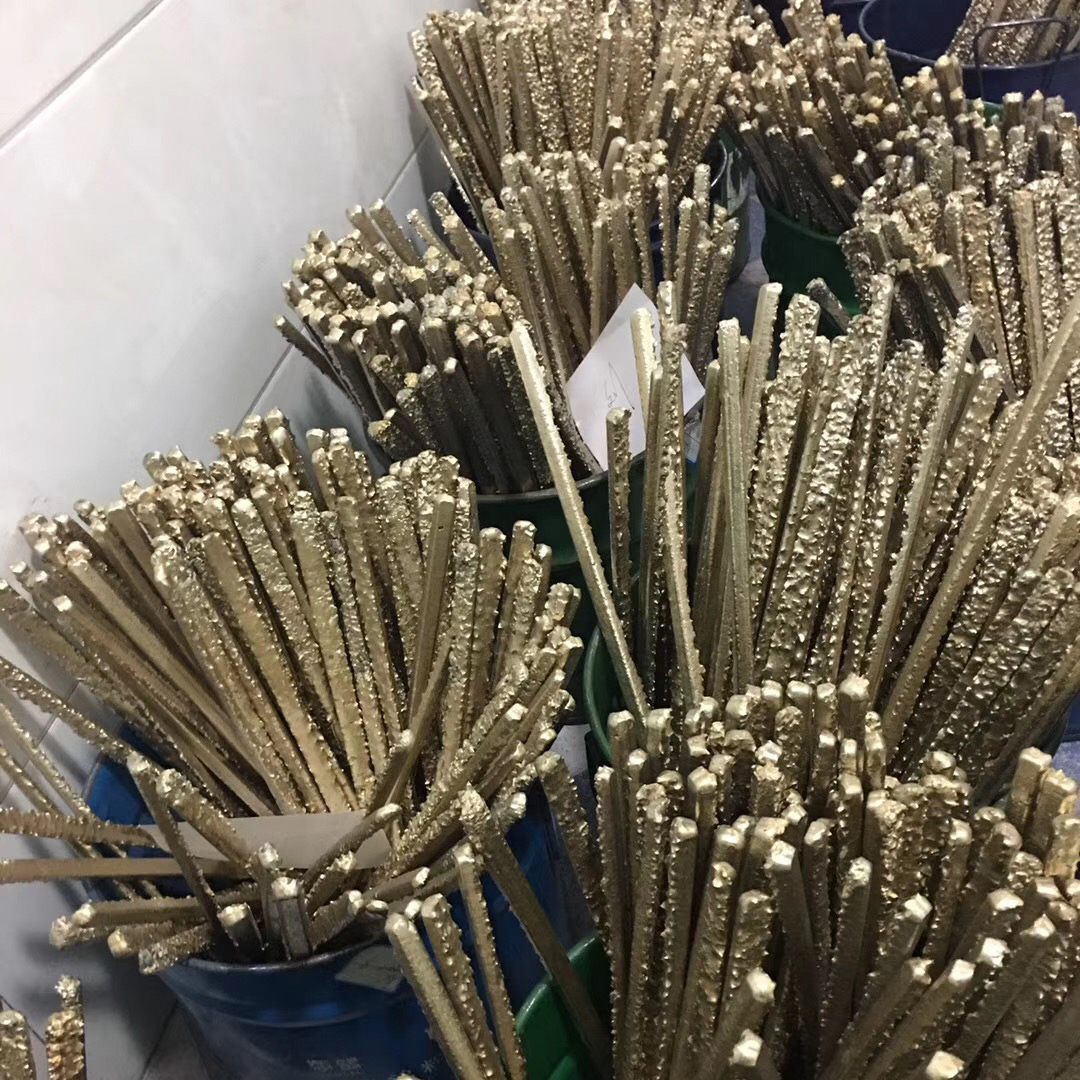

DETAIL PIC:
The deposit offers a very high wear resistance. The alloy system offers a unique re-application capability where previously coated but now worn tools can easily be refurbished.Typical applications are down hole tools such as stabilizers, hole openers and reamers, gauge applications on casing mills and other milling tools.
