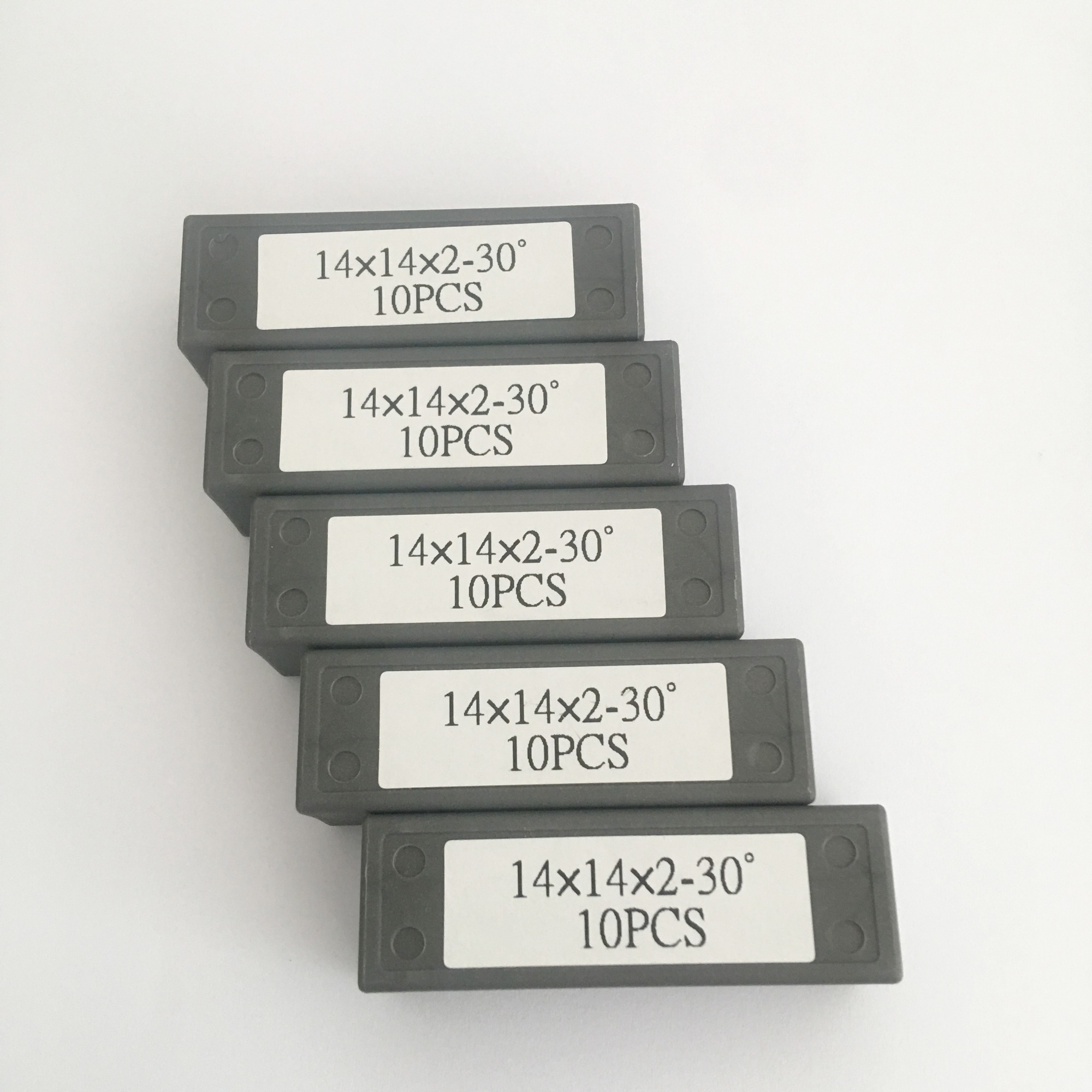

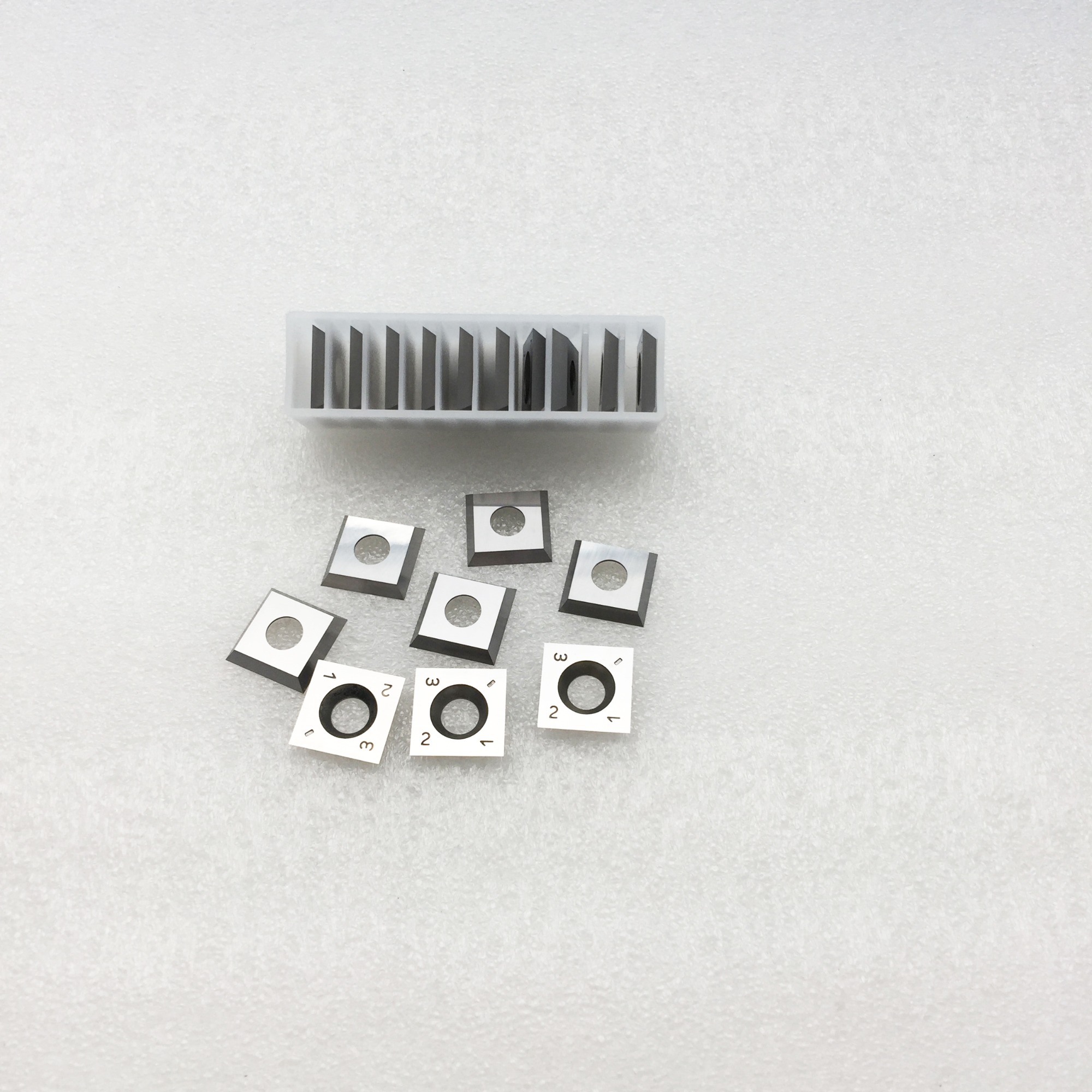

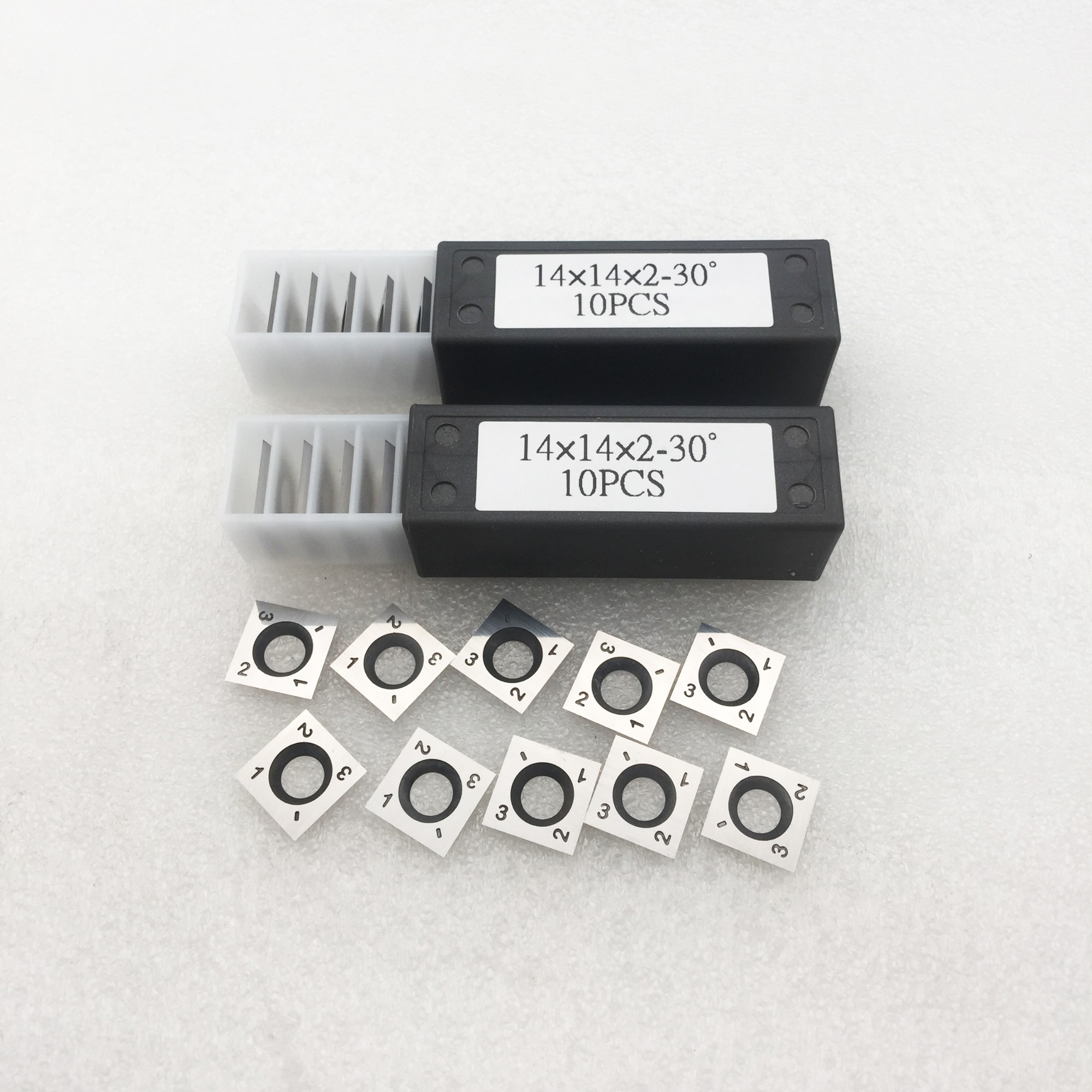

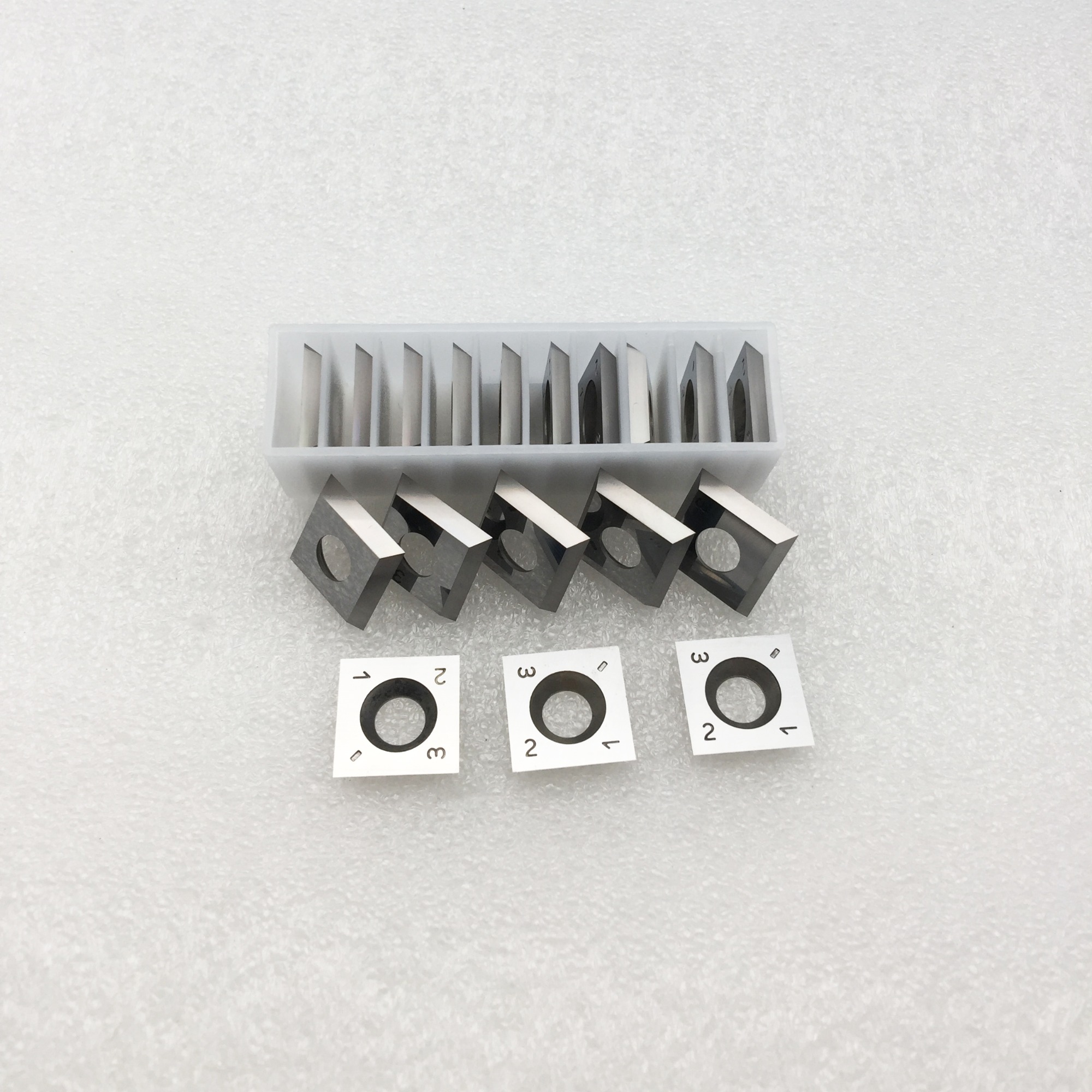

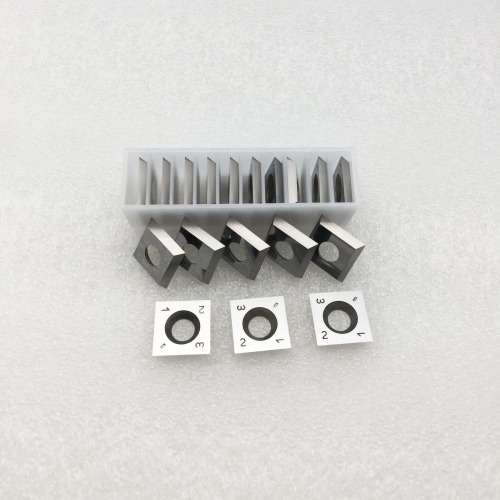

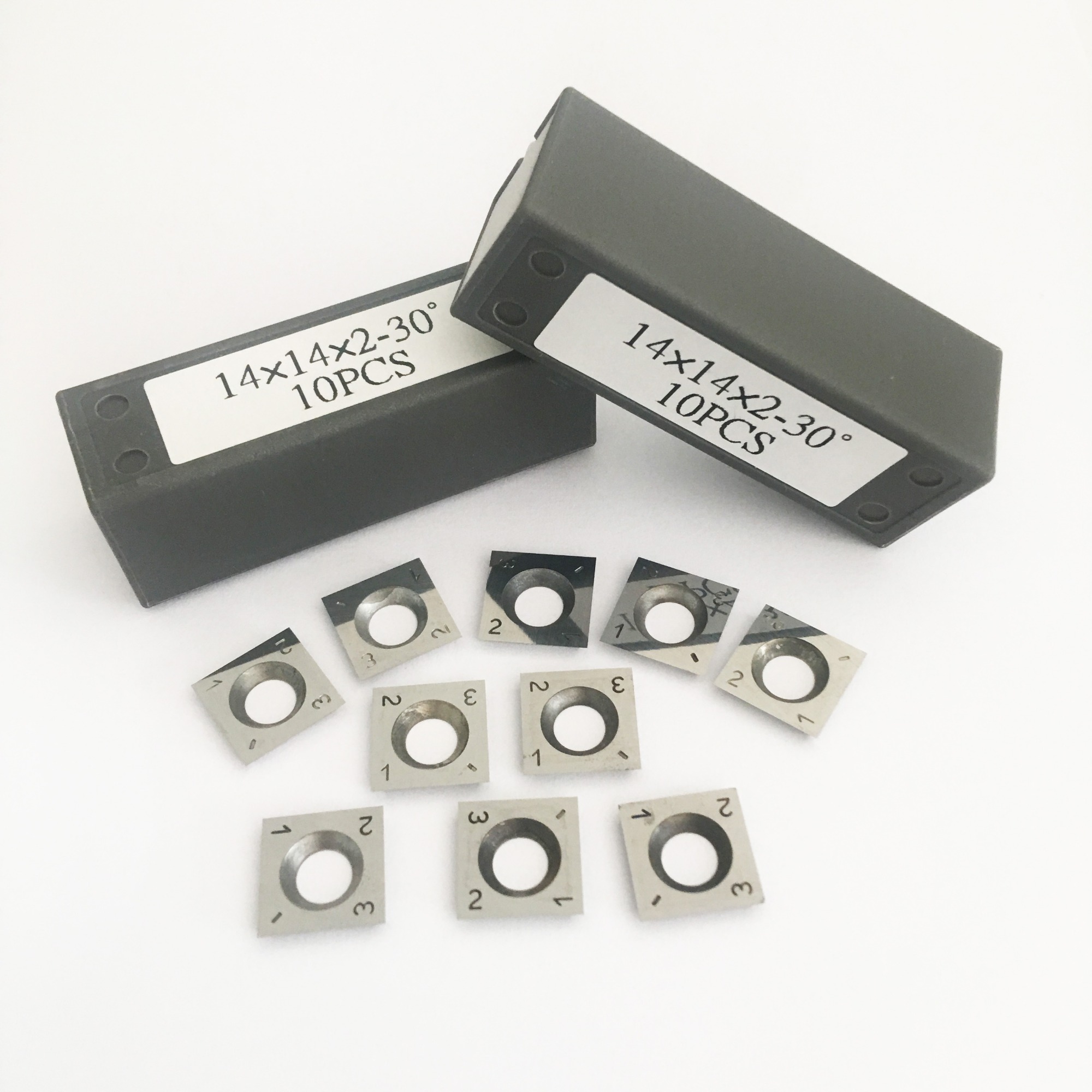

The indexable inserts have four cutting sides so the edges can be rotated to expose a new cutting edge when dull or chipped, resulting in very little down time and huge savings over conventional carbide cutters. The solid carbide inserts we use are extra thick and heavy-duty. Sold in a pack of 10, each insert measures 14mm x 14mm x 2.0mm.

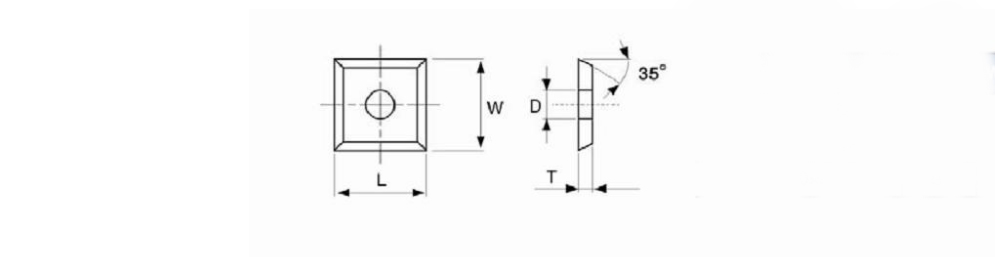

| L | W | T | D | Description |
| 10.5 | 10.5 | 1.5 | 4.2 | 4 sided,1 cone hole,35° |
| 11.0 | 11.0 | 2.0 | 4.2 | 4 sided,1 cone hole,30° |
| 4 sided,1 cone hole,30°,R50 |
||||
| 12.0 | 12.0 | 1.5 | 4.0 | 4 sided,1 hole,35° |
| 12.0 | 12.0 | 2.2 | 4.0 | 4 sided,1 hole,35° |
| 14.0 | 14.0 | 1.2 | 4.0 | 4 sided,1 hole,30° |
| 14.0 | 14.0 | 2.0 | 4.0 | 4 sided,1 hole,30° |
| 4 sided,1 hole,30°,R150 |
||||
| 14.0 | 14.0 | 2.5 | 4.0 | 4 sided,1 hole,30° |
| 14.3 | 14.3 | 2.5 | 4.0 | 2 sided,1 hole, 50° |
| 4 sided,1 hole,30°/35° |
||||
| 14.6 | 14.6 | 2.5 | 4.0 | 4 sided,1 hole,30° |
| 4 sided,1 hole,30°,R150,4xR0.5 | ||||
| 15.0 | 15.0 | 2.5 | 4.0 |
4 sided,1 hole,30°/35°/37° |
| 4 sided,1 hole,30°, 4xR0.5 |
||||
| 4 sided,1 hole,30°,R50/R100/R150 |
||||
| 4 sided,1 hole,30°,4XR0.5,R50/R100/R150 |
||||
| 17.0 | 17.0 | 2.0 | 4.0 | 4 sided,1 hole,35° |
Quality Guaratee:All blades/knives from our factory are made from 100% virgin tungsten carbide raw materials.
|
Grade
|
Density (g/cm³)
|
T.R.S(N/m㎡)
|
Hardness(HRA）
|
Application
|
|
K10/C1/YG6X
|
14.9-15.1
|
≥1880
|
≥91.0
|
HDF/MDF,Plywood,wood
|
|
K20/C2/YG6
|
14.8-15.0
|
≥1800
|
≥90.0
|
HDF/MDF,Plywood
|
|
K40/YG10X
|
14.5-14.7
|
≥3200
|
≥91.5
|
HDF/MDF,Plywood,wood,hard wood
|
