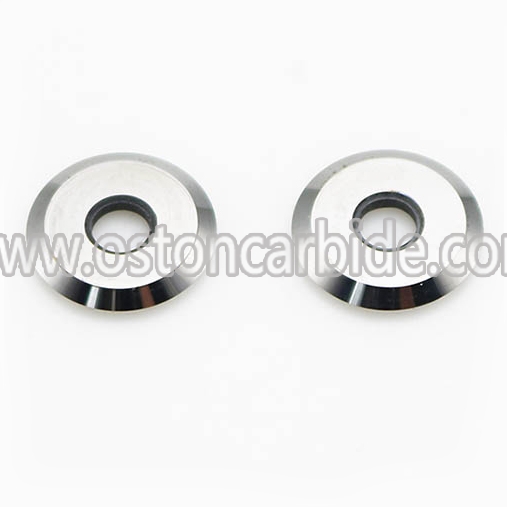

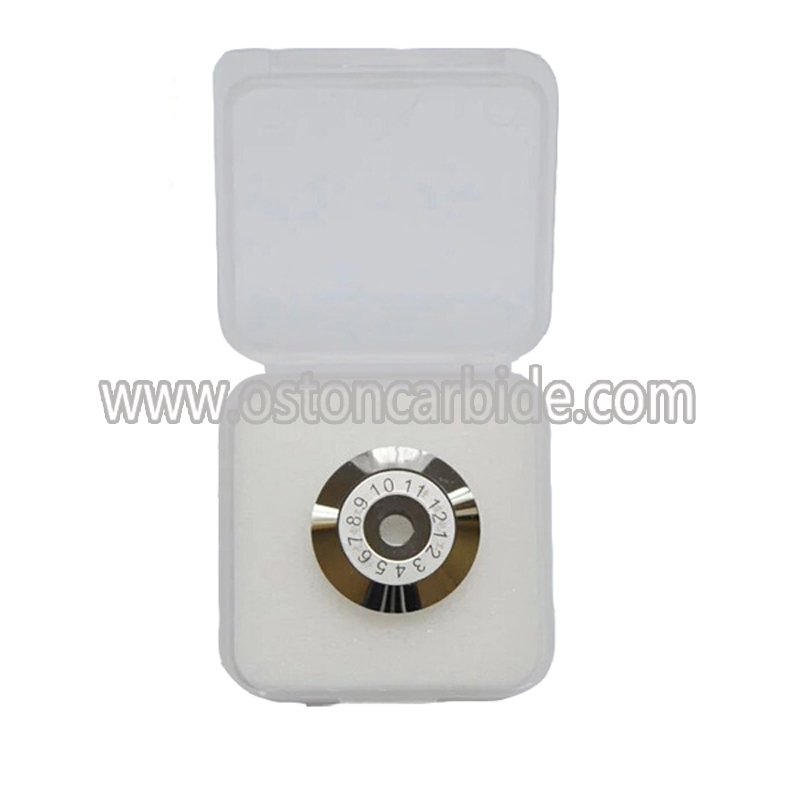

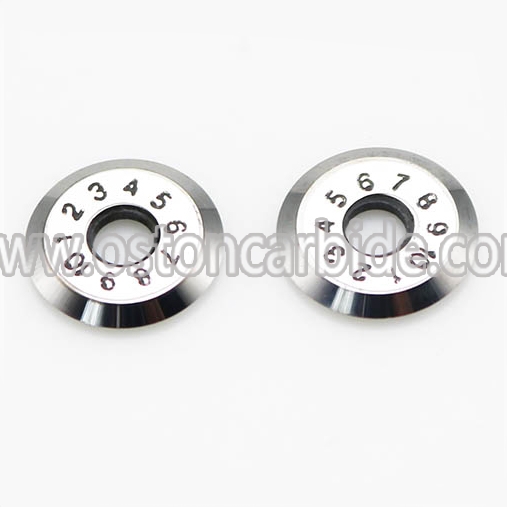

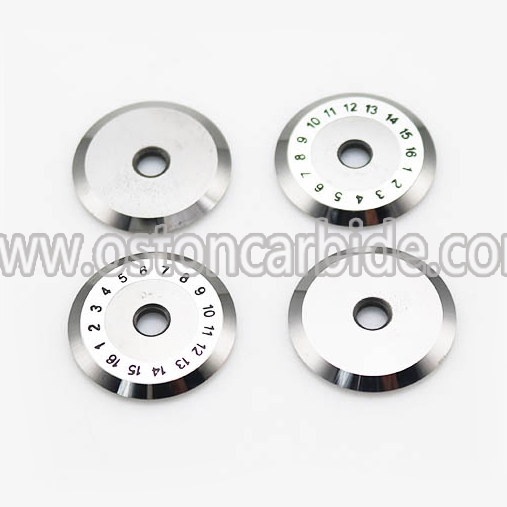

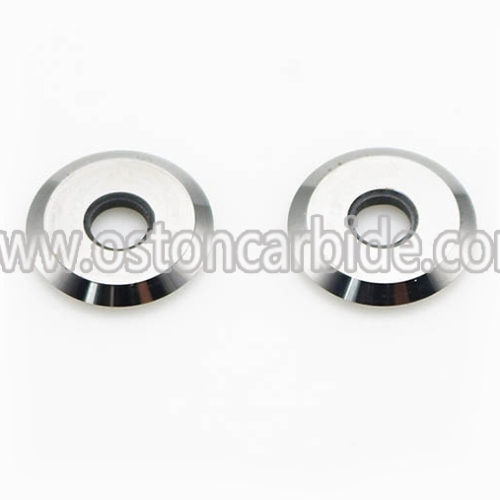

High Precision Tungsten Carbide Optical Fiber Cutting Wheel Used for Fusion Splicer Machine
The Optical Fiber Cutting Wheel is made of ultra-fine micro-grain tungsten carbide material and imported equipment for grinding. It has the characteristics of high hardness, sharp blade, long service life, smooth cut surface without scratches, burrs, etc.There are 12 or 16 positions, The cutting life of each position is more than 2500 times, and the cutting angle is less than 0.5 degrees. The product has ultra-high hardness, good wear-resistant quality, ultra-high-precision finish of the cutting edge, long processing life, and high cost performance. Tungsten Carbide Optical Fiber Cutting Wheels according to customer requirements are more than welcome too.
1.Good wear resistance with a long lifetime:Provides approximately 48,000 cleaves
2.High precision in cutting with an all-round mirror surface:Compact body& light weight
3.Applicable Fiber: diameter of 0.08-0.125mm ordinary single mode or multimode fiber quartz series fiber

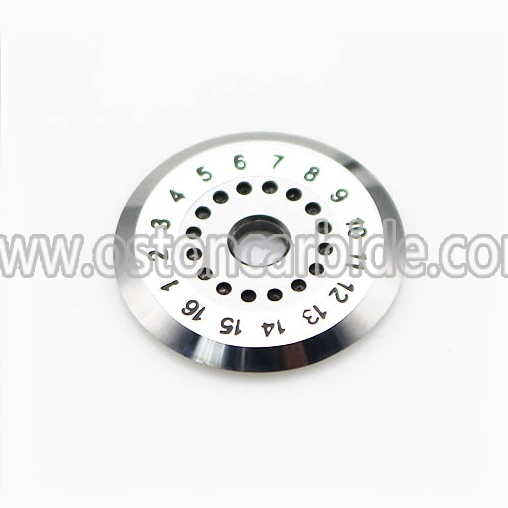

4.Fiber Count: Suitable for single fiber,12 Position Rotatable and Replicable Blade
5.End face angle: After cutting the fiber end face squareness ≤ 1Cleaving length:above cleave length 10mm
6.Working environment: 0 ~ 40 °C, 90% RH (40 °C no condensation)
Φ20*Φ4*3mm,
Φ20*Φ4*2mm,
Φ22*Φ4*2mm,
Φ22*Φ4*2mm with 16 holes,
Φ22.5*Φ4*2mm with 16 holes.
For S321, S323 and S325A cleavers
For cleaver models: S321, S323, S324, S310, S3152
For cleaver models:CT-O4B-SB, CT-04B, CT-03HT-06, CT-04, CT-07, CT-80B, CT-103, CT-104, CT-107, CT-02.
For CT-20 and CT-30 series fiber optic cleavers
For CT-07, CT-100B and CT-80B fiber optic cleavers
For FCP-22 and FC-6S high precision fiber optic cleaversFor VF-15,VF-15H,VF-78
