1. Tungsten carbide rods are important blank material for tungsten carbide cutting tools.
2. Carbide cutting tools are widly used for machining of various kind of metal.
3. They are also important tungsten carbide wear parts in machinery field.
4. Currently we're stably supplying carbide rods for more than10 professional cutting tools manufacturer
with stable quality and uncompromized price.

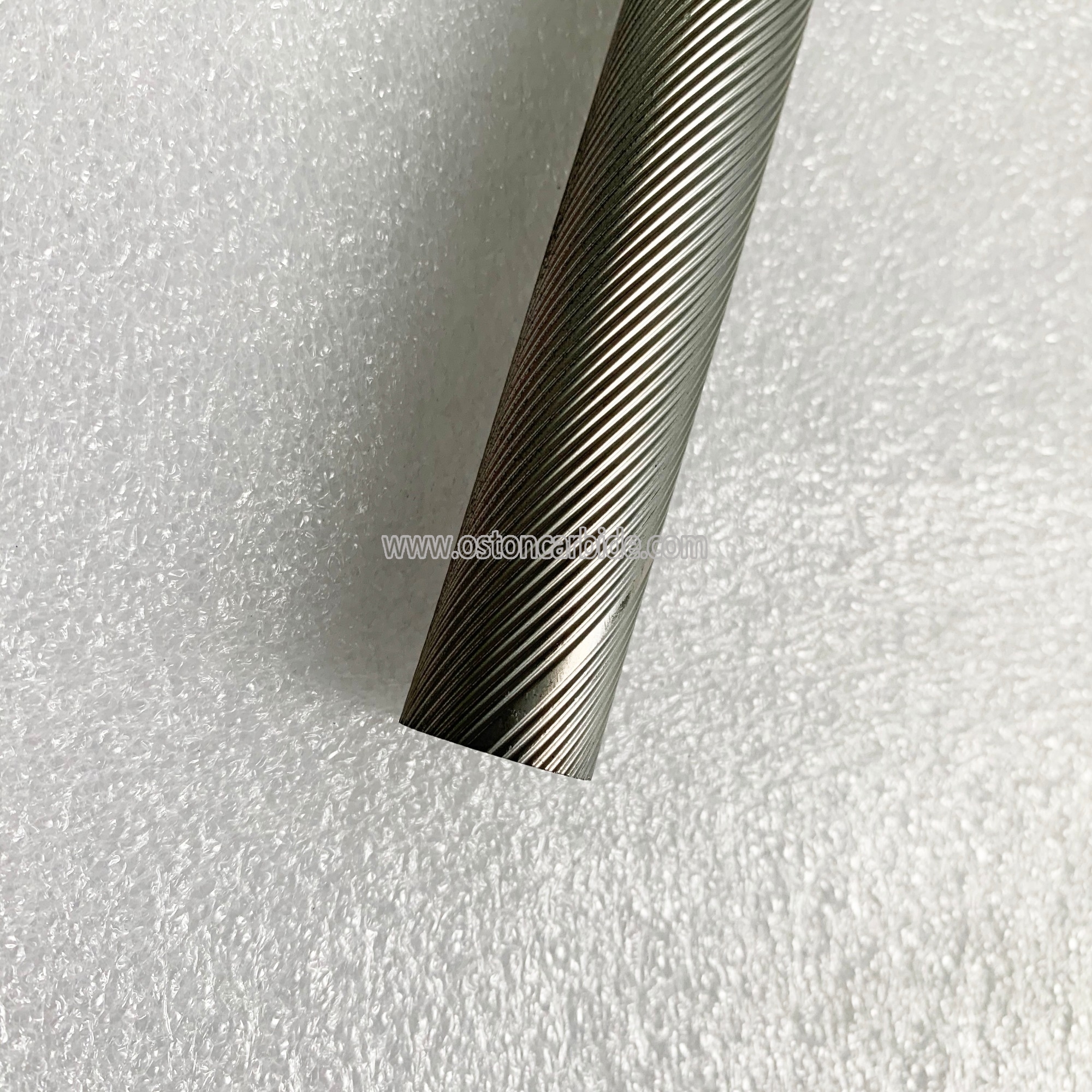

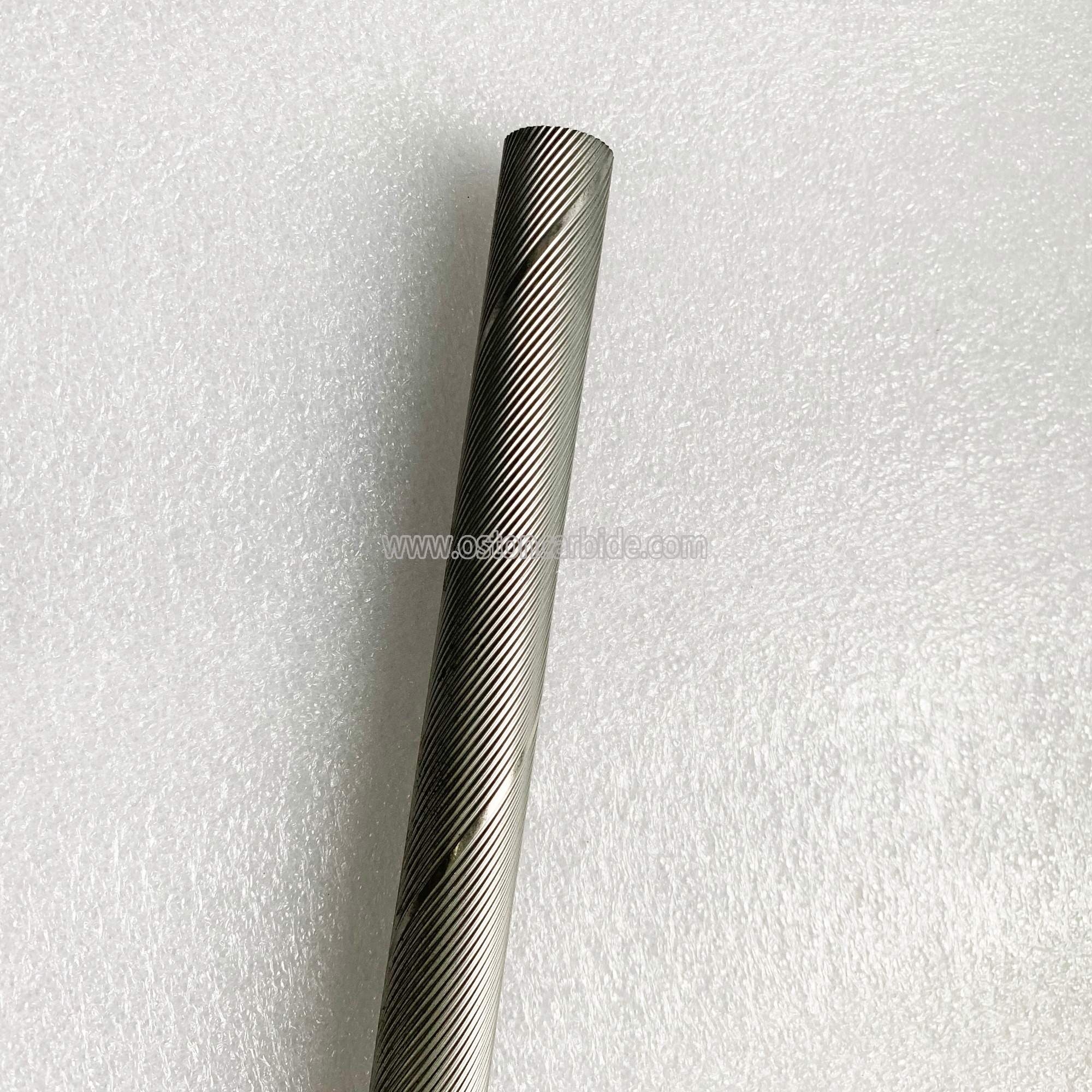

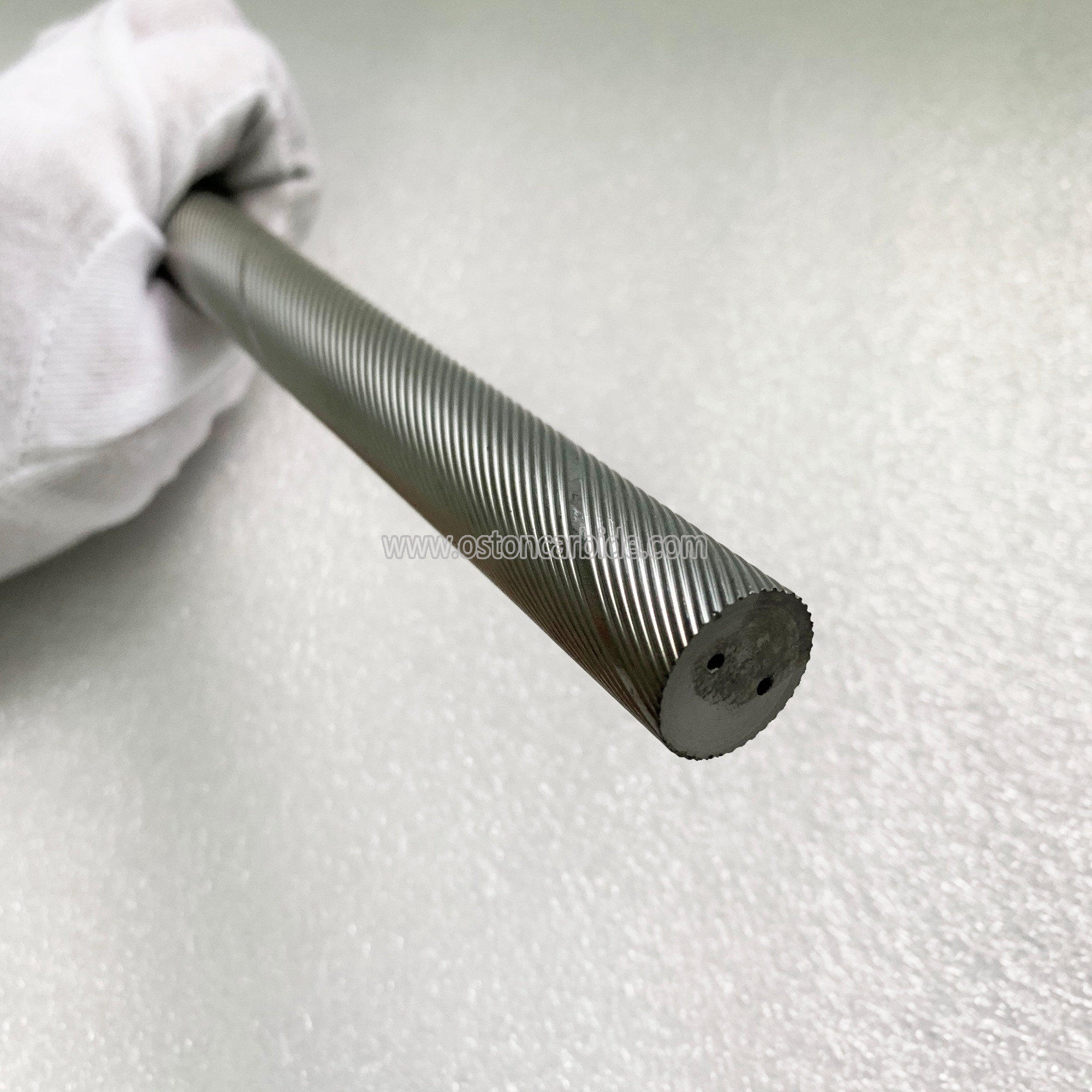

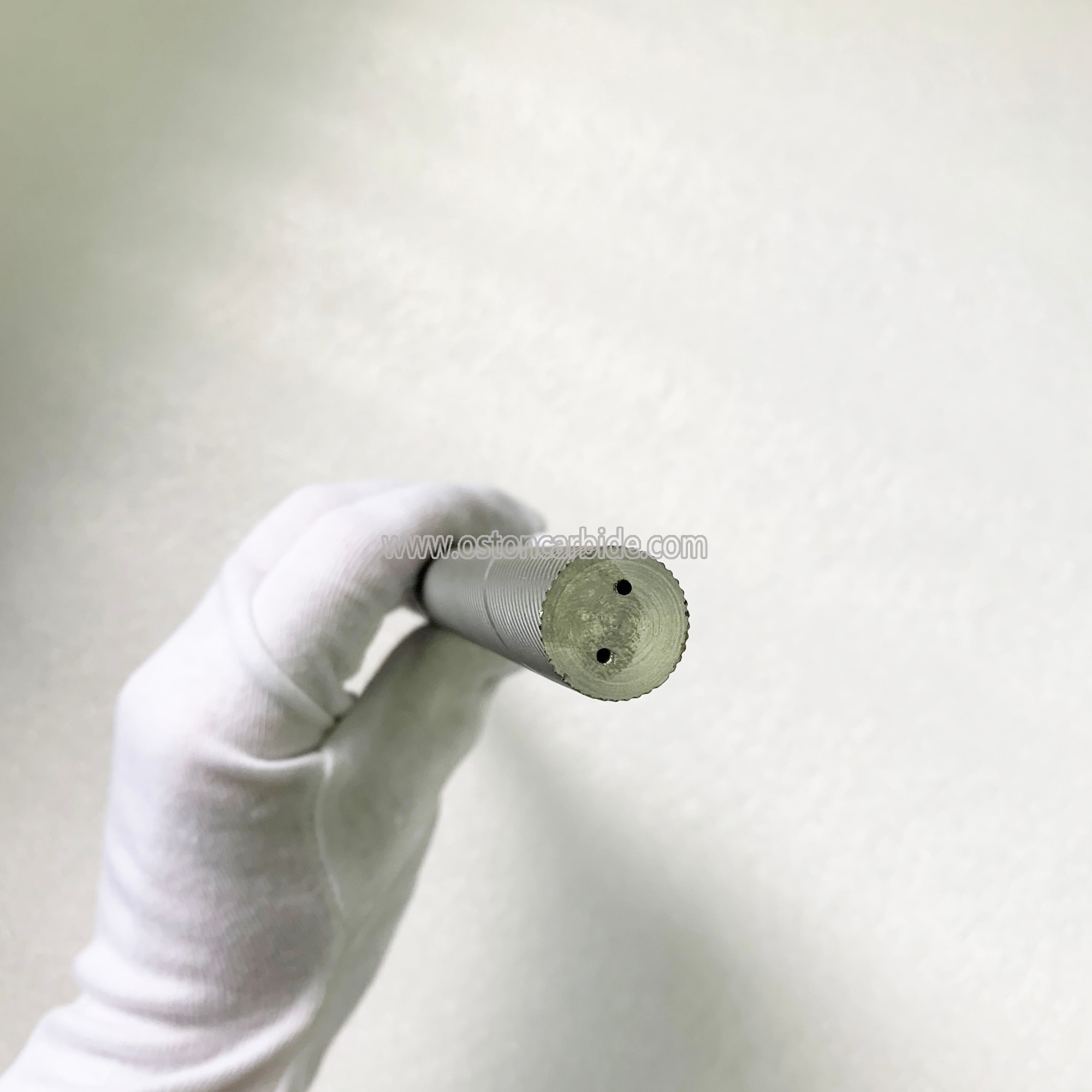

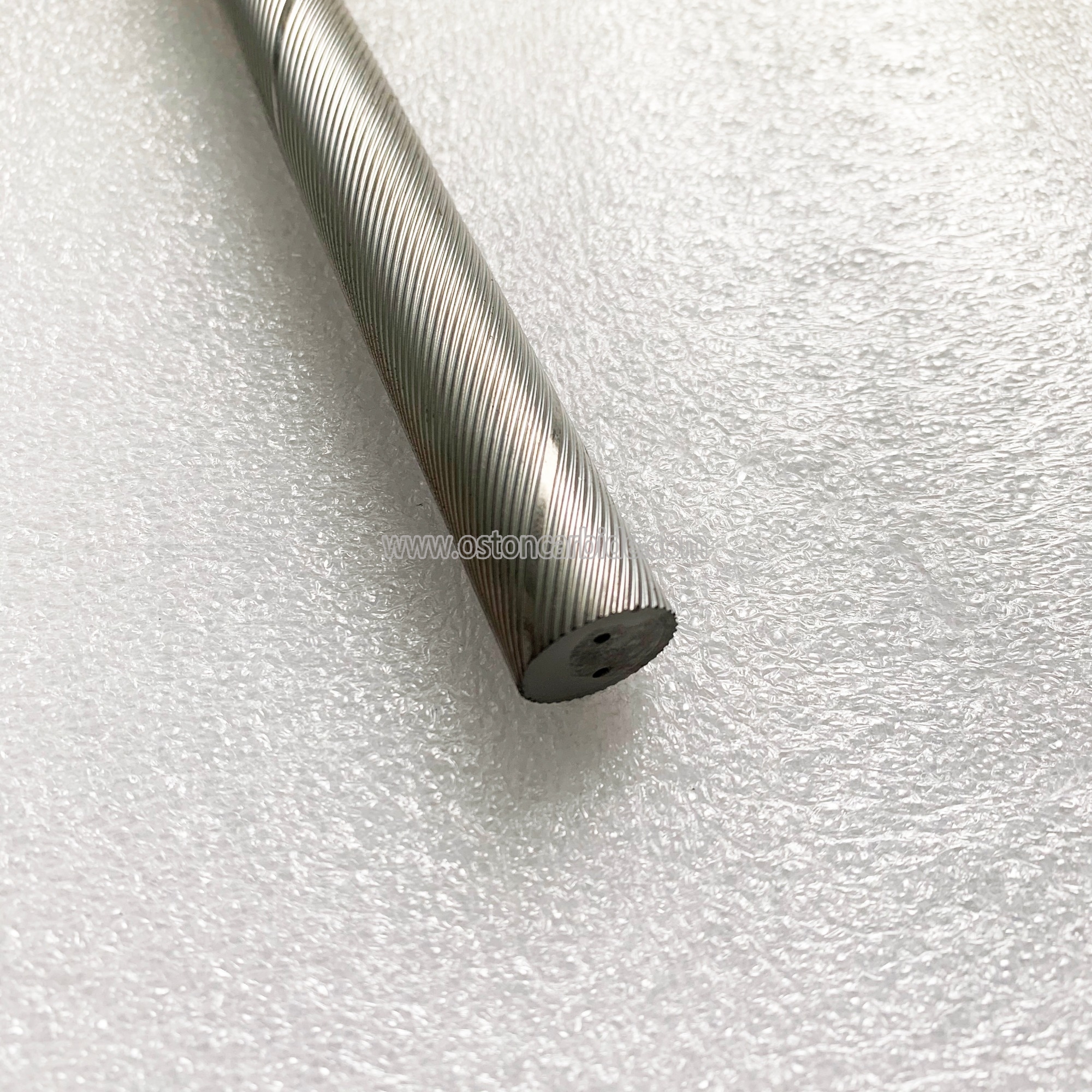

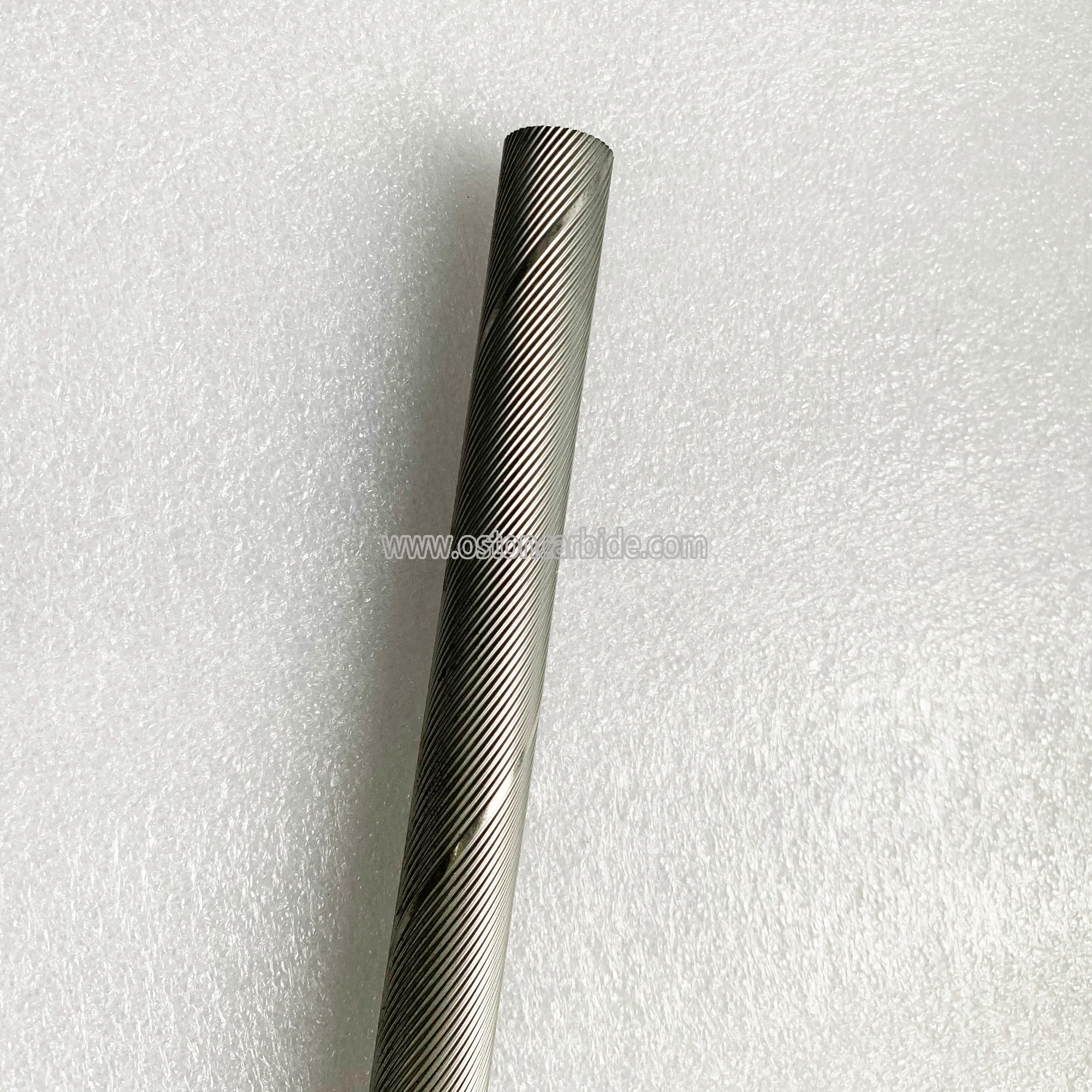

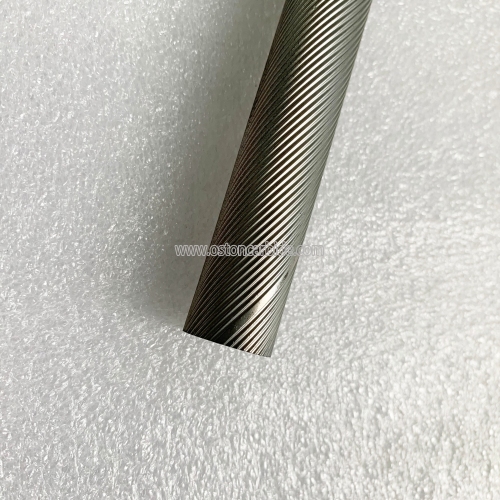

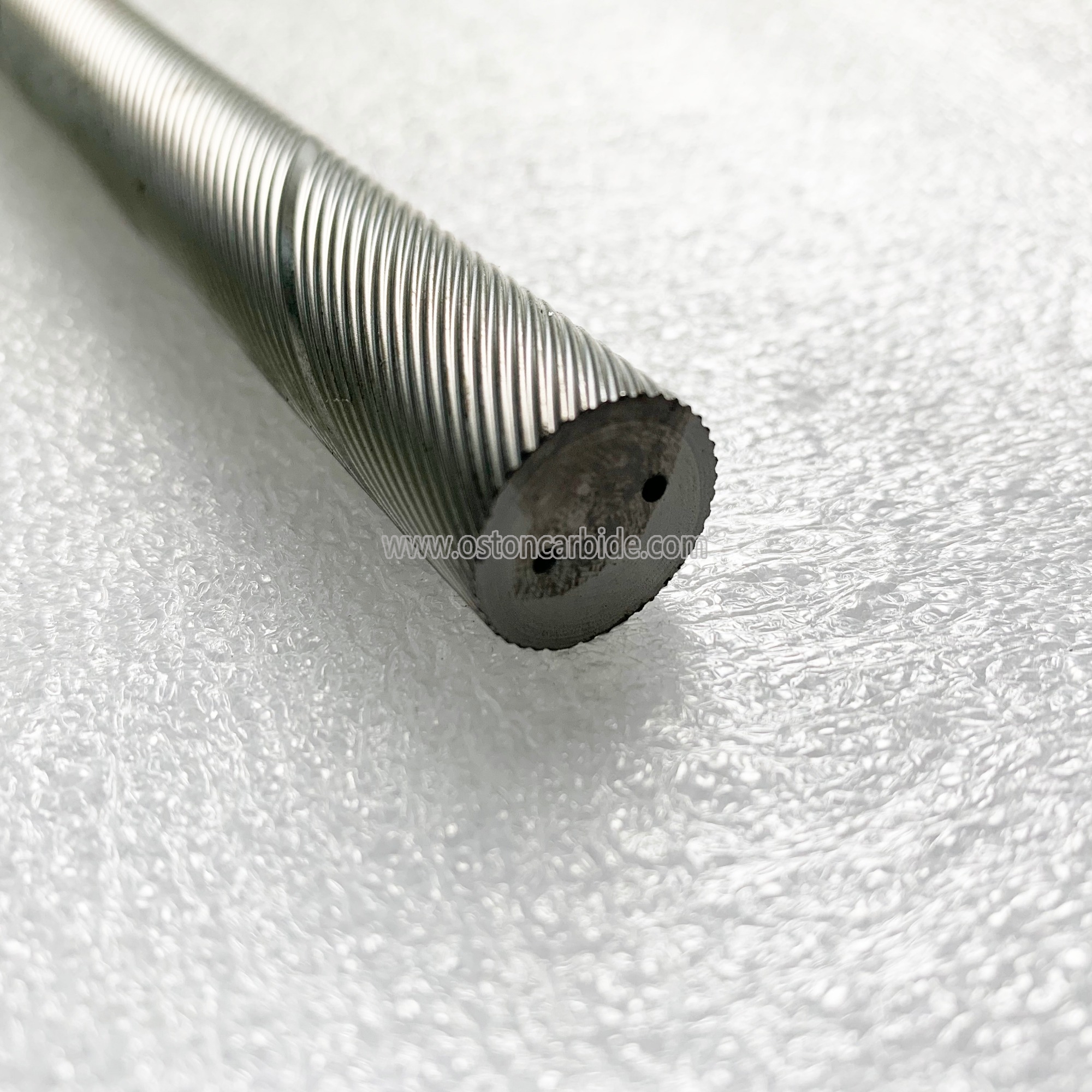

Please contact us for more information on carbide rods with coolant hole.
|
Dia(mm) |
Tol of Dia (mm) | Length(mm) | Tol of Length(mm) |
|
0.5-12 |
+0.2/+0.4 | 1000/330/300/100 | 0/+5.0 |
|
12.5-20 |
+0.3/+0.6 | 1000/330/300/100 | 0/+5.0 |
|
20-40 |
+0.4/+0.8 | 1000/330/300/100 | 0/+5.0 |
|
Grade |
ISO code |
Grain size |
binder |
Density |
Hardness HRA |
T.R.S |
Fracure Resistane |
Application |
|
OST10 |
K10 |
0.8 |
6 |
14.9 |
≥92.6 |
≥2800 |
8.6 |
Recommended for PCB drilling and milling.Widely used for magnesium alloy,glass fiber,wood,hard plastic,iron based alloy and etc. |
|
OST25 |
K30-K40 |
0.8 |
10 |
14.4 |
≥91.5 |
≥3600 |
10.7 |
With both toughness and wear resistance,it’s economical grade for general cutting tools. |
|
OST15F |
K30-K40 |
0.7 |
10 |
14.5 |
≥91.8 |
≥4200 |
10.8 |
With Excellent versatility,it's used for overall carbide cutting tools for carbon steel,cast iron,stainless steel,heat-resistant steel,nickel-based and titanium alloys and other materials. |
|
OST12 |
K40 |
0.7 |
12 |
14.13 |
≥91.4 |
≥3800 |
10.8 |
With ultra high impact strength and long working life,suitable for cutting tools for steel hardness over HRC50. |
|
OST12UF |
K40 |
0.6 |
12 |
14.15 |
≥91.5 |
≥4400 |
12.0 |
With ultra high impact strength and long working life,specially recommended for cutting tools for high speed stainless steel processing. |
|
OST25UF |
K40 |
0.5 |
12 |
14.15 |
≥92.3 |
≥4300 |
12.0 |
High hardness and high T.R.S,which is perfect material for high speed milling for nickle-based alloy,titanium alloy,stainless steel,hardened steel,gray cast iron and other intractable materials. |
|
OST30M |
K30-K40 |
1.5 |
15 |
14.2 |
≥87.5 |
≥3200 |
8.7 |
Recommended for punching moulds and punching tools. |
1.Tungsten carbide rods are carbide blank material of various carbide cutting tools,include carbide micro
drills,carbide reamers,carbide endmills,etc.
2.Tungsten carbide rods are used as carbide wear parts for machinery accessory.
3.Tungsten carbide rods are used as rotors,carbide pins,carbide scriber pins,etc.
