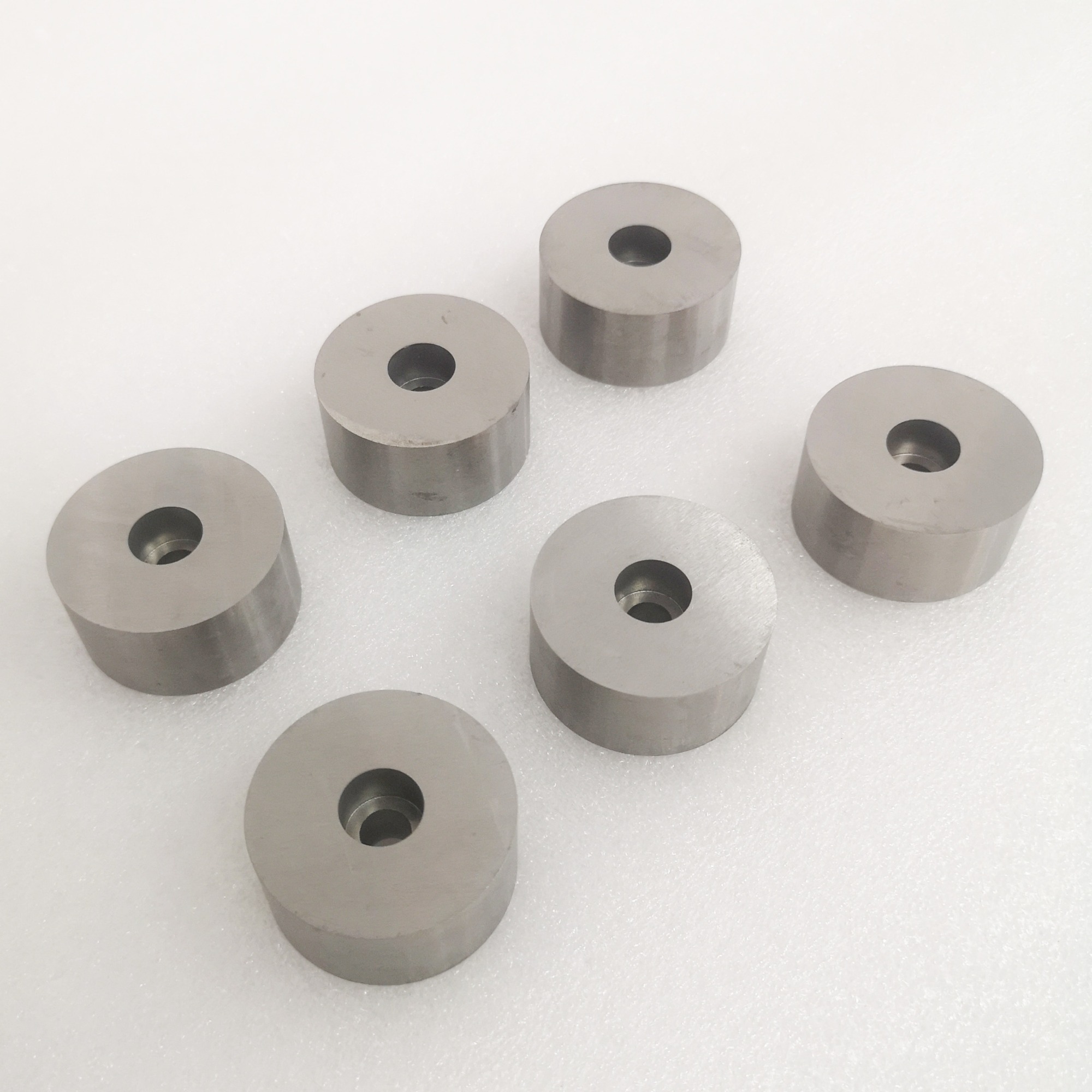

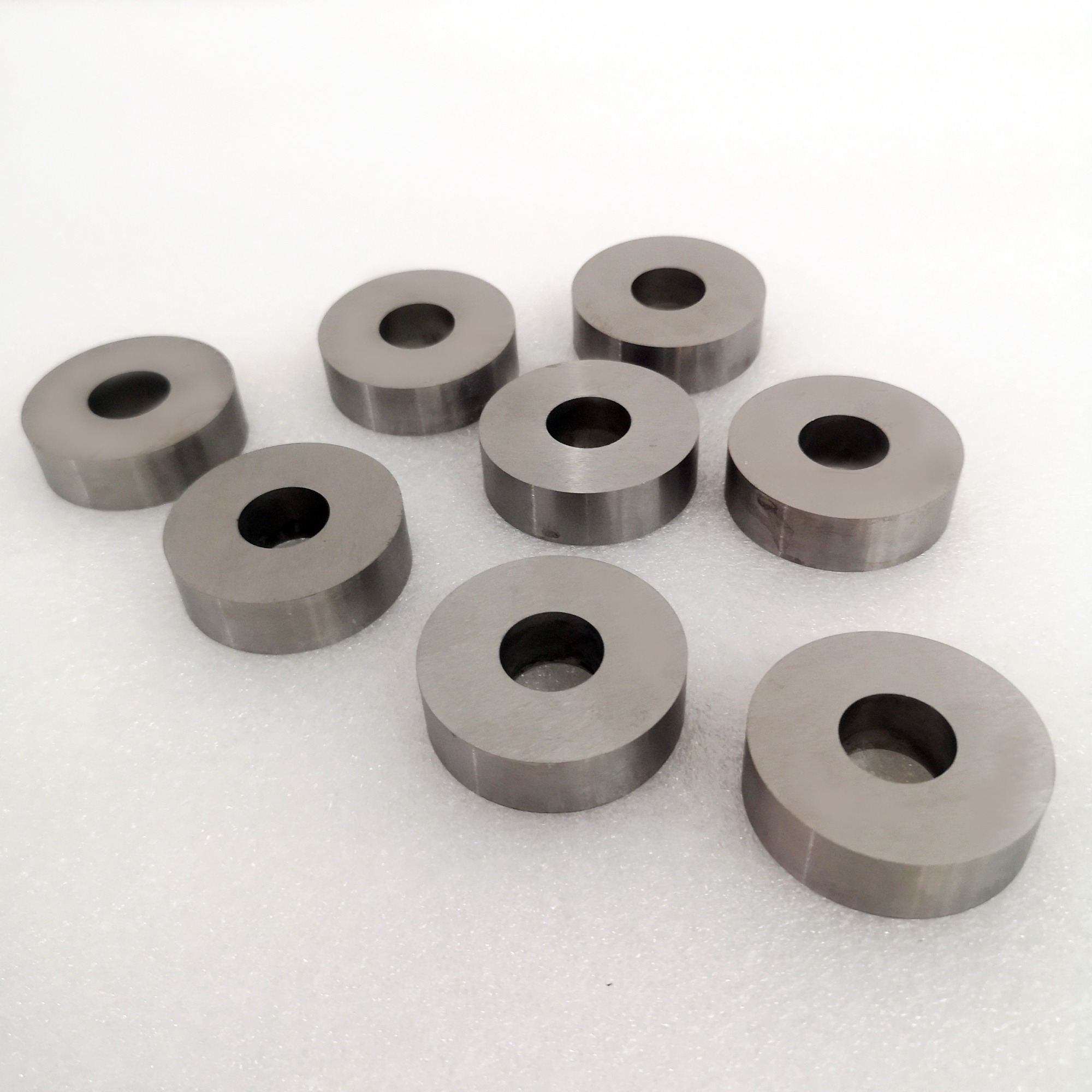

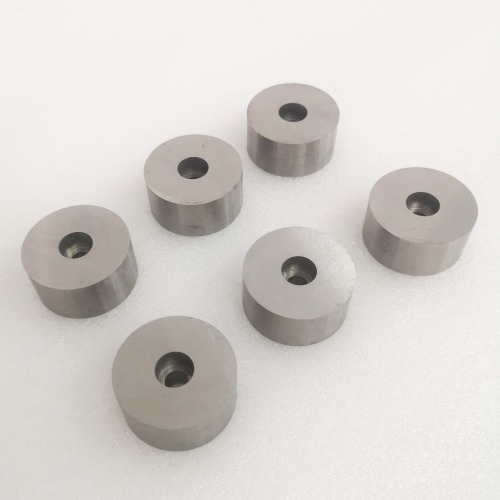

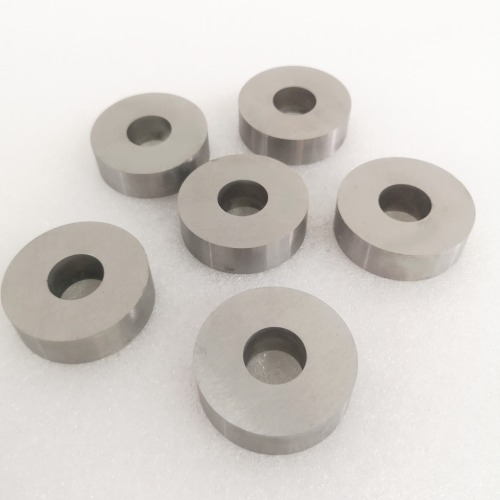

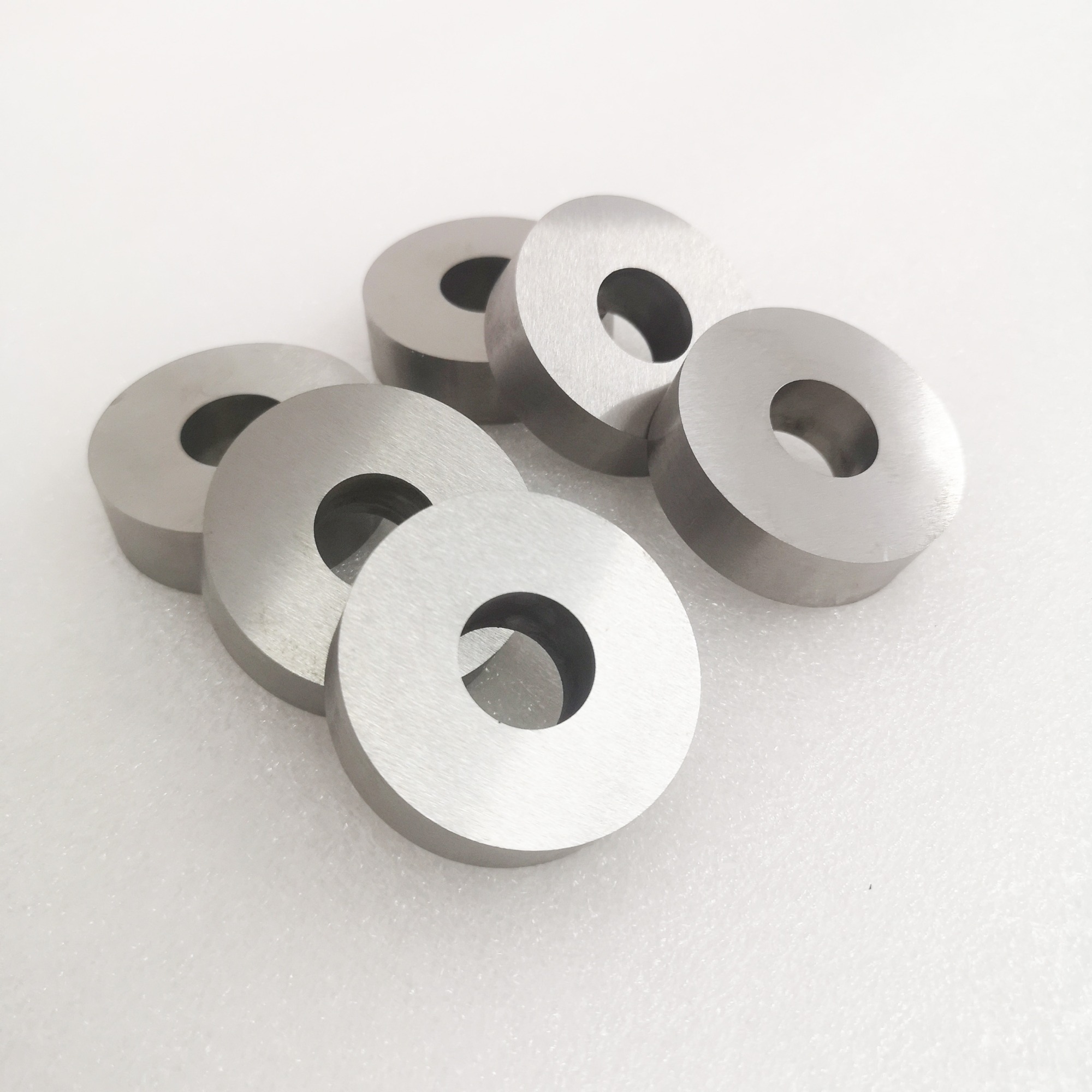

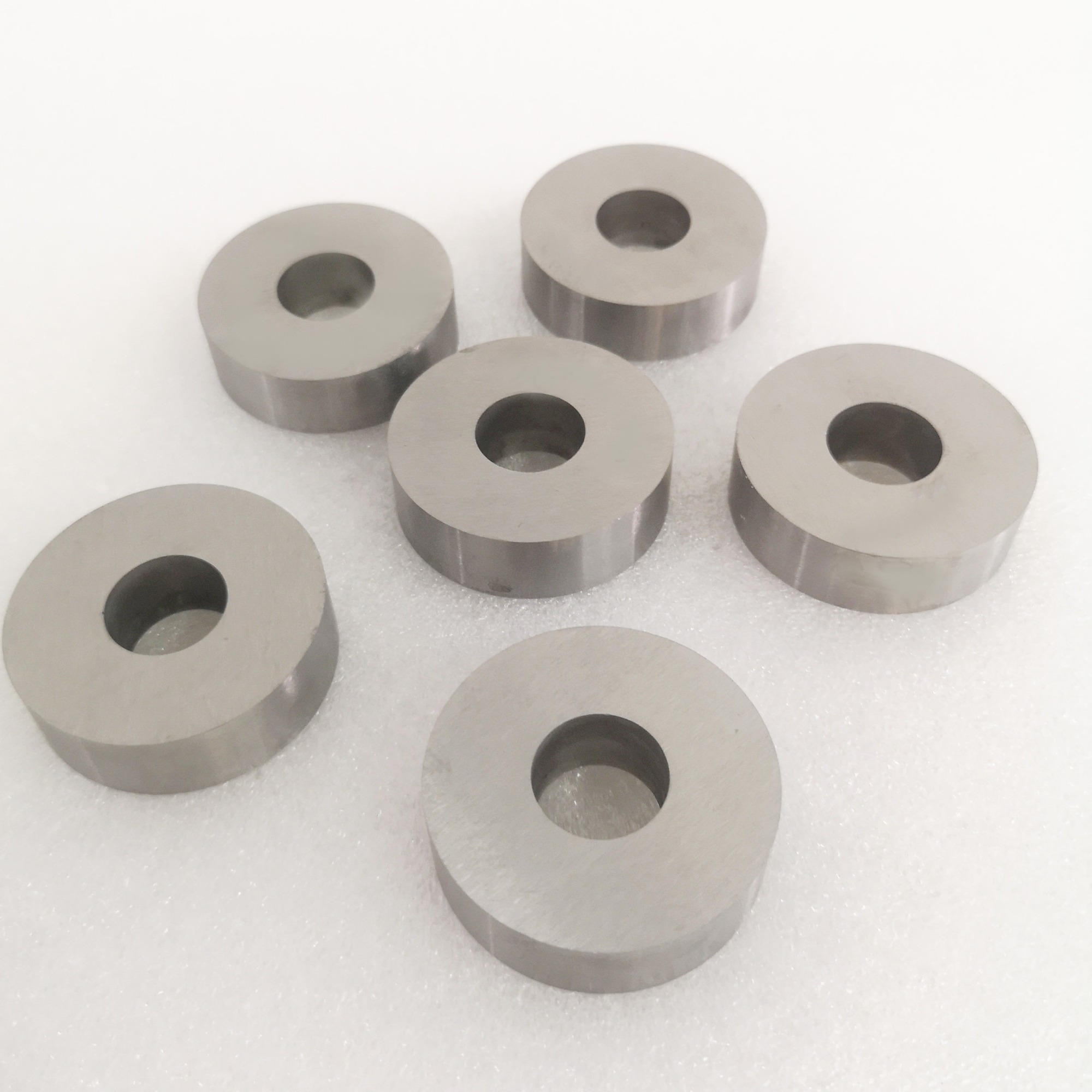

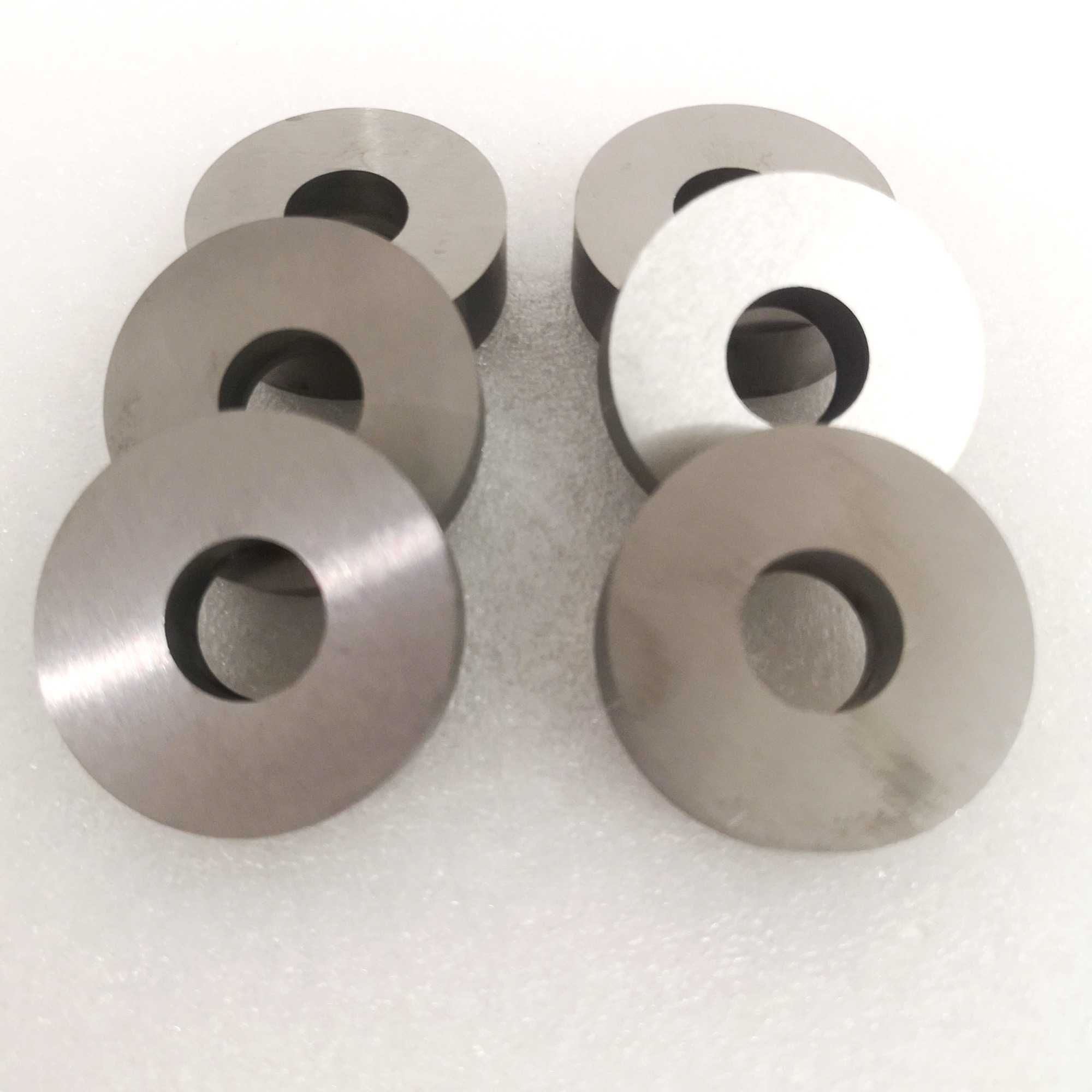

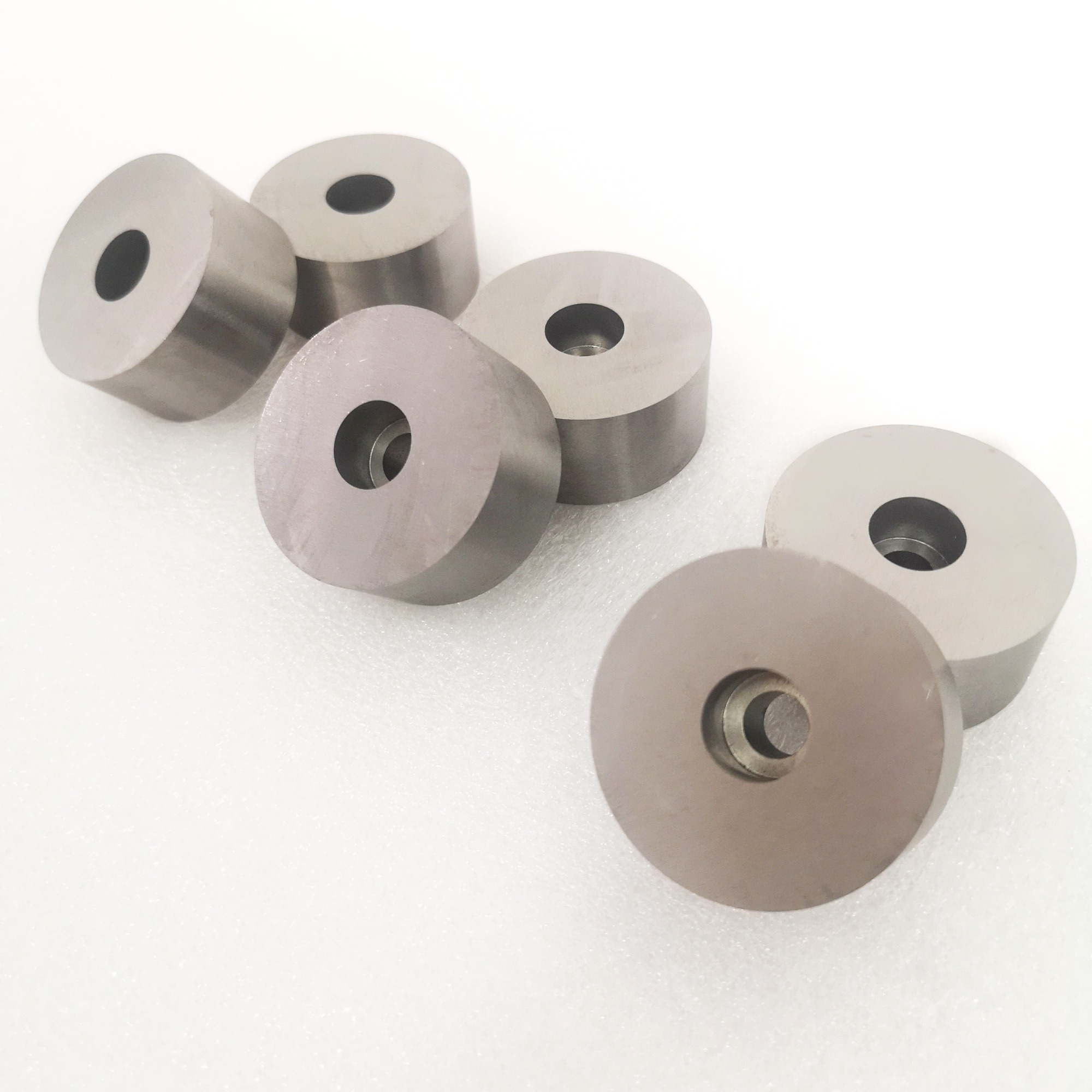

Durable Tungsten Carbide Cold Heading Dies Blank Cemented Carbide Stamping Die
Tungsten carbide dies can be divided into four categories according to use:
1.Tungsten carbide anvil
2.Tungsten carbide drawing dies (such molds accounted for the vast majority of tungsten carbide die.)
3.Cold heading, cold punching, forming and shaping dies
4.Non-magnetic die
5.Hot tungsten carbide die
Please contact us to confirm the specific dimension list.
| Sr.No | OD(mm) | ID(mm) | H(mm) |
| 1 | 5.0-9.0 | 0.5-3.0 | 2-60 |
| 2 | 10.0-20.0 | 0.5-9.0 | 2-70 |
| 3 | 21.0-50.0 | 0.5-20.0 | 2-70 |
| 4 | 51.0-150.0 | 0.5-40.0 | 2-70 |
Main grade grade YG20C,YG24C,YG25C
| Grade |
Grain size (um) |
Binder |
density (g/cm³) |
Hardness (HRA) |
T.R.S (N/m㎡) |
| YG20C | coarse | 20% | 13.50-13.70 | ≥83.0 | ≥2500 |
|
YG22C |
coarse | 16% | 13.90-14.10 | ≥84.5 | ≥2340 |
| YG23C | coarse | 18% |
13.70-13.90 |
≥83.5 | ≥2400 |
| YG24C | coarse | 24% | 13.20-13.40 | ≥82.0 | ≥2600 |
| YG25C | coarse | 25% | 13.00-13.20 | ≥81.0 | ≥2760 |
Customized size carbide blocks are available here,your inquiry will be more than welcome,work with us!
To offer you a correct and fast quotation, your details in the following questions about the carbide you needed will help a lot:
1. carbide grade
2. carbide type and application
3. detailed dimensions(it is better to have a technical carbide drawing)
4. carbide surface treatment
5. other requirements
Once your inquiry reached us, a competitive quotation will reach you in 24 hours.
