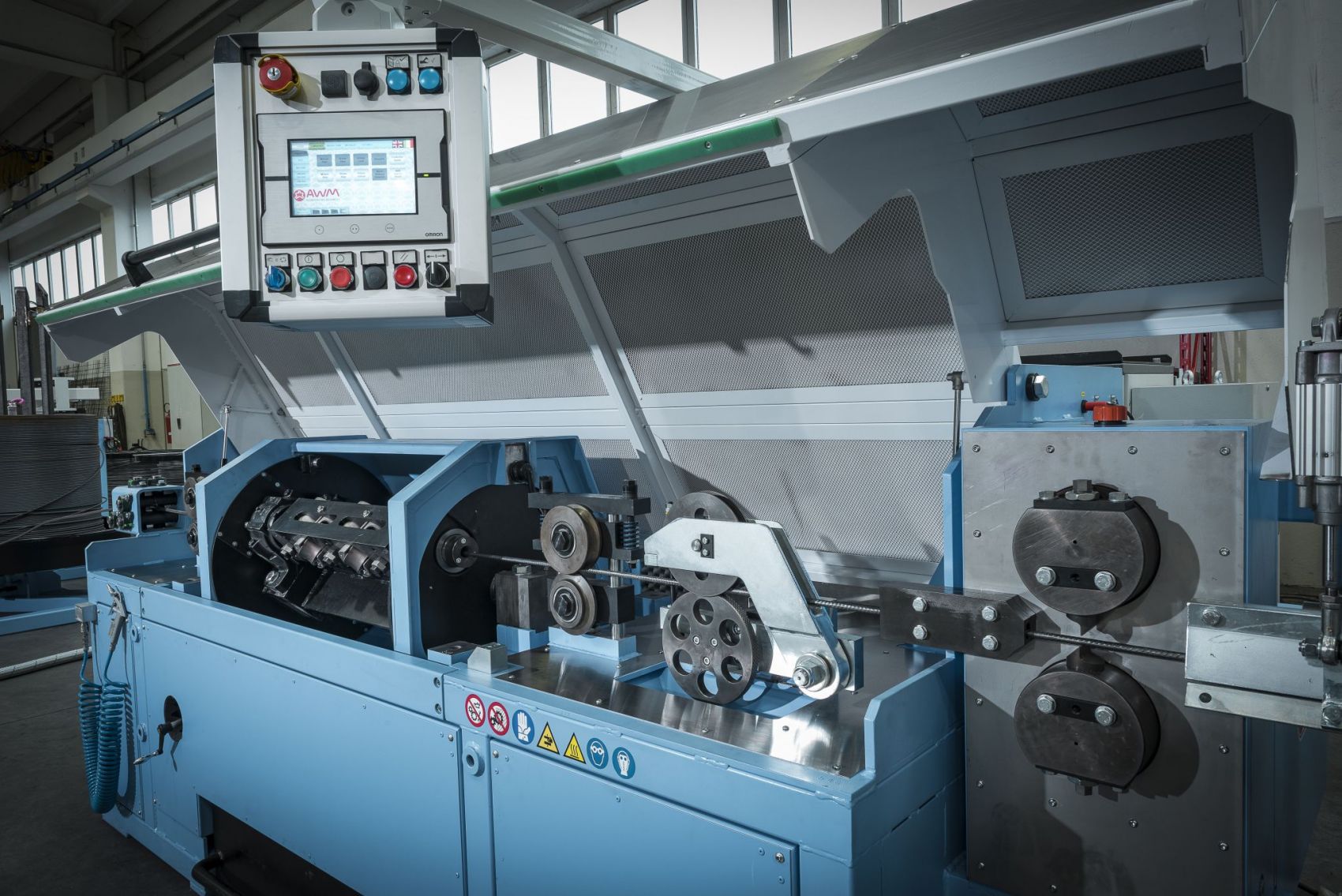

Tungsten carbide wire straightening die,also called tungsten carbide guide cam, is a important wear part of wire straightening machines,which is necessary process for wire drawing operation,tube drawing operations,wire rolling operations and ,wire winding operations,the tungsten carbide straightening dies and cams provide excellent wear resistance in a variety of sizes for your wires,tubes,wire meshes and reinforcement rebar production.
Currently there are three main material for straightening dies and guide cams,they are iron steel,carbide cast in steel case and whole carbide.

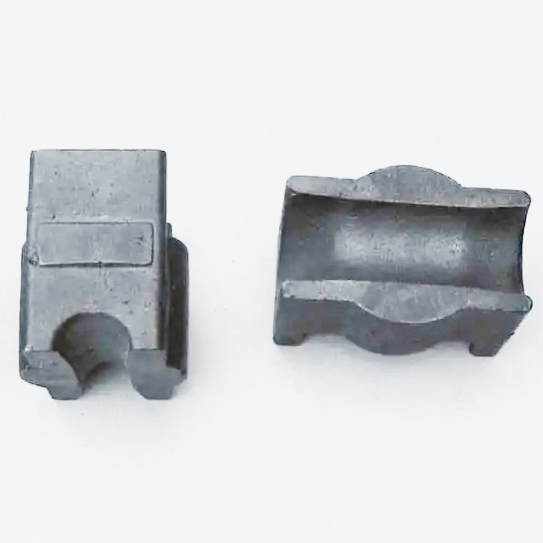

Iron steel is the traditional material for this part,which is cast with large quantity basis,and it is usually supplied by the equipment manufacturers,which is with very good price but it wears out quickly,and it always deforms under high impact brought by the wire ,this material is being replaced by new material day by day.
Tungsten carbide cores embedded in steel case is the high ratio-performance material choice,the wire straightening die cores are made from tungsten carbide,and it is welded in the tool steel case by copper brazing,in this way it combines the strong wear resistance of tungsten carbide and low cost of tool steel.this part can meet most of needs on wire straightening machine except for some large diameter reinforcing steel wire straightening process,but the welding quality differs a lot too,sometimes the tungsten carbide die cores fall out if they are not welded properly.

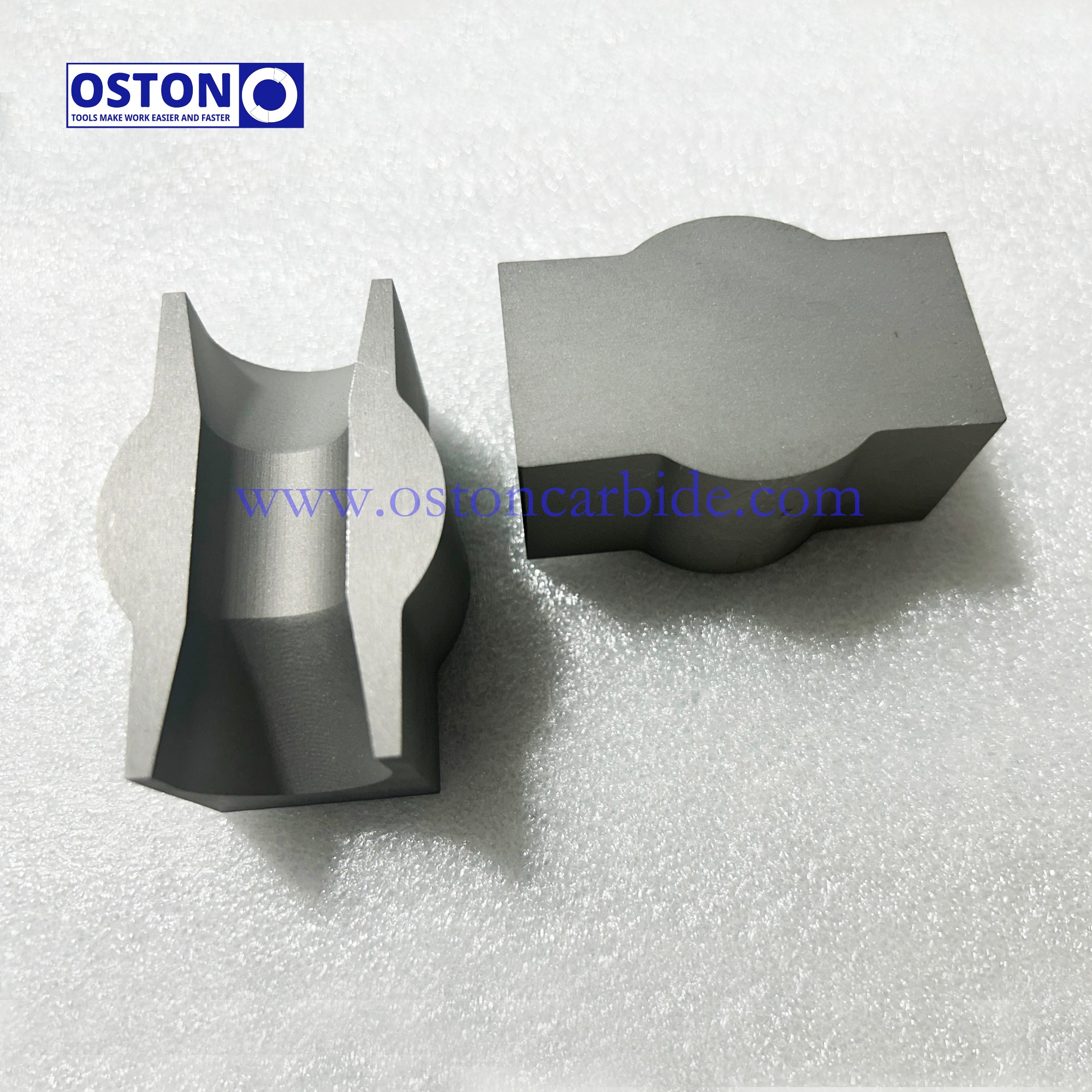

Don’t bother to replace the guide cam frequently,whole tungsten carbide guide cam is a perfect choice with long lasting service life and the tungsten carbide core is without any risk of falling out,and they are also recommended for some small dimension tungsten carbide guide cam,which cost similarly with the embedded one,but with much better performance.
Oston Carbide supply these straightening dies and guide cams with various dimensions,standard and customized ones,these straightening dies are available sandblasted or polished and can be adjusted according to the wire diameter. Our global customers come to us not only for our quality and price, but also because of our quick lead times for producing any sized wire straightening die,welcome to contact us for more information.
